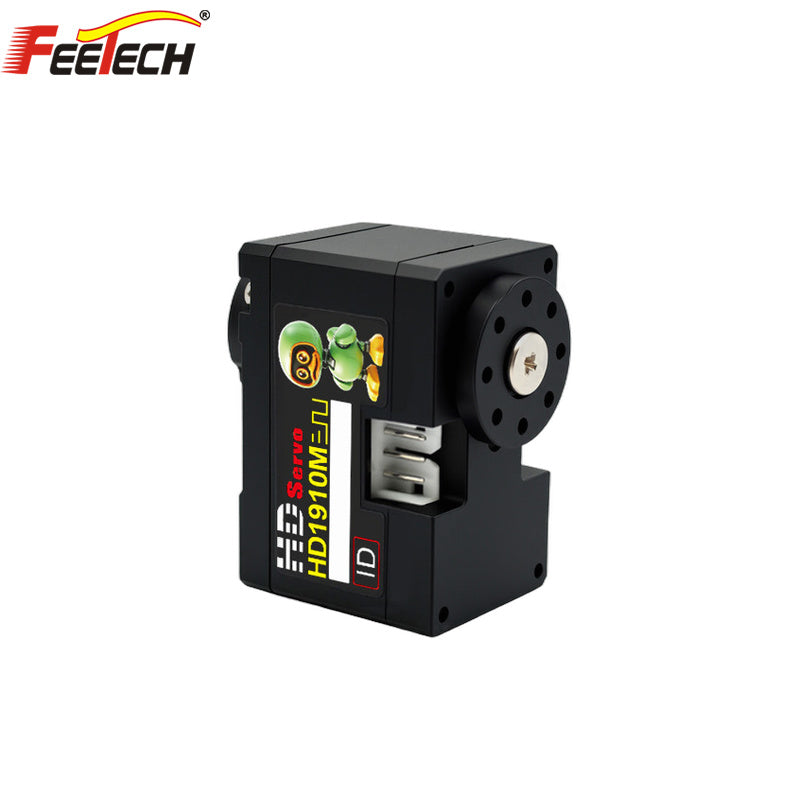

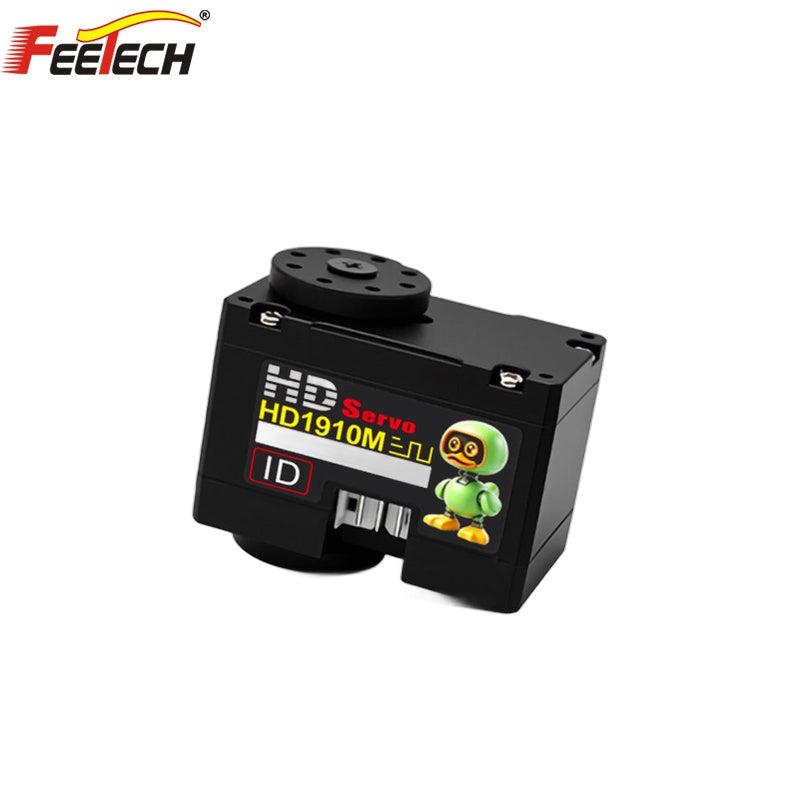

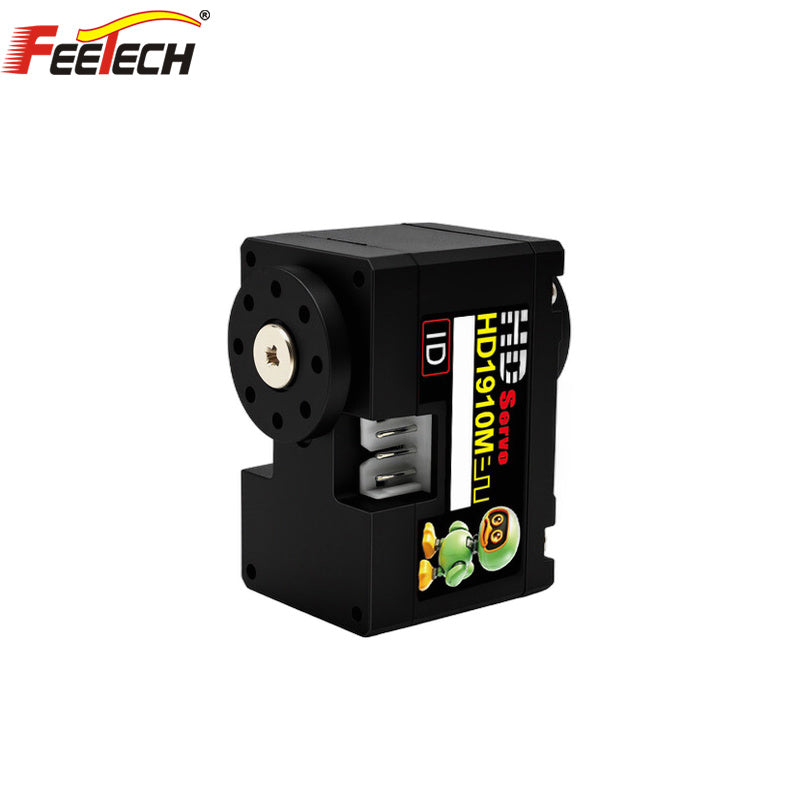

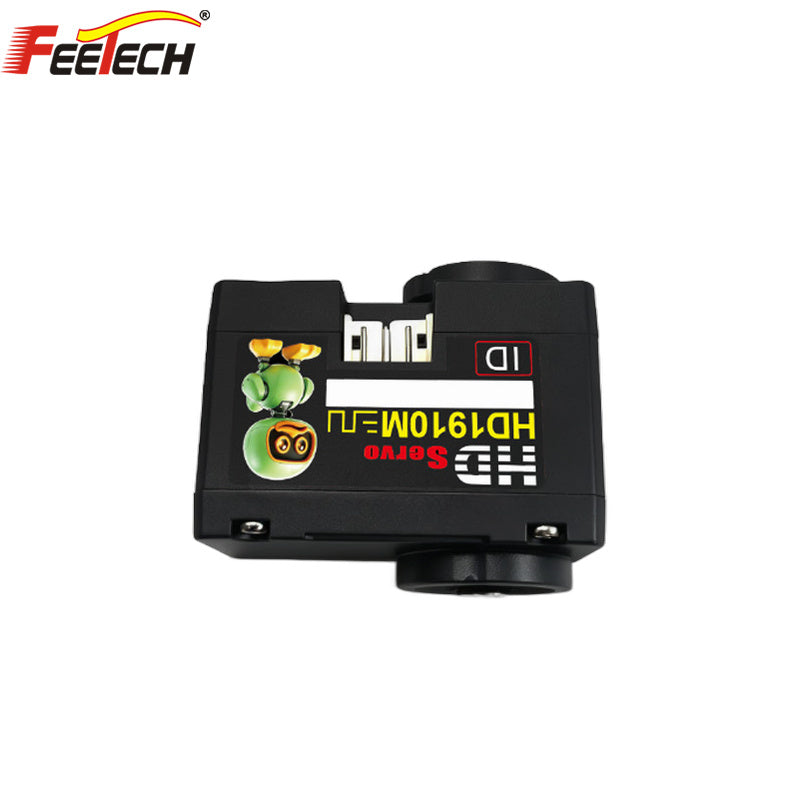

FEETECH HD1910 Servo Motor

  • Compact dual-axis TTL serial servo with a coreless motor, metal gears, and 360-degree magnetic encoding.
  • 4-8.4 V input with peak stall torque of 9 kg.cm at 4.8 V, 12 kg.cm at 6 V, and 15 kg.cm at 7.4 V.
  • Supports angle, constant-speed, constant-current, multi-loop, and constant-force operating modes.
  • Provides load, position, speed, input voltage, current, and temperature feedback over half-duplex serial communication.
  • Suitable for humanoid robots, robotic arms, exoskeletons, quadruped robots, and AGV platforms.
$34
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

FEETECH HD1910 installation dimensions for mechanical integration.pdf ▶ FEETECH Servo Motor Docs ▶ FEETECH Servo Host Computer User Manual ▶

FEETECH HD1910 Servo Motor

The FEETECH HD1910 is a compact dual-axis TTL serial servo designed for articulated robot joints and compact motion systems. Its coreless motor, metal gear train, magnetic encoder, and 360-degree control support precise integration across robotics platforms.

Features

  • Dual-axis mechanical layout with 34 x 20 x 23 mm body dimensions and 21 +/- 2 g servo weight.
  • Wide 4-8.4 V input range with peak stall torque up to 15 kg.cm at 7.4 V.
  • Angle, constant-speed, constant-current, multi-loop, and constant-force control modes.
  • Half-duplex asynchronous serial communication from 38400 bps to 1 Mbps with IDs from 0 to 253.
  • Feedback for load, position, speed, input voltage, current, and temperature.
  • Applications include humanoid robots, robot arms, exoskeletons, quadruped robots, and AGV systems.
FEETECH HD1910 Servo Motor detail image 1

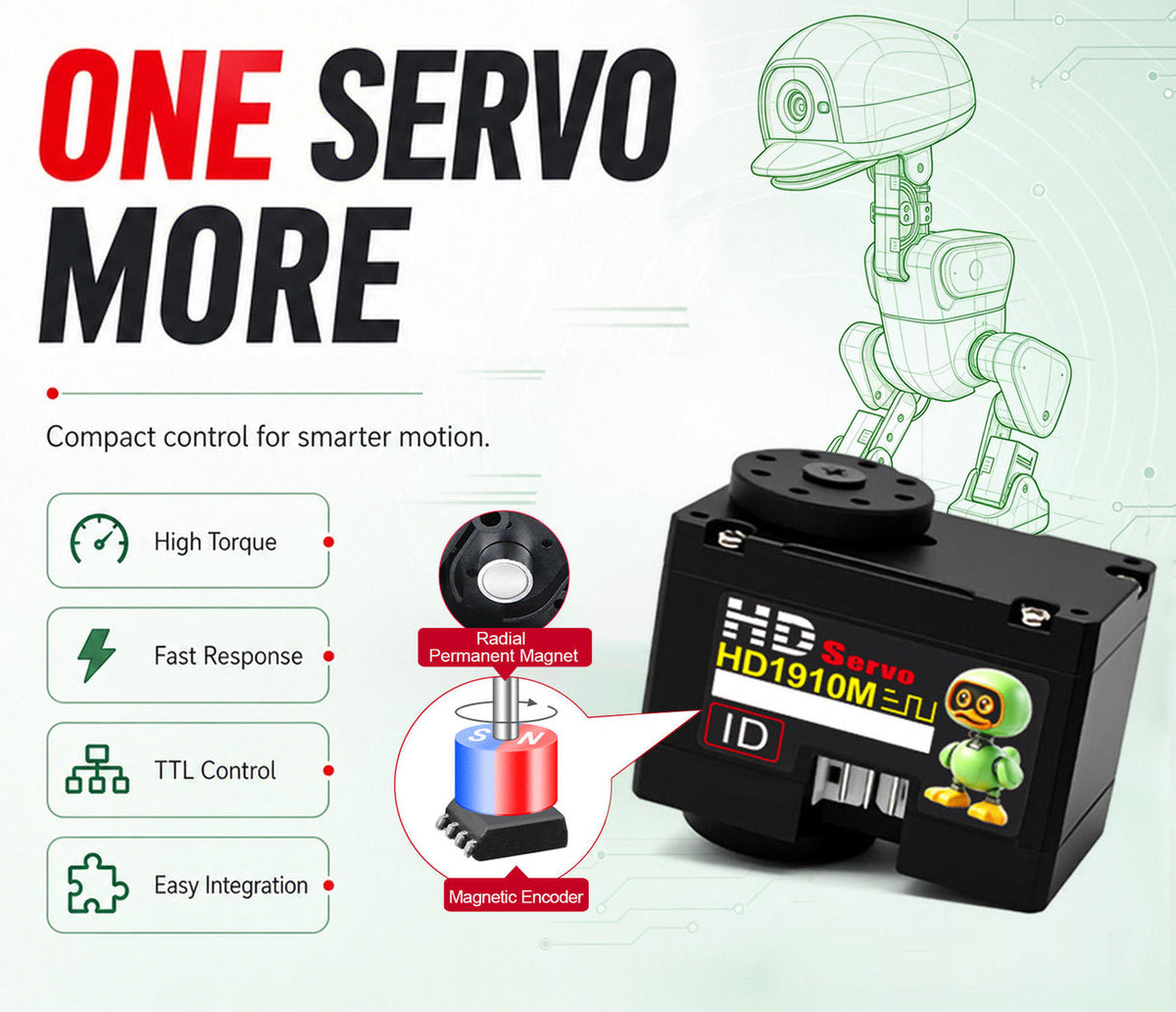

FEETECH HD1910 Servo Motor detail image 2

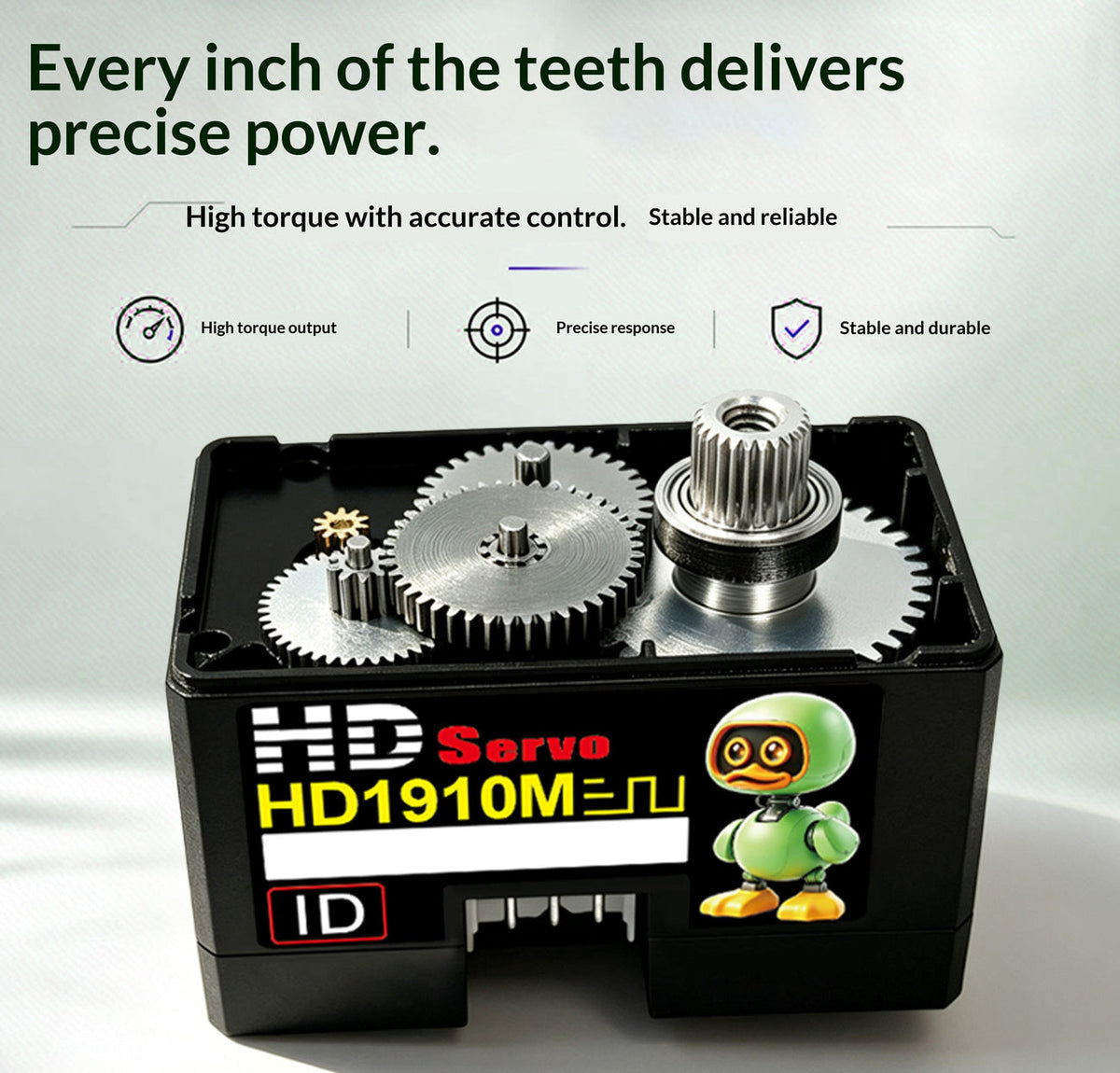

FEETECH HD1910 Servo Motor detail image 3

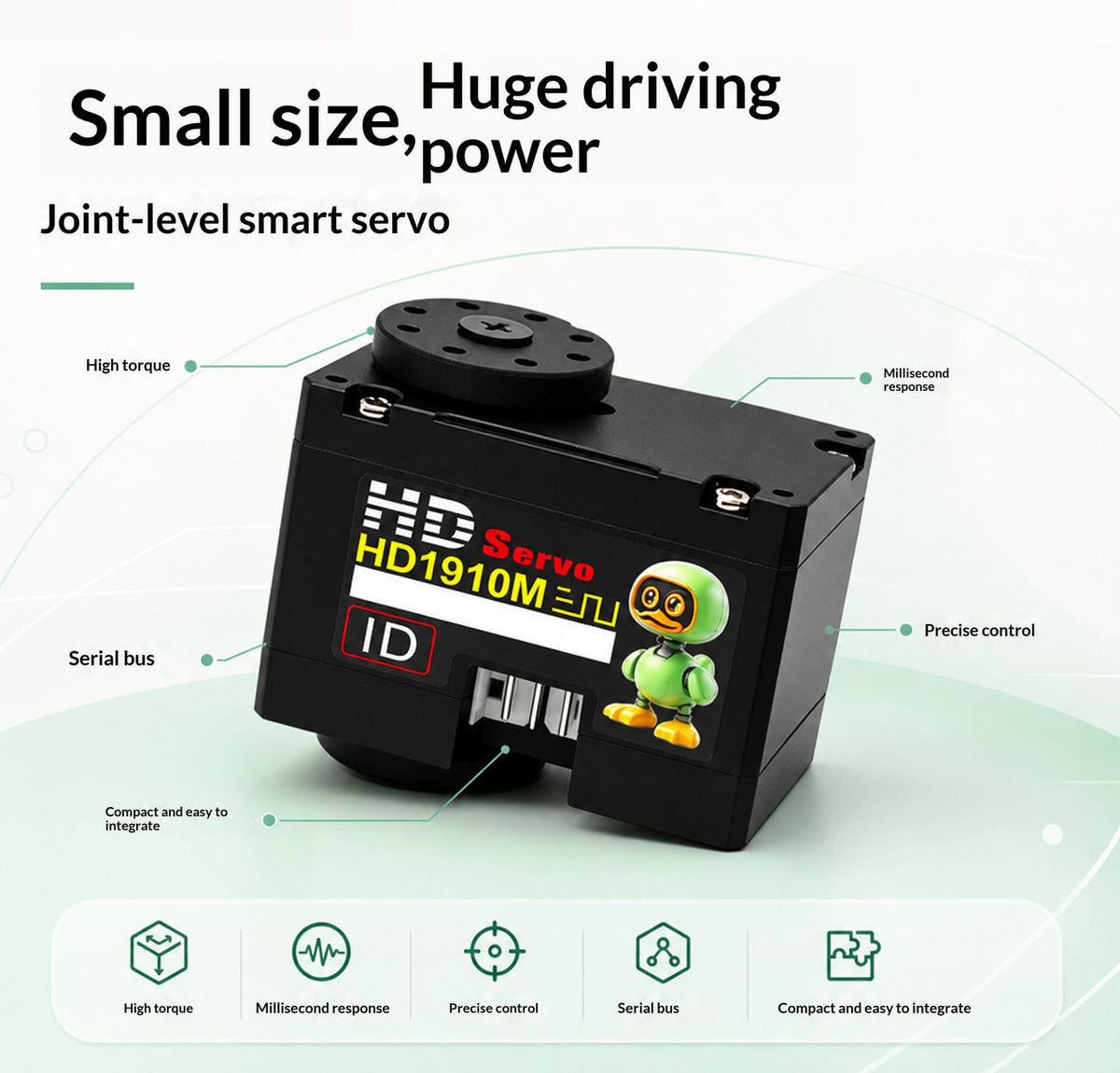

FEETECH HD1910 Servo Motor detail image 4

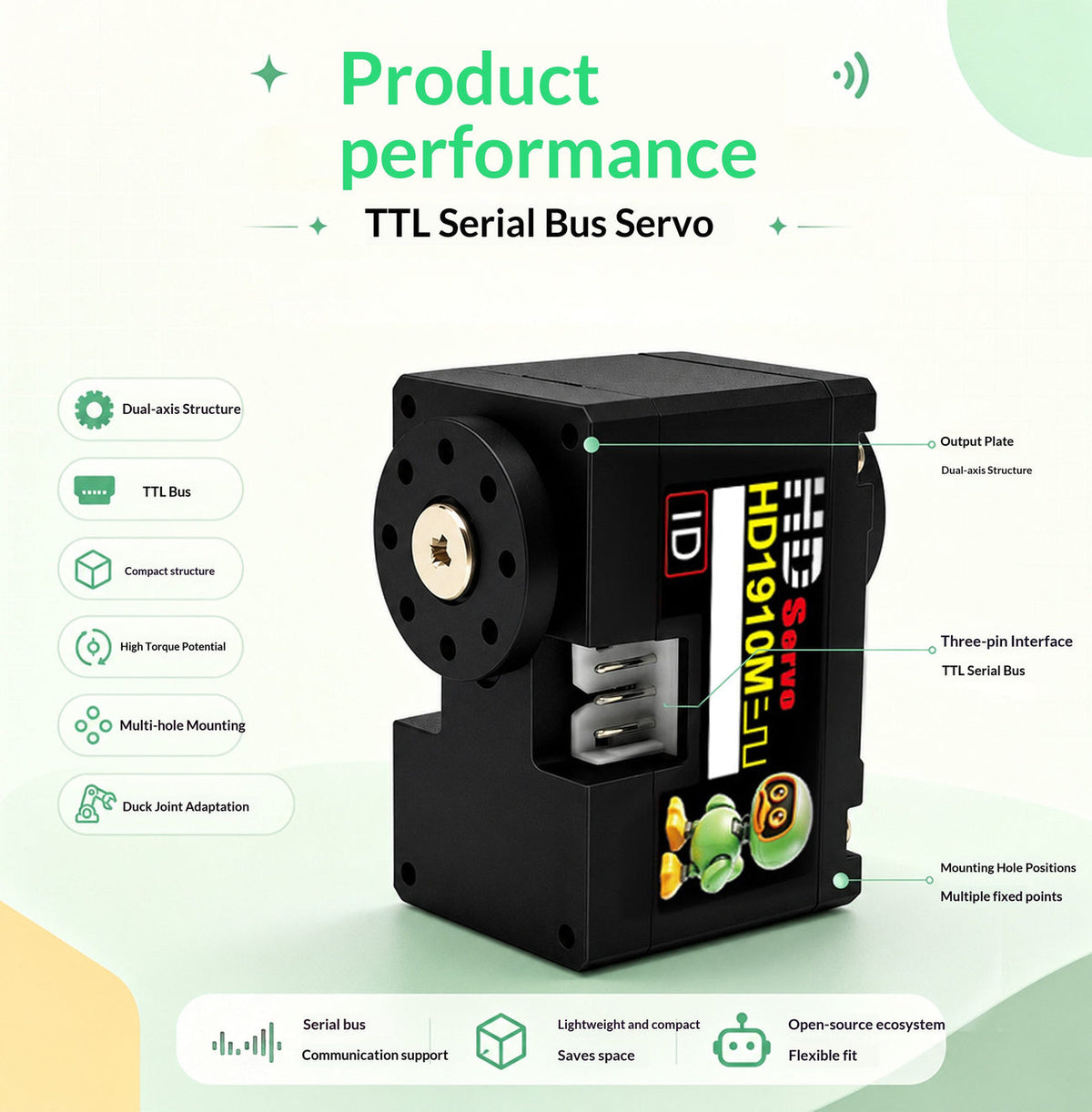

FEETECH HD1910 Servo Motor detail image 5

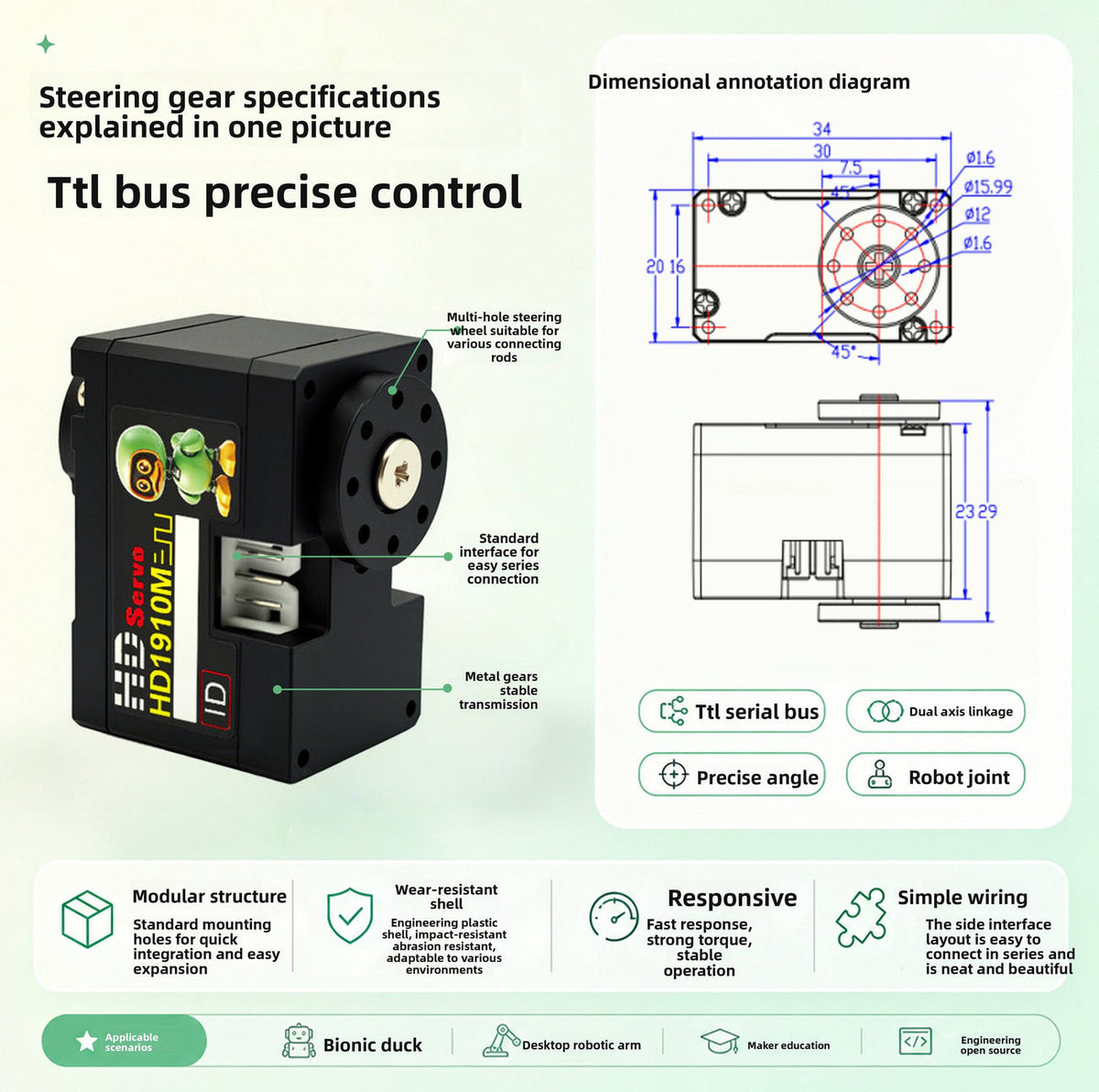

FEETECH HD1910 Servo Motor detail image 6

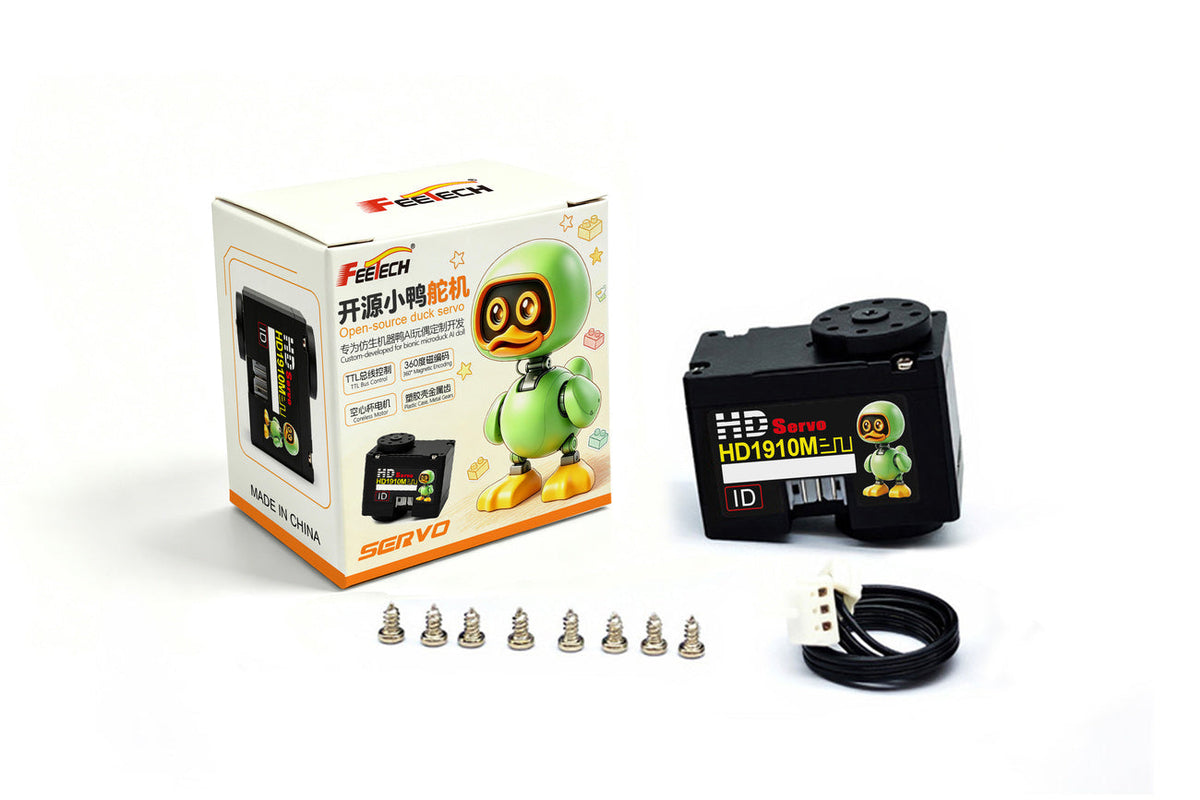

FEETECH HD1910 Servo Motor detail image 7
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Model
HD-1910-C001
Product Name
4.8V 9kg.cm TTL Plastic Shell Coreless Motor Metal Gear 360-degree Magnetic Encoding Dual-axis TTL Serial Port Servo
Storage Temperature Range
-30℃~80℃
Operating Temperature Range
-20℃~60℃
Temperature Range
25℃ ±5℃
Humidity Range
65%±10%
Size
A: 34mm B: 20mm C: 23mm
Weight
21±2g
Gear type
Metal Gear
Limit angle
No limit
Bearing
Ball bearings
Horn gear spline
25T/OD4.95mm
Gear Ratio
1/320
Back Lash
≤0.5°
Case
PA66+GF43%
Connector wire
15±0.5cm
Motor
Coreless Motor
Rated Input Voltage
4V-8.4V
No load speed
4.8V: 0.137sec/60°(72RPM); 6V: 0.109sec/60°(92RPM); 7.4V: 0.088sec/60°(113RPM)
Running current (at no load)
4.8V: ≤160mA; 6V: ≤180mA; 7.4V: ≤210mA
Peak stall torque
4.8V: 9kg.cm; 6V: 12kg.cm; 7.4V: 15kg.cm
Stall current
4.8V: 1.2A; 6V: 1.6A; 7.4V: 2A
Idle current
4.8V: 20mA; 6V: 20mA; 7.4V: 20mA
Rated Load
4.8V: 2.2kg.cm; 6V: 3.0kg.cm; 7.4V: 3.7kg.cm
Rated current
4.8V: 500mA; 6V: 690mA; 7.4V: 900mA
KT Constant
7.5kg.cm/A
Operating Modes
Mode 0: Angle servo mode (default mode, absolute position controllable from 0-360 degrees) Mode 1: Motor constant speed mode (maintains speed without deceleration as the load increases) Mode 2: Motor constant current mode (maintains current without decreasing with increasing load)
Multi-Loop Mode
Control of positive and negative 7 turns at the highest accuracy, but the number of power failure turns is not saved (the resolution can be expanded, and the number of turns can be doubled)
Constant force output
Set the output torque value, the servo can maintain this torque (input the target torque value corresponding to address 44, the servo can maintain this torque)
Command signal
Digital Packet
Protocol Type
Half Duplex Asynchronous Serial Communication
ID range
0-253
Communication Speed
38400bps ~ 1 Mbps
Control Algorithm
PID
Neutral Position
2048
Running degree
360° (when 0-4095)
Resolution [deg/pulse]
0.088°(360°/4096)
Rotating Direction
Clockwise(0→4095)
Feedback
Load, Position, Speed, Input Voltage, Current, Temperature
