CmdRob L110I Motor

  • CmdRob motor for robot joint development, actuator integration, and automation hardware.
  • Available configurations support compact servo actuator and motion-control component selection.
  • Suitable for engineering teams building robot joints, test platforms, automation systems, and lab prototypes.
  • Designed for practical robot hardware integration where reliable motion components matter.
$1,550
Version
Reduction Ratio
Bus communication protocol

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CmdRob L110I Motor dimension drawing for installation reference.pdf ▶ CmdRob L110I Motor dimension drawing for installation reference.pdf ▶ CmdRob L110I Motor CAD model for mechanical integration.stp ▶ CmdRob L110I Motor CAD model for mechanical integration.stp ▶

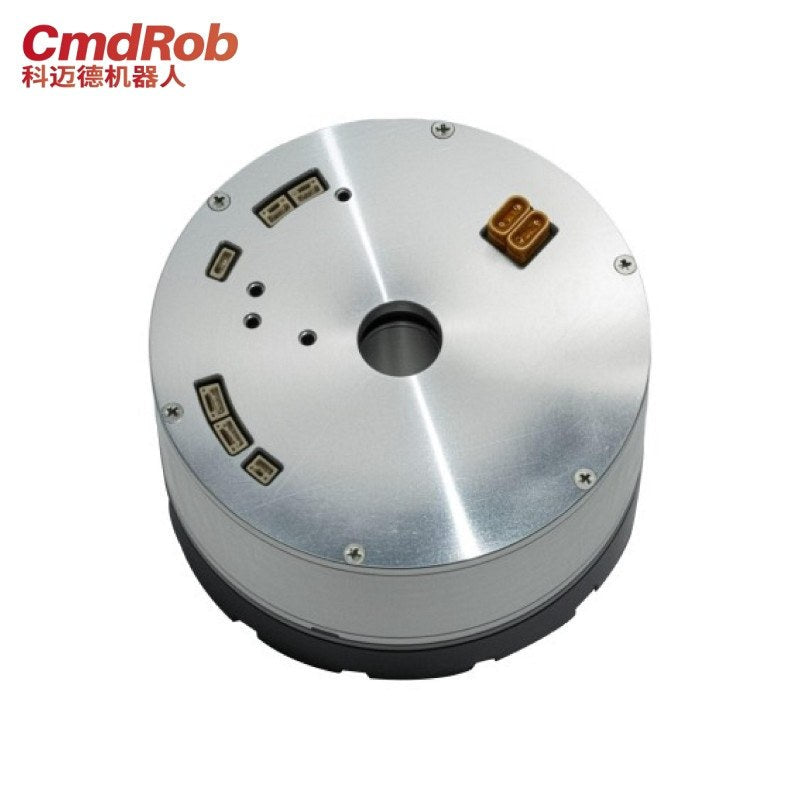

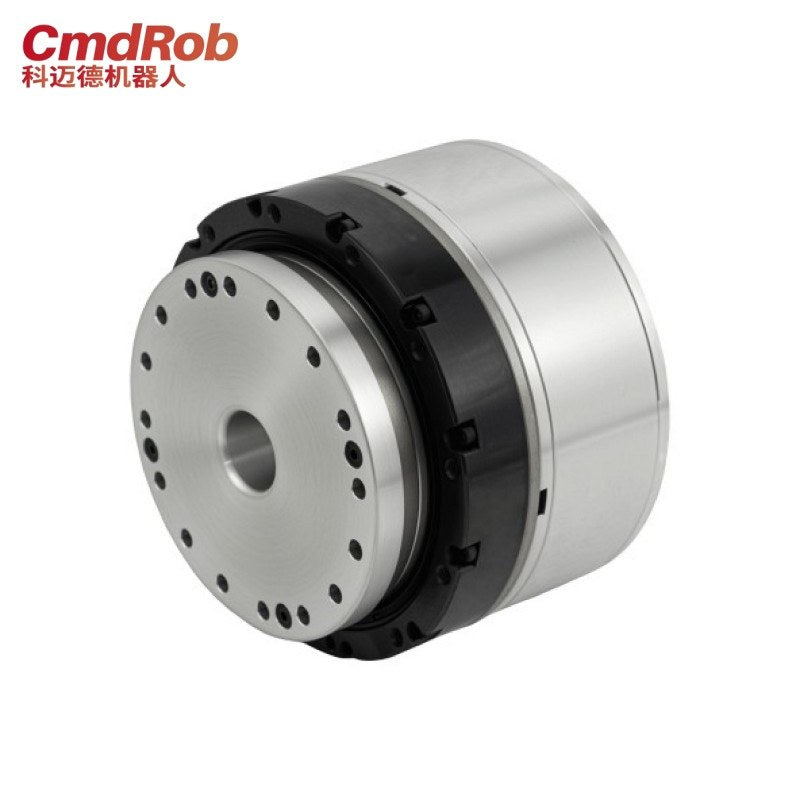

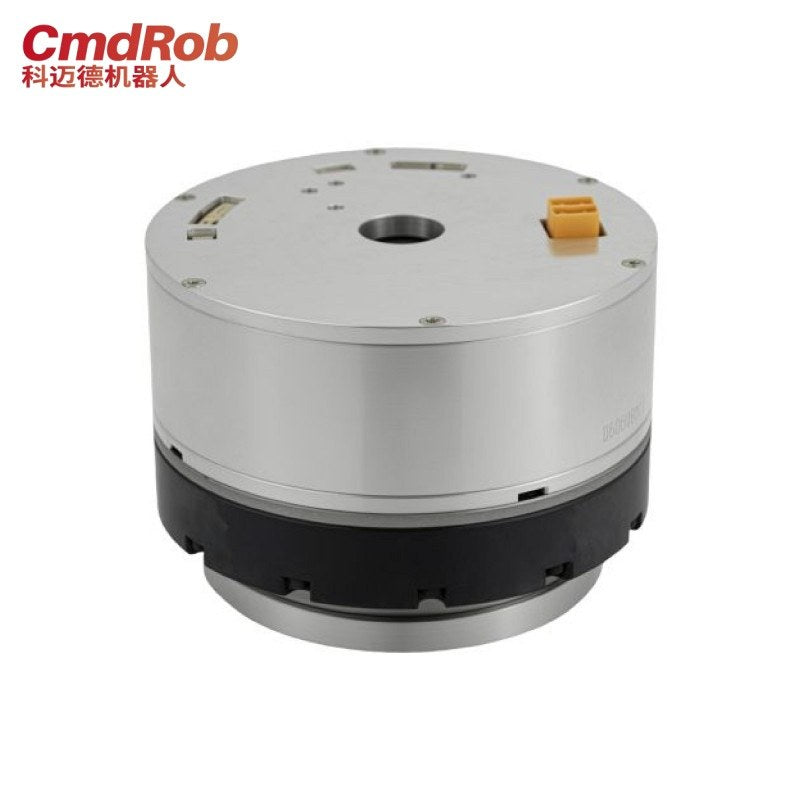

CmdRob L110I Motor

The CmdRob L110I Motor is a CmdRob motor for robotics development, robot joint hardware, actuator systems, automation projects, and engineering lab integration.

Features

  • **Robot joint integration:** Suitable for servo systems, actuator builds, and motion hardware.
  • **Configuration options:** Supports model selection for robot actuator and motion-control development.
  • **Engineering use:** Designed for robotics developers, automation engineers, education labs, and prototype teams.
  • **Component-focused design:** Useful for compact robot hardware and integrated motor applications.

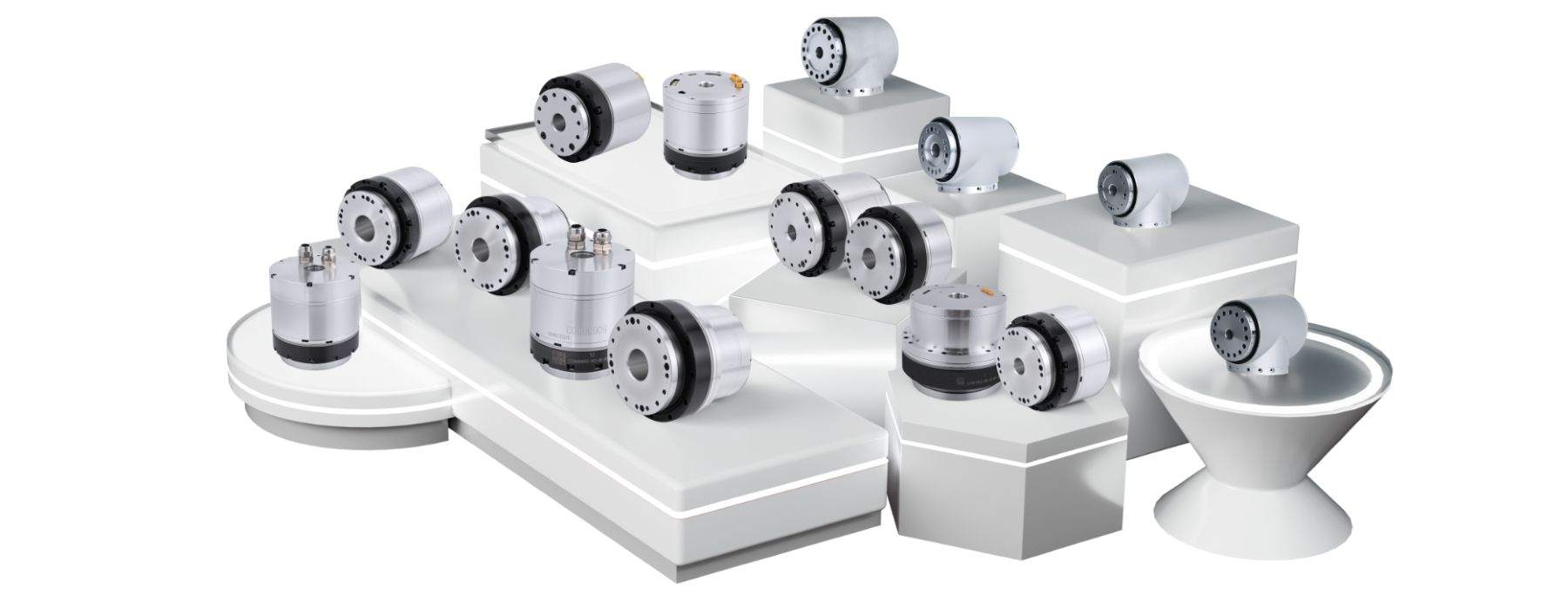

CmdRob L110I Motor detail image 1

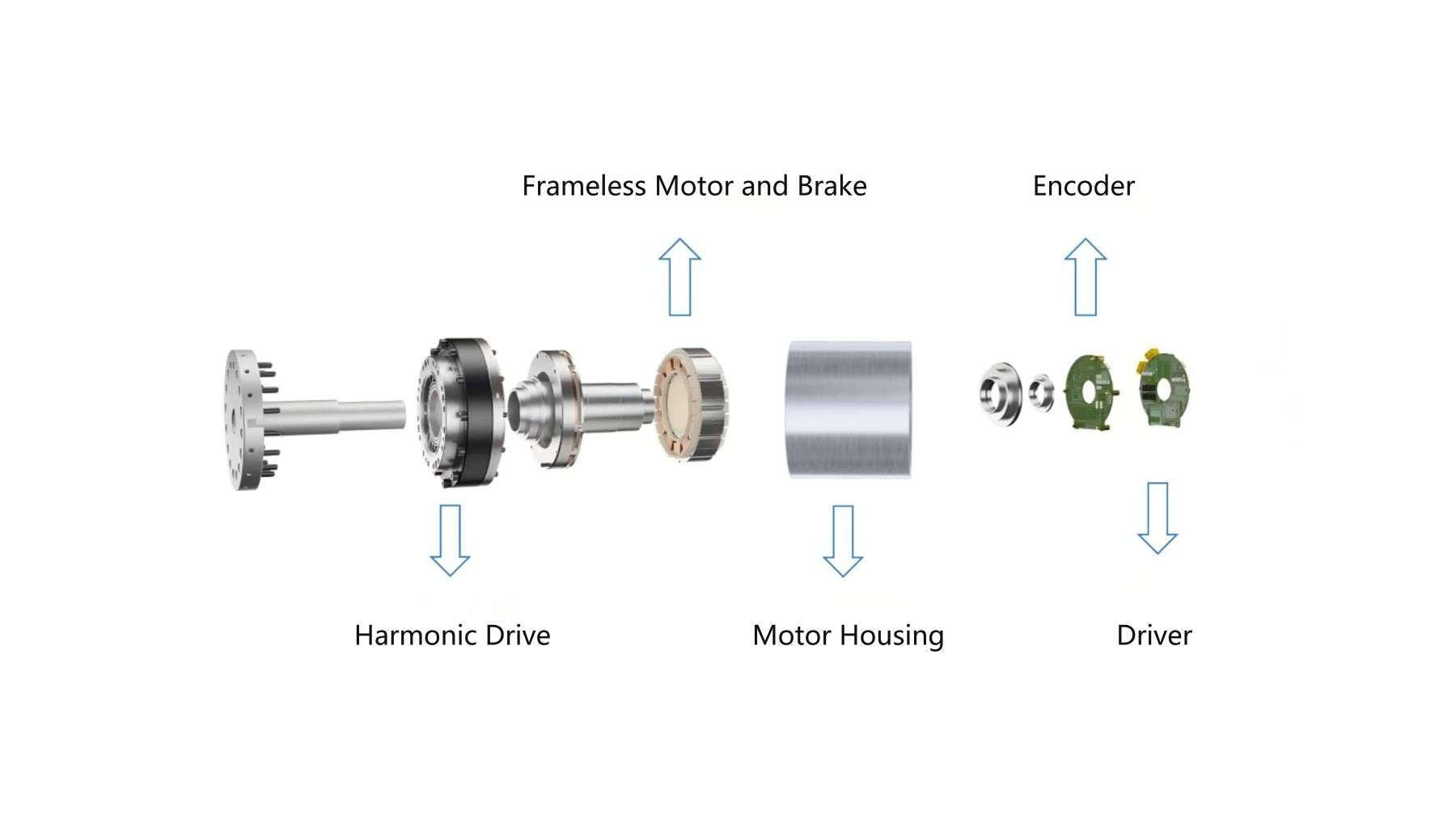

CmdRob L110I Motor detail image 2
CmdRob L110I Motor detail image 3
CmdRob L110I Motor detail image 4
CmdRob L110I Motor detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Reduction Ratio
L110I: 51 L110I: 81 L110I: 101 L110I: 121
Input Voltage
L110I: 48 (±10%)V L110I: 48 (±10%)V L110I: 48 (±10%)V L110I: 48 (±10%)V
Maximum Torque
L110I: 242N.m L110I: 332N.m L110I: 369N.m L110I: 395N.m
24.69kgf.m
L110I: 33.88kgf.m L110I: 37.65kgf.m L110I: 40.31kgf.m
Average Load Torque
L110I: 72N.m L110I: 113N.m L110I: 140N.m L110I: 140N.m
7.35kgf.m
L110I: 11.53kgf.m L110I: 14.29kgf.m L110I: 14.29kgf.m
Start-Stop Peak Torque
L110I: 127N.m L110I: 178N.m L110I: 204N.m L110I: 217N.m
12.96kgf.m
L110I: 18.16kgf.m L110I: 20.82kgf.m L110I: 22.14kgf.m
Maximum Speed
L110I: 78.4r/min L110I: 49.4r/min L110I: 39.6r/min L110I: 33.1r/min
Rated Speed
L110I: 58.8r/min L110I: 37.0r/min L110I: 29.7r/min L110I: 24.8r/min
Motor Torque Constant
L110I: 0.11N·m/A L110I: 0.11N·m/A L110I: 0.11N·m/A L110I: 0.11N·m/A
0.0112kgf·m/A
L110I: 0.0112kgf·m/A L110I: 0.0112kgf·m/A L110I: 0.0112kgf·m/A
Maximum Current
L110I: 32.42A L110I: 28.61A L110I: 26.30A L110I: 23.35A
Allowable Continuous Current
L110I: 18.38A L110I: 18.16A L110I: 18.05A L110I: 15.07A
Back EMF Constant
L110I: 6.88V/krpm L110I: 6.88V/krpm L110I: 6.88V/krpm L110I: 6.88V/krpm
Phase Resistance (20°C)
L110I: 0.033Ω L110I: 0.033Ω L110I: 0.033Ω L110I: 0.033Ω
Phase Inductance
L110I: 0.11mH L110I: 0.11mH L110I: 0.11mH L110I: 0.11mH
Moment of Inertia
L110I: 201(kg·mm²) L110I: 201(kg·mm²) L110I: 201(kg·mm²) L110I: 201(kg·mm²)
201*10^-4(kgf·cm·s²)
L110I: 201*10^-4(kgf·cm·s²) L110I: 201*10^-4(kgf·cm·s²) L110I: 201*10^-4(kgf·cm·s²)
Repeatable Positioning Accuracy(1)
L110I: 20arc-sec L110I: 20arc-sec L110I: 20arc-sec L110I: 20arc-sec
Positioning Accuracy(2)
L110I: 60arc-sec L110I: 60arc-sec L110I: 60arc-sec L110I: 60arc-sec
Bus Communication Protocol
L110I: Canopen / EtherCAT L110I: Canopen / EtherCAT L110I: Canopen / EtherCAT L110I: Canopen / EtherCAT
Encoder Resolution(Single-turn)
L110I: 17-bit (131,072 pulses/rev) L110I: 17-bit (131,072 pulses/rev) L110I: 17-bit (131,072 pulses/rev) L110I: 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn)
L110I: 16-bit (-32,768 to +32,767 revs) L110I: 16-bit (-32,768 to +32,767 revs) L110I: 16-bit (-32,768 to +32,767 revs) L110I: 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution
L110I: 6,684,672pulses/rev L110I: 10,616,832pulses/rev L110I: 13,238,272pulses/rev L110I: 15,859,712pulses/rev
Mass
L110I: 3.1 KG L110I: 3.1 KG L110I: 3.1 KG L110I: 3.1 KG
Ambient Environmental Conditions
L110I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L110I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L110I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L110I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m
Design Life（H）
L110I: 10000 L110I: 10000 L110I: 10000 L110I: 10000
Motor Insulation
L110I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L110I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L110I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L110I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C)
Mounting Orientation
L110I: Omnidirectional Mounting L110I: Omnidirectional Mounting L110I: Omnidirectional Mounting L110I: Omnidirectional Mounting
Protection Rating
L110I: Totally Enclosed, Non-Ventilated (IP54) L110I: Totally Enclosed, Non-Ventilated (IP54) L110I: Totally Enclosed, Non-Ventilated (IP54) L110I: Totally Enclosed, Non-Ventilated (IP54)
