Benewake

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection range: 100 m @90% reflectivity 40 m @10% reflectivity
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$340
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TF03 LiDAR datasheet with technical specifications.pdf ▶ Benewake TF03 LiDAR user manual for setup and integration.pdf ▶ Benewake TF03 LiDAR dimension drawing for installation reference.pdf ▶

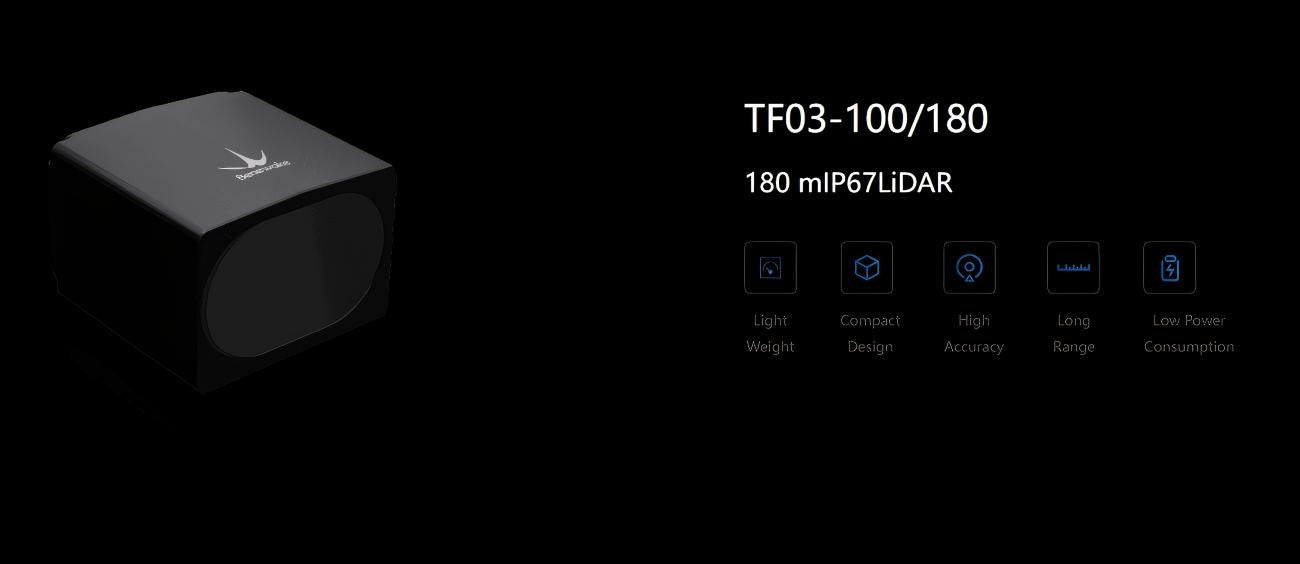

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

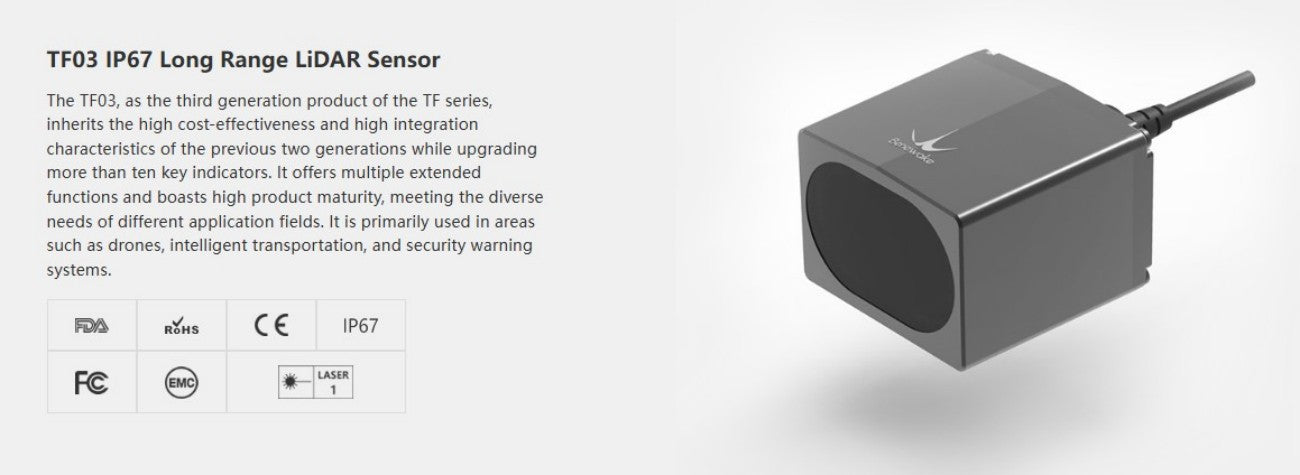

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

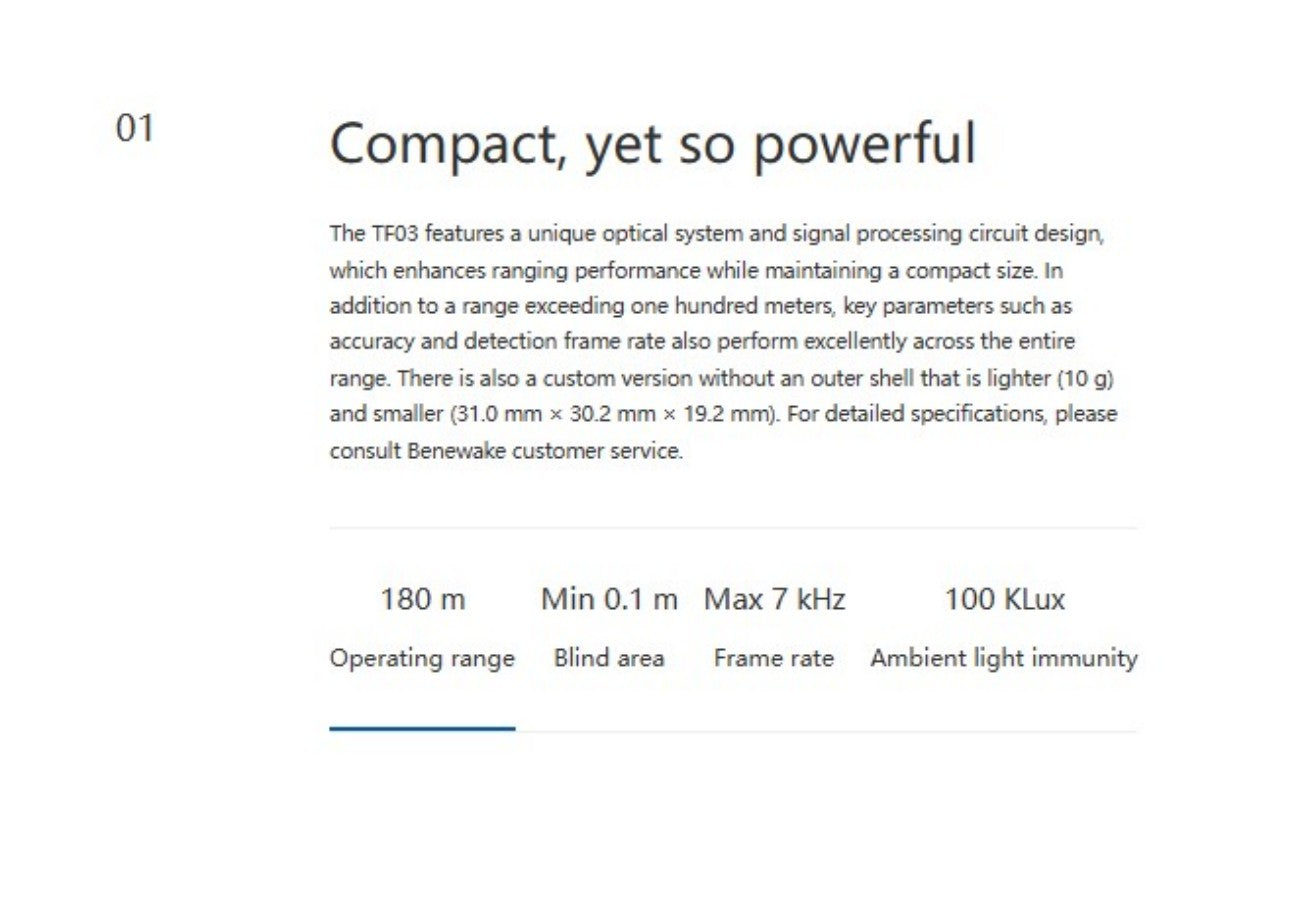

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

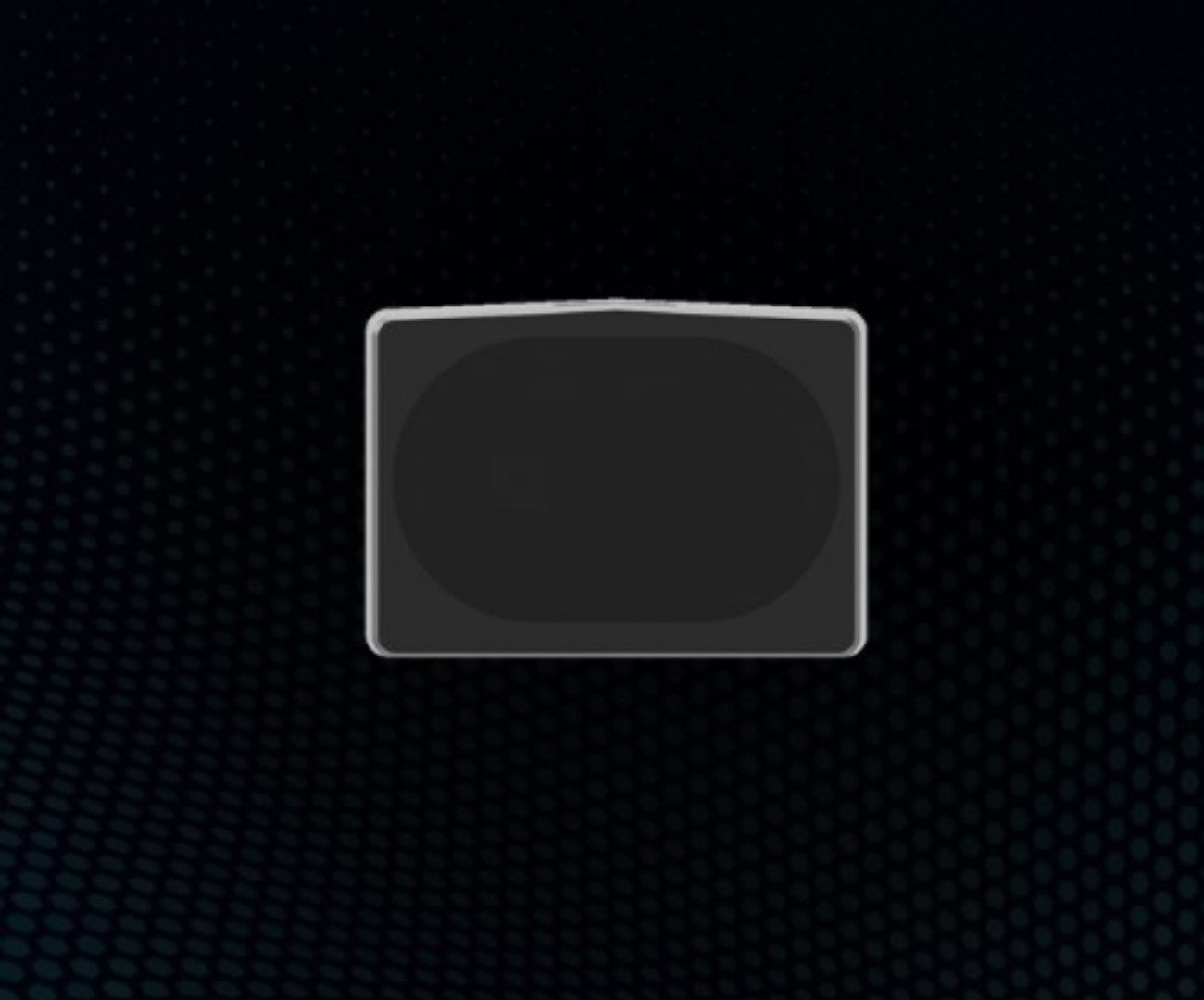

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

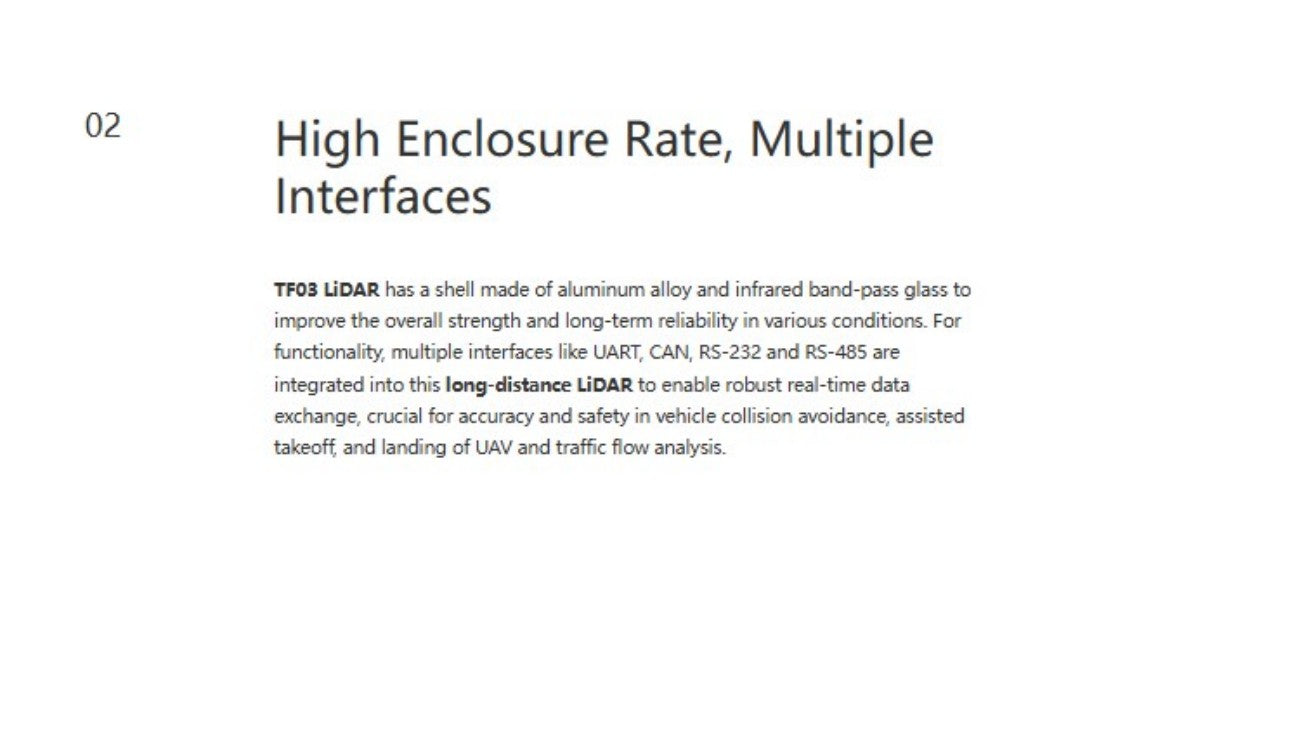

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

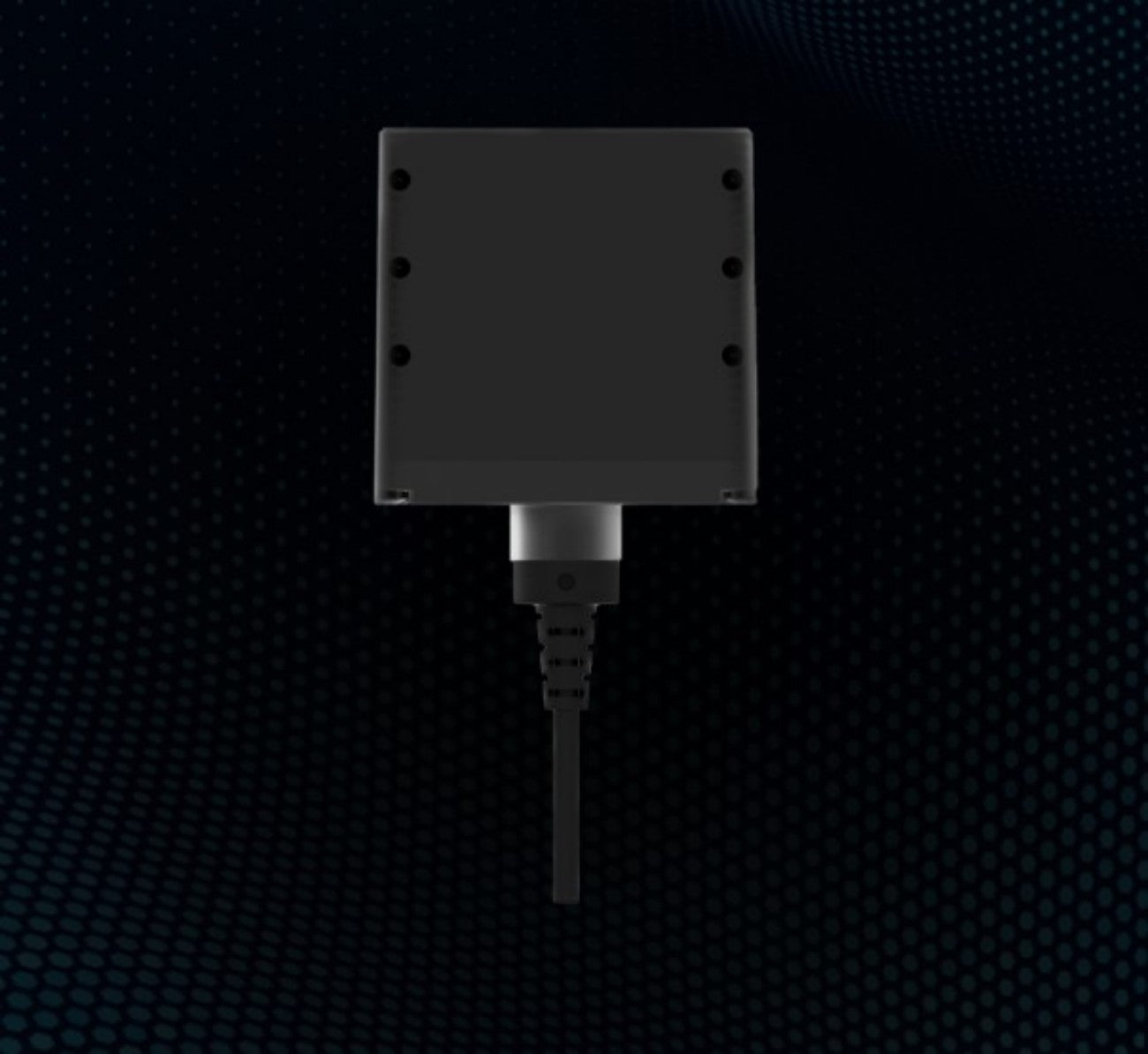

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6

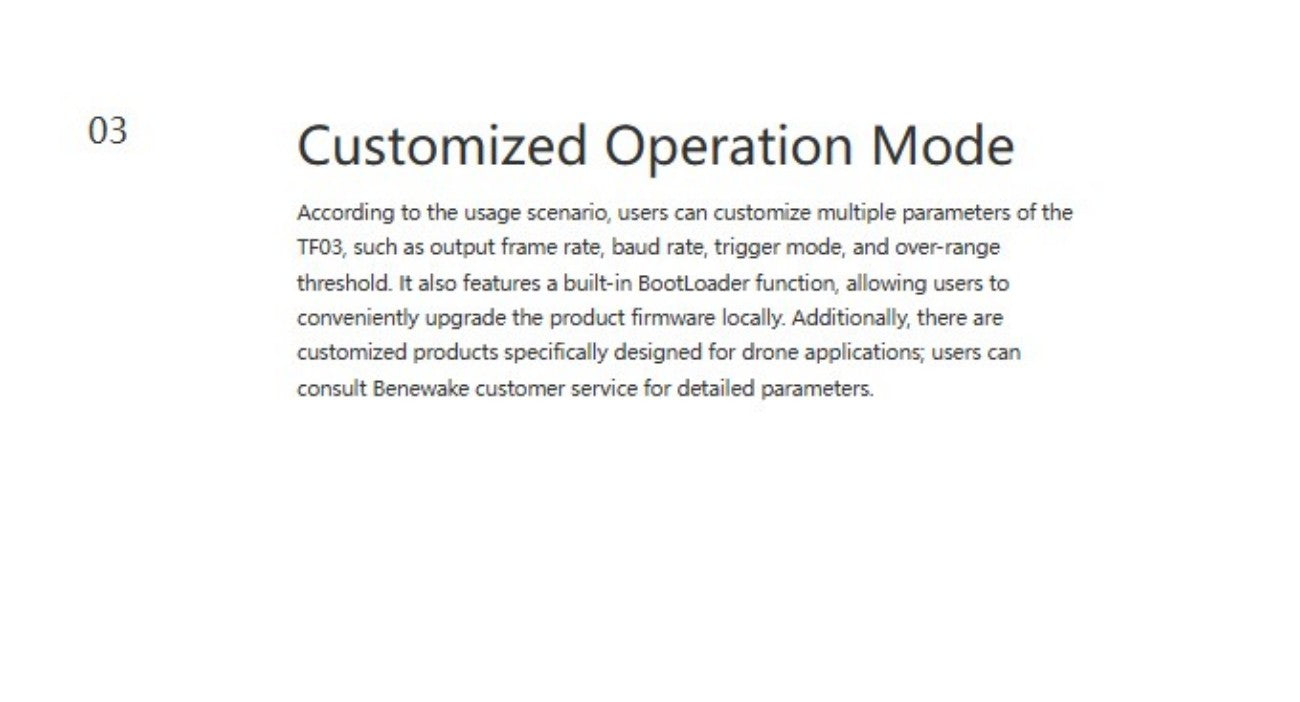

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7

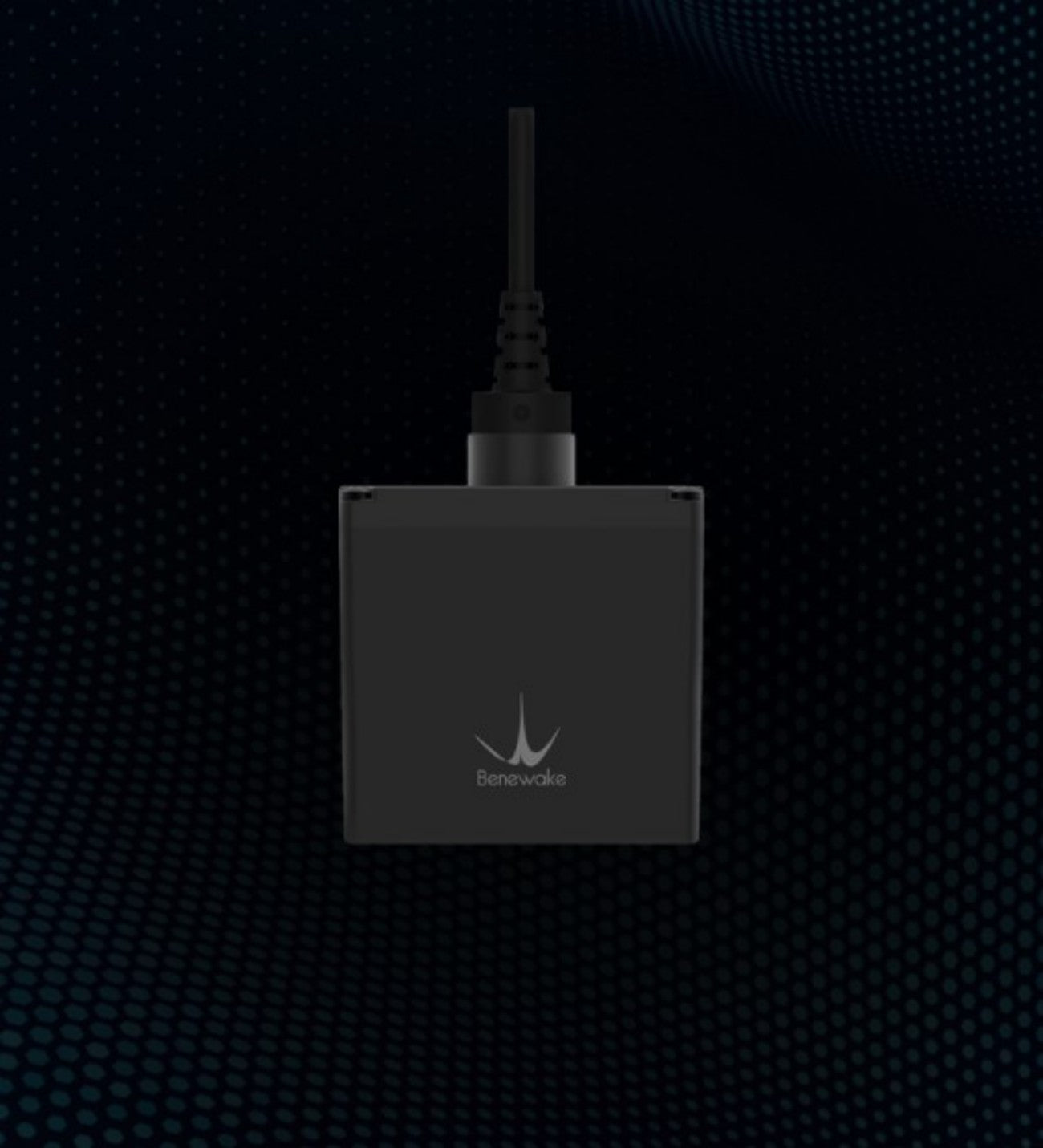

Benewake TF03 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
▤ Technical Specifications ⌃
Parameter TF03-100 TF03-180
Detection range 100 m @90% reflectivity 40 m @10% reflectivity 180 m @90% reflectivity 70 m @10% reflectivity
Blind zone ≤ 0.1 m ≤ 0.1 m
Accuracy ±10 cm (< 10 m), 1% (≥ 10 m) ±10 cm (< 10 m), 1% (≥ 10 m)
Repeatability < 3 cm @ 1σ < 3 cm @ 1σ
Distance resolution 1 cm 1 cm
Default frame rate Up to 9,800 Hz (1 ~ 9,800 Hz configurable, default 100 Hz) Up to 9,800 Hz (1 ~ 9,800 Hz configurable, default 100 Hz)
Ambient light resistance 100 KLux 100 KLux
Light source EEL EEL
Central wavelength 905 nm 905 nm
Field of View (FoV) < 0.5° < 0.5°
Eye safety Class 1 (IEC 60825-1:2014; EN 60825-1:2014+A11:2021) Class 1 (IEC 60825-1:2014; EN 60825-1:2014+A11:2021)
Average power consumption ≤ 800 mW ≤ 800 mW
Peak current < 480 mA @ 12V < 480 mA @ 12V
Power supply DC 5V ~ 24V DC 5V ~ 24V
Logical voltage 3.3 V TTL 3.3 V TTL
Connector Molex standard 7pin terminal, model MH1.25-7P-W/B Molex standard 7pin terminal, model MH1.25-7P-W/B
Operating temperature -25 °C ~ +60 °C -25 °C ~ +60 °C
Storage temperature -40 °C ~ +85 °C -40 °C ~ +85 °C
Protection level IP67 IP67
Typ. Dimensions 44.0 mm × 43.0 mm × 32.0 mm 44.0 mm × 43.0 mm × 32.0 mm
Cable length 70 cm 70 cm
Typ. Weight (excluding cables) 86 ± 3g 86 ± 3g
Communication Interface UART / CAN (switchable), RS232, RS485 (independent hardware models) UART / CAN (switchable), RS232, RS485 (independent hardware models)
