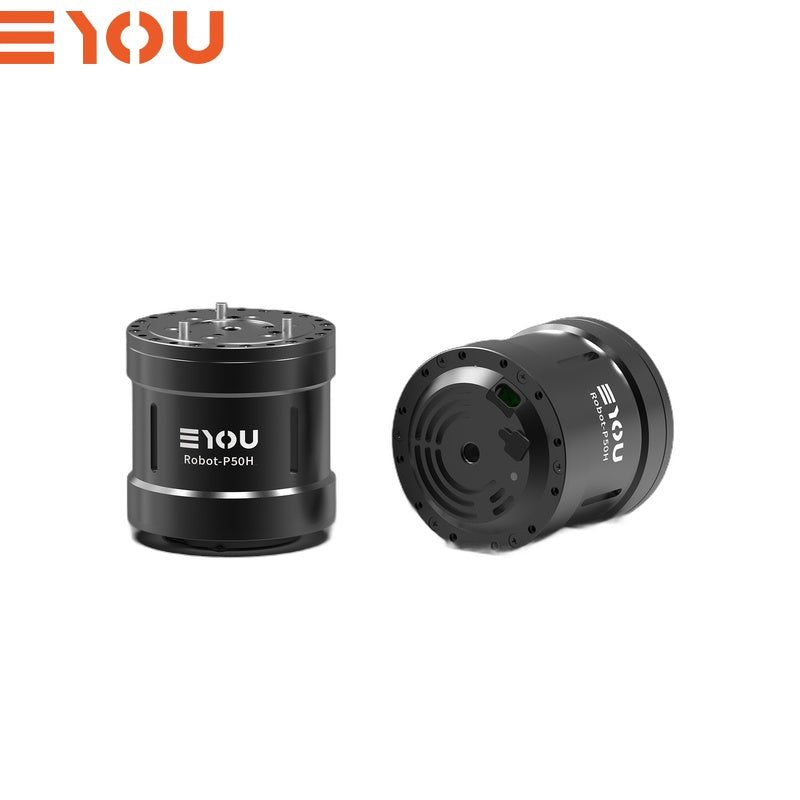

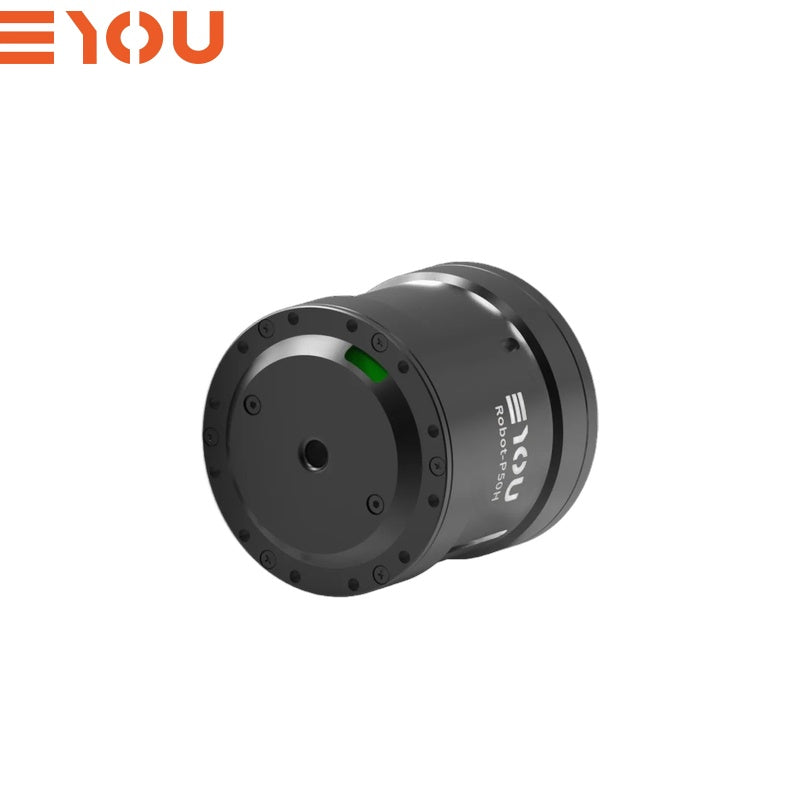

EYOU RP50H Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$215
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU RP50H Motor CAD model for mechanical integration.stp ▶ EYOU RP50H Motor dimension drawing for installation reference.pdf ▶ EYOU RP50H Motor user manual for setup and integration.pdf ▶ EYOU RP50H Motor user manual for setup and integration.pdf ▶ EYOU RP50H Motor product documentation for robotics integration.pdf ▶ EYOU RP50H Motor user manual for setup and integration.pdf ▶

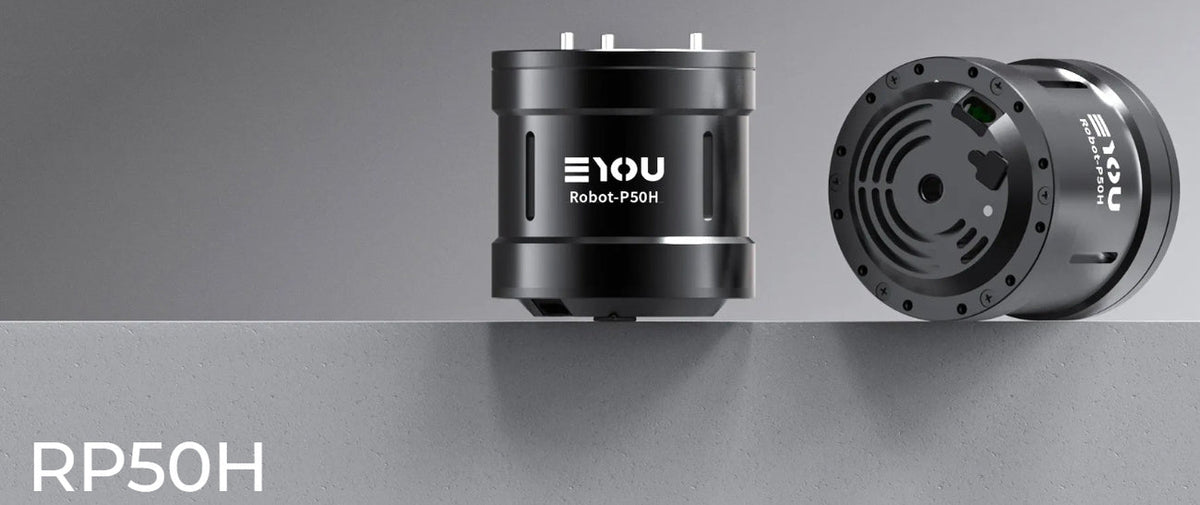

EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 1

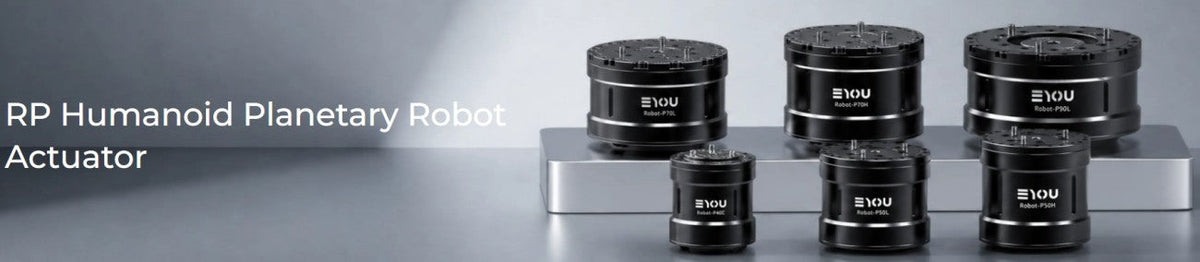

EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 2

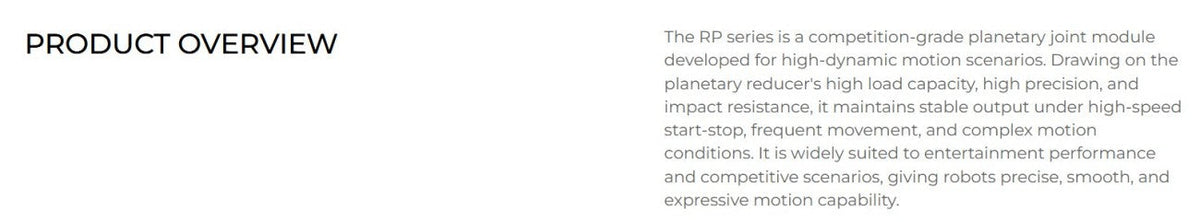

EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 3

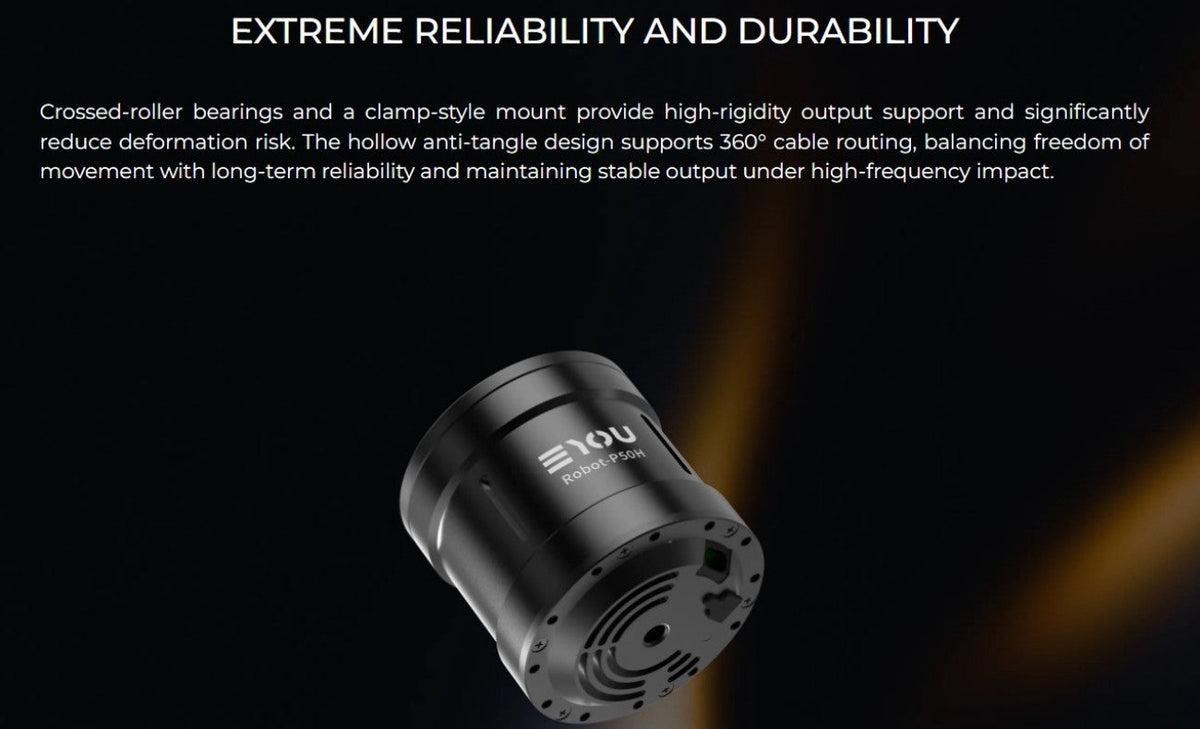

EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 4

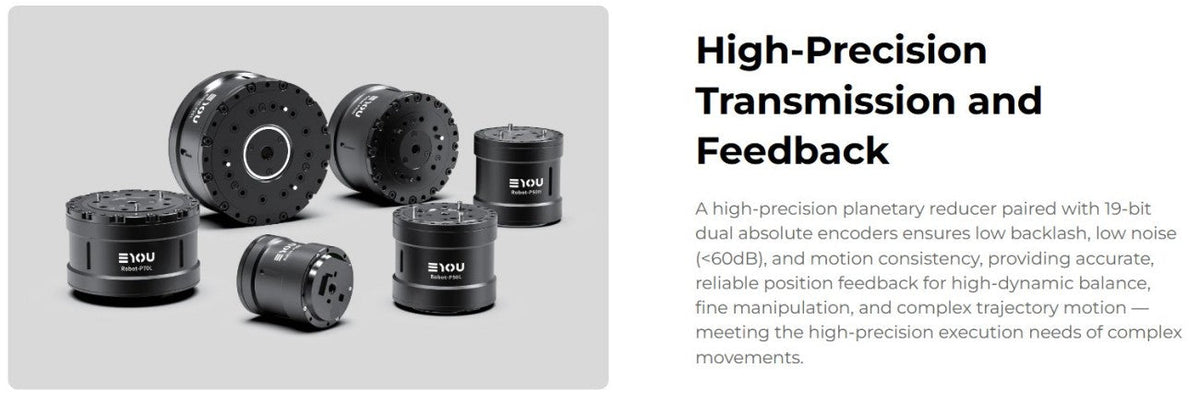

EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 5

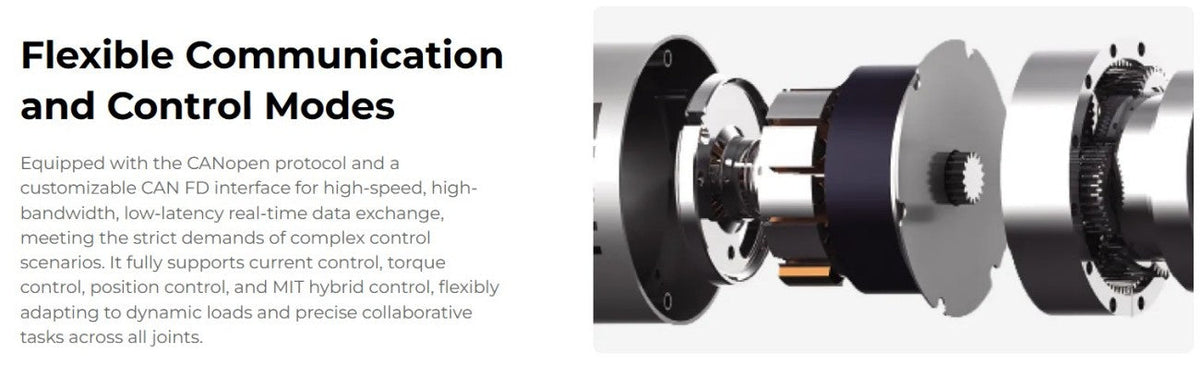

EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 6
EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 7
EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 8
EYOU RP50H Motor | Robot Servo Motor for Robotics Development detail image 9
▤ PARAMETER ⌃
Module Model
RP50H
Reducer Mode
Planet
Motor rated power (W)
184
Reduction ratio
19.5278
Rated Torque (N.m)
10
Peak Torque (N.m)
30
Joint Rated Power (W)
157
Backlash (Arcmin)
≤12
Rated speed of output end (rpm)
150
Output peak speed (rpm)
180
Dimensions (Outer Diameter x Axial) (mm)
Φ59x59.5
Weight (g) (excluding wire)
465
Joint rated efficiency
78%
Hollow Diameter (mm)
5
Shell Appearance (Process Color)
Regular Matte Black
Moment of inertia (kg*m^2)
28.66
Bearing Type
Crossed Roller Bearing
Radial (dynamic/static) allowable load (N) at the output end
2140/2740
Axial (dynamic/static) allowable load (N) at the output end
5100/18700
Output Shaft Bending Moment(Nm)
22.8
Operating Voltage (VDC)
48±10%
Maximum withstand voltage (VDC)
90
Bus Current (Arms)
4.5
Drive
Built-in FOC
Encoder/Bit (bit)
Dual Absolute / 17 (input), 19 (output)
Power cord length
≥35cm
Drive Interface
Power (DC in DC out) , CAN FD (In,Out)
Communication Protocol
CANOpen / CANFD (custom development required)
Control Mode
Current, Speed, Position, MIT Mode
Working environment temperature (°C)
-10~45
Enclosure operating temperature rise (°C)
≤60
Noise (dB) @ 1m
≤60
IP Rating
IP54
Life (h)
>3000
