ENCOS EC-A4310-P2-36 Motor | Robot Servo Motor for Robotics Development

  • ENCOS robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$700
Version
Accessory Kit

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ENCOS EC-A4310-P2-36 Motor CAD model for mechanical integration.stp ▶ ENCOS EC-A4310-P2-36 Motor dimension drawing for installation reference.pdf ▶ ENCOS EC-A4310-P2-36 Motor CAD model for mechanical integration.stp ▶ ENCOS EC-A4310-P2-36 Motor dimension drawing for installation reference.pdf ▶

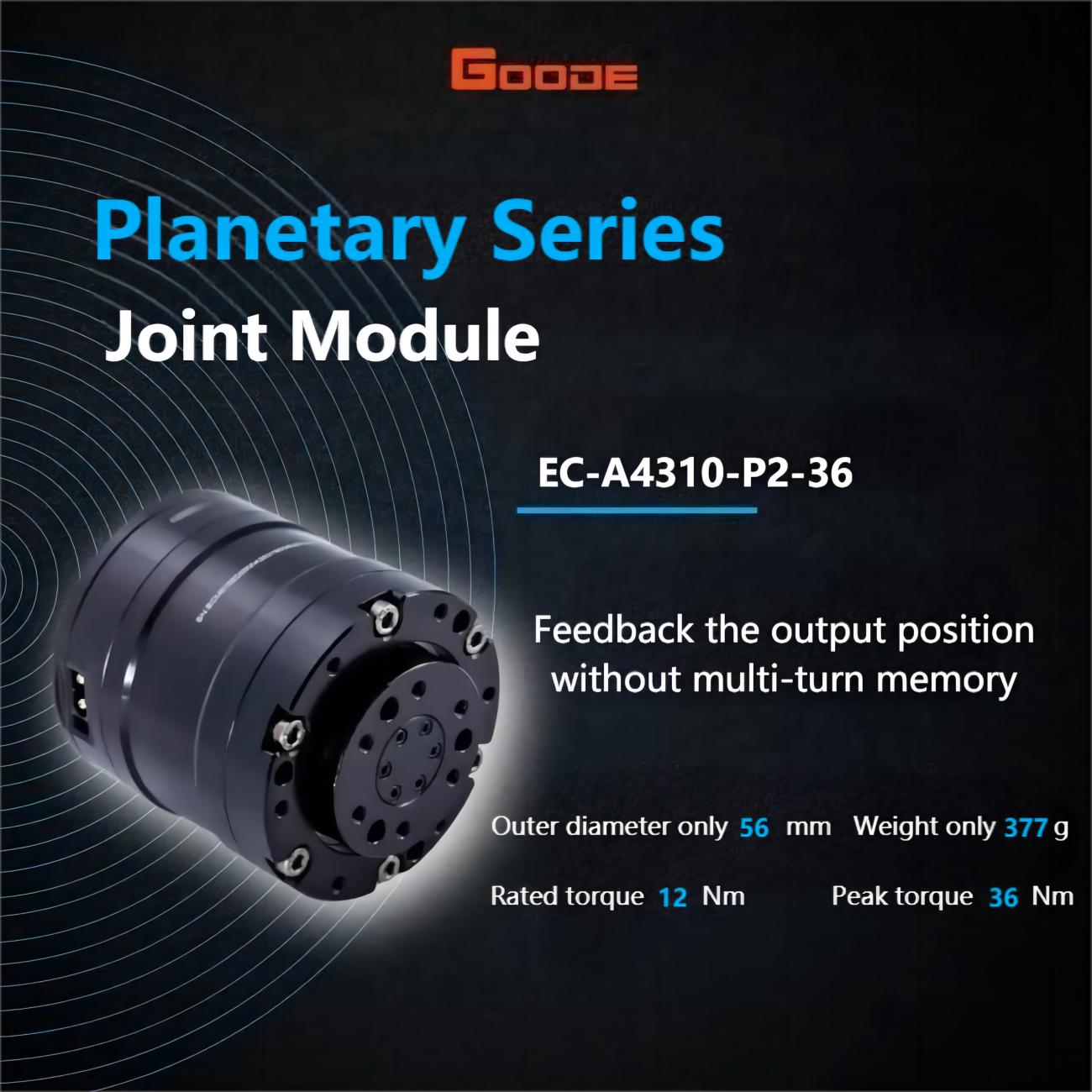

ENCOS EC-A4310-P2-36 Motor | Robot Servo Motor for Robotics Development detail image 1
▤ Technical Specifications ⌃
Parameter EC-A4310-P2-36 EC-A4310-P2-36H
Reduction Ratio 36 36
Rated Voltage 24 V (Supports 48V) 24 V (Supports 48V)
Rated Bus Current 6.5 A 6.5 A
Rated Phase Current 7.8 A 7.8 A
Rated Power 156 W 156 W
Rated Speed 75 RPM 75 RPM
Rated Torque 12 Nm 12 Nm
Peak Speed 89 RPM 89 RPM
Peak Phase Current 30 A 30 A
Peak Torque 36 Nm 36 Nm
Efficiency 71% 71%
Torque Constant 1.4 Nm/A 1.4 Nm/A
Weight 382 g 414 g
Backlash 10 Arcmin 10 Arcmin
Motor Size 56×60.5 mm 60x59.5 mm
Hole Diameter - 4 mm
Communication Mode CAN CAN
Communication Baud Rate 1M 1M
Double Encoder Yes Yes
Axial And Radial Loads 1.89 KN 1.89 KN
Bending Moment Resistance 28 Nm 28 Nm
Cross Roller Bearing Type 3005 3005
The Rotor Inertia Of The Motor 19 kgmm² 18 kgmm²
Torque Density 94.2 Nm/kg 87 Nm/kg
