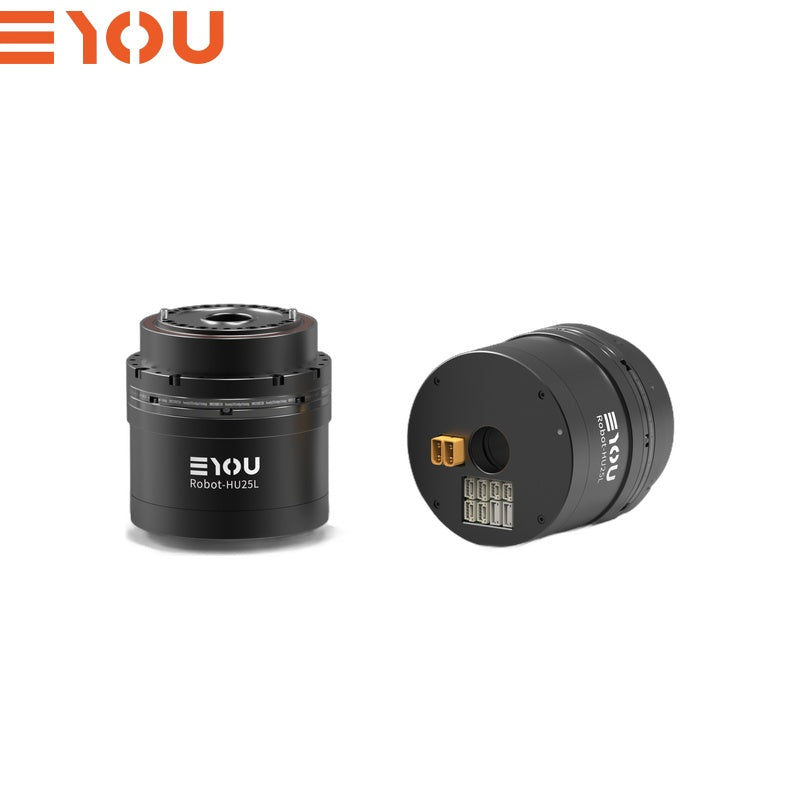

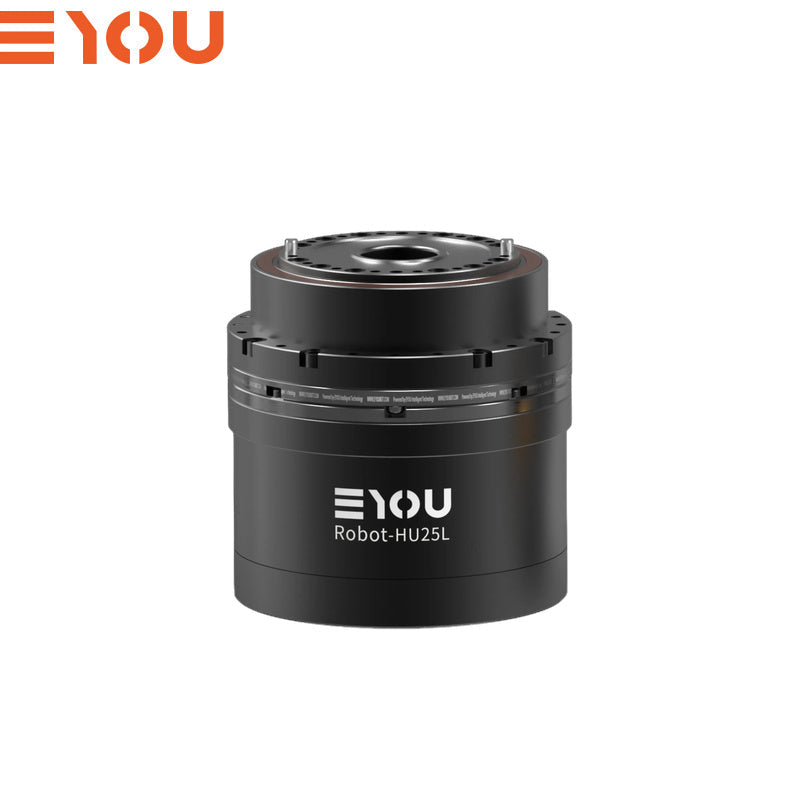

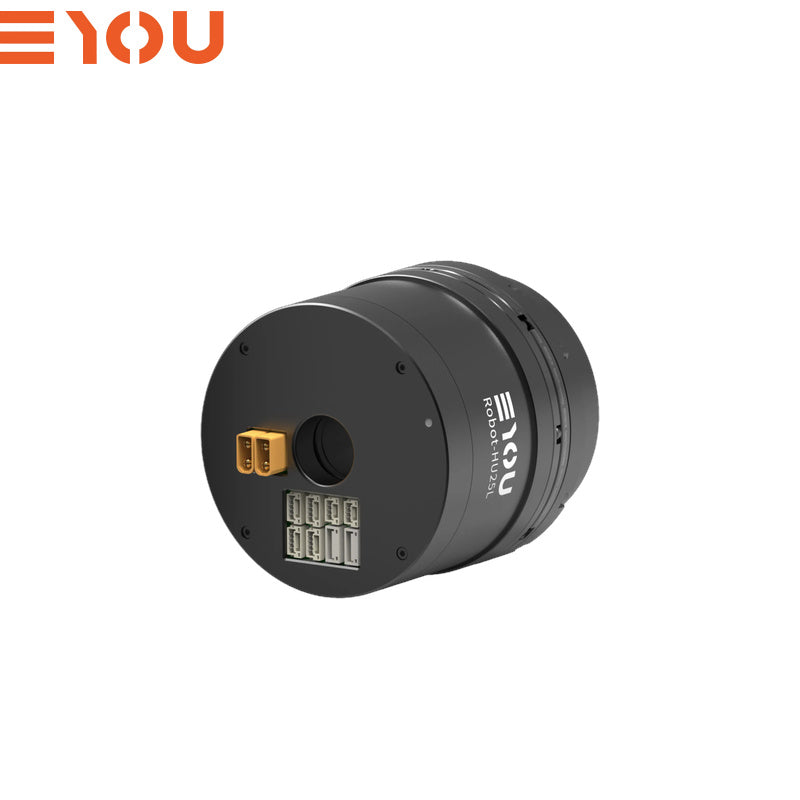

EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$510
Version
Brake
Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU RHU25L-80 Motor dimension drawing for installation reference.pdf ▶ EYOU RHU25L-80 Motor user manual for setup and integration.pdf ▶ EYOU RHU25L-80 Motor product documentation for robotics integration.pdf ▶ EYOU RHU25L-80 Motor user manual for setup and integration.pdf ▶

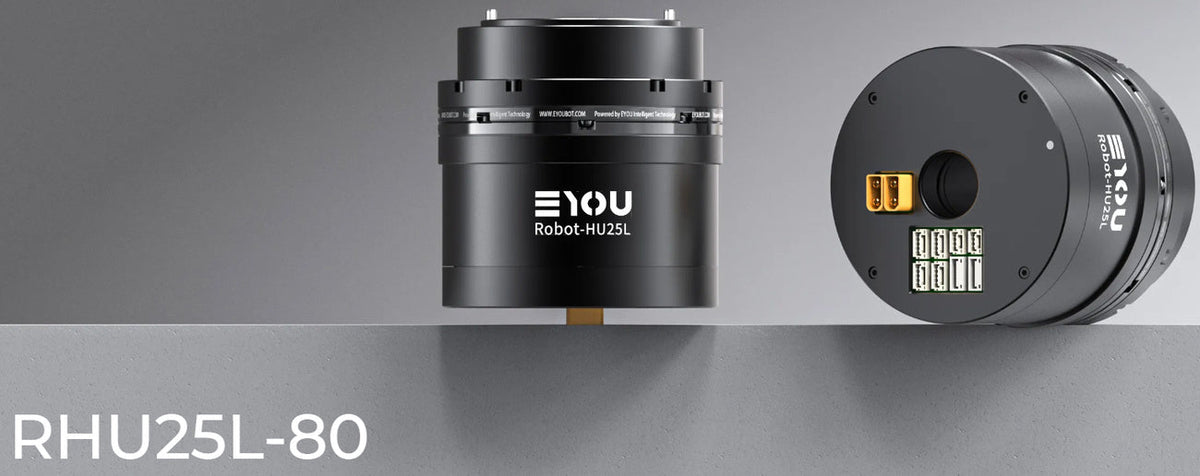

EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development detail image 1

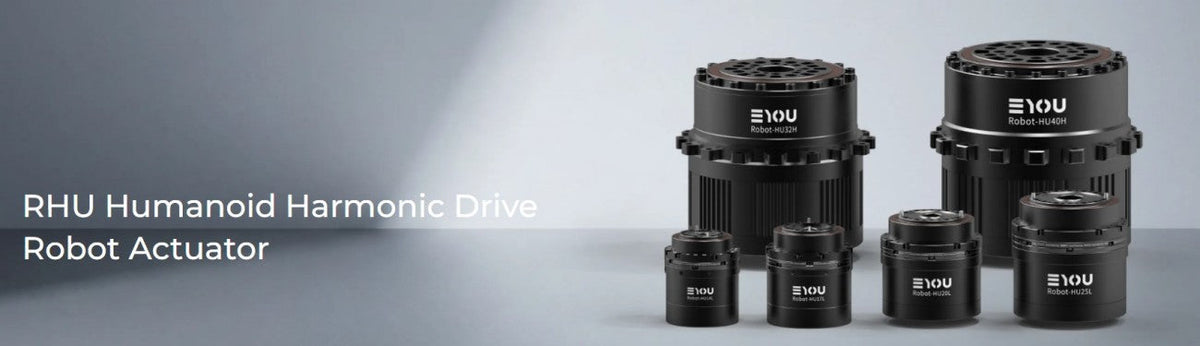

EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development detail image 2

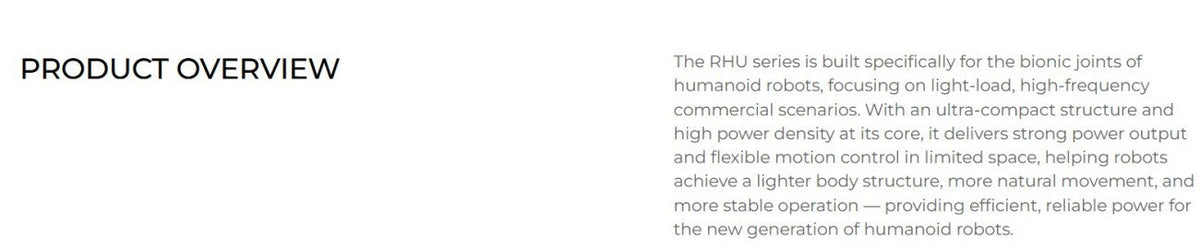

EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development detail image 3

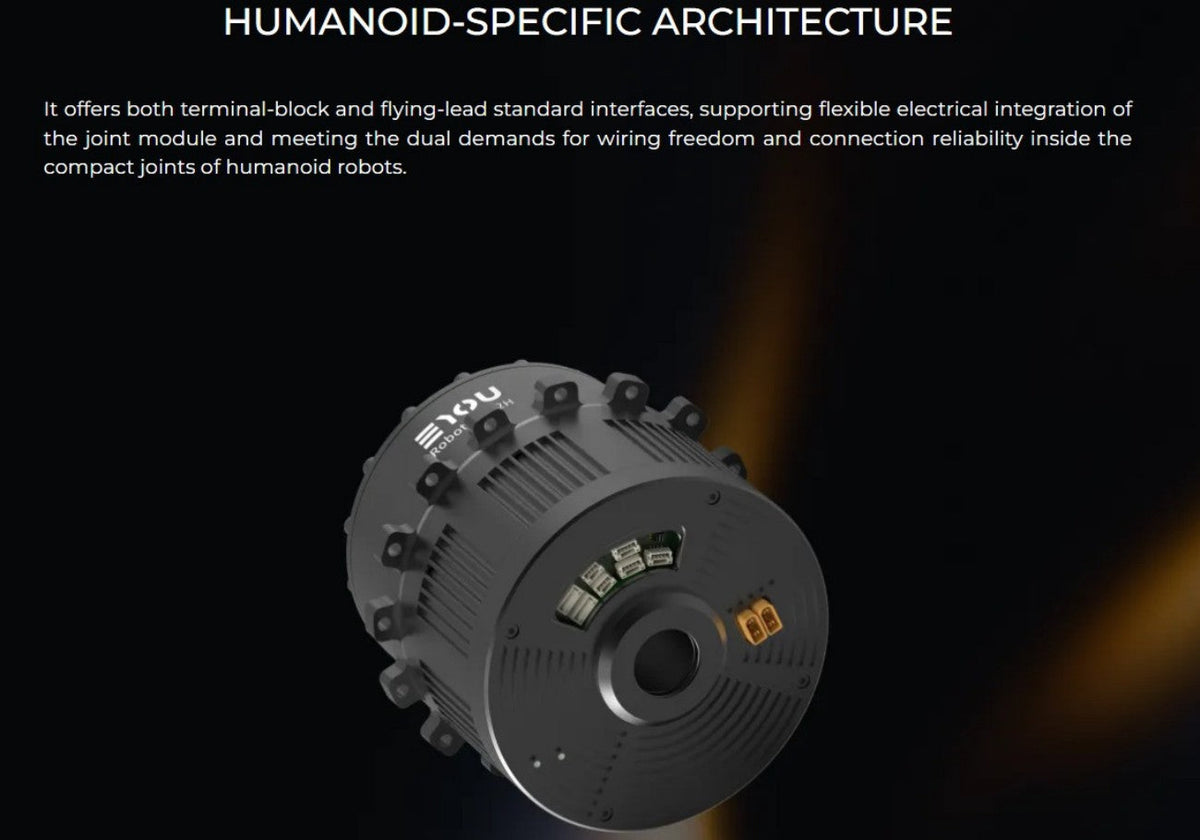

EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development detail image 4

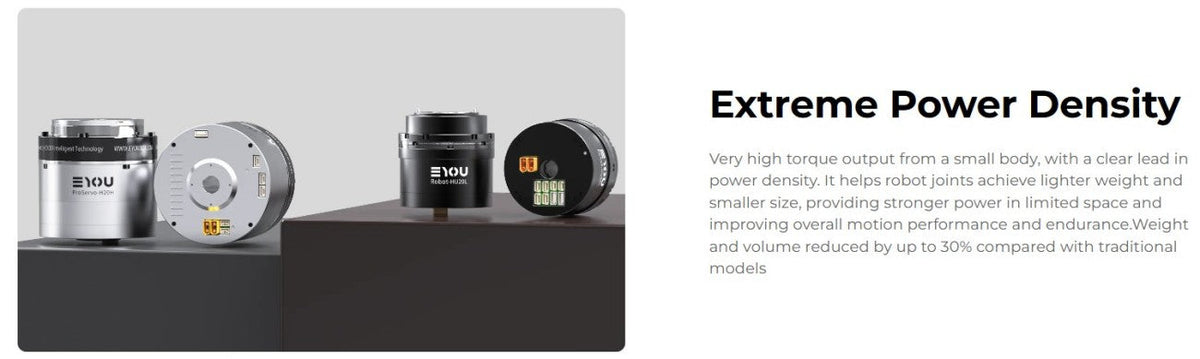

EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development detail image 5

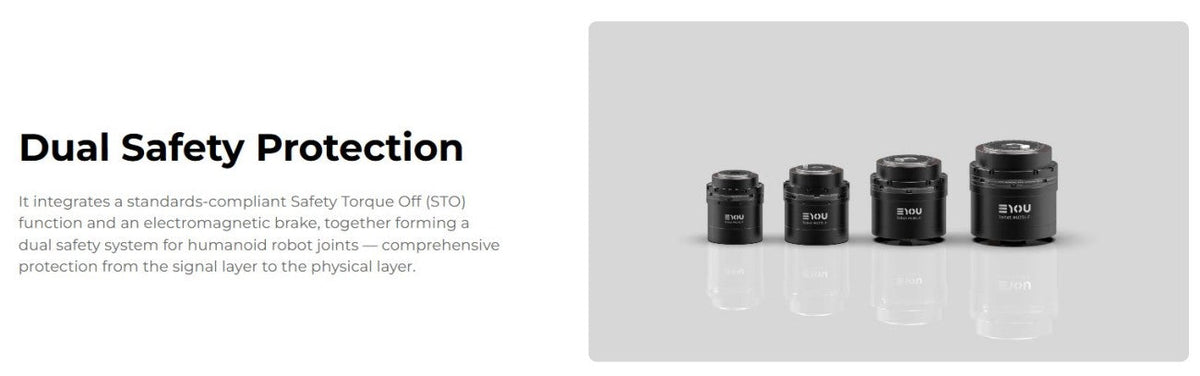

EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development detail image 6
EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development detail image 7
EYOU RHU25L-80 Motor | Robot Servo Motor for Robotics Development detail image 8
▤ PARAMETER ⌃
Module Model
RHU25L-80
Reducer Type
Harmonic
Motor Rated Power (W)
381
Motor Rated Torque (N·m)
1.04
Motor Peak Torque (N·m)
3.12
Reduction Ratio
50 / 80 / 100
Joint Rated Power (W) - Life Constraint
113 / 115 / 98
Rated Torque at 2000rpm Input (N·m)
27 / 44 / 47
Average Load Torque at Output (N·m)
38 / 60 / 75
Peak Torque at Output (N·m)
69 / 96 / 110
Max Allowable External Torque at Output (Instantaneous) (N·m)
127 / 179 / 184
Backlash (Arcsec)
≤20 / ≤20 / ≤20
Rated Speed at Output (rpm) - Life Constraint
40 / 25 / 20
Peak Speed at Output (rpm)
79 / 50 / 40
Brake (B/N)
B/N
Dimensions (Outer Diameter × Axial) (mm)
Φ80×80.5
Weight (kg) (B/N)
1.294 / 1.266
Hollow Diameter (mm)
18
Housing Appearance (Process Color)
Black Stone
Reducer Appearance (Process Color)
Outer Ring Blackened
Radial (dynamic/static) Allowable Load at Output (N)
440
Axial (dynamic/static) Allowable Load at Output (N)
440
Output Bending Moment (N·m)
62
Reducer Torsional Stiffness (N·m/rad)
12700
Reducer Input Inertia (kg·mm²) (B)
75.95 / 75.95 / 75.95
Equivalent Joint Output Inertia (kg·mm²) (B)
189875 / 486080 / 759500
Rated Operating Voltage (VDC)
48
Operating Voltage Range (VDC)
24~48
Driver
Built-in
Encoder/Bit (bit)
Dual Absolute / Motor side 17Bit & Reducer side 19Bit
Driver Interface (see terminal model description)
Power (DC in DC out), CAN FD (In,Out), EtherCAT (In,Out), STO (1,2)
Communication Protocol (see communication description)
EtherCAT / CANopen
Control Modes
Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Cyclic Synchronous Velocity (CSV), etc.
Operating Ambient Temperature (°C)
-20~60
Housing Temperature Rise (°C)
≤60
Noise (dB)
≤60
Life (h)
>10000
