Hinson

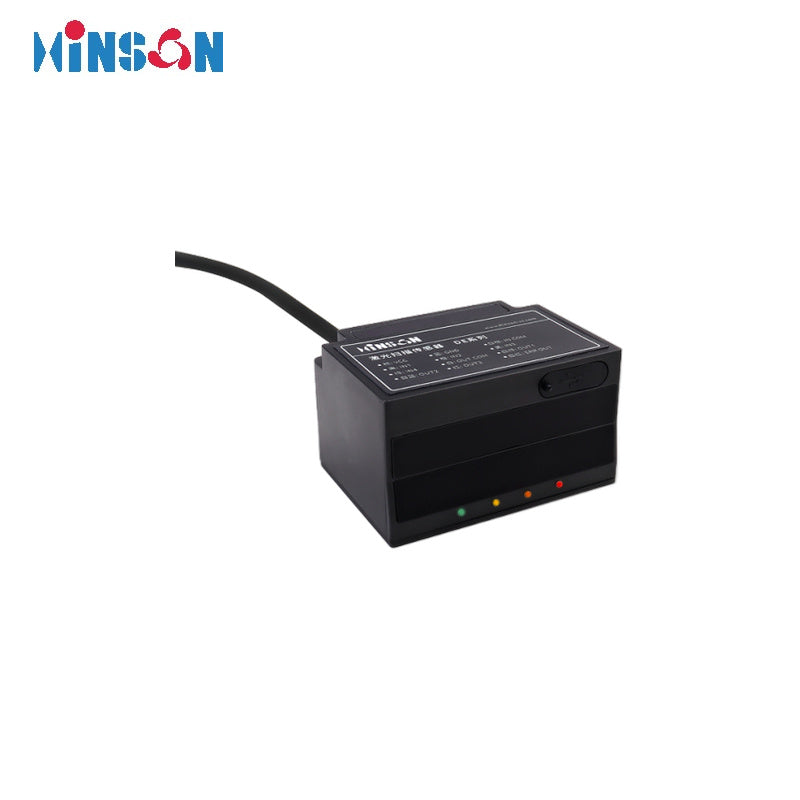

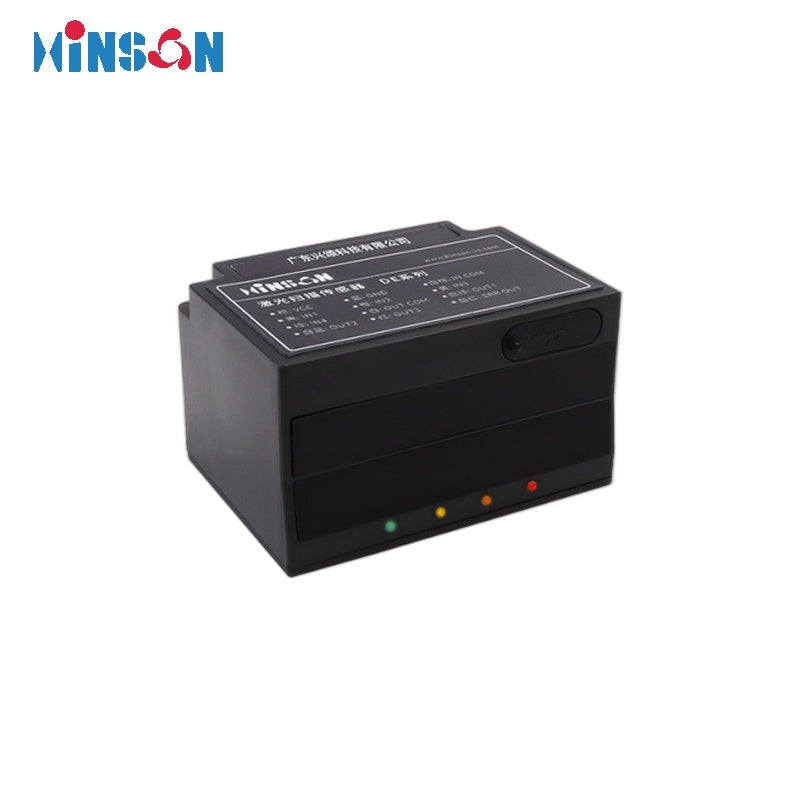

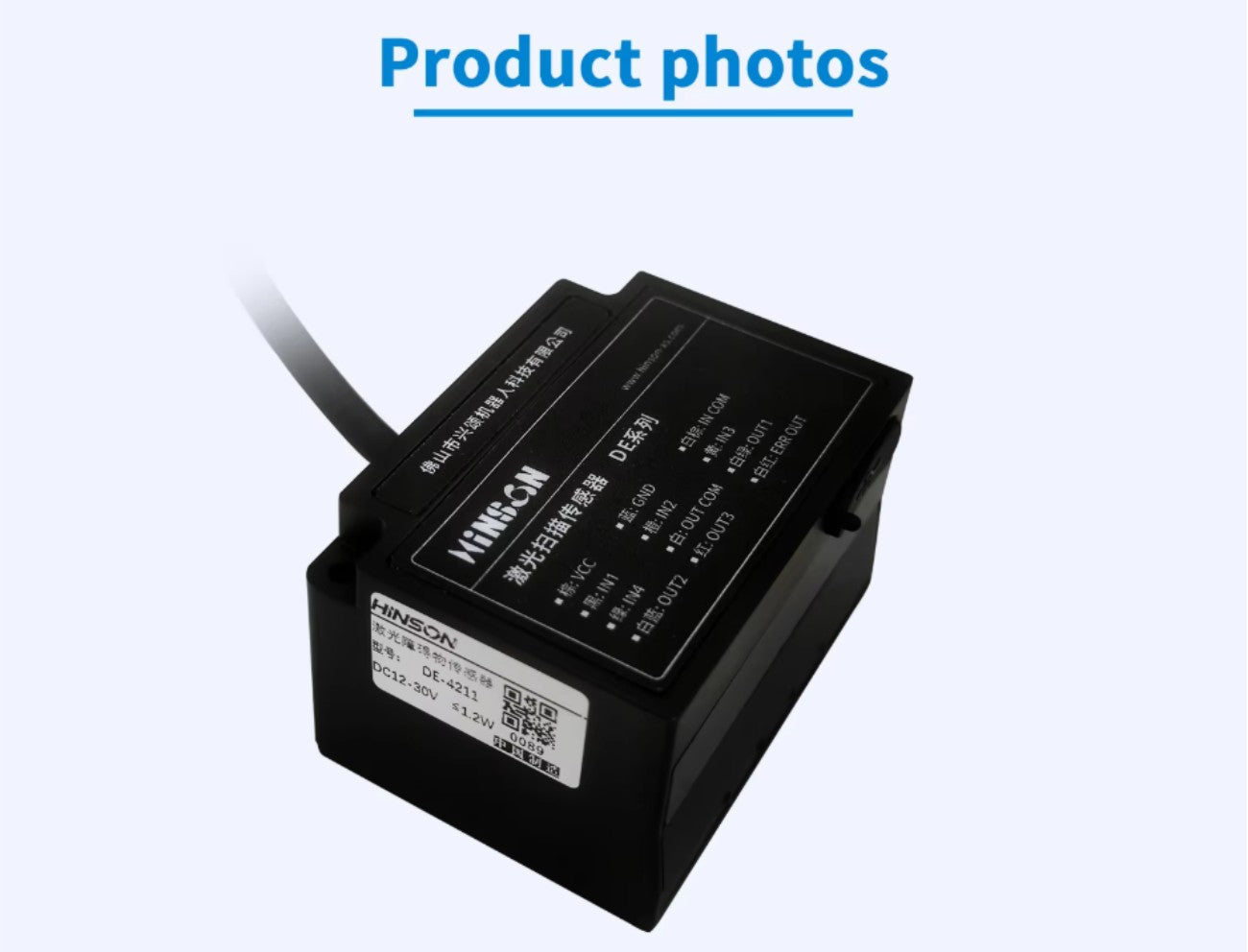

Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection Distance (90% reflectivity): 0.05 m ~ 4 m
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$175
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

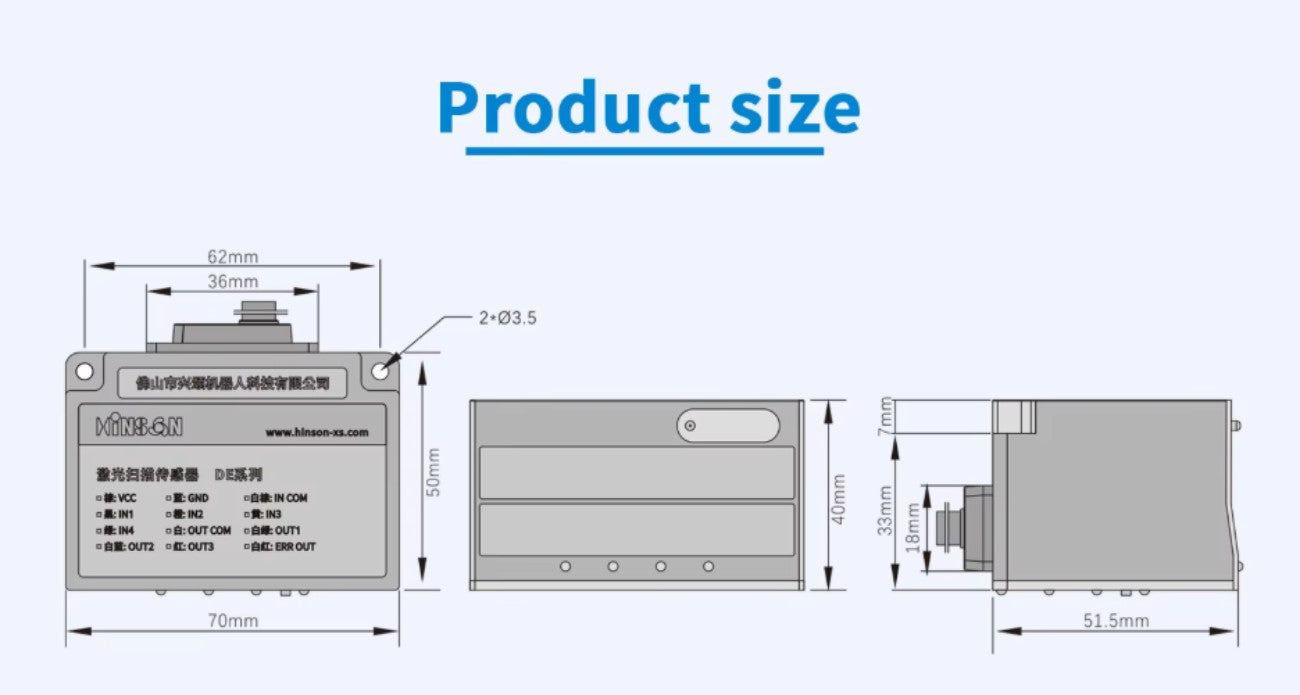

Hinson DE-4611 LiDAR dimension drawing for installation reference.pdf ▶ Hinson DE-4611 LiDAR SE series CAD model for mechanical integration.stp ▶ Hinson DE-4611 LiDAR LE series CAD model for mechanical integration.stp ▶
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9
Hinson DE-4611 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10
▤ PARAMETER ⌃

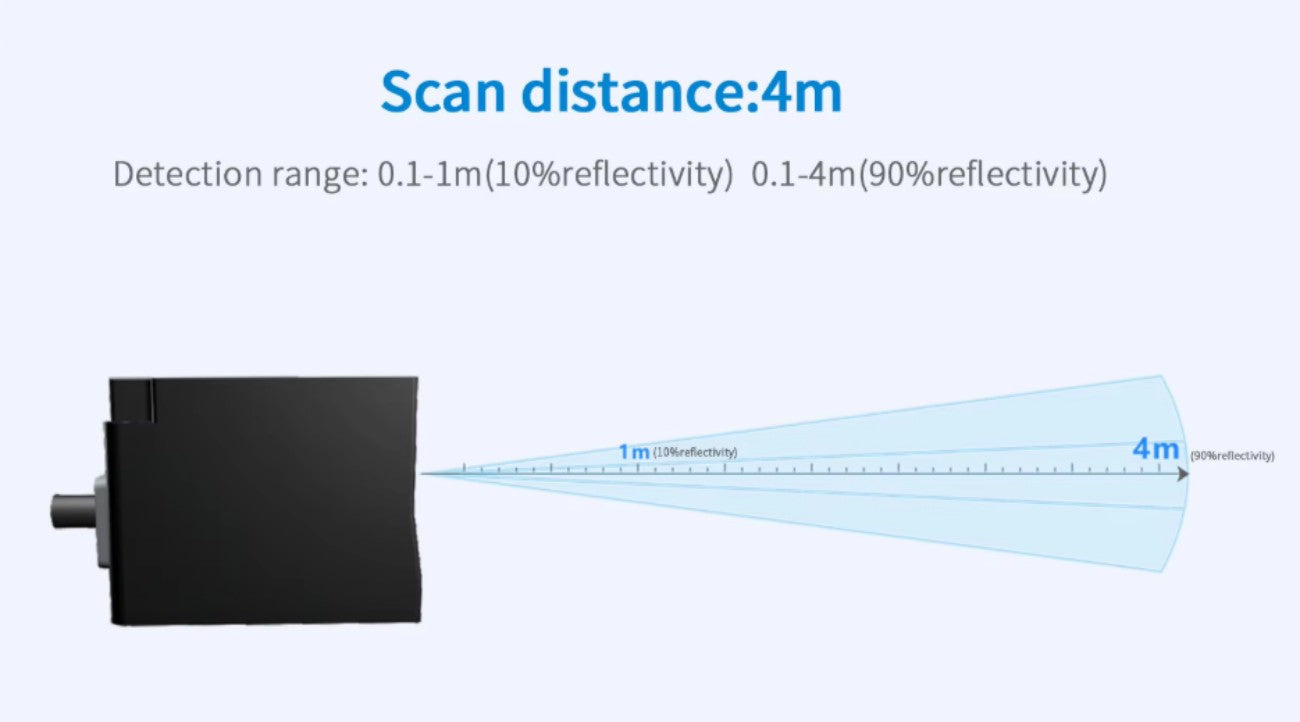

Detection Distance (90% reflectivity)
0.05 m ~ 4 m
Detection Distance (10% reflectivity)
0.05 m ~ 1.5 m

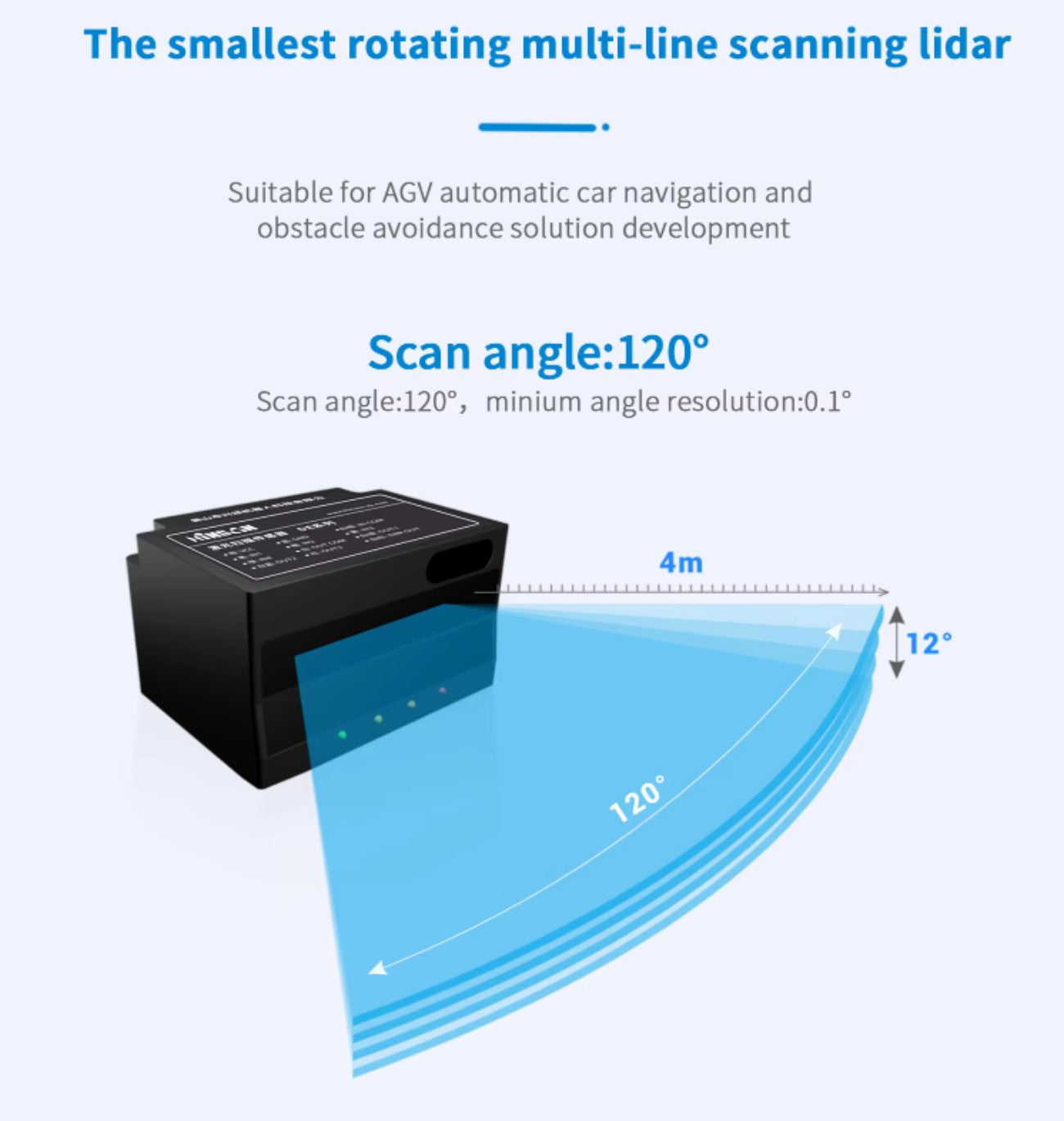

Detection Angle

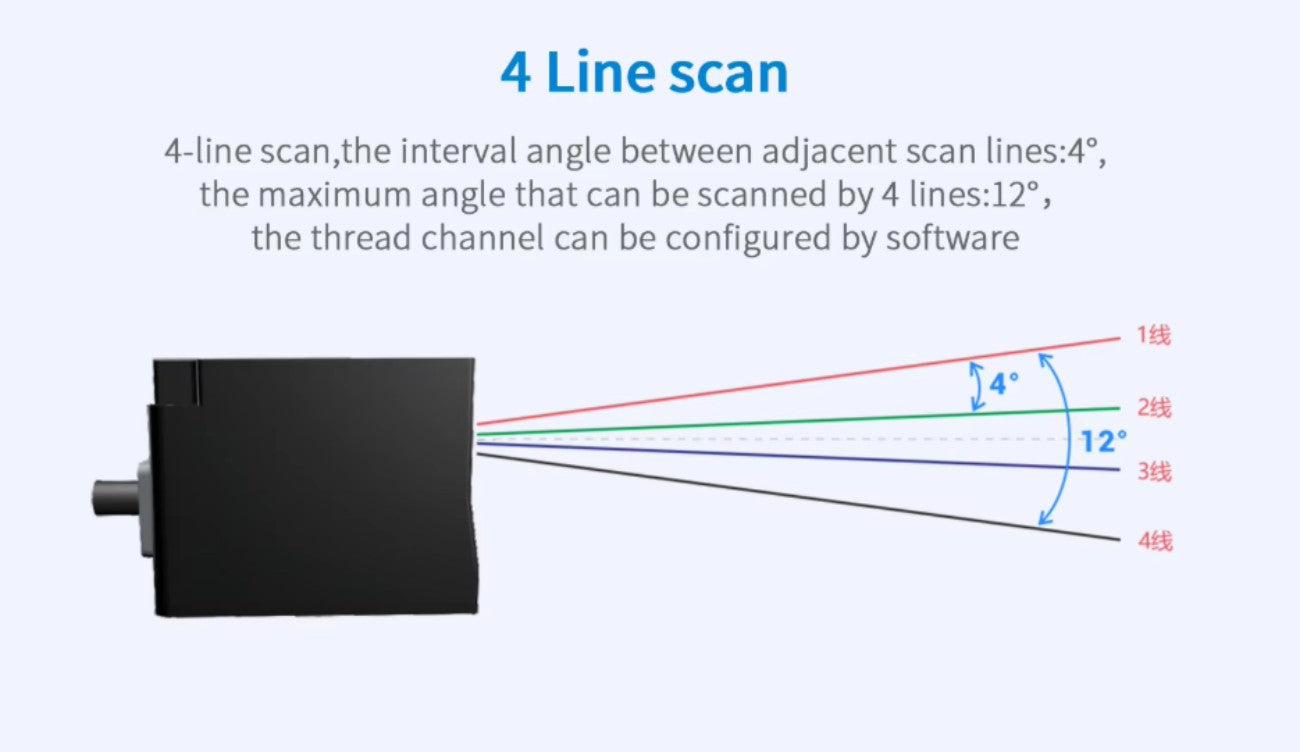

120° (4-line, vertical angle 12°)
Scan Frequency
10 Hz × 4
Point Cloud Resolution
0.5° (minimum resolution for obstacle detection)
Measurement Accuracy
±40 mm
Measurement Noise
±10 mm
Detection Output Delay
0‑500 ms configurable
Detection Hold Delay
0‑500 ms configurable
Recognizable Object Shape
Any shape, resolution depends on detection distance

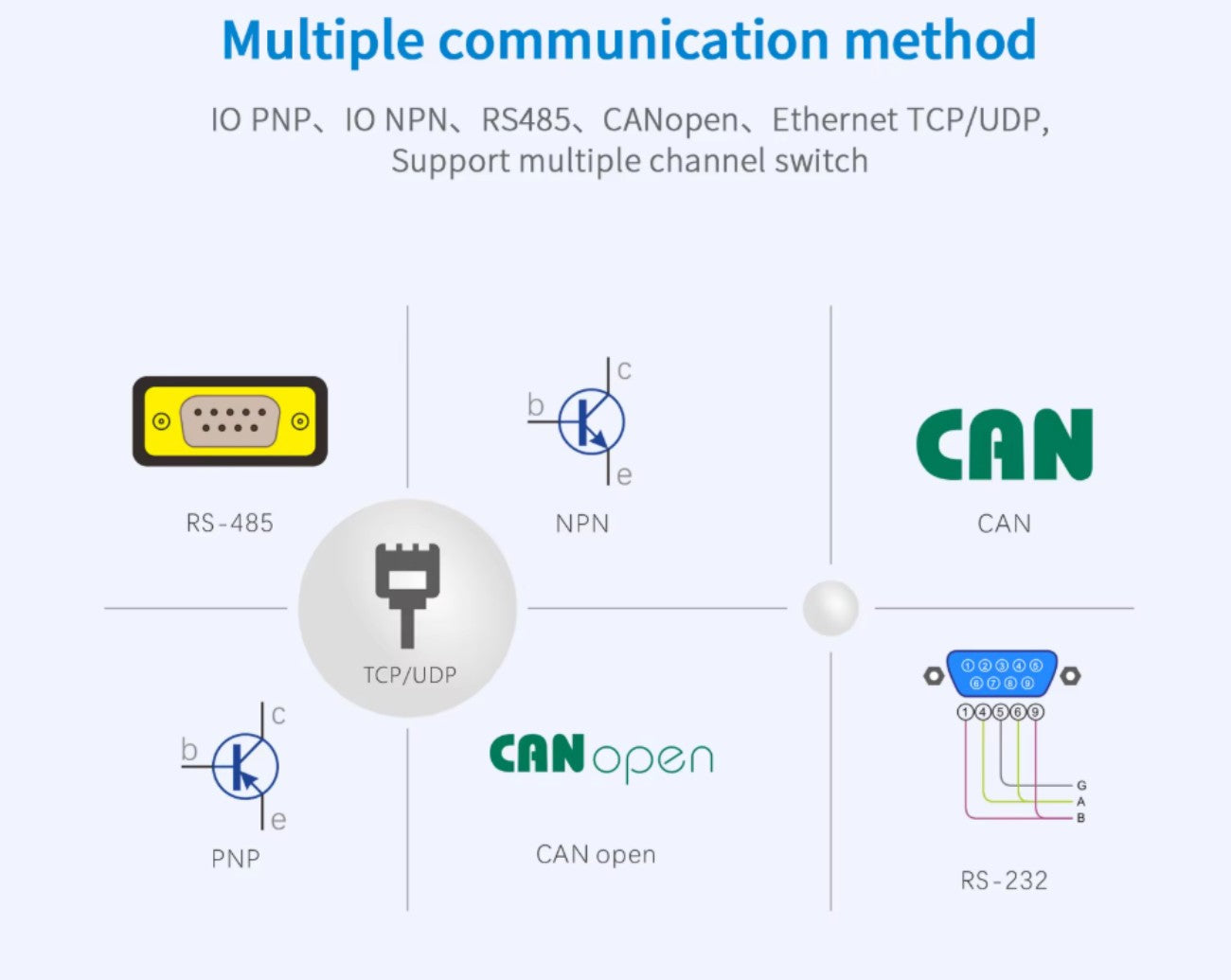

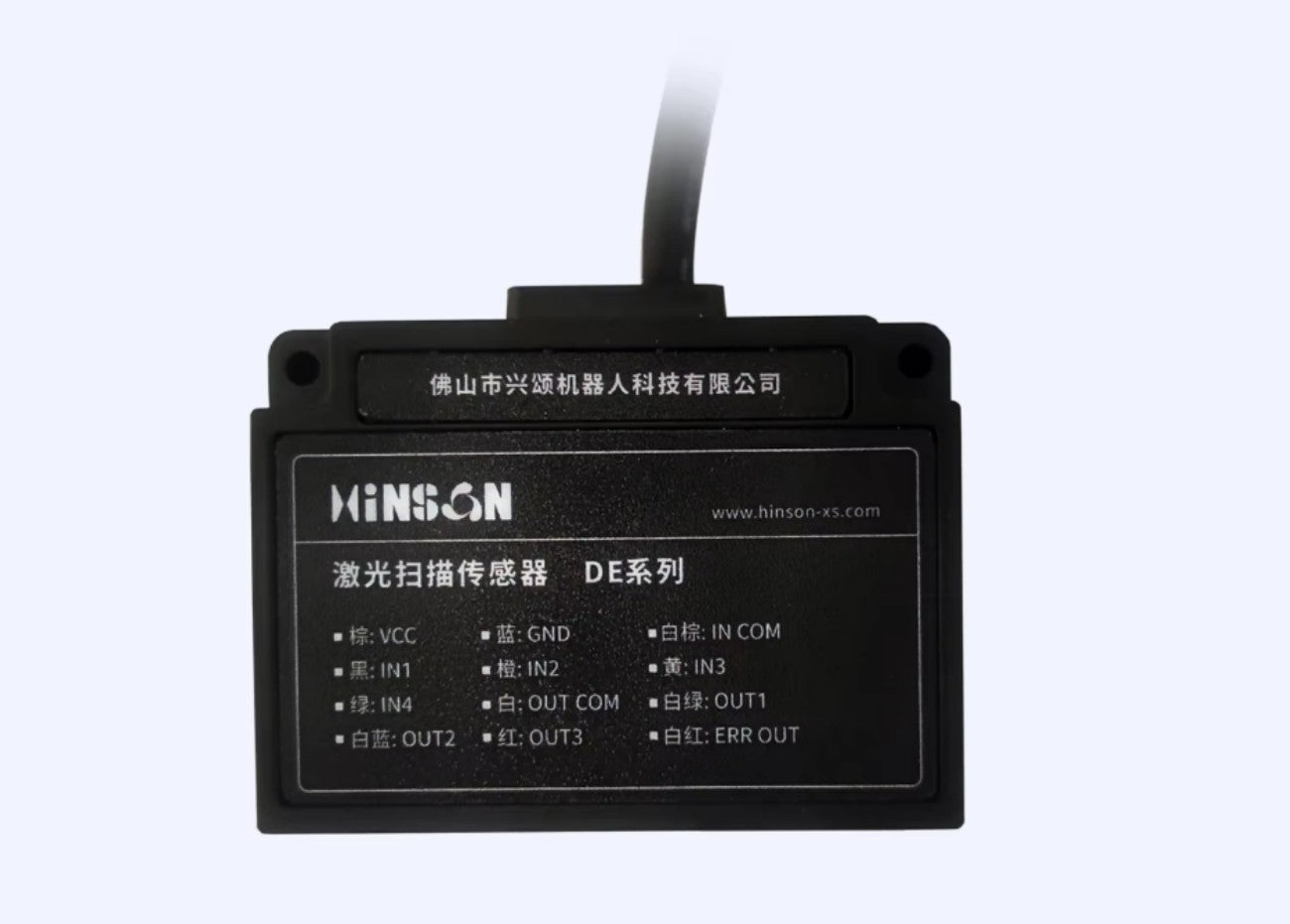

Digital Input
4 × PNP
Digital Output
4 × PNP

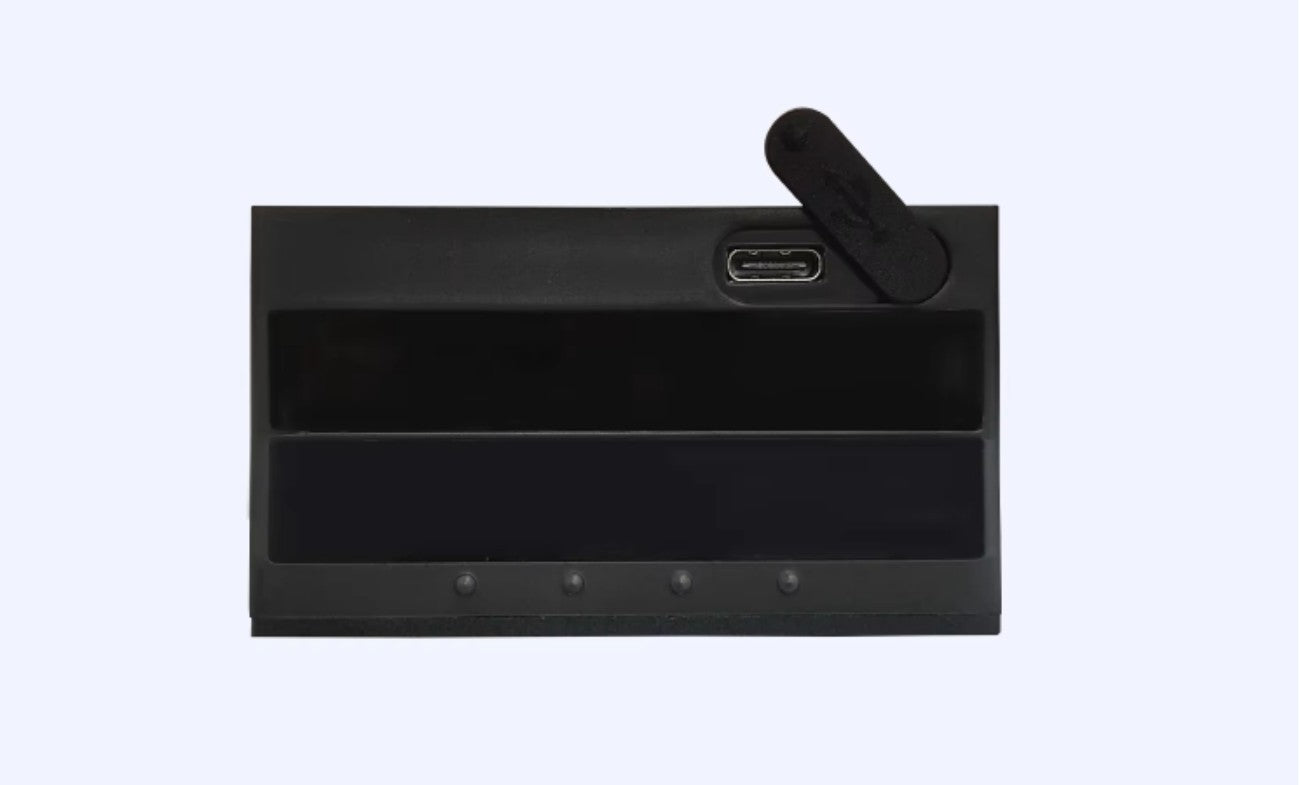

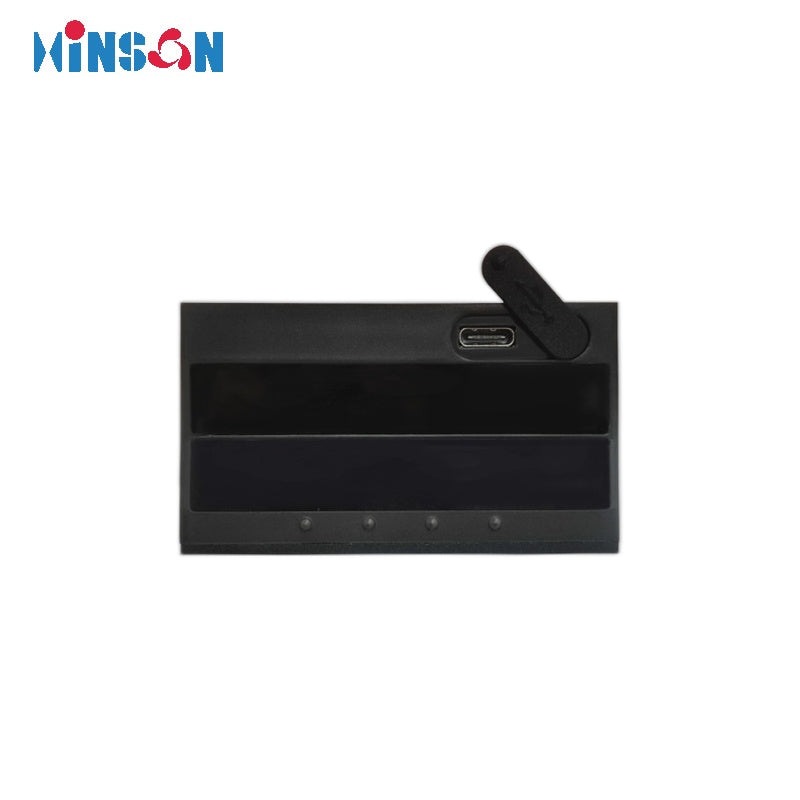

Type‑C
Supported
Number of Channels
16 (each channel provides 3 independent detection zones)
Operating Voltage
DC 12 ~ 30 V
Rated Power
< 2 W
Laser Class
905 nm Class 1 (IEC 60825-1:2014)
Indicator LEDs
Green (Power), Yellow (Output 1), Orange (Output 2), Red (Output 3)
Cable
1.5 m (custom length available)
Object Reflectivity
2 ~ 1000%
Ambient Light
< 80000 Lux (sunlight resistant)
Operating Environment
Indoor, -10°C ~ 50°C, < 80% RH (non‑condensing)
