DAMIAO

DAMIAO DM-JH14-2EC Motor

  • Suitable for robotics development, automation prototypes, education labs, and research platforms.
  • Designed for robot hardware integration where controlled motion and torque output matter.
  • Useful for robot joint modules, humanoid projects, mobile robots, and precision motion systems.
$410
Version
Communication Module
Accessory Kit

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

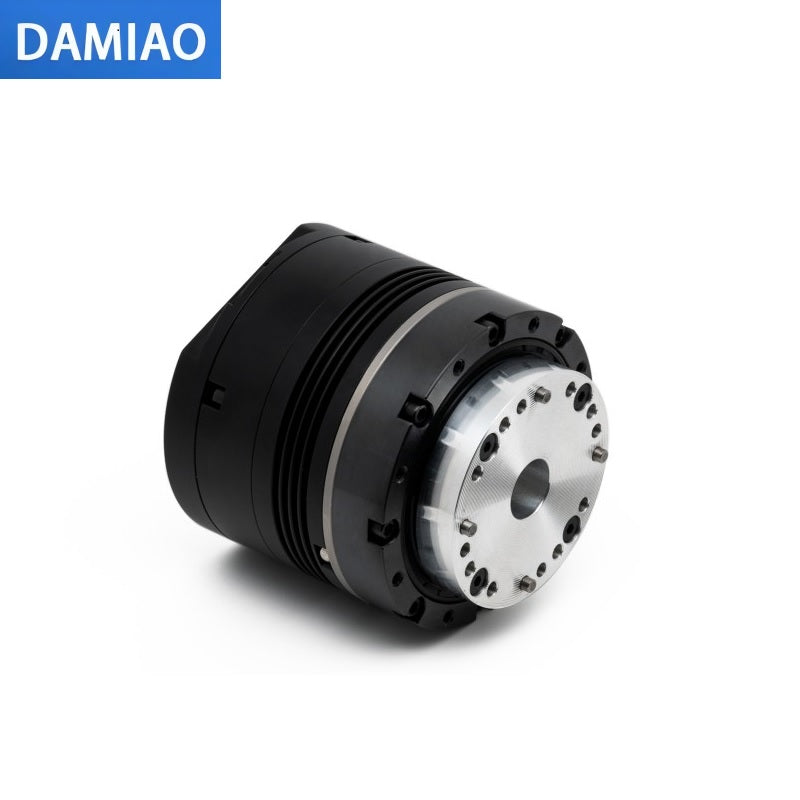

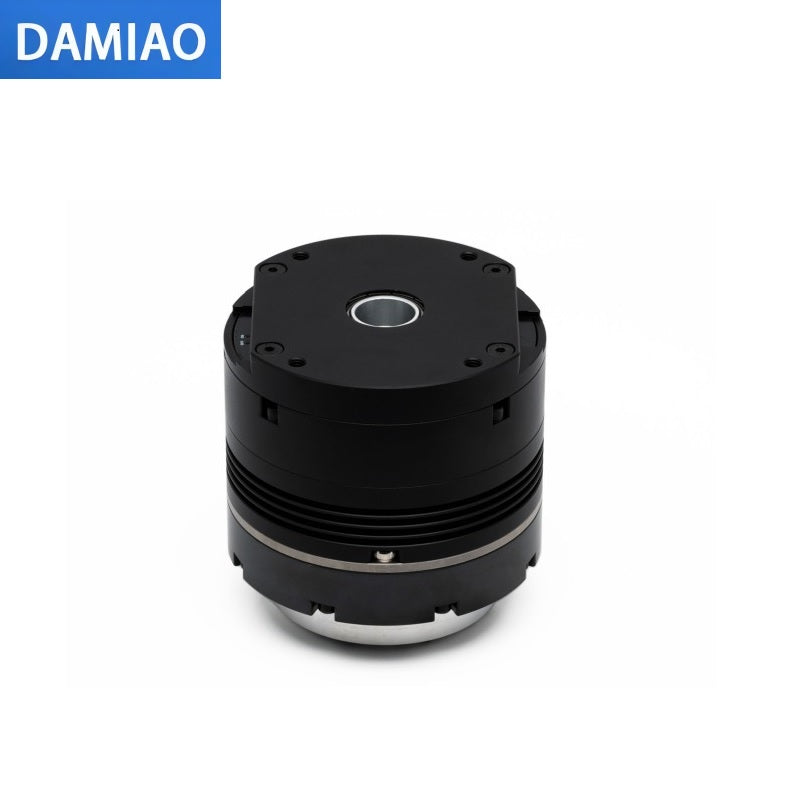

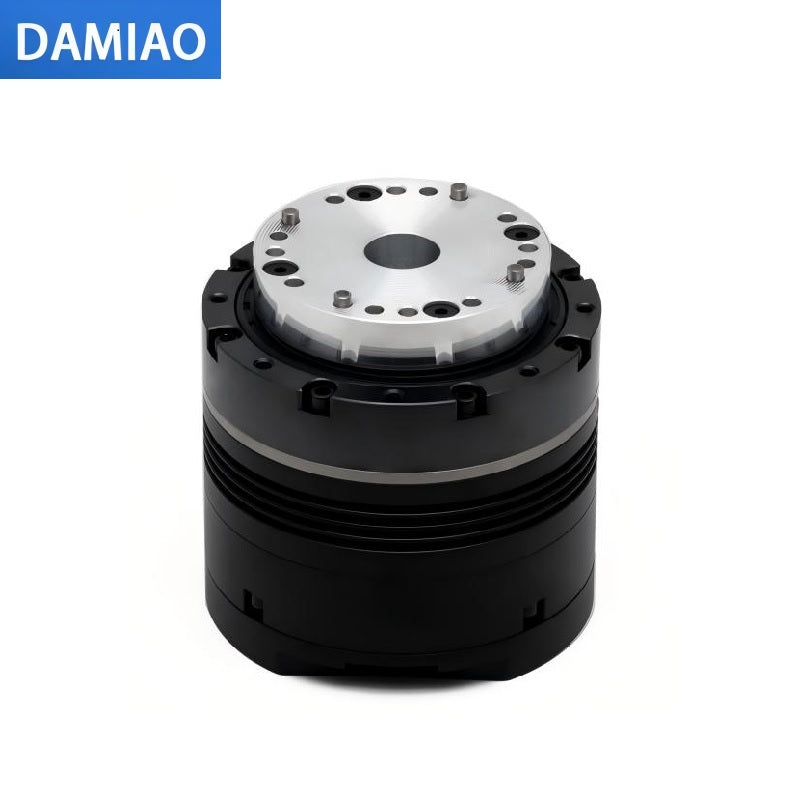

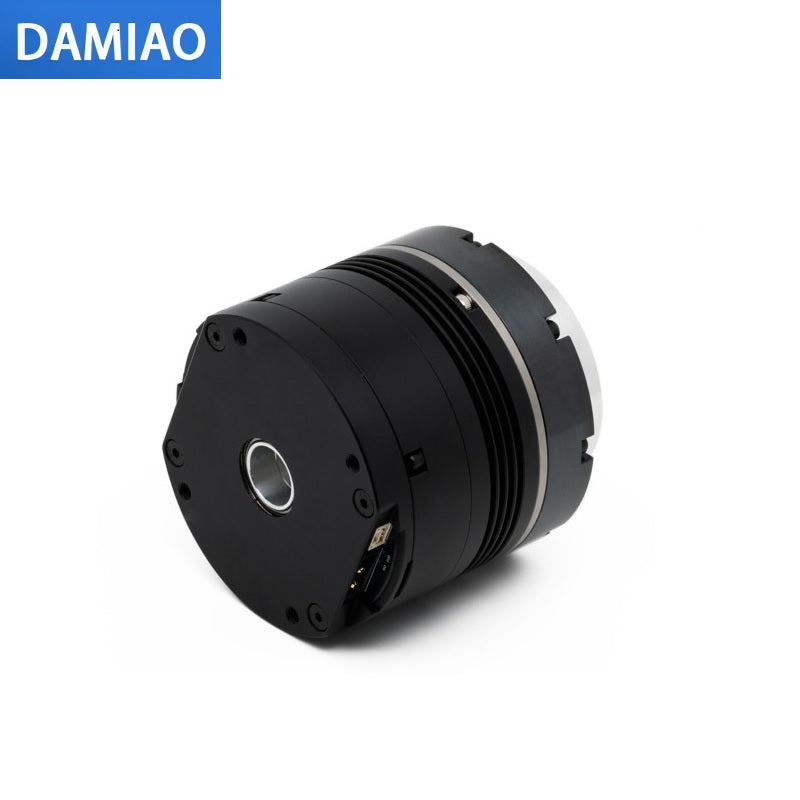

DAMIAO DM-JH14-2EC Motor

The DAMIAO DM-JH14-2EC Motor is a DAMIAO robot servo motor for robotics development, actuator integration, automation prototypes, and research platforms. It is intended for engineering teams building robotic joints, motion modules, and compact robot hardware systems.

Features

  • **Robot actuator integration:** Suitable for robotic joints, servo-driven modules, and motion hardware.
  • **Robotics development:** Supports education, research, prototyping, and automation projects.
  • **Motion system use:** Built for compact designs where reliable controlled movement is required.
  • **Engineering reference:** Product-specific specifications support evaluation, integration planning, and system design.
▤ PARAMETER ⌃
Parameter
Value
Model
DM-JH14-51-2EC: DM-JH14-51-2EC DM-JH14-101-2EC: DM-JH14-101-2EC
Nominal Voltage
24V (Supports 24–48V)
Rated phase / supply current
DM-JH14-51-2EC: 4.89A/1.36A@24V 4.89A/0.69A@48V DM-JH14-101-2EC: 4.12A/1.56A @24V 4.12A/0.80A @48V
Peak phase / supply current
DM-JH14-51-2EC: 13.70A/5.84A@24V 13.70A/2.97A@48V DM-JH14-101-2EC: 10.97A/4.04V@24V 10.97A/2.04A@48V
Rated torque
DM-JH14-51-2EC: 5.4N.M DM-JH14-101-2EC: 7.8N.M
Peak Torque
DM-JH14-51-2EC: 18N.M DM-JH14-101-2EC: 28N.M
Rated speed
DM-JH14-51-2EC: 40rpm DM-JH14-101-2EC: 20rpm
Maximum allowable speed
DM-JH14-51-2EC: 60rpm DM-JH14-101-2EC: 30rpm
Reduction Ratio
DM-JH14-51-2EC: 51:1 DM-JH14-101-2EC: 101:1
Pole Pairs
10
Phase Inductance
170uH (@25°C)
Phase Resistance
0.243Q (@25°C

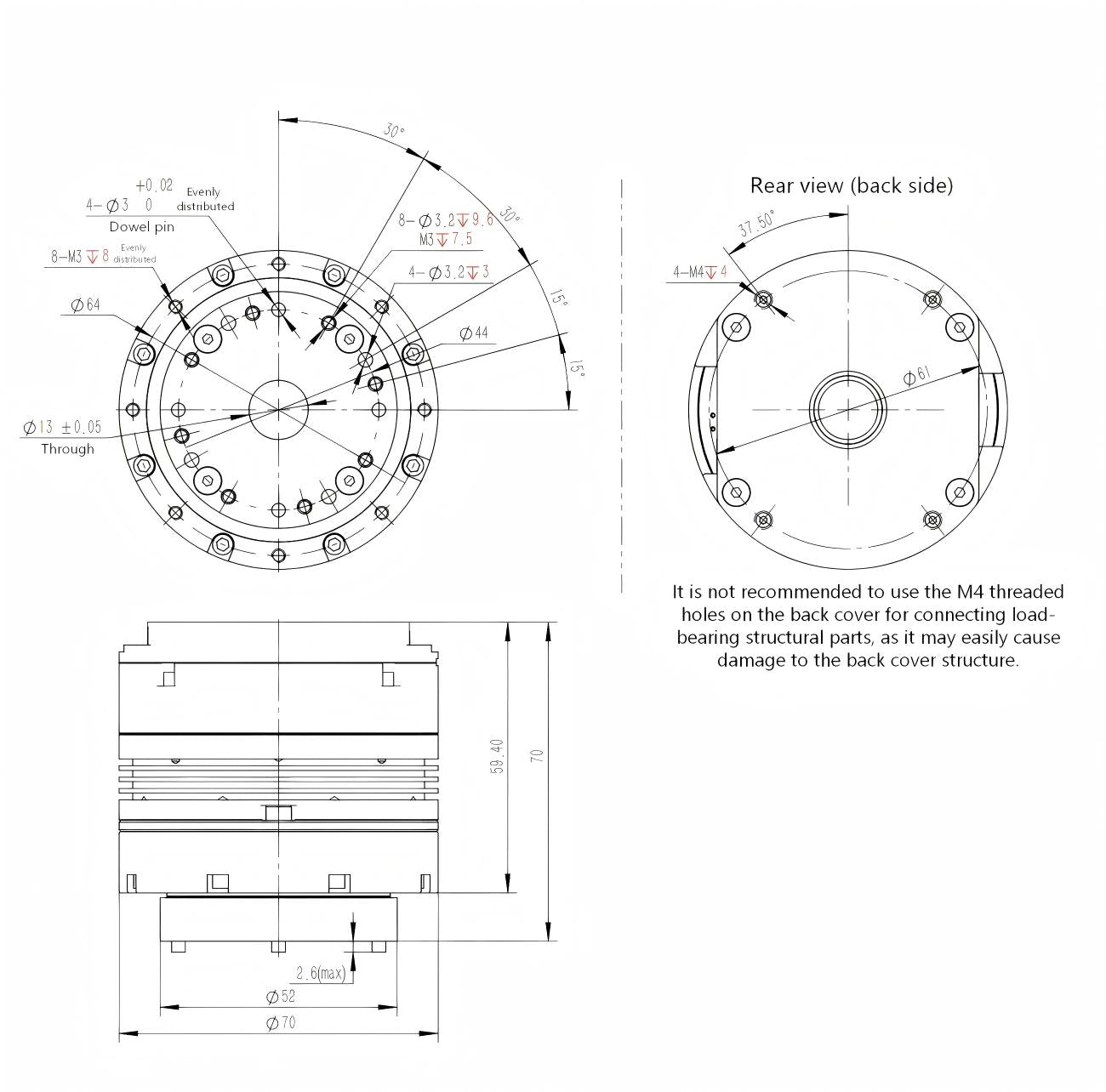

Outer Diameter
70mm
Height
70mm
Center hole dimensions
13mm
Motor Weight
775g
Encoder Resolution
17-bit
Number of Encoders
2
Encoder Type
Dual encoder (single-turn)
Control Interface
CAN@5Mbps (Max)
Configuration Interface
UART@921600bps
Control Modes
MIT mode Speed mode Position mode Force-position hybrid control mode Cyclic synchronous position mode (CSP) Cyclic synchronous velocity mode (CSV) Cyclic synchronous torque mode (CST)
Protection
Drive over-temperature protection: Protection temperature: 100°C. If overtemperature occurs, the motor will exit "enable mode". Motor over-temperature protection: Set according to usage requirements; recommended not to exceed 90°C. If overtemperature occurs, the motor will exit "enable mode". Motor over-voltage protection: Set according to usage requirements; recommended not to exceed 54V. If overvoltage occurs, it will exit "enable mode". Communication loss protection: If no CAN command is received within the set period, it will automatically exit "enable mode". Motor over-current protection: Set according to usage requirements; recommended not to exceed 0.98. If overcurrent occurs, it will exit "enable mode". Motor under-voltage protection: If the supply voltage falls below the set value, it will exit "enable mode". The supply voltage should not be lower than 20V.
DAMIAO DM-JH14-2EC Motor
