FJDynamics

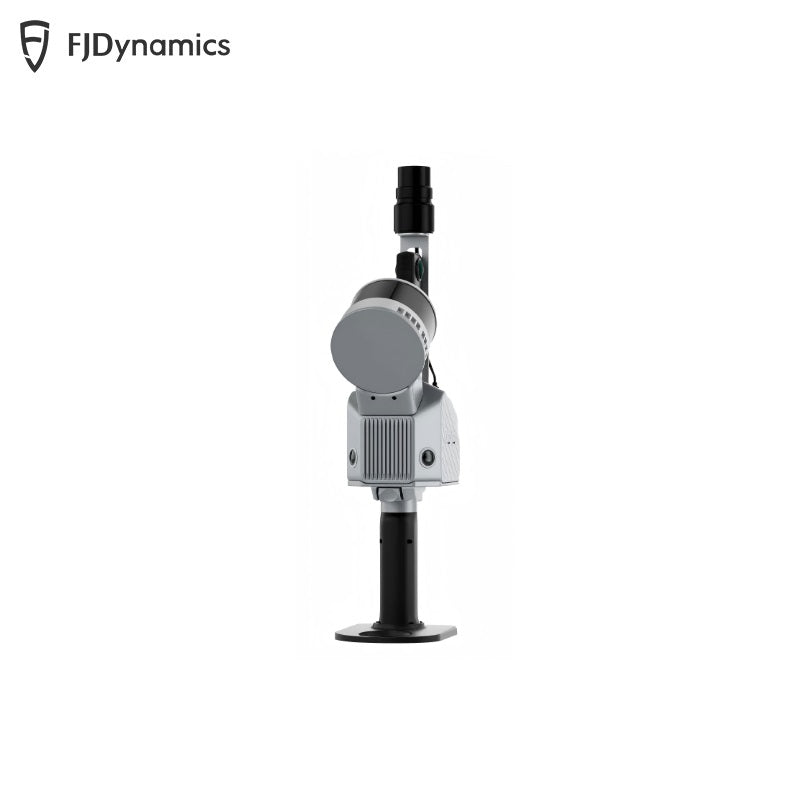

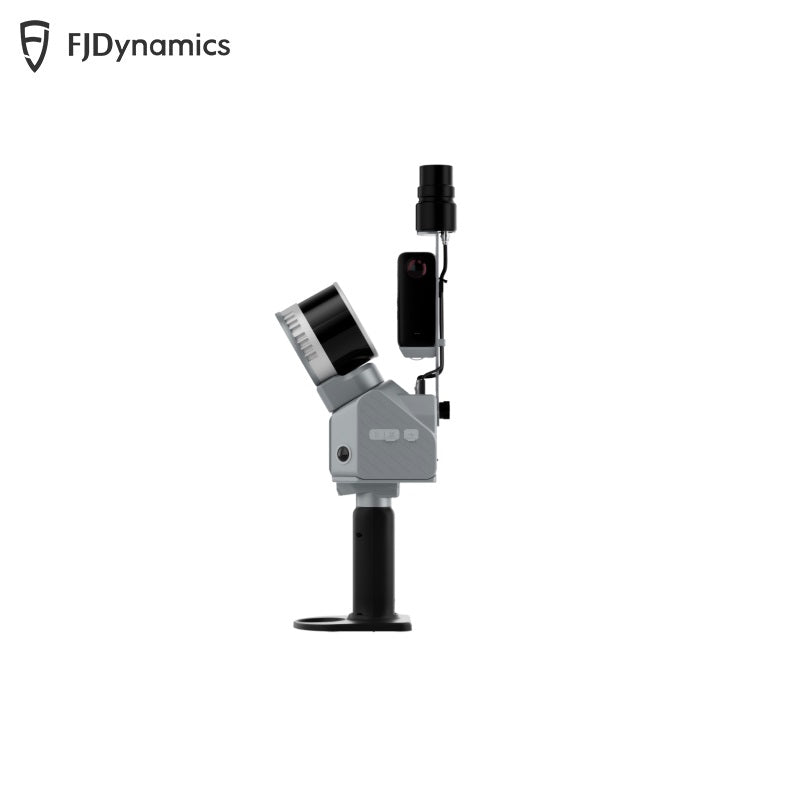

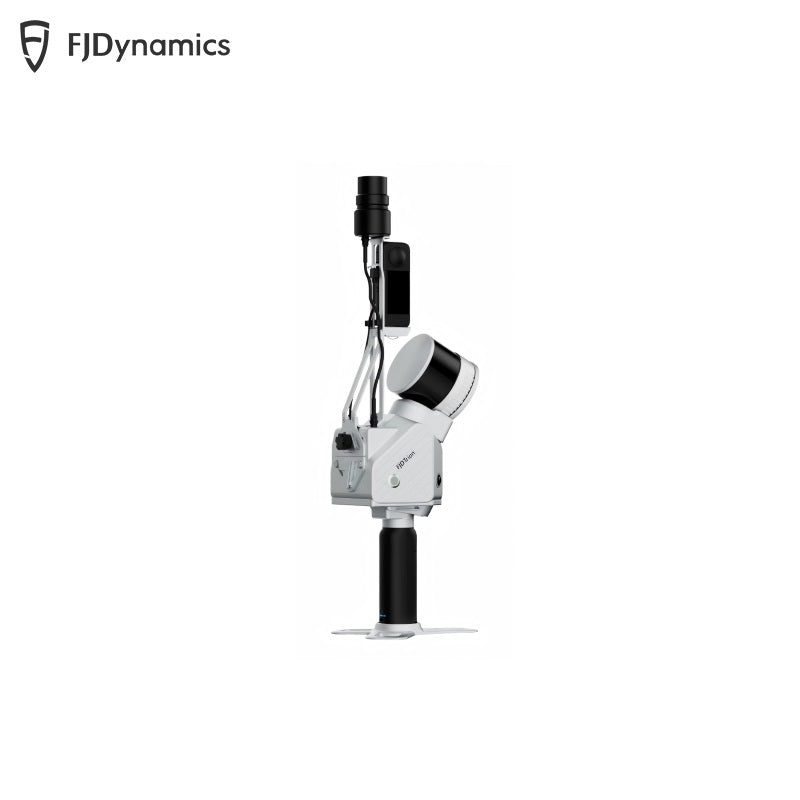

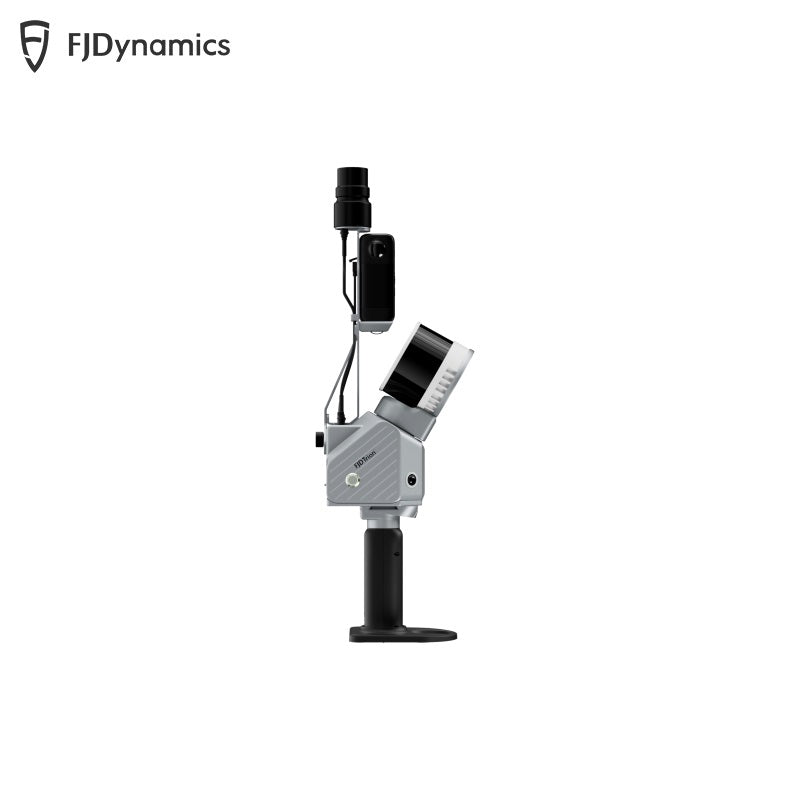

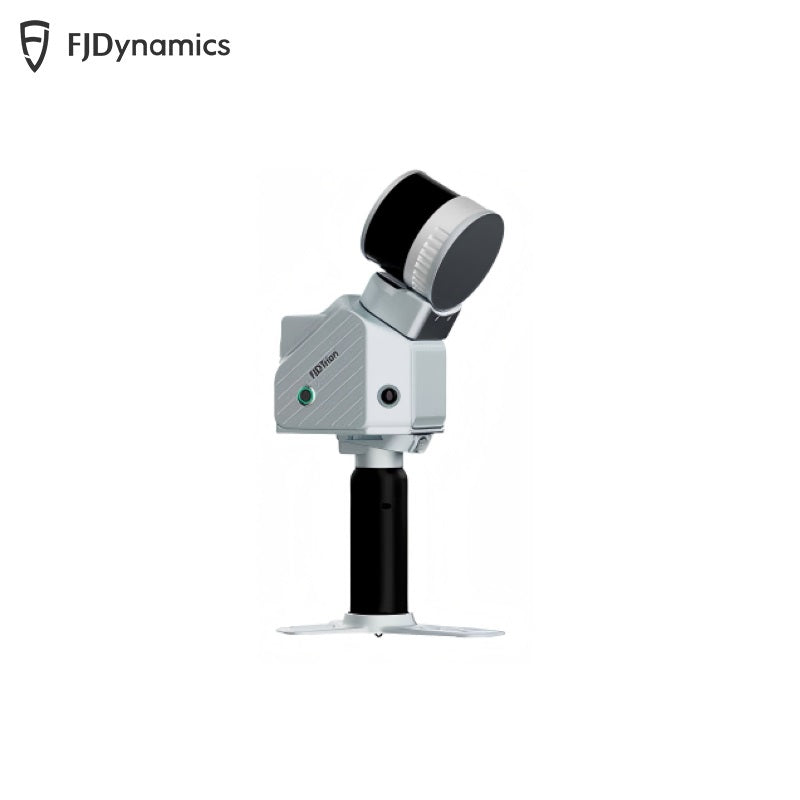

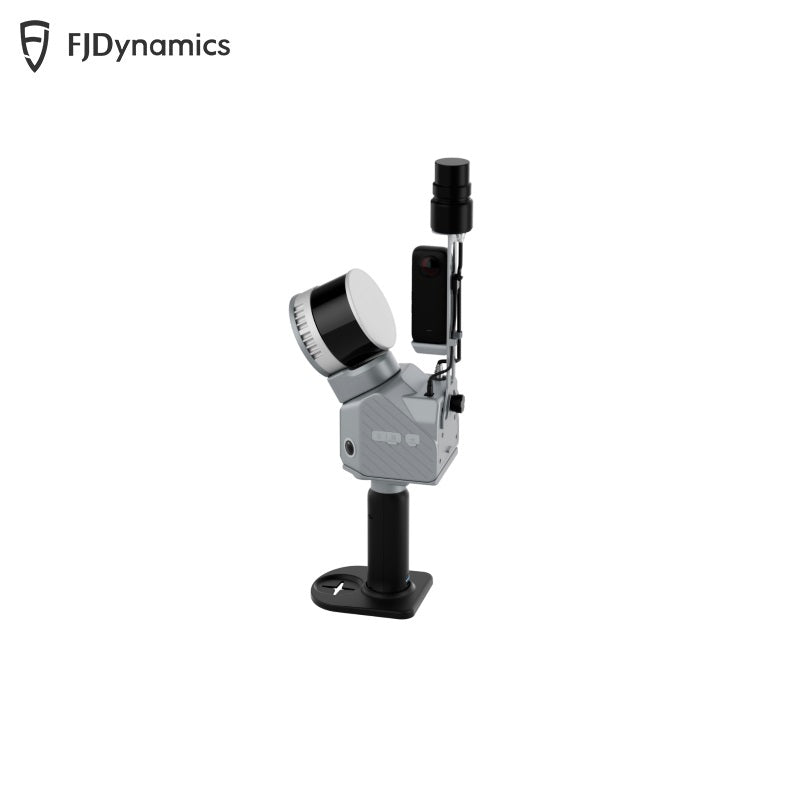

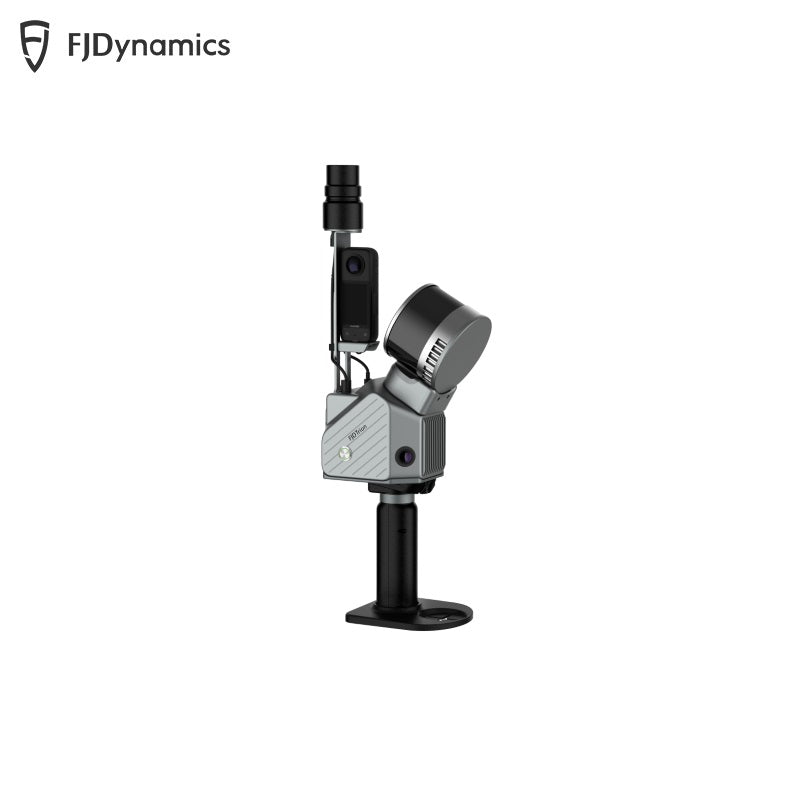

FJDynamics Trion S2 LiDAR Scanner

  • Three configurations provide up to 32 LiDAR channels, 640,000 points per second, and 300 m range at 80% reflectivity.
  • Wide 360-degree by 270-degree field of view supports comprehensive mobile mapping and spatial data capture.
  • Delivers relative accuracy of 1 cm or better and absolute accuracy of 3 cm.
  • Integrated dual 12 MP cameras with a 200-degree camera field of view support colorized point-cloud workflows.
  • Designed for humanoid robots, robotic arms, exoskeletons, quadruped robots, AGVs, and mobile mapping applications.
$10,200
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

FJDynamics Trion S2 dimensional drawing for mechanical integration.pdf ▶ FJDynamics Trion S2 setup and operating quick start guide.pdf ▶

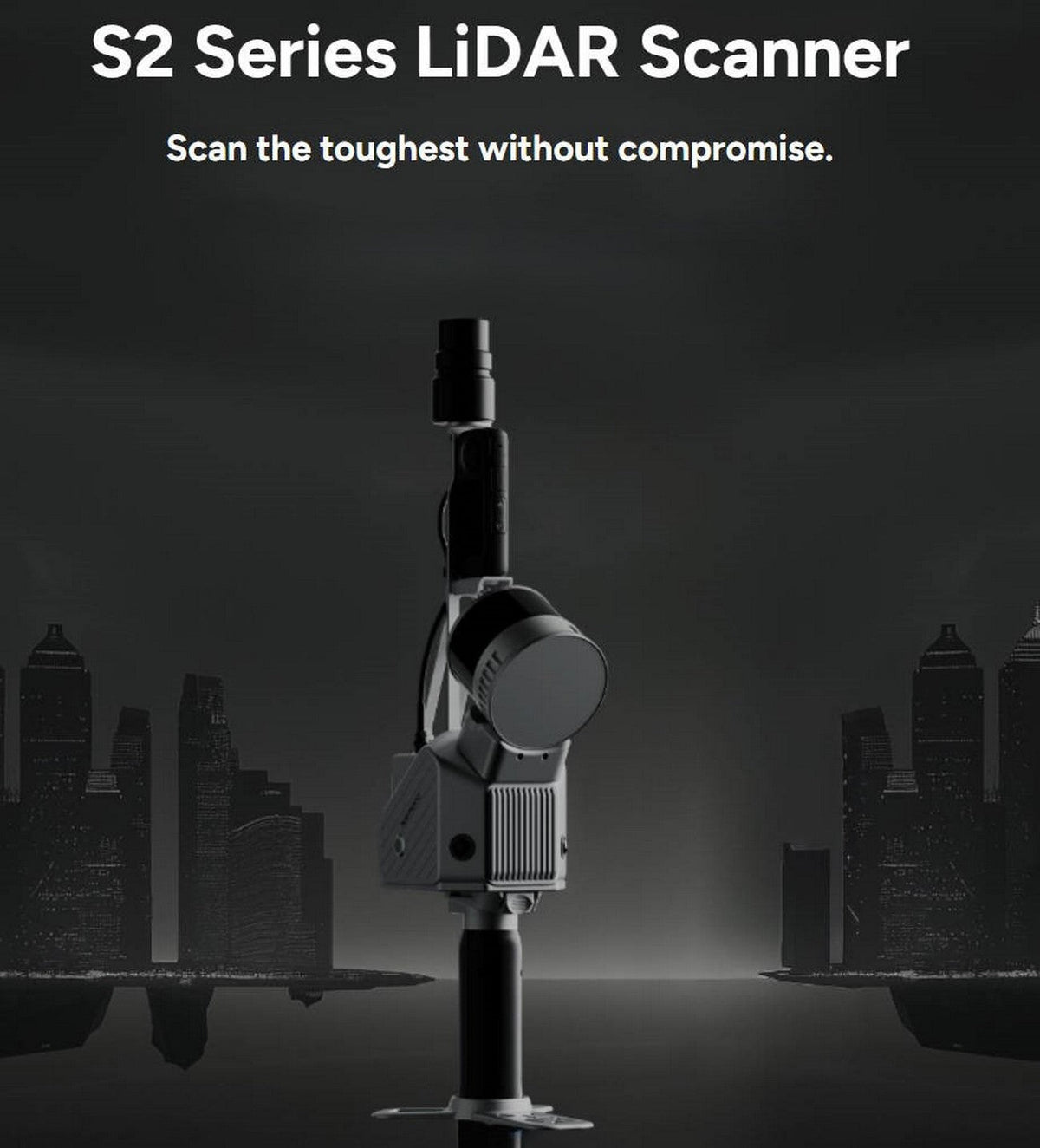

FJDynamics Trion S2 LiDAR Scanner detail image 1

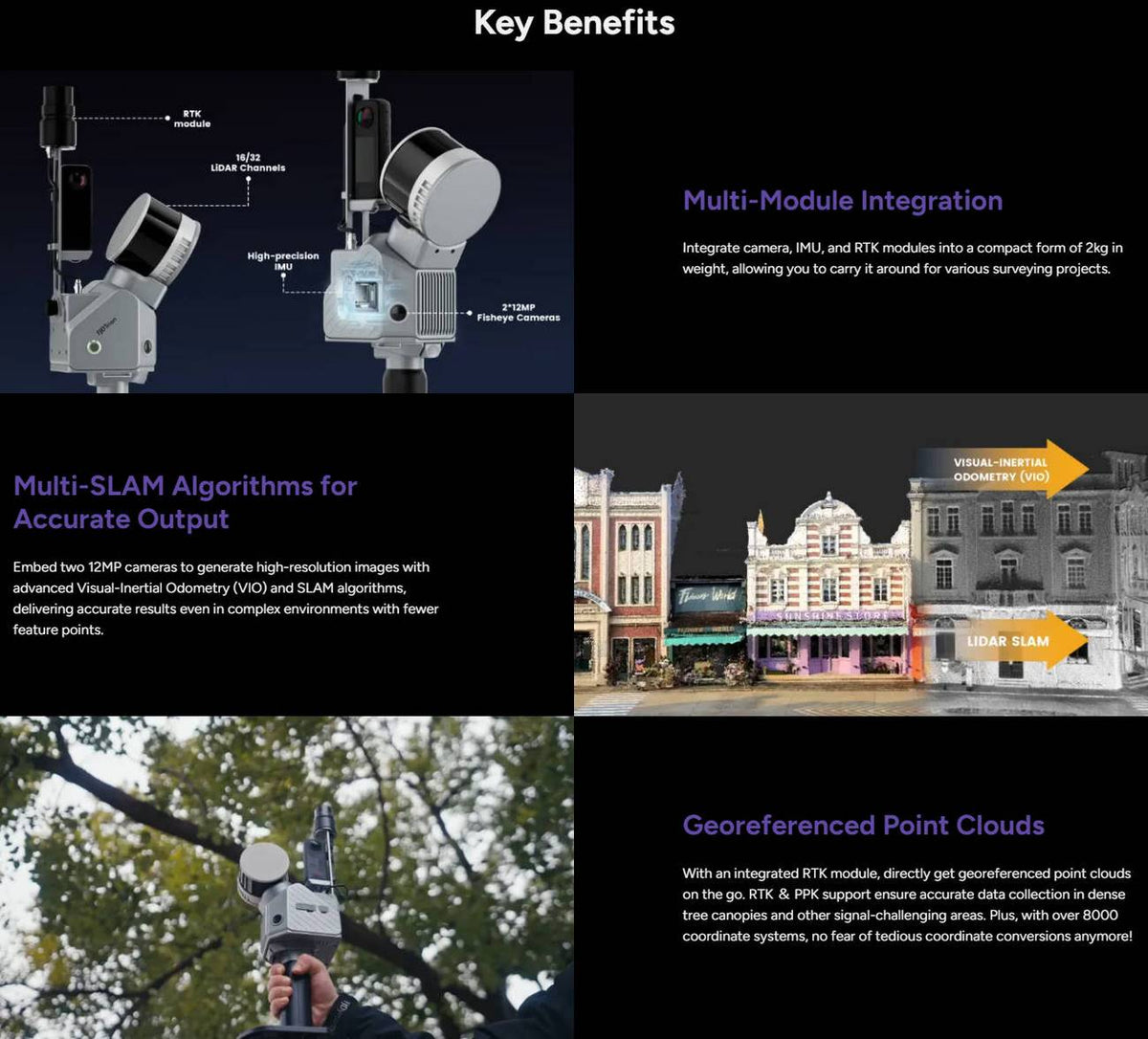

FJDynamics Trion S2 LiDAR Scanner detail image 2

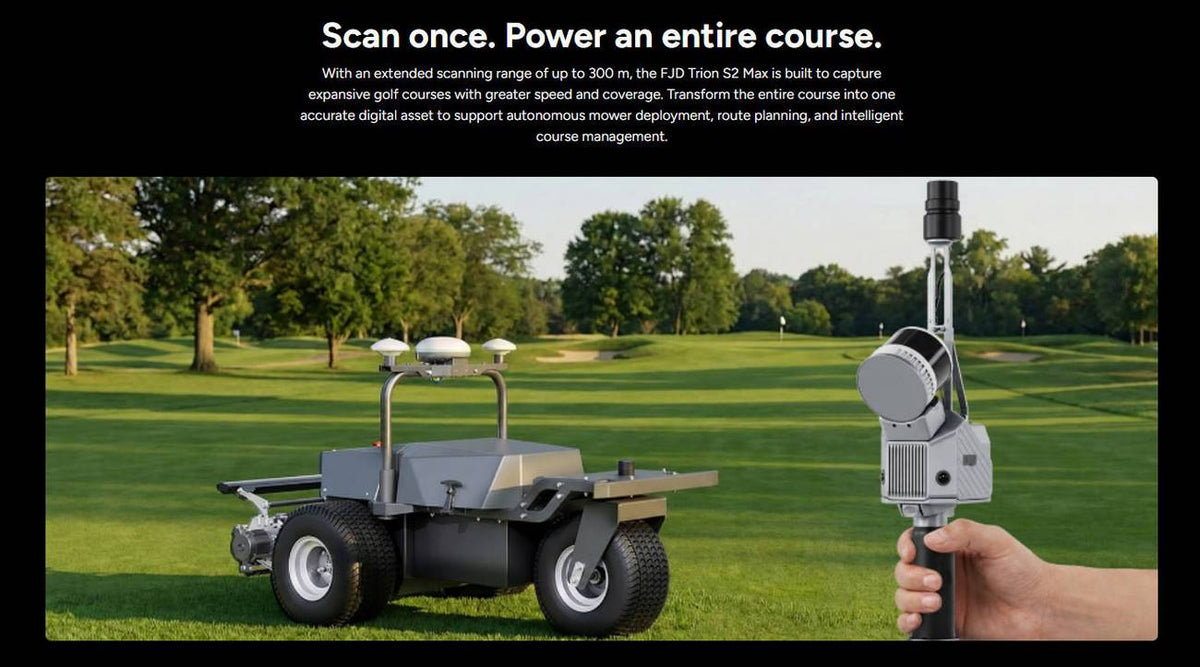

FJDynamics Trion S2 LiDAR Scanner detail image 3
FJDynamics Trion S2 LiDAR Scanner detail image 4

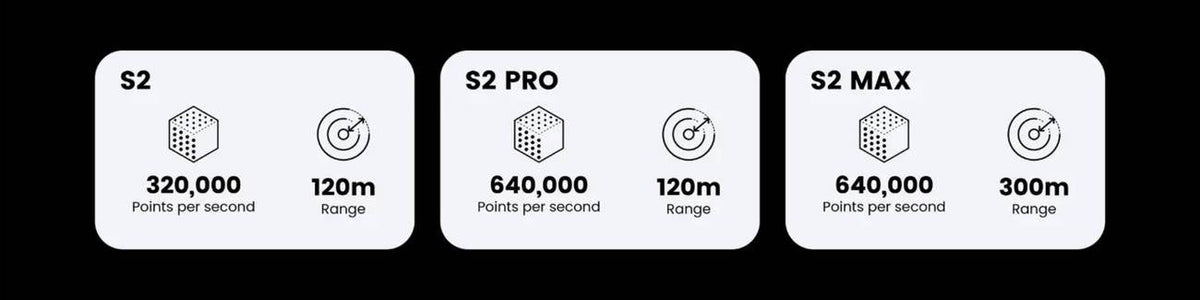

FJDynamics Trion S2 LiDAR Scanner detail image 5
▤ PARAMETER ⌃
Range
Standard: 120 m @ 80% reflectivity / 80 m @ 10% reflectivity; PRO: 120 m @ 80% reflectivity / 80 m @ 10% reflectivity; MAX: 300 m @ 80% reflectivity / 80 m @ 10% reflectivity
Channels
Standard: 16; PRO: 32; MAX: 32
Speed
Standard: 320,000 pts/s; PRO: 640,000 pts/s; MAX: 640,000 pts/s
Safety Level
Eye Safety Class I (905nm)
FOV
360° × 270°
Relative Accuracy
≤1 cm
Absolute Accuracy
3 cm
Weight
1.8 kg (Excluding battery, external camera and GNSS module)
Battery Life
3 h (with 1 set of 2 batteries)
Storage
512 GB SSD (1TB expandable)
Operating Temperature
-20°C to 50°C
Power Consumption
25 W
Weight
180g
Dimensions
107 x 118 x 398 mm (including base and battery)
Point Cloud Format
.las / .ply / .pts / .e57
Power Supply
10.8 V, 3 A
Resolution
2 × 12 MP
Camera FOV
200°
