Hinson

Hinson FE35FB-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection Distance (90% reflectivity): 0.05m ~ 35m
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$380
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Hinson FE35FB-01000 LiDAR dimension drawing for installation reference.pdf ▶ Hinson FE35FB-01000 LiDAR CAD model for mechanical integration.stp ▶

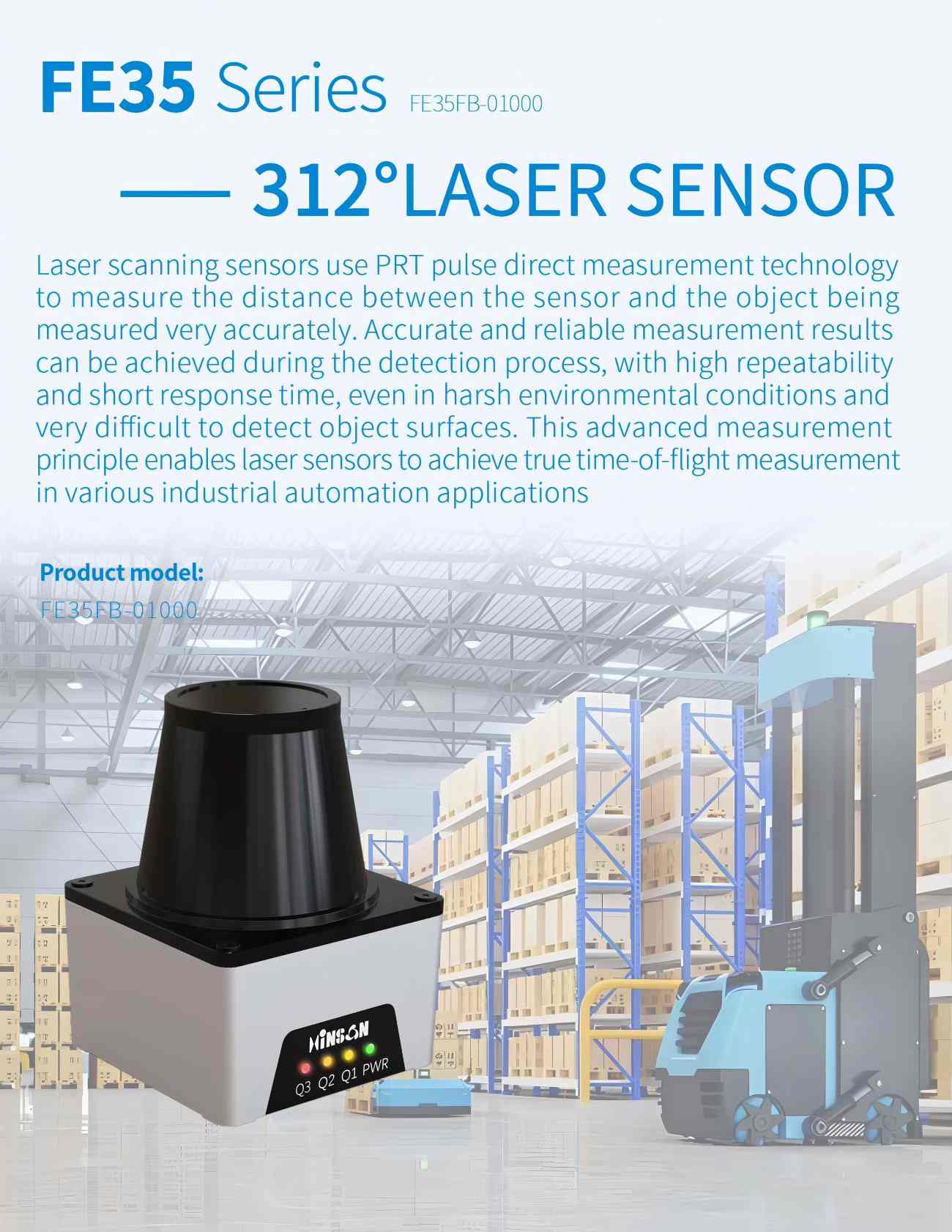

Hinson FE35FB-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
▤ PARAMETER ⌃
Detection Distance (90% reflectivity)
0.05m ~ 35m
Detection Distance (10% reflectivity)
0.05m ~ 12m
Detection Angle
312° (2D)
Scan Frequency
540 KHz
Angular Resolution
0.025° / 0.05° / 0.1° / 0.25° / 0.5° (depends on scan frequency, motor speed, and single-point sampling count)
Scan Motor Speed (12.5Hz)
750 r/min (0.025°, 0.05°, 0.1°, 0.25°, 0.5° resolution)
Scan Motor Speed (25.0Hz)
1500 r/min (0.05°, 0.1°, 0.25°, 0.5° resolution)
Recognizable Object Shape
Any shape, resolution depends on detection distance
Measurement Resolution
1 mm
Absolute Accuracy
±20 mm
Repeat Accuracy
±10 mm
Measurement Noise
±5 mm
Digital Input
4 × NPN
Digital Output
4 × NPN
CAN
Yes
Ethernet
TCP / UDP
Number of Echoes
3 (1st, 2nd, last, max. energy)
Raw Measurement Data Output
Yes
Obstacle Avoidance Channels
64 (communication), 16 (I/O) — each channel provides 3 independent detection zones
Operating Voltage
DC 10 ~ 30 V
Rated Power
< 3.4 W
Laser Class
905 nm Class 1 (IEC 60825-1:2014)
Indicator Lights
Green (Power), Red (Fault), Yellow / Orange / Red (Output status)
Cable
1 m straight cable (custom length available)
Material
Aluminum alloy, PMMA
Scanning Window Process
None (nano electroplating with dust cover available as option)
Protection Rating
IP65
Object Reflectivity
2 ~ 1000%
Ambient Light
< 80000 Lux (sunlight resistant)
Operating Environment
Indoor, -10°C ~ 50°C, < 80% RH (non-condensing)
