Hinson

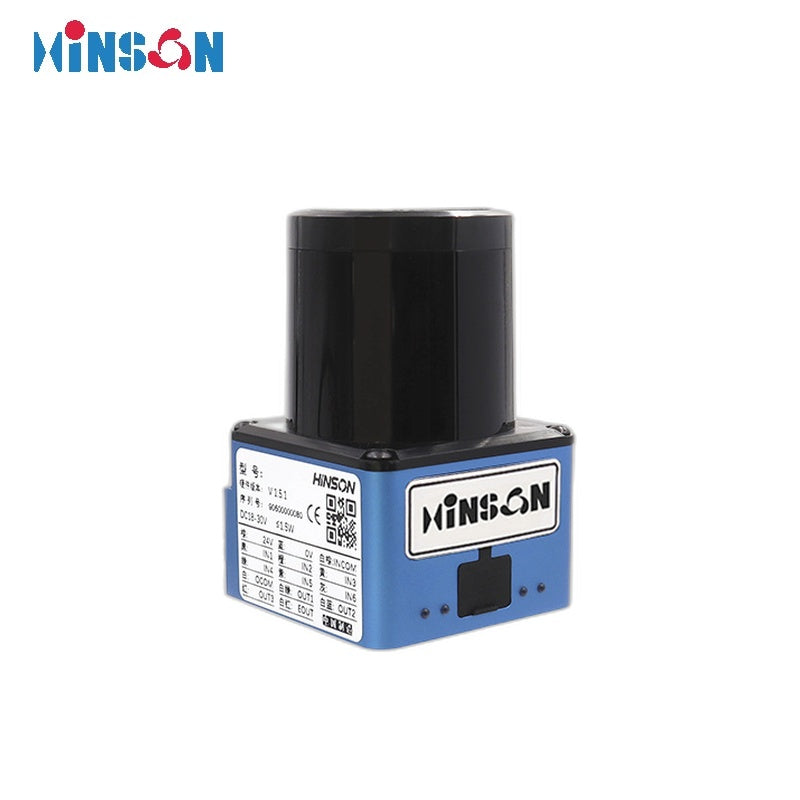

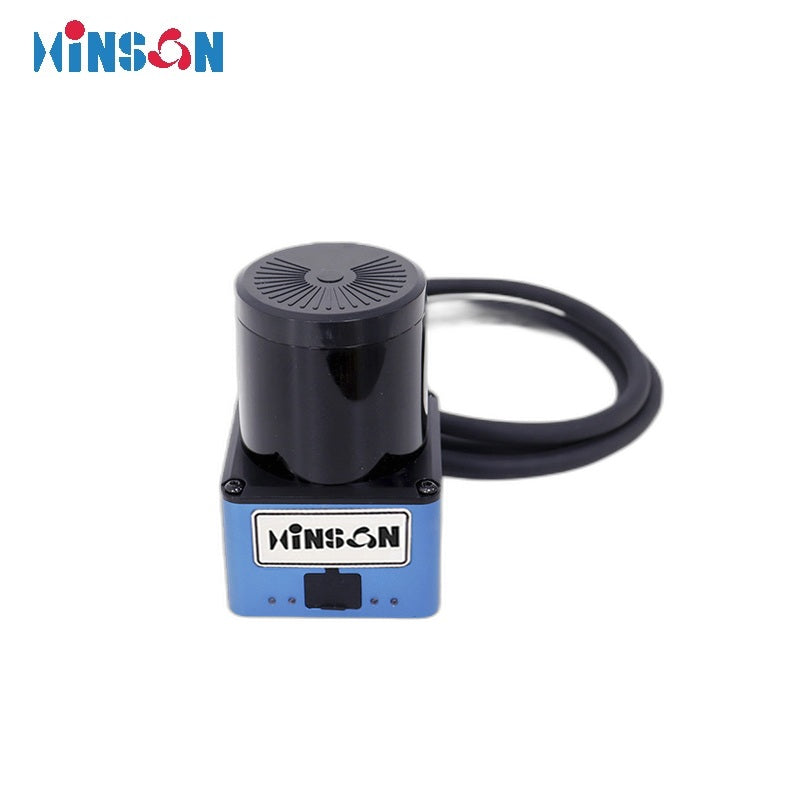

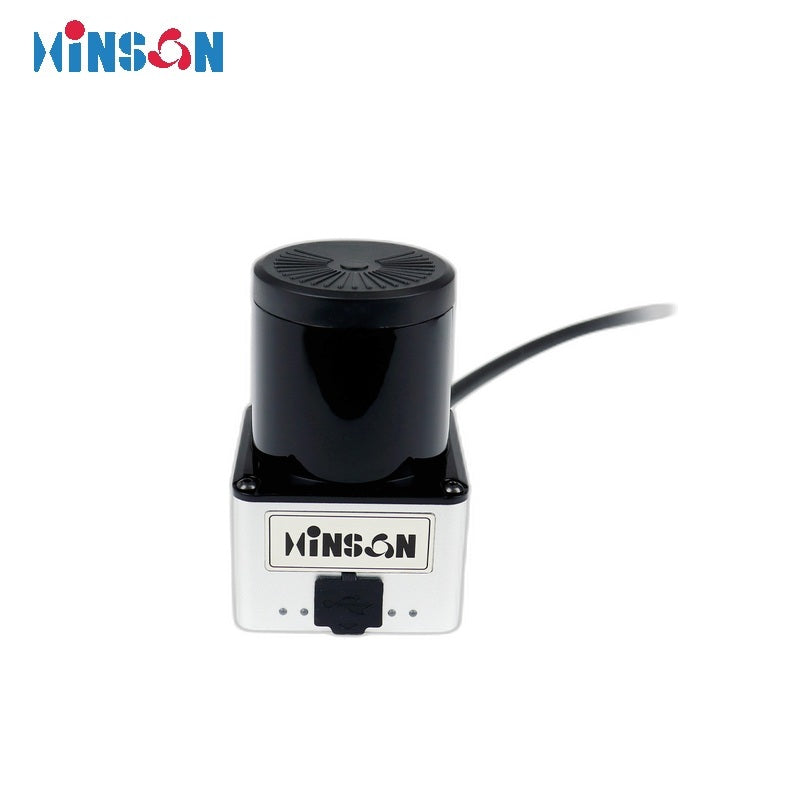

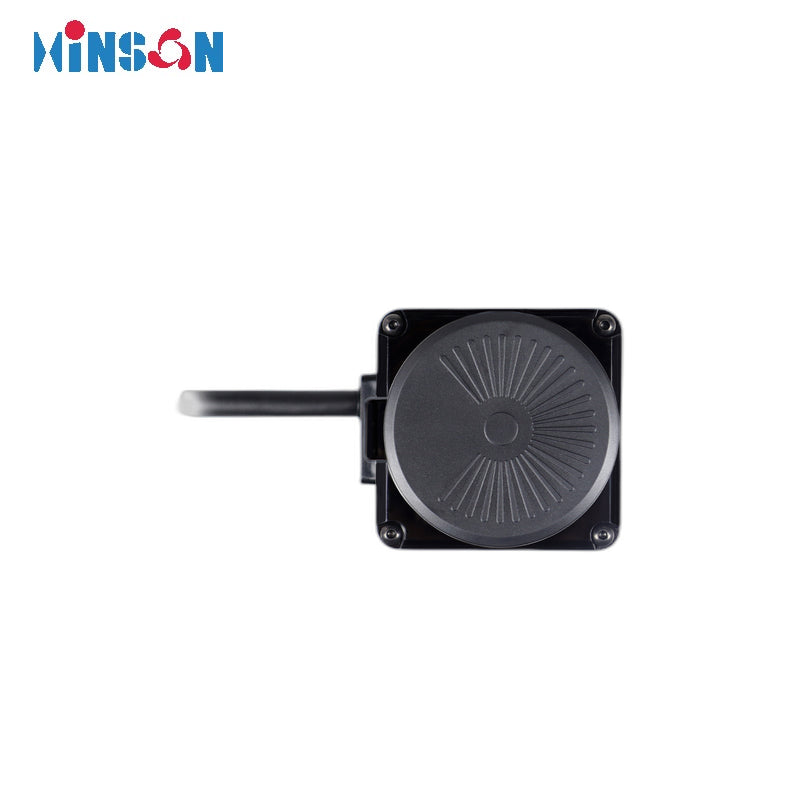

Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection Distance: 0.05‑5 m (90% reflectivity) 0.05‑2 m (10% reflectivity)
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$255
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

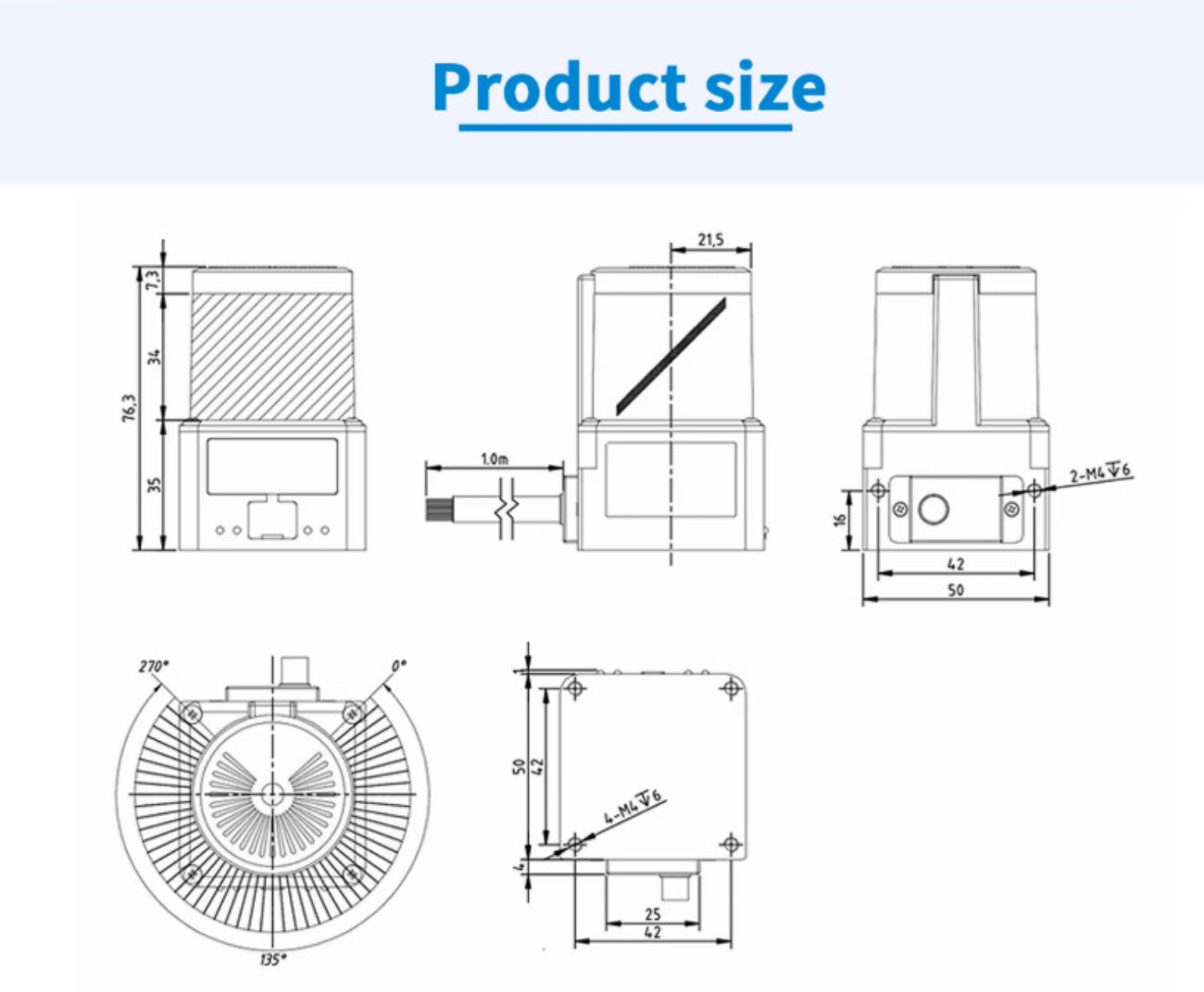

Hinson SE-0522 LiDAR dimension drawing for installation reference.pdf ▶ Hinson SE-0522 LiDAR CAD model for mechanical integration.stp ▶
Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

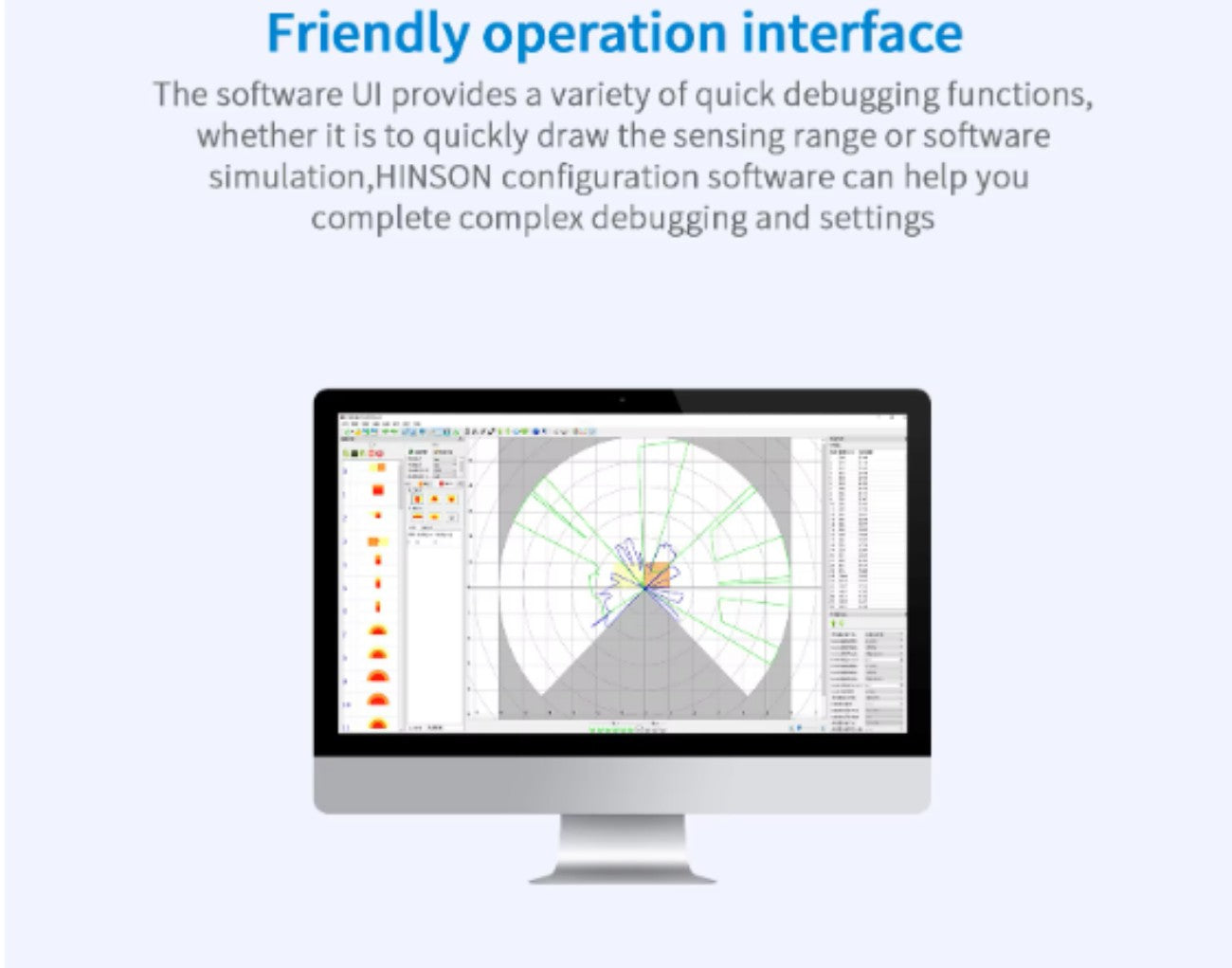

Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7

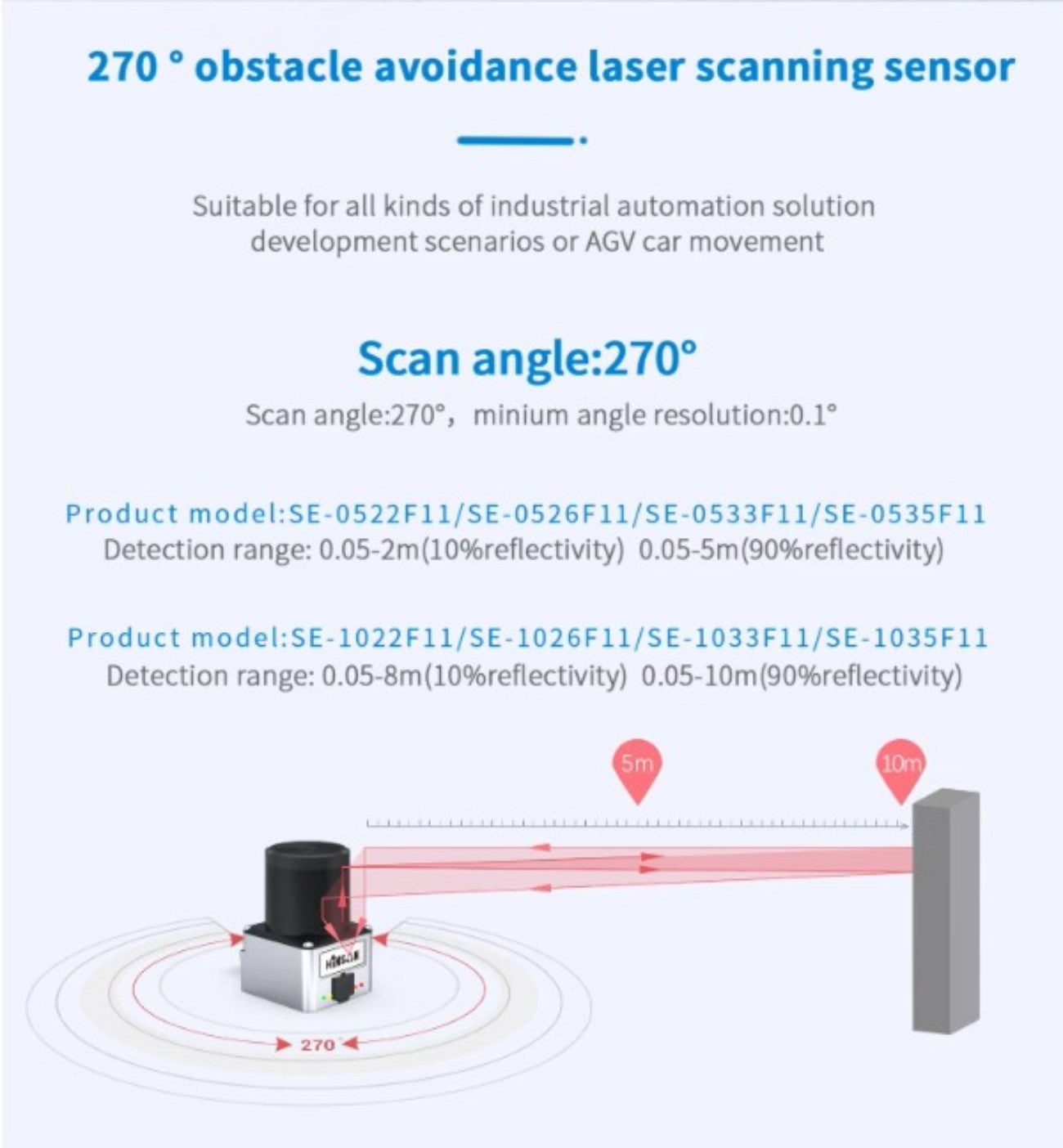

Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8

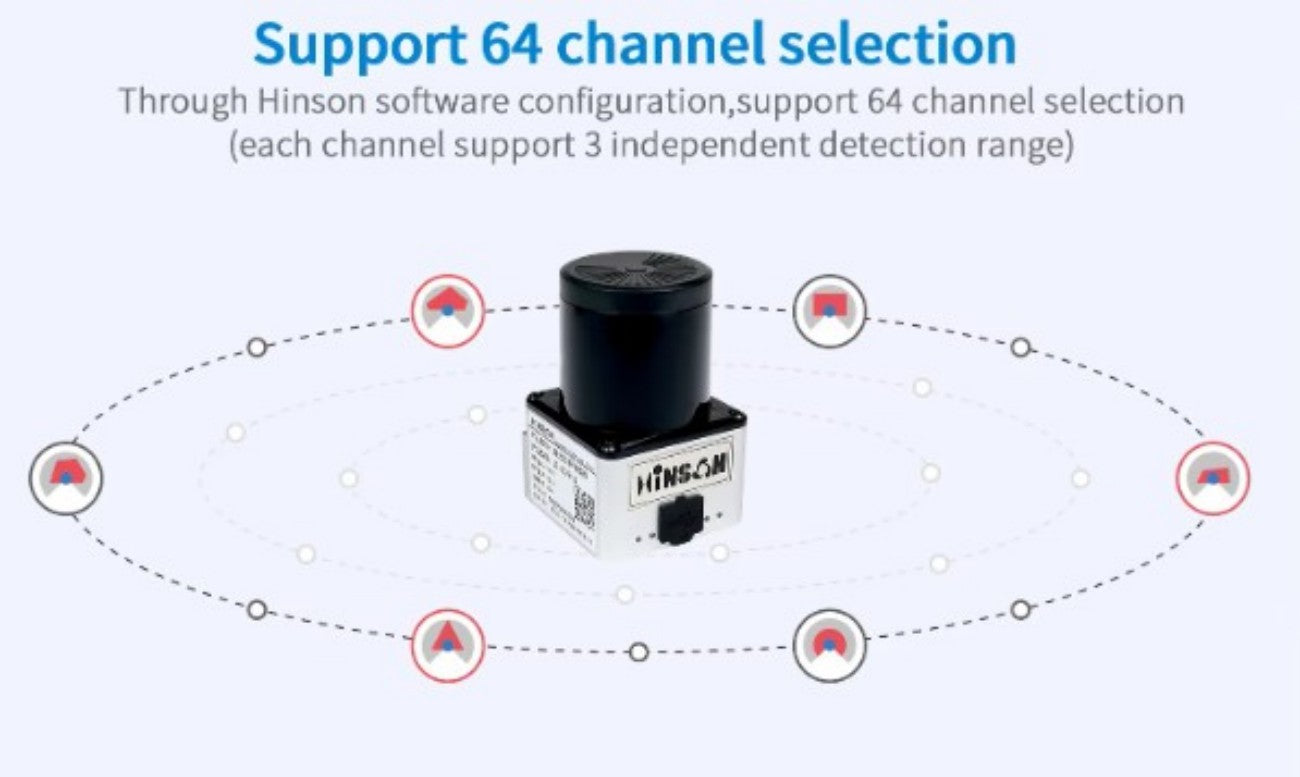

Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9

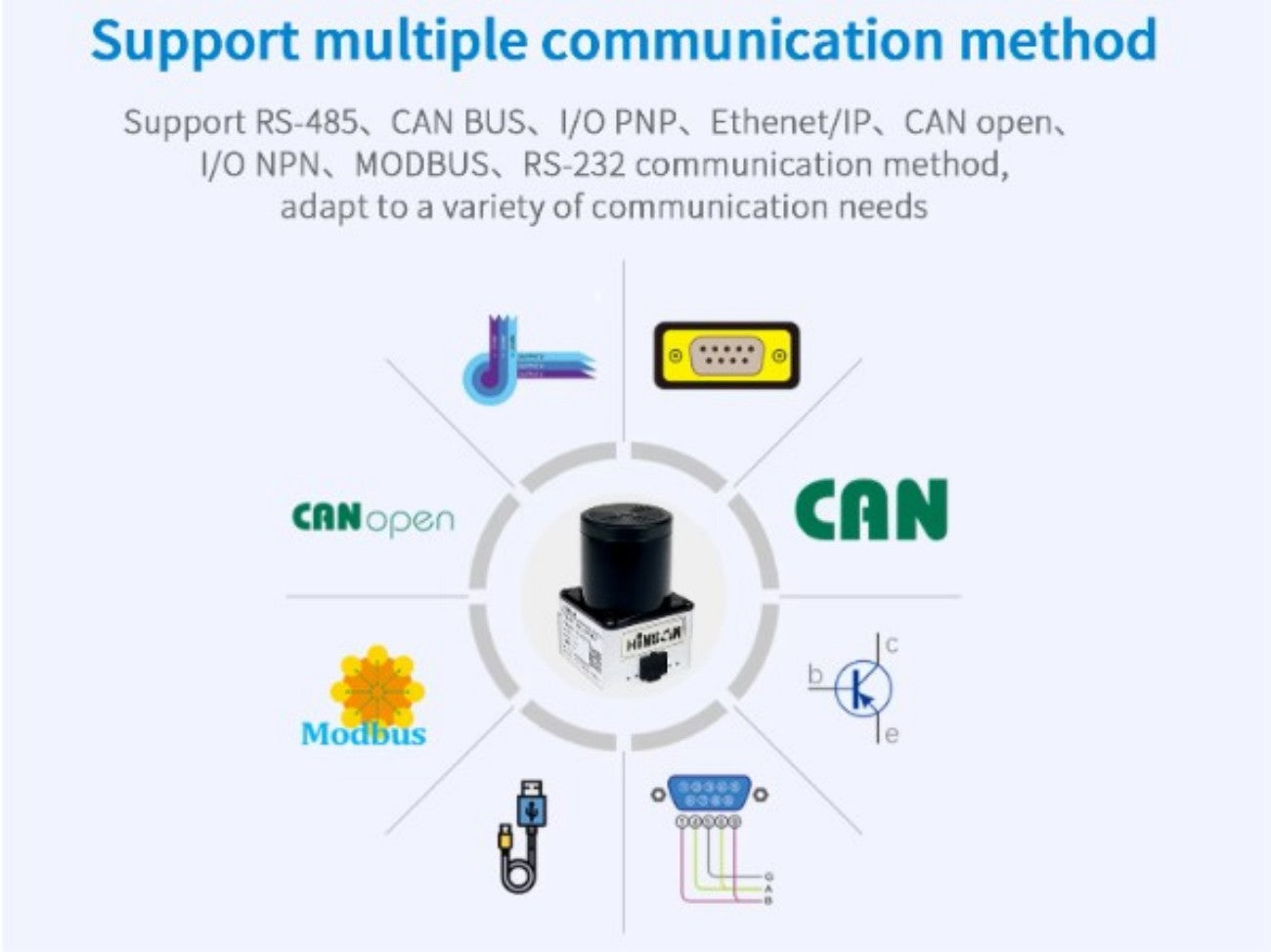

Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10

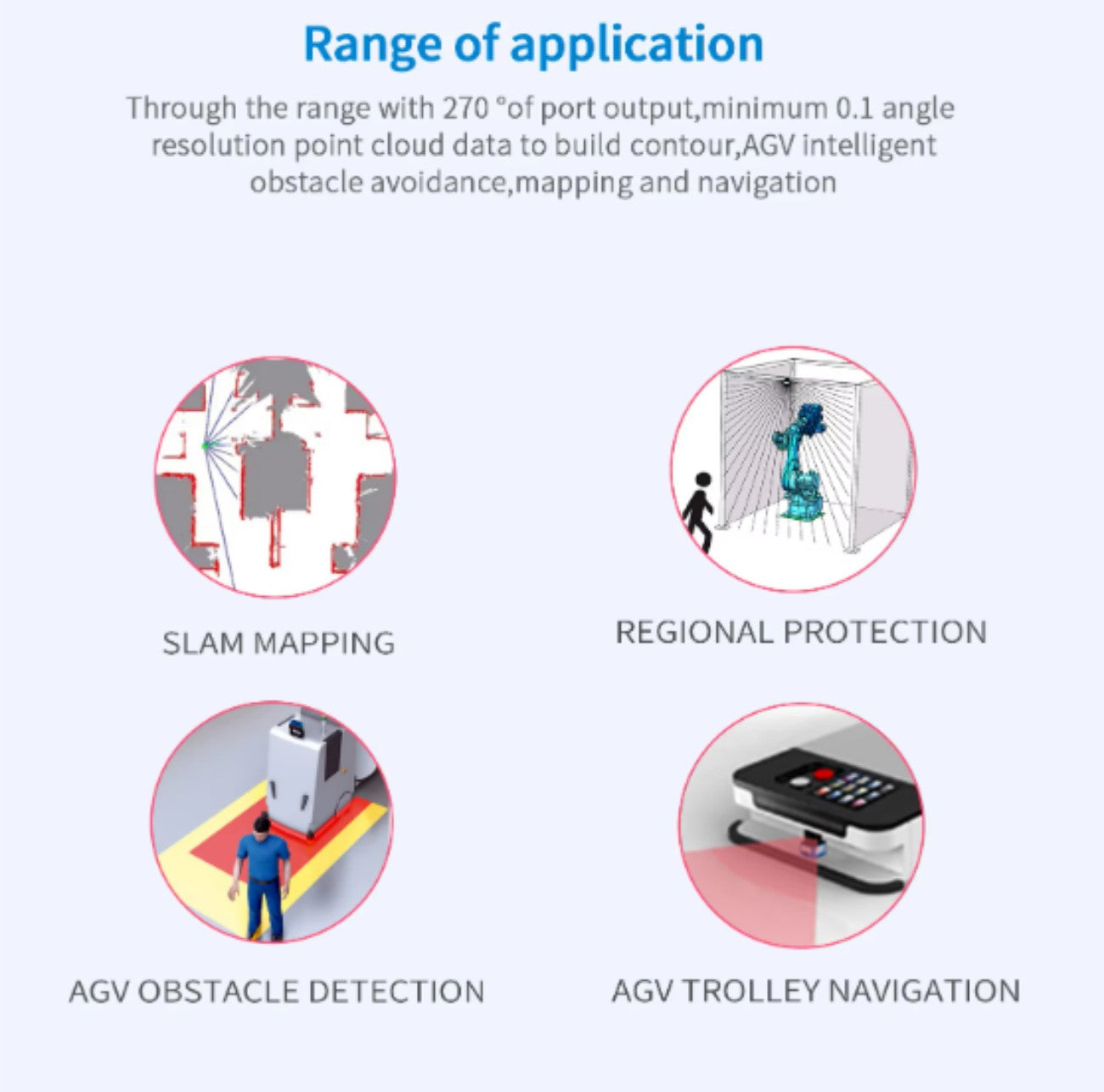

Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 11
Hinson SE-0522 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 12
▤ Technical Specifications ⌃
Parameter SE-0522 SE-0522F11

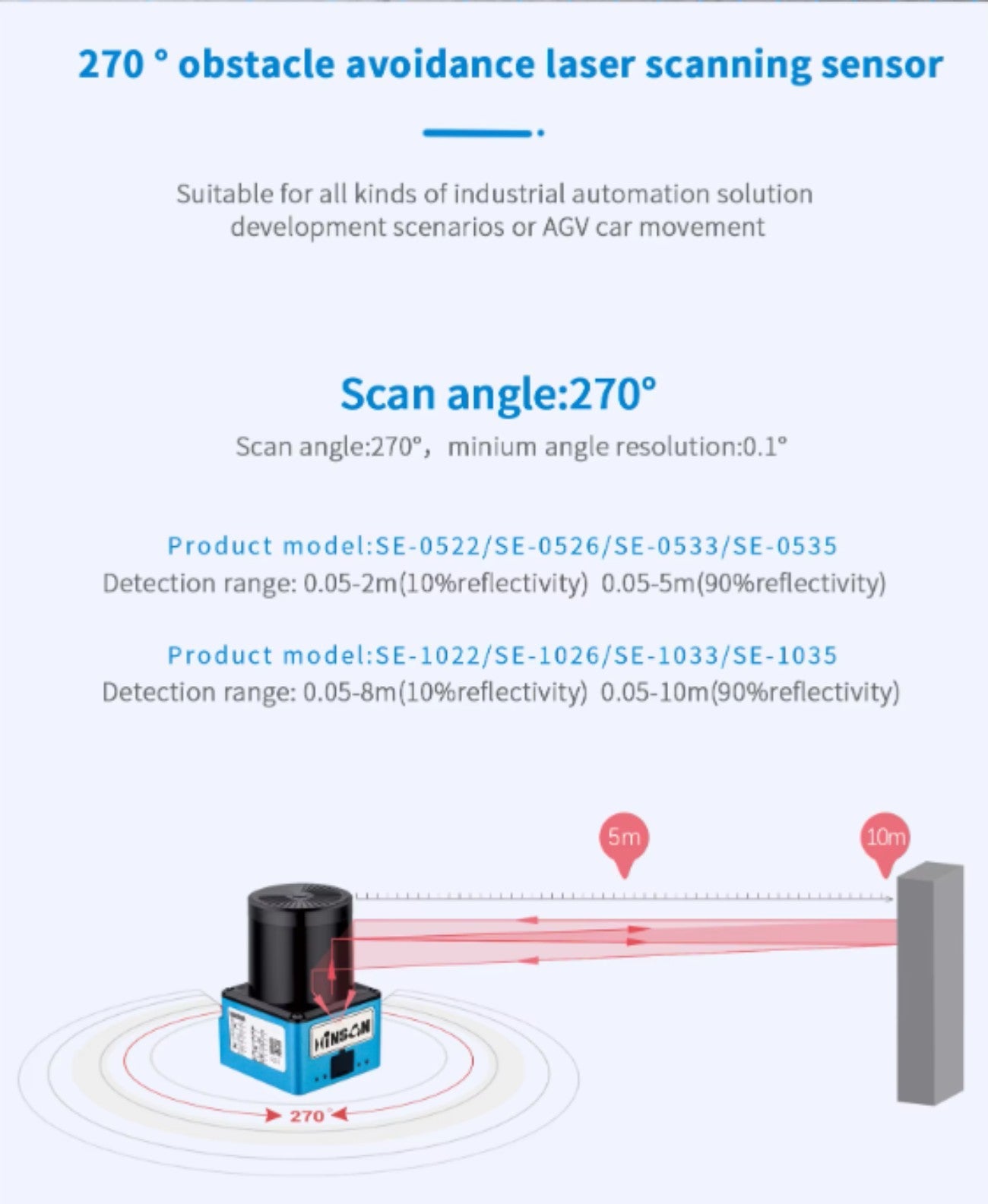

Detection Distance 0.05‑5 m (90% reflectivity) 0.05‑2 m (10% reflectivity) 0.05‑10 m (90% reflectivity) 0.05‑6 m (10% reflectivity)
Detection Angle 270° (2D) 270° (2D)
Angular Resolution 0.1° / 0.2° (software configurable) 0.1° / 0.2° (software configurable)
Scan Frequency 20 Hz 20 Hz
Recognizable Object Shape Any shape, resolution depends on detection distance Any shape, resolution depends on detection distance
Absolute Accuracy ±30 mm ±30 mm
Repeat Accuracy ±30 mm ±30 mm
Measurement Noise ±10 mm ±10 mm
Detection Output Delay 0‑500 ms configurable 0‑500 ms configurable
Detection Hold Delay 0‑500 ms configurable 0‑500 ms configurable
Digital Input 6 × NPN 6 × NPN
Digital Output 4 × NPN 4 × NPN
Micro‑USB Supported Supported

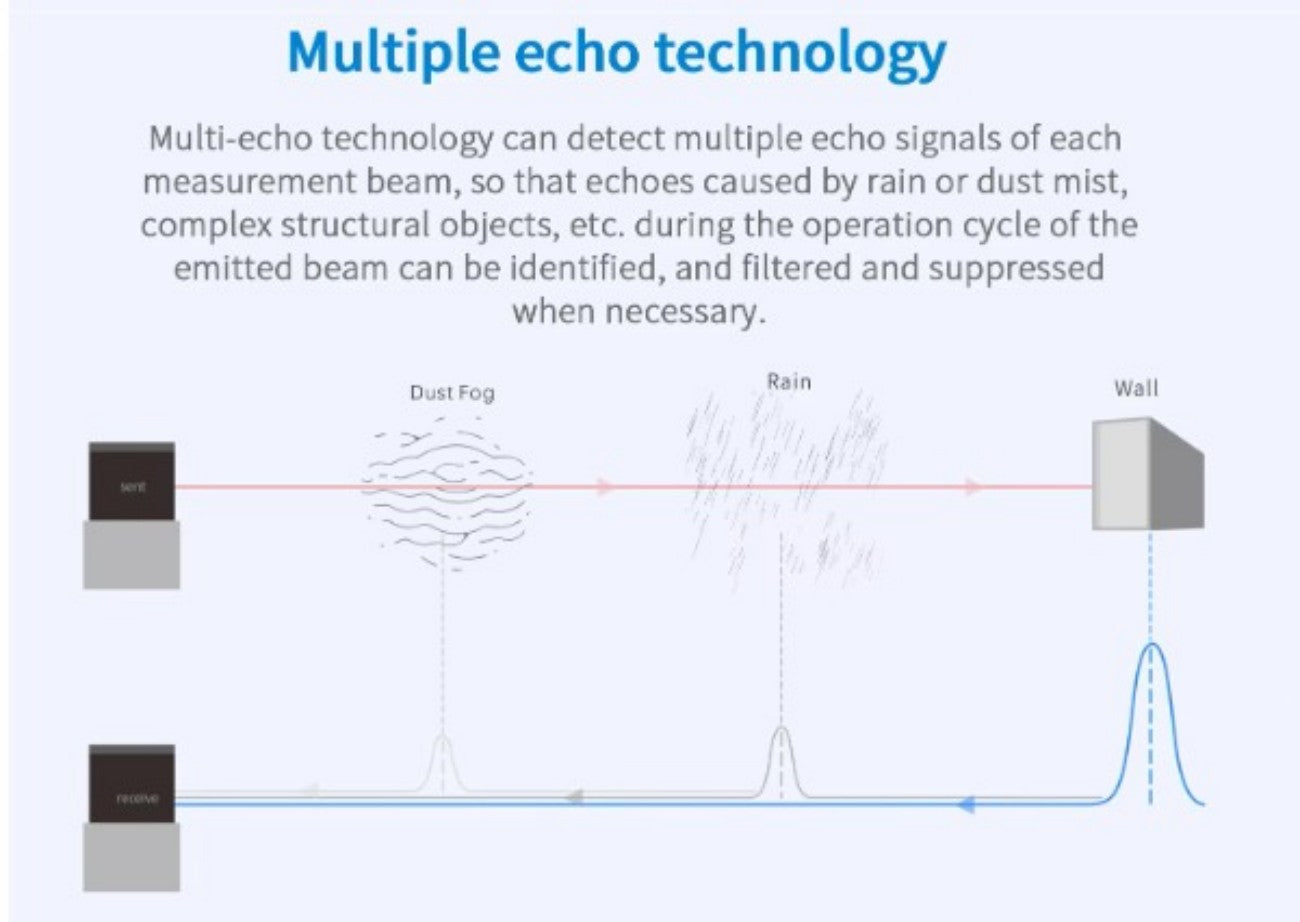

Number of echoes - 3 (1st, 2nd, last, and max. energy echo)

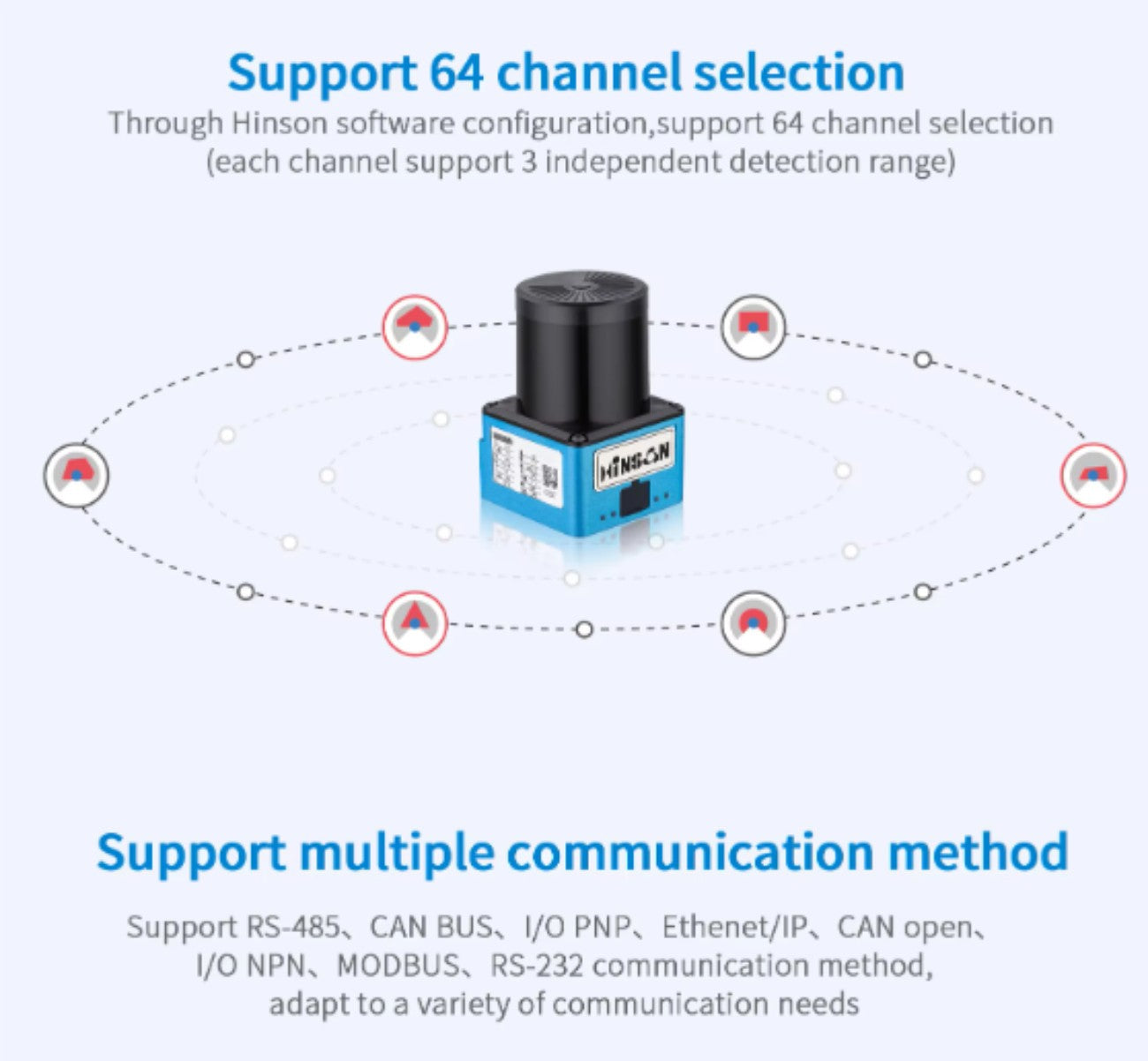

Obstacle Avoidance Channels 64 (each channel provides 3 independent detection zones) 64 (each channel provides 3 independent detection zones)
Operating Voltage DC 18 ~ 32 V DC 18 ~ 32 V
Rated Power < 2 W < 2 W
Laser Class 905 nm Class 1 (IEC 60825-1:2014) 905 nm Class 1 (IEC 60825-1:2014)
Indicator LEDs 4 × LED (Green, Yellow, Orange, Red) 4 × LED (Green, Yellow, Orange, Red)
Material Aluminum alloy, scanning window / PMMA Aluminum alloy, scanning window / PMMA
Cable 1 m (custom length available) 1 m (custom length available)

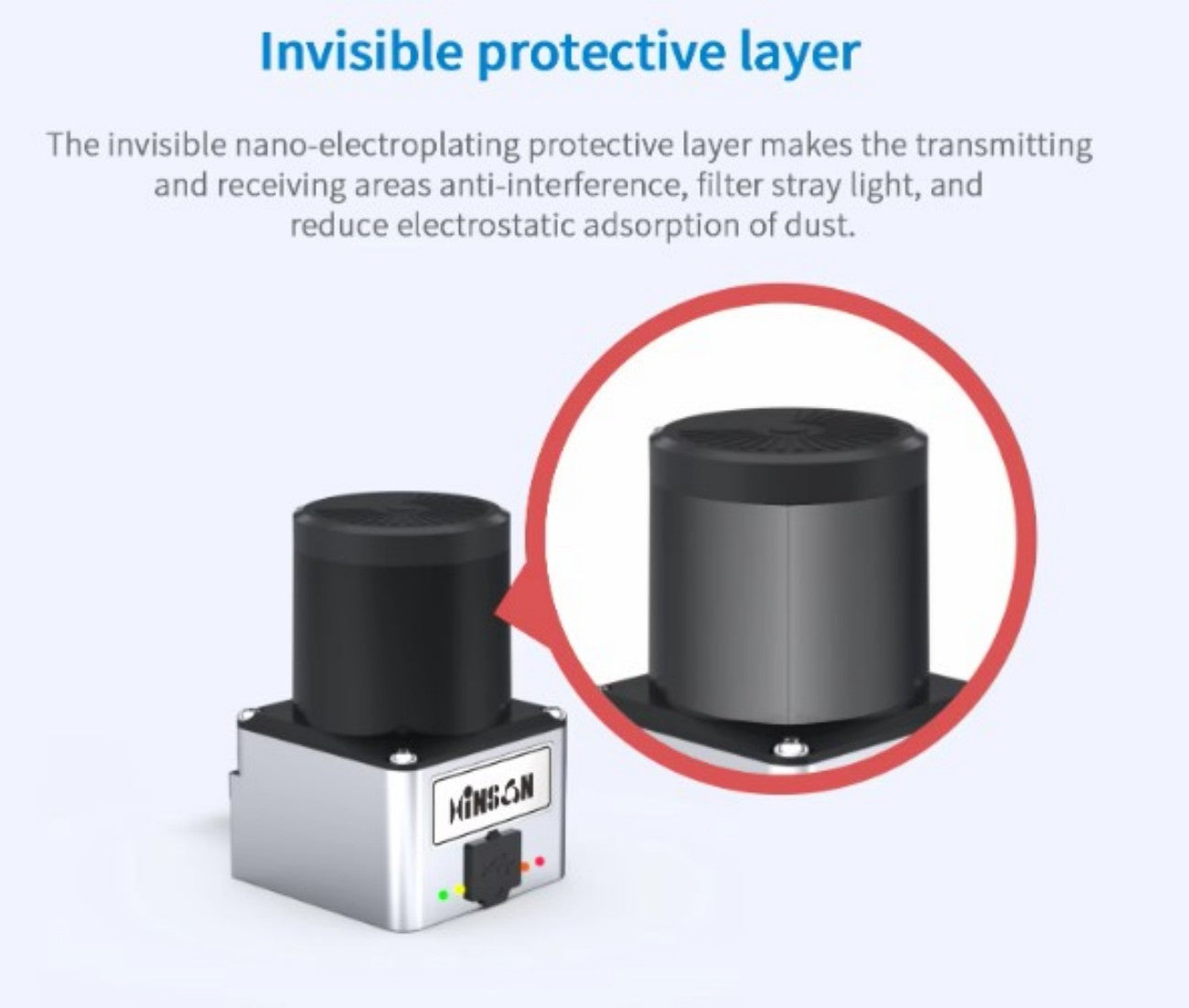

Scanning Window Process - Nano electroplating
Object Reflectivity 2 ~ 1000% 2 ~ 1000%
Ambient Light < 80000 Lux (sunlight resistant) < 80000 Lux (sunlight resistant)
Operating Environment -10°C ~ 50°C (indoor use), < 80% RH (non‑condensing) -10°C ~ 50°C (indoor use), < 80% RH (non‑condensing)
Durability Test 10 Hz – 1000 Hz; 5g; 10 cycles per axis (GB/T 2423.10-2019) 10 Hz – 1000 Hz; 5g; 10 cycles per axis (GB/T 2423.10-2019)
Vibration Resistance 55‑250 Hz, RMS = 42.4 m/s², 5 h per axis (GB/T 2423.56-2018) 55‑250 Hz, RMS = 42.4 m/s², 5 h per axis (GB/T 2423.56-2018)
Shock Resistance 50g, 6ms, 3 shocks per axis; 25g, 6ms, 1000 shocks per axis; 50g, 3ms, 5000 shocks per axis (GB/T 2423.5-2019) 50g, 6ms, 3 shocks per axis; 25g, 6ms, 1000 shocks per axis; 50g, 3ms, 5000 shocks per axis (GB/T 2423.5-2019)
Temperature Cycling Test -25°C … +55°C (GB/T 2423.22-2012) -25°C … +55°C (GB/T 2423.22-2012)
