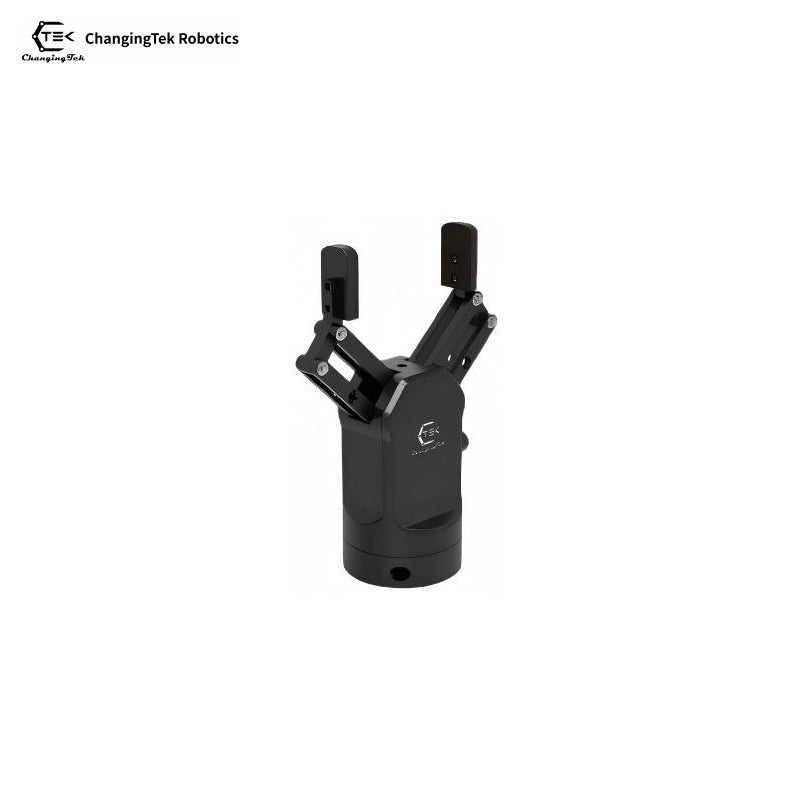

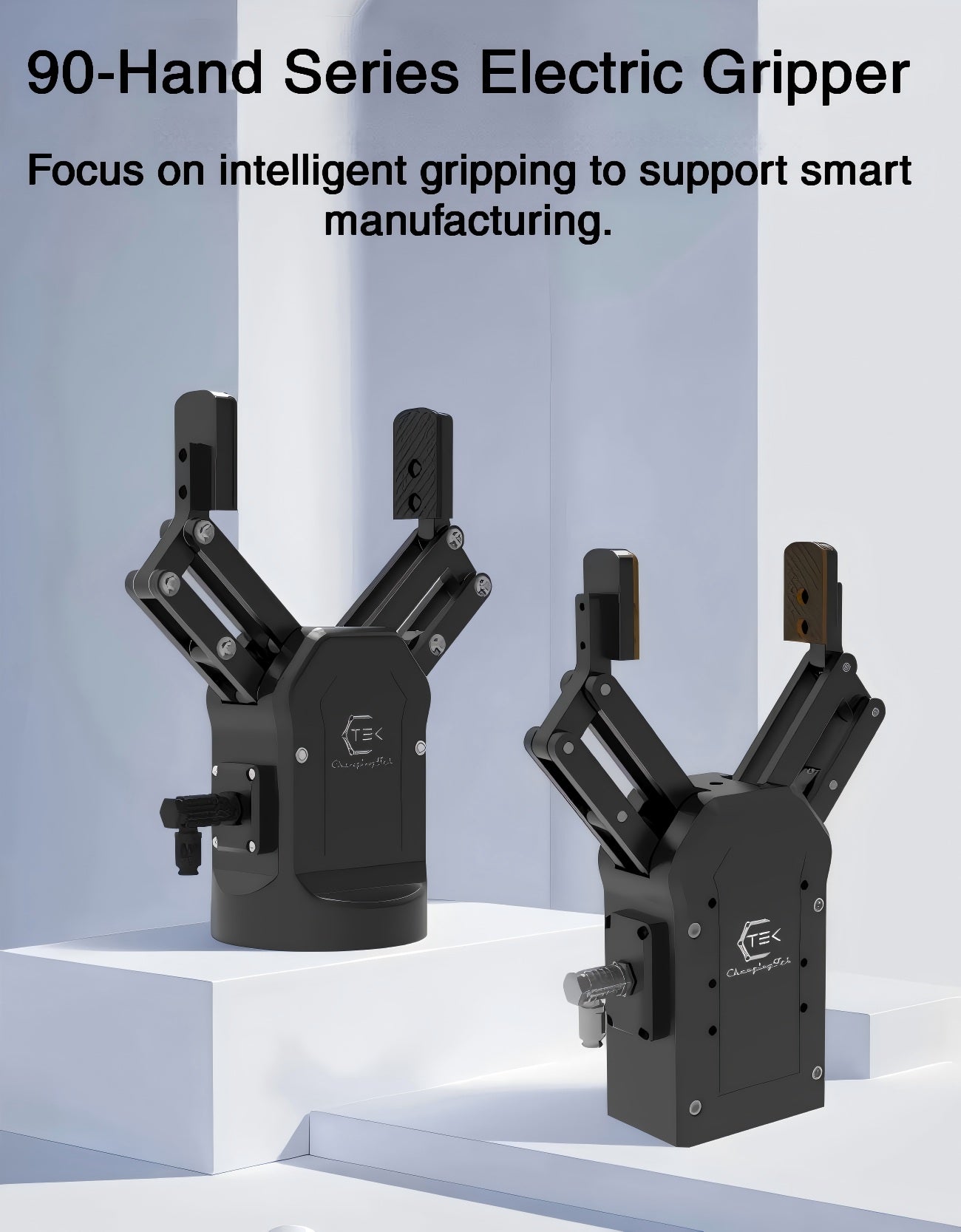

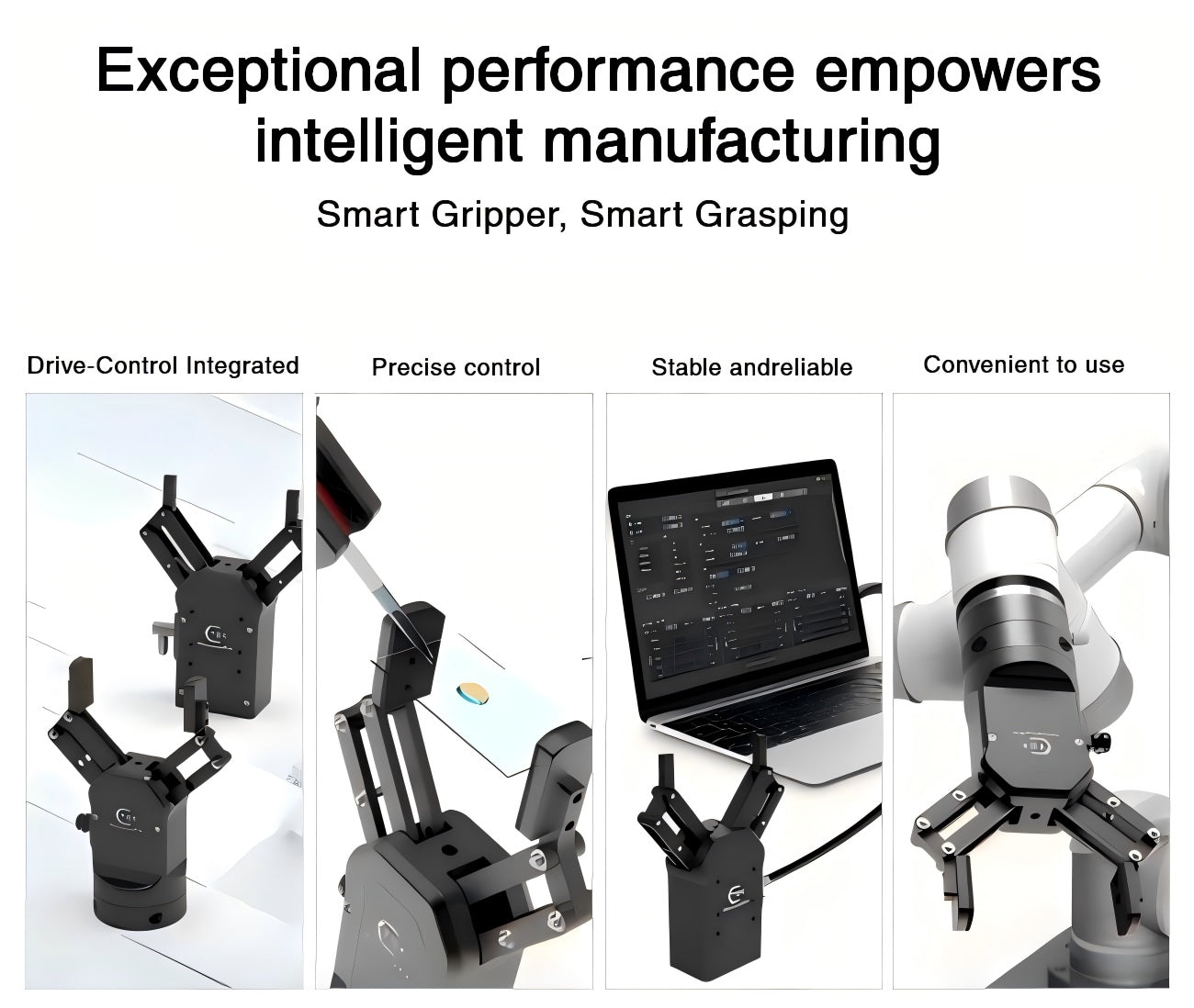

ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation

  • Servo-drive robot gripper with 90 mm total stroke
  • Up to 25 N gripping force with 1.2 kg maximum recommended load
  • +/-0.03 mm repeat positioning accuracy for precision handling

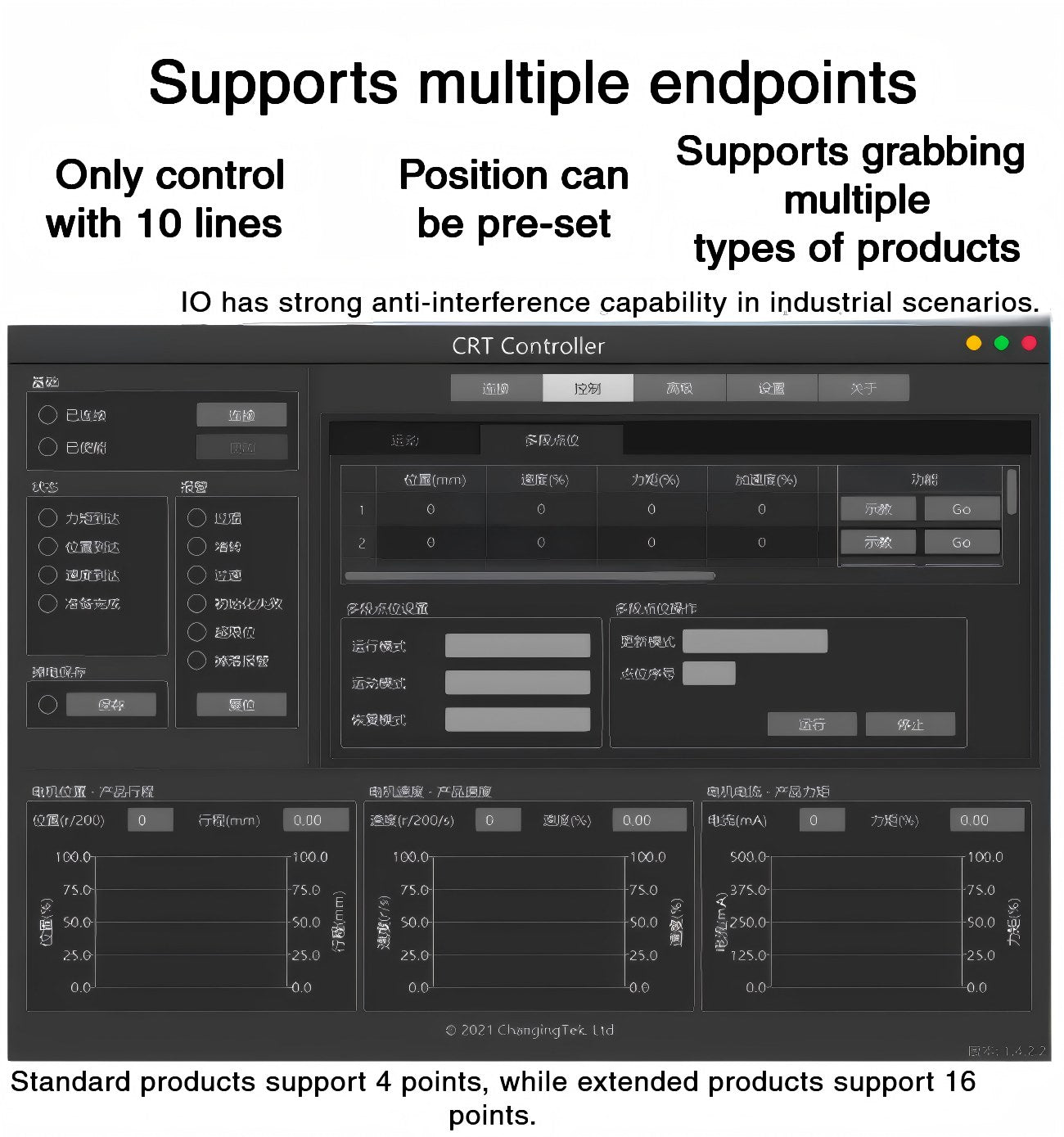

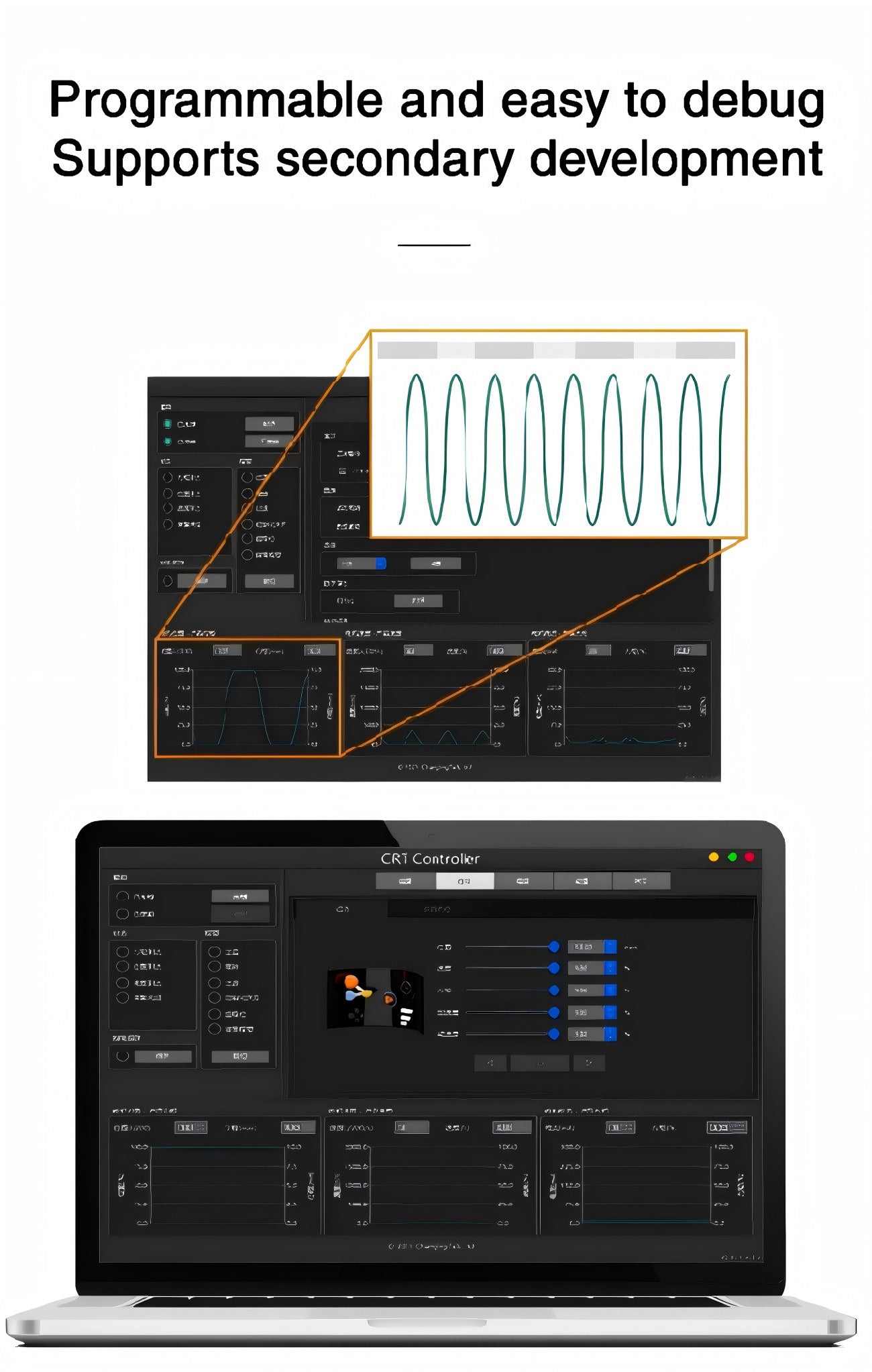

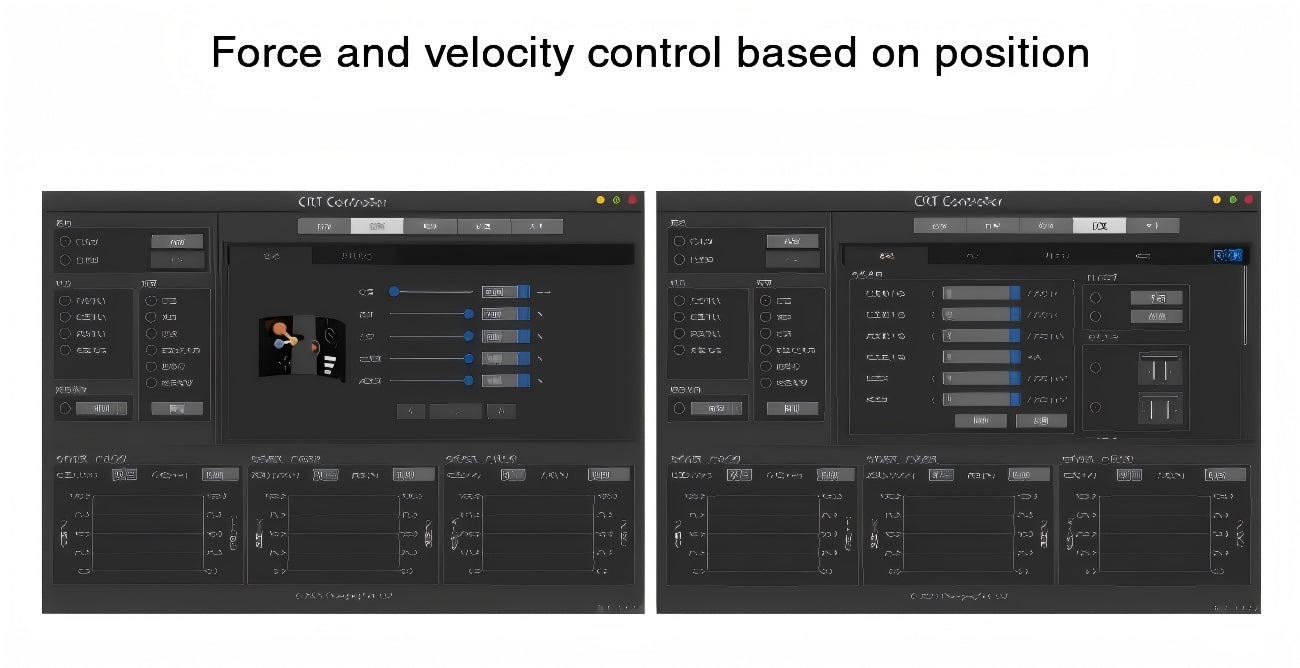

  • Programmable position, speed, and force with feedback support

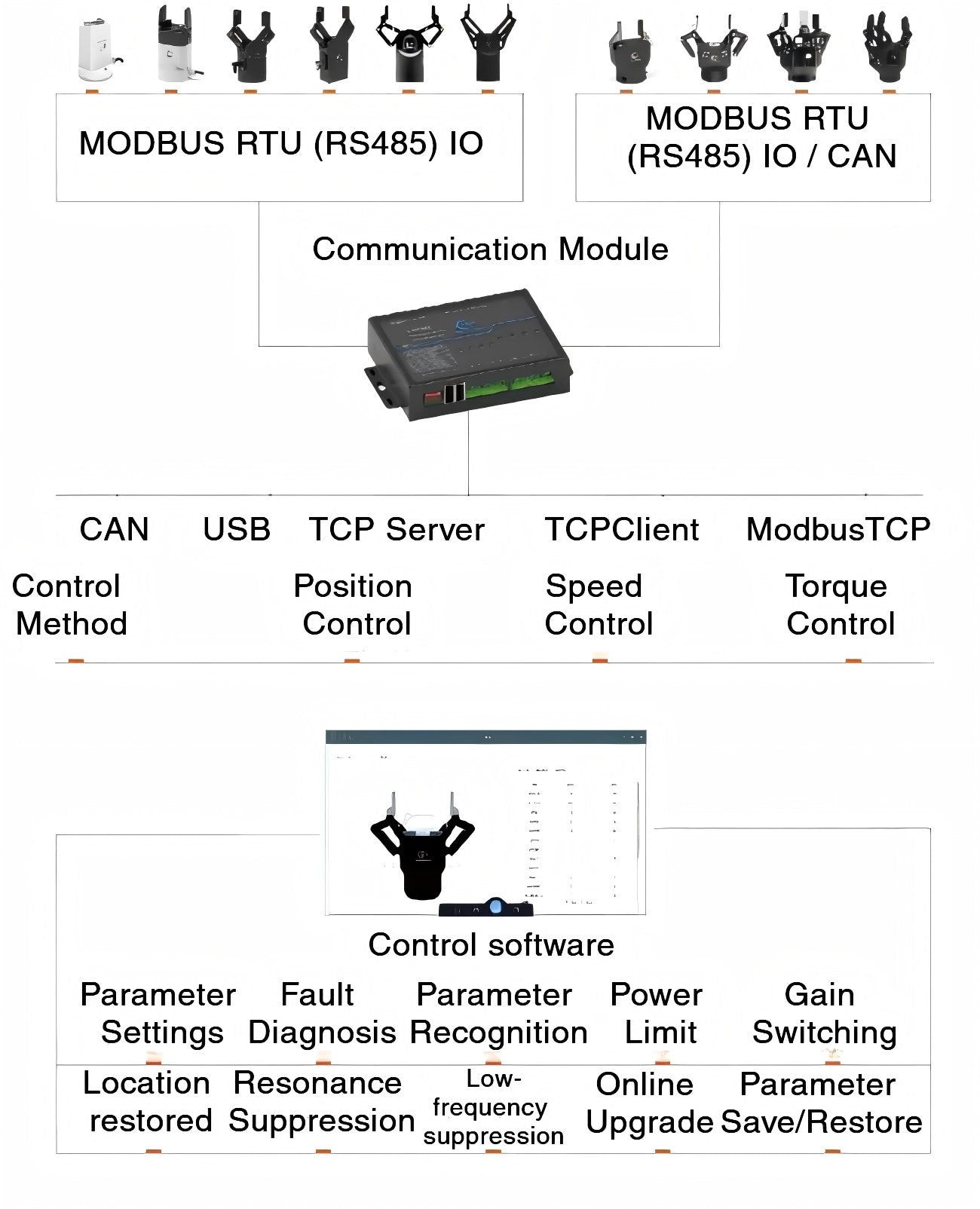

  • Supports Modbus RTU, I/O, CAN, TCP/IP, EtherCAT, and Profinet expansion
$1,230
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ChangingTek CTAG2F90-C dimensional drawing with mounting dimensions and mechanical hole locations ▶
ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation ChangingTek Robotics CTAG2F90-C Gripper | Servo Drive Robot Gripper for Automation
▤ PARAMETER ⌃
Parameter
Value
Drive Mode
Servo Drive
Total Stroke
90 mm
Maximum Gripping Force
25 N
Maximum Gripping Speed
100 mm/s
Repeat Positioning Accuracy
±0.03 mm
Maximum Recommended Load
1.2 kg
Weight
0.7 kg
Peak Current
1.2 A
Operating Voltage
24 V
Programmable Parameters
Position, Speed, Force
Feedback Parameters
Position, Dimension, Speed, Force
Communication Protocols
Modbus RTU (RS485), I/O, CAN; expandable to TCP/IP, EtherCAT, Profinet, etc.
Recommended Operating Environment
0–40°C, ≤85% RH, non-condensing
