PACECAT

PACECAT LDS-50-C LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: LDS-50C-R
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for environmental sensing workflows that require reliable ranging and spatial awareness.
  • Useful for developers building localization, obstacle detection, navigation, and robotics perception applications.
$390
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

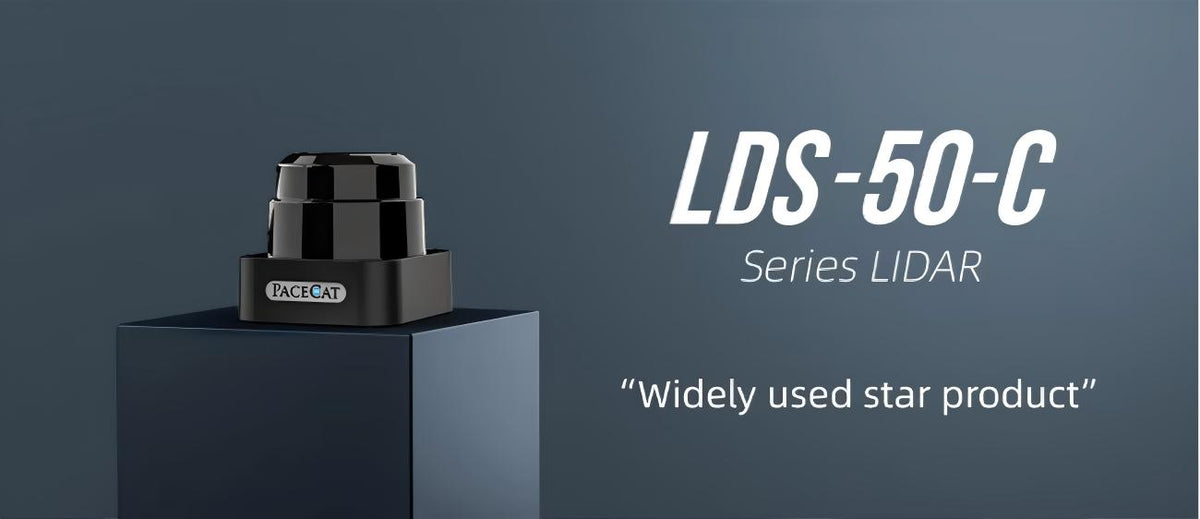

PACECAT LDS-50-C LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

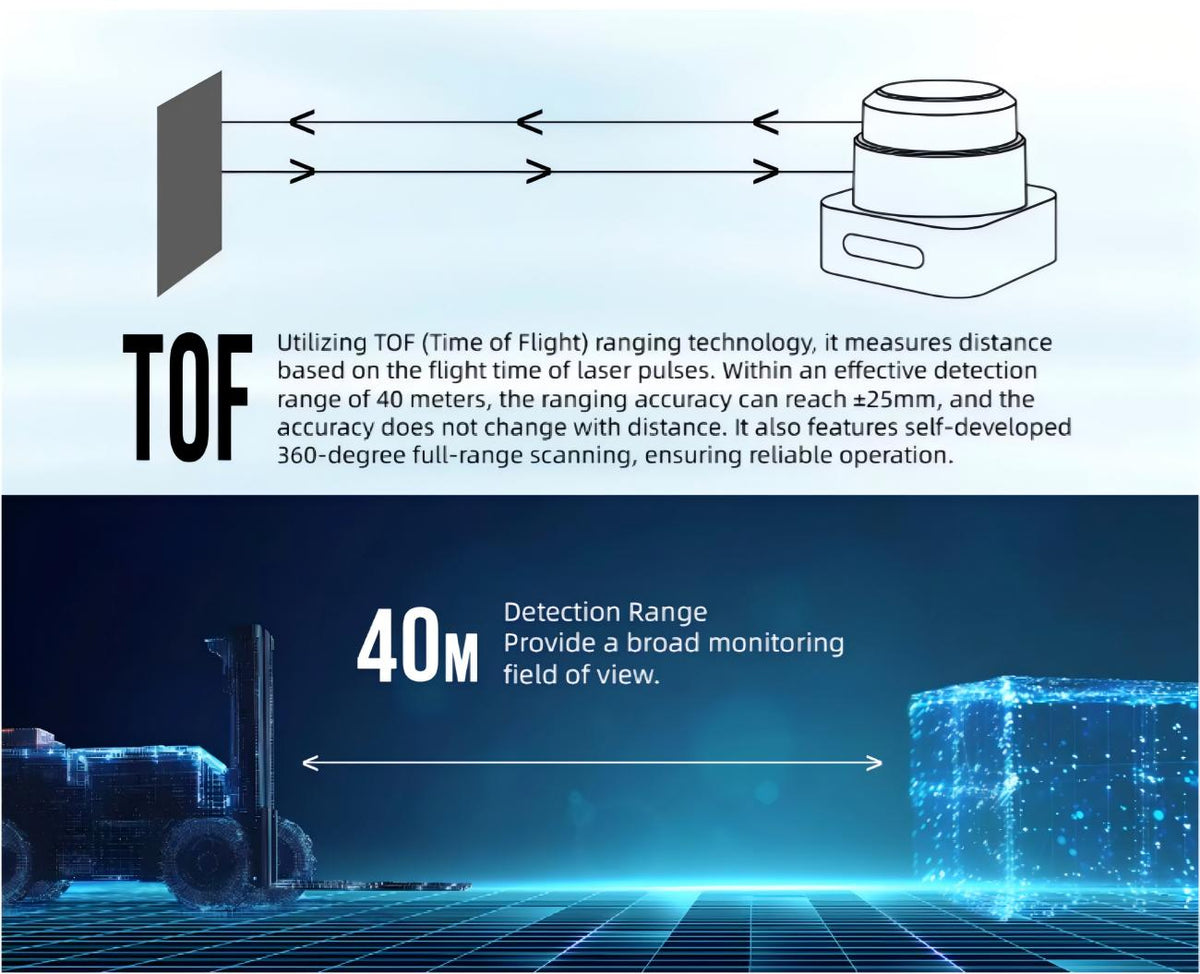

PACECAT LDS-50-C LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

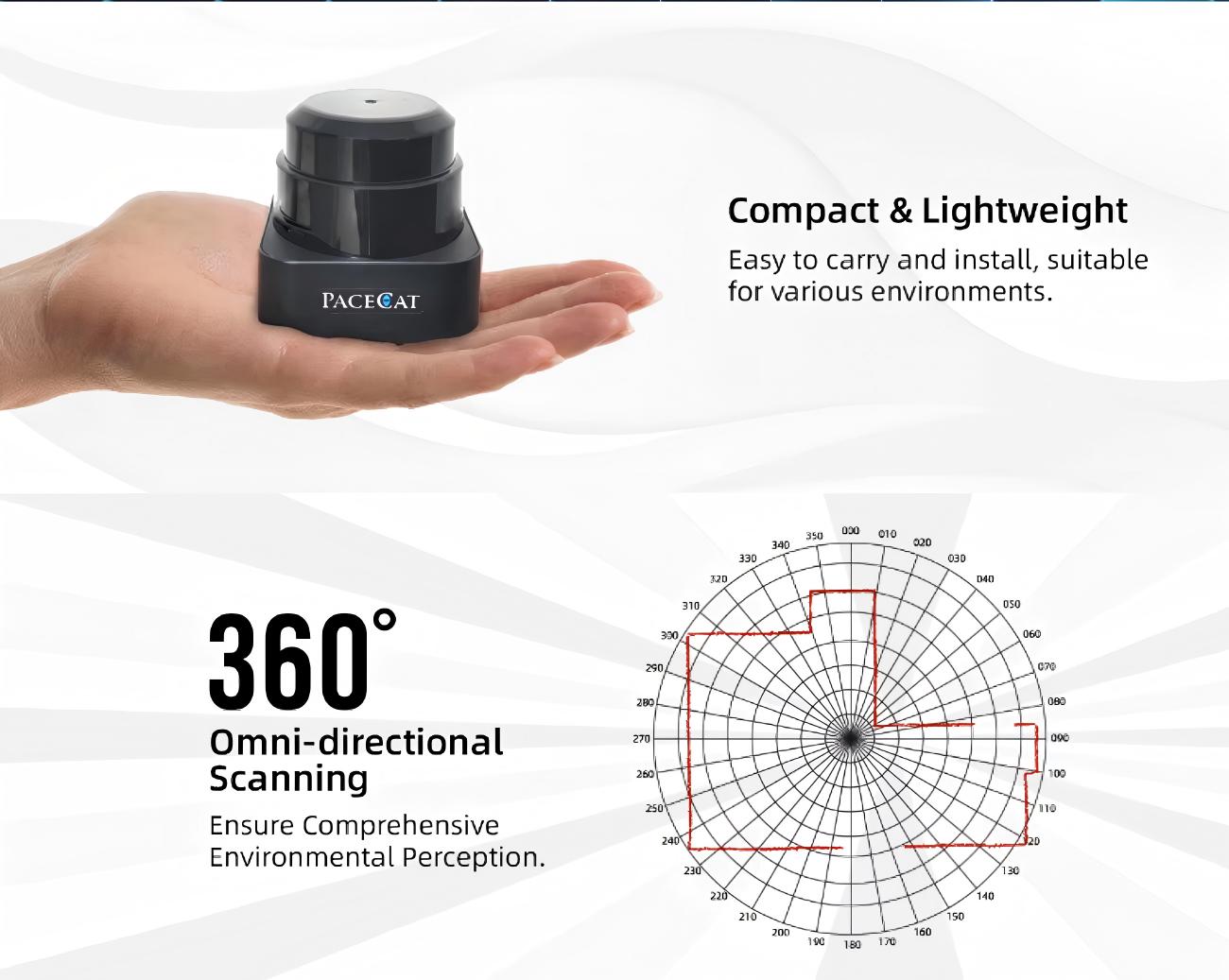

PACECAT LDS-50-C LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
PACECAT LDS-50-C LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
PACECAT LDS-50-C LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

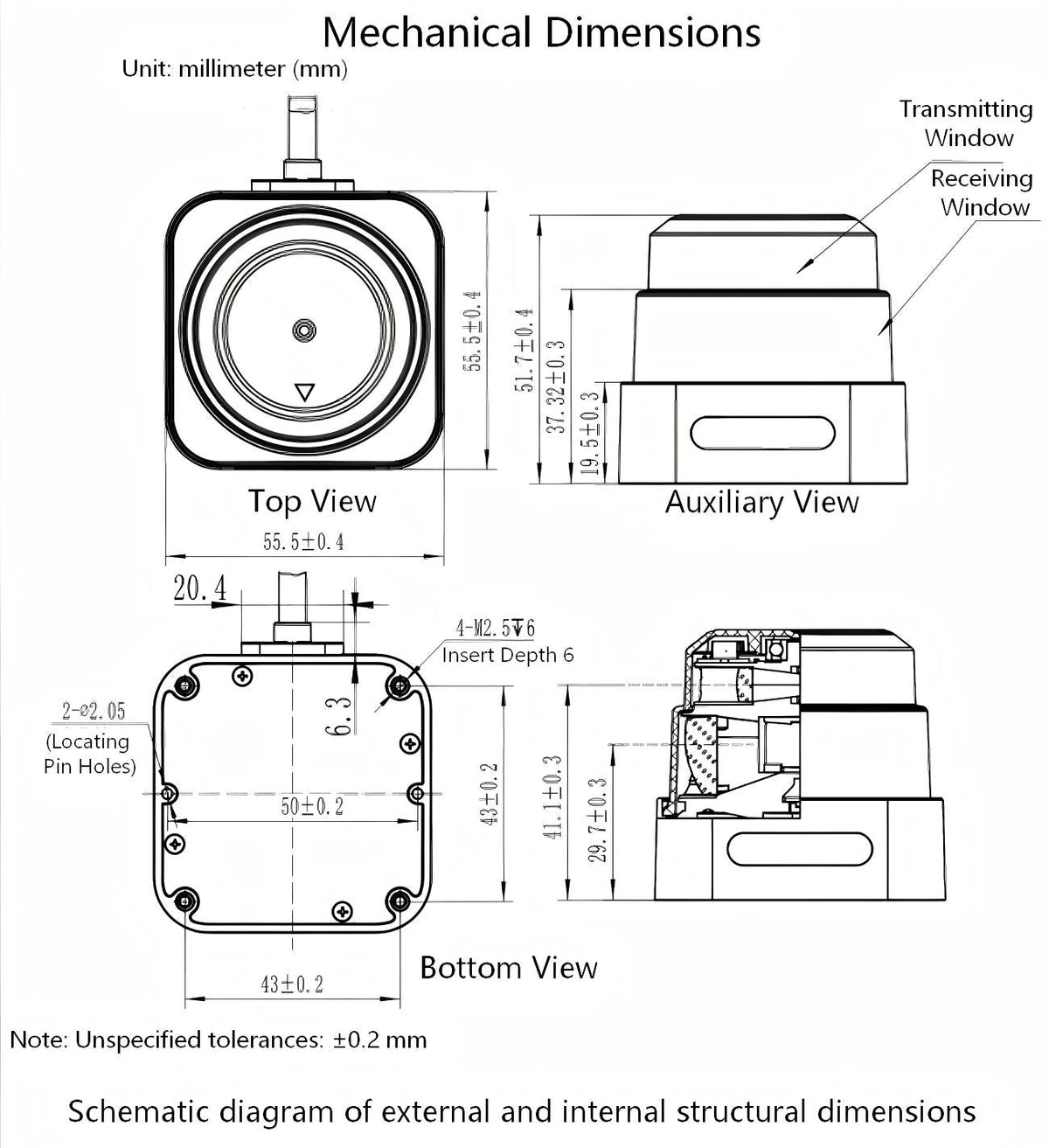

PACECAT LDS-50-C LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
▤ Technical Specifications ⌃
Parameter LDS-50C-R LDS-50C-E
Model LDS-50C-R LDS-50C-E
Laser Wavelength 905nm±15nm 905nm±15nm
Measuring Distance 0.1-40m (90%) 0.1-15m (10%) 0.1-40m (90%) 0.1-15m (10%)
Laser Frequency 18kHz 30kHz
Refresh Frequency 10Hz 15Hz 10Hz 15Hz
Echo Mode Single Pulse Single Pulse
Echo Intensity 0-254 0-254
Drive Method / Motor Built-in Brushless Motor Built-in Brushless Motor
Horizontal Field of View (FOV) 360° 360°
Horizontal Angular Resolution 0.2°@10Hz 0.3°@15Hz 0.12°@10Hz 0.18°@15Hz
Range Accuracy ±25mm ±25mm
Distance Resolution mm mm
Data Interface UART 3.3V Ethernet
Anti-glare >80000LX >80000LX
Reference Weight <108g <108g
Working Voltage 4.8VDC~5.5VDC 9.0VDC~28.0VDC
Working Temperature -10°C~+50°C -10°C~+50°C
Power Consumption ≤2W ≤2.5W
Protection Grade (IP) IP50/IP54 IP50/IP54
Device Dimensions (mm) 55.5×55.5×51.7mm 55.5×55.5×51.7mm
