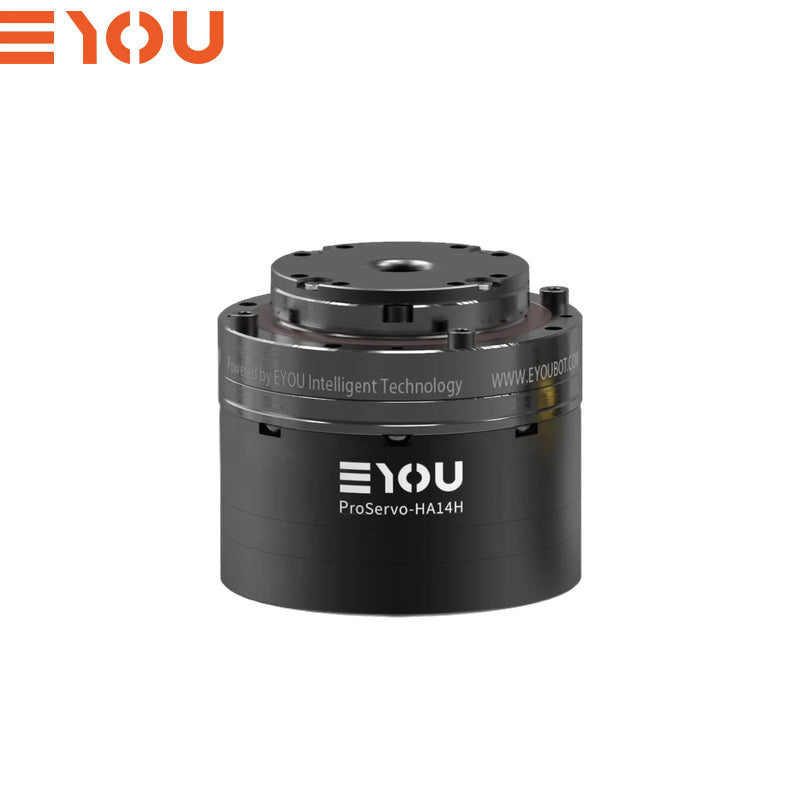

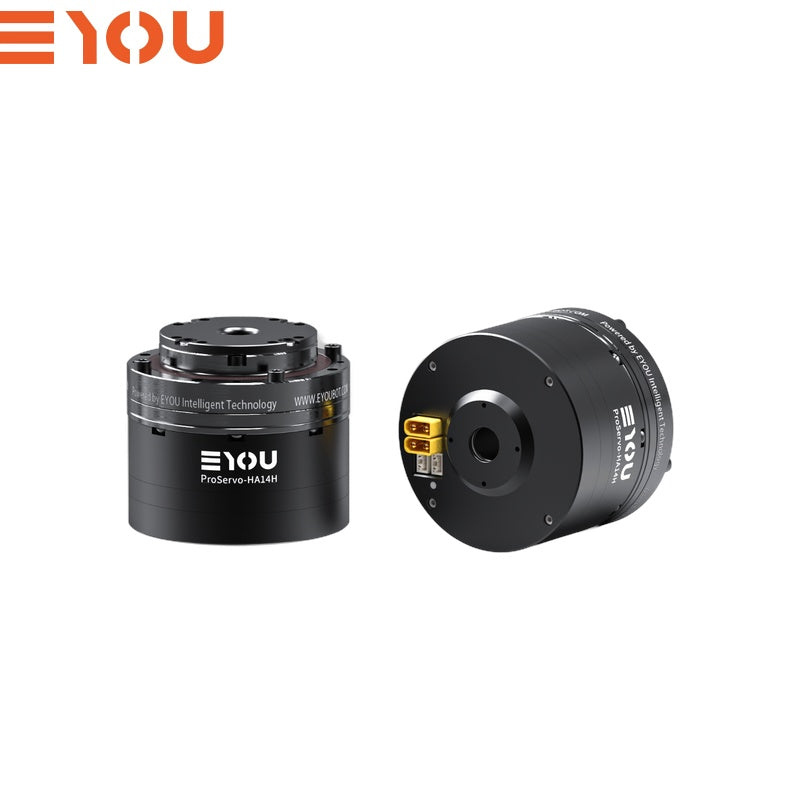

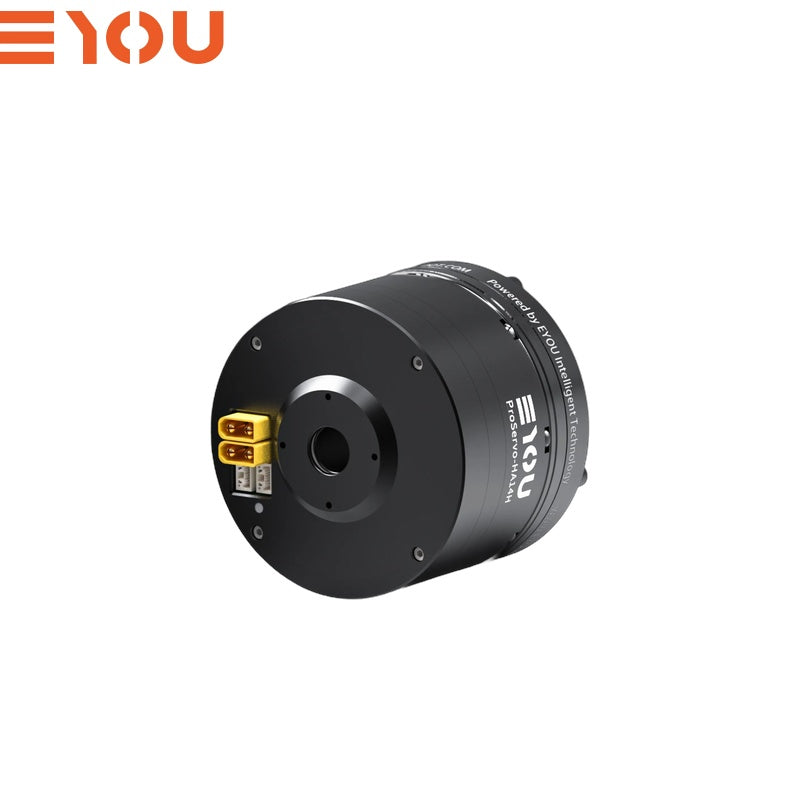

EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$890
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU PHA14H-101-C Motor CAD model for mechanical integration.stp ▶ EYOU PHA14H-101-C Motor dimension drawing for installation reference.pdf ▶ EYOU PHA14H-101-C Motor product documentation for robotics integration.pdf ▶ EYOU PHA14H-101-C Motor user manual for setup and integration.pdf ▶

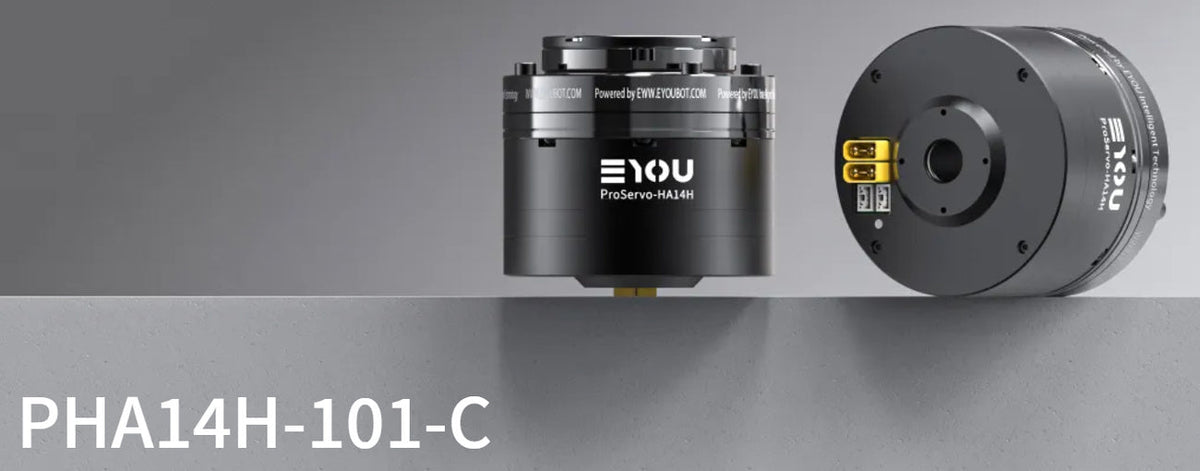

EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development detail image 1

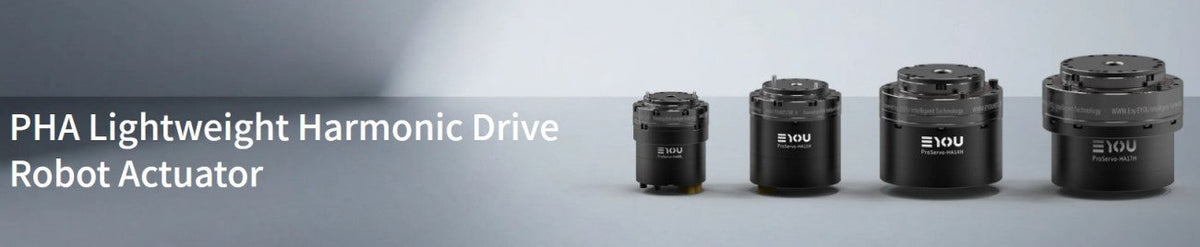

EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development detail image 2

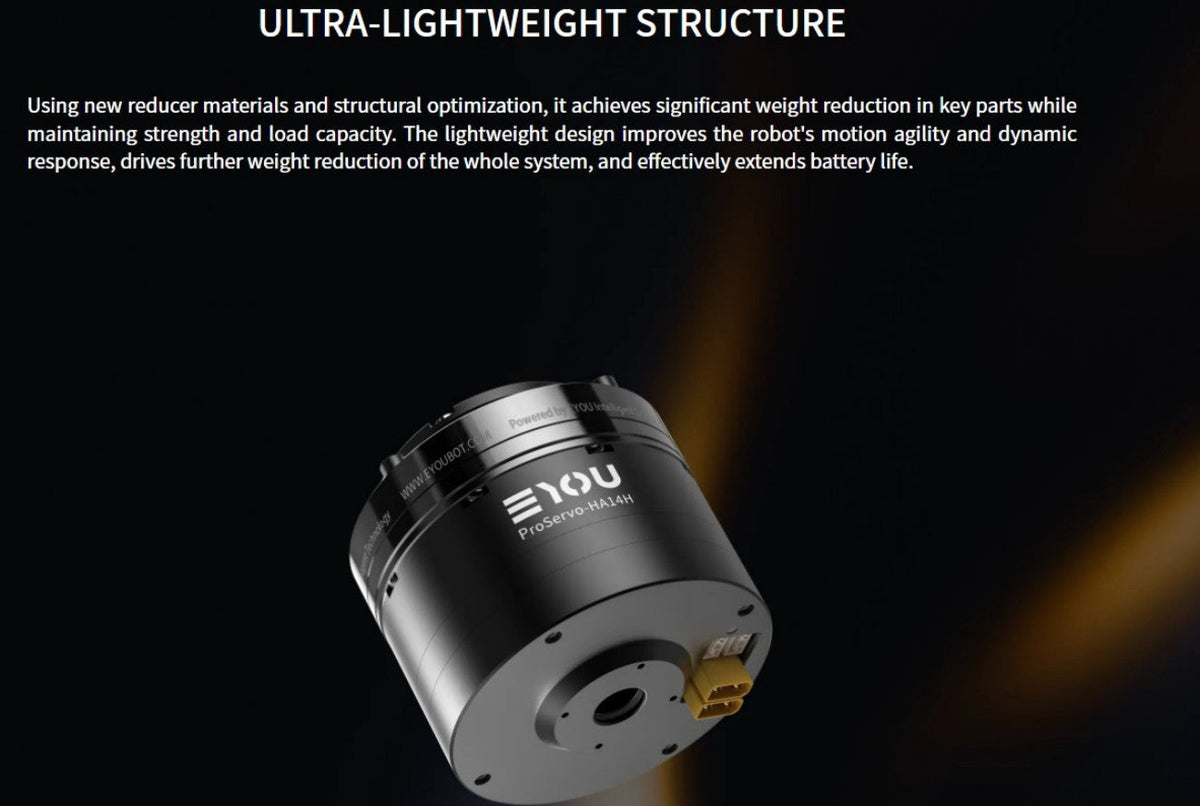

EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development detail image 3
EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development detail image 4
EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development detail image 5
EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development detail image 6
EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development detail image 7
EYOU PHA14H-101-C Motor | Robot Servo Motor for Robotics Development detail image 8
▤ PARAMETER ⌃
Module Model
PHA14
Reducer Type
Harmonic
Motor Rated Power
105 W
Motor Rated Torque
0.25 N·m
Motor Peak Torque
0.5 N·m
Reduction Ratio
101
Joint Rated Power - Life Constraint
20 W
Rated Torque at 2000rpm Input
9.6 N·m
Average Load Torque at Output
13.5 N·m
Peak Torque at Output
34 N·m
Max Allowable External Torque at Output (Instantaneous)
66 N·m
Backlash
≤20 Arcsec
Rated Speed at Output - Life Constraint
20 rpm
Peak Speed at Output
33 rpm
Brake (B/N)
N
Dimensions (Outer Diameter × Axial)
Φ70 × 61.5 mm
Weight
0.645 kg
Hollow Diameter
10.8 mm
Housing Appearance (Process Color)
Matte Black Anodized
Reducer Appearance (Process Color)
Outer Ring Blackened
Radial (dynamic/static) Allowable Load at Output
270 N
Axial (dynamic/static) Allowable Load at Output
270 N
Output Bending Moment
41 N·m
Reducer Torsional Stiffness
6000 N·m/rad
Reducer Input Inertia
27 kg·mm²
Equivalent Joint Output Inertia
276651 kg·mm²
Rated Operating Voltage
48 VDC
Operating Voltage Range
24~48 VDC
Driver
Built-in
Encoder/Bit
Dual Absolute / Motor side 16Bit & Reducer side 16Bit
Driver Interface (see terminal model description)
Power (DC in DC out), CANFD (In,Out)
Communication Protocol (see communication description)
CANopen
Control Modes
Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Cyclic Synchronous Velocity (CSV), etc.
Operating Ambient Temperature
-20~60 °C
Housing Temperature Rise
≤60 °C
Noise
≤60 dB
Life
>10000 h
