Leaderdrive

Leaderdrive KMF Motor | Robot Actuator Motor for Precision Robotics

  • Leaderdrive motor platform for precision robotics and automation systems.
  • Designed for robotic joints, motion modules, and compact actuator assemblies.
  • Suitable for robot hardware development, research labs, and industrial automation.
$180
Version
Designed voltage
Model

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Leaderdrive KMF Motor product overview, specifications, and application reference manual ▶ Leaderdrive KMF Motor 3D CAD model for mechanical design and integration ▶

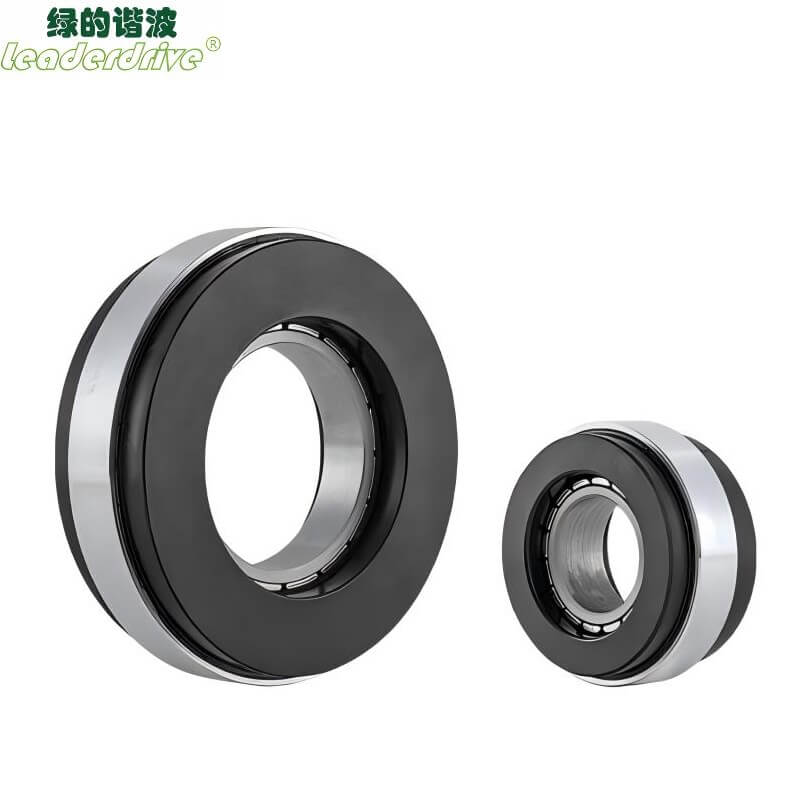

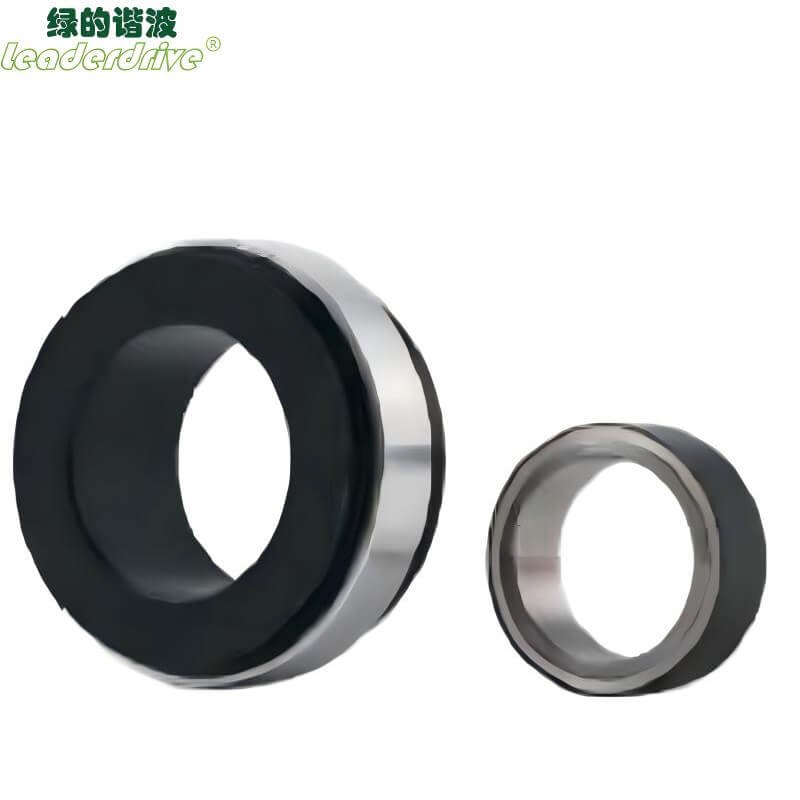

Leaderdrive KMF Motor

The Leaderdrive KMF Motor is a Leaderdrive motor for robotic joints, precision motion systems, automation equipment, and robot hardware development. It is suitable for engineering teams, robotics developers, research labs, and automation builders integrating compact motion modules.

Features

  • **Precision motion platform:** Designed for robotic joints and automation hardware.
  • **Developer-focused integration:** Suitable for robot actuator modules and engineering prototypes.
  • **Robotics applications:** Built for research, automation, and compact motion systems.
  • **Source-backed listing:** Product data is extracted from the reference product page.
▤ Technical Specifications ⌃
KMF Series Parameter Table
Model Unit 060AL 060BL 076AL 076BL 095AL 095BL 129AL 145AL 060AM 060BM 076AM 076BM 095AM 095BM 129AM 145AM
Designed voltage - DC bus voltage 48VDC -
Model KMF- - 060AL 060BL 076AL 076BL 095AL 095BL 129AL 145AL 060AM 060BM 076AM 076BM 095AM 095BM 129AM 145AM
Rated power W 130 160 290 350 500 560 600 750 130 160 290 350 500 550 600 750
Speed at rated power RPM 4200 2800 3900 2200 2600 1800 2400 1700 4500 3100 4200 2500 2900 1800 2800 2100
Continuous stall torque N m 0.459 0.774 1.032 1.82 2.33 3.98 3.343 4.479 0.459 0.774 1.032 1.82 2.33 3.903 3.343 4.479
Continuous current Arms 5.06 6.2 8.96 9.87 14.8 16.31 18.96 23.71 1.69 2.07 2.99 3.29 4.93 5.153 6.32 7.9
Peak stall torque N m 1.56 2.63 3.1 5.46 6.06 9.57 8.36 11.65 1.61 2.71 3.3 5.82 6.99 11.71 10.03 13.44
Peak current Arms 16.7 19.85 30.27 33.18 44.4 47.61 48.3 54.62 5.92 7.25 9.57 10.53 14.79 15.46 18.96 23.7
Torque constant N m/Arms 0.091 0.152 0.109 0.184 0.141 0.218 0.176 0.232 0.392 0.354 0.504 0.491 0.794 0.734 0.898 0.892
Back EMF Vrms/kRPM 6.32 10.03 7.98 12.06 10.57 14.69 12.05 17.48 23.85 37.81 30.66 45.46 40.84 53.52 44.29 50.87
Phase resistance Ohms 0.275 0.204 0.262 0.196 0.239 0.179 0.188 0.139 4.311 3.233 2.135 1.601 1.779 1.267 1.438 1.024
Phase inductance mH 0.352 0.275 0.313 0.244 0.282 0.219 0.265 0.207 5.256 3.942 3.869 2.902 3.375 2.495 3.165 3.026
Cogging torque N m 0.0012 0.0021 0.0034 0.0055 0.0088 0.0092 0.0094 0.0099 0.001 0.0021 0.0027 0.0055 0.0097 0.0098 0.0094 0.0097
Inertia moment ×10⁻⁴ kg·m² 0.15 0.26 0.32 0.58 1.14 1.93 1.78 2.32 0.15 0.26 0.32 0.58 1.14 1.96 1.78 2.32
Mass kg 0.155 0.289 0.302 0.553 0.578 1.035 1.123 1.612 0.155 0.289 0.302 0.553 0.578 1.024 1.123 1.612
Number of motor poles 16
Motor insulation - Heat-resistant class: F (155 ℃)
- Insulation resistance: more than 200MΩ (DC500V)
- Dielectric strength: AC1500V (1 minute)
