CmdRob

CmdRob L142I Motor

  • CmdRob motor for robot joint development, actuator integration, and automation hardware.
  • Available configurations support compact servo actuator and motion-control component selection.
  • Suitable for engineering teams building robot joints, test platforms, automation systems, and lab prototypes.
  • Designed for practical robot hardware integration where reliable motion components matter.
$1,700
Version
Reduction Ratio
Bus communication protocol

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CmdRob L142I Motor dimension drawing for installation reference.pdf ▶ CmdRob L142I Motor dimension drawing for installation reference.pdf ▶ CmdRob L142I Motor CAD model for mechanical integration.stp ▶ CmdRob L142I Motor CAD model for mechanical integration.stp ▶

CmdRob L142I Motor

The CmdRob L142I Motor is a CmdRob motor for robotics development, robot joint hardware, actuator systems, automation projects, and engineering lab integration.

Features

  • **Robot joint integration:** Suitable for servo systems, actuator builds, and motion hardware.
  • **Configuration options:** Supports model selection for robot actuator and motion-control development.
  • **Engineering use:** Designed for robotics developers, automation engineers, education labs, and prototype teams.
  • **Component-focused design:** Useful for compact robot hardware and integrated motor applications.

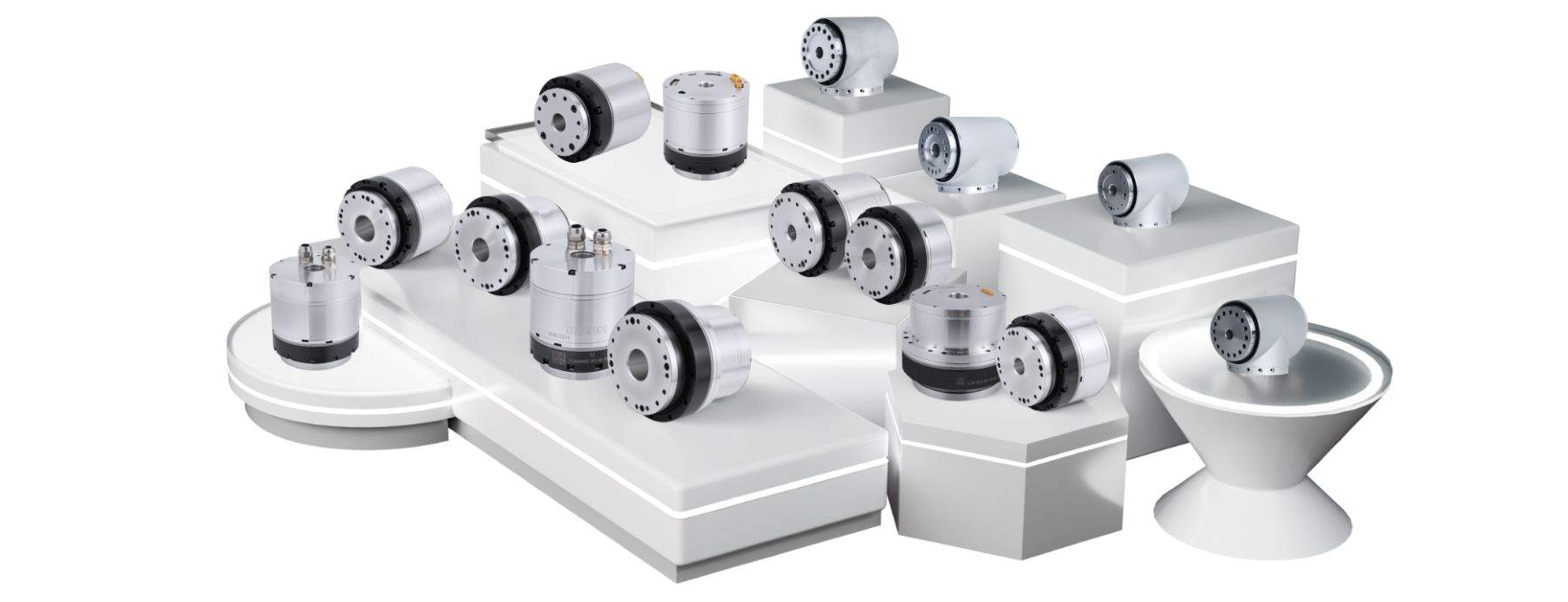

CmdRob L142I Motor detail image 1

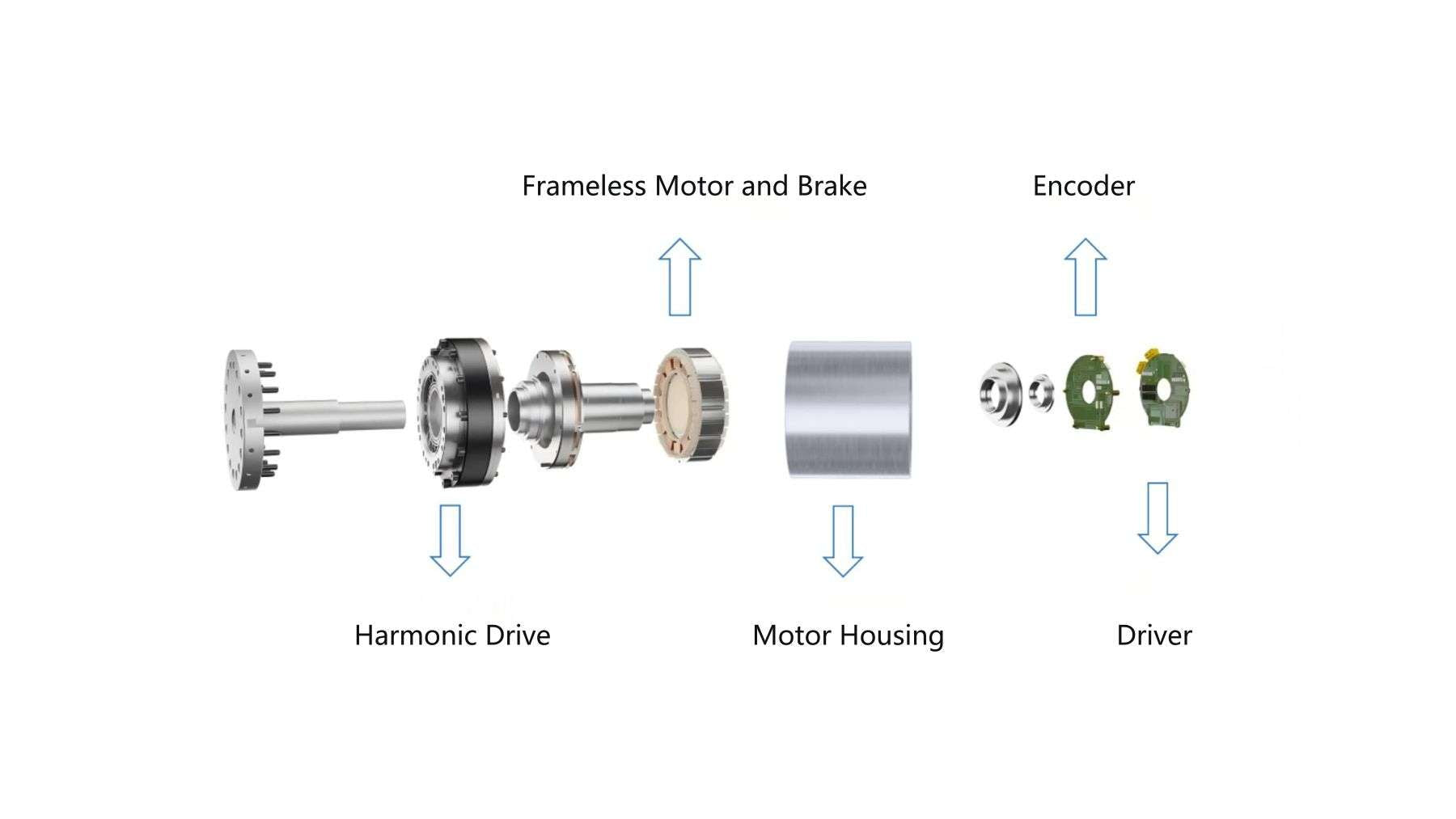

CmdRob L142I Motor detail image 2

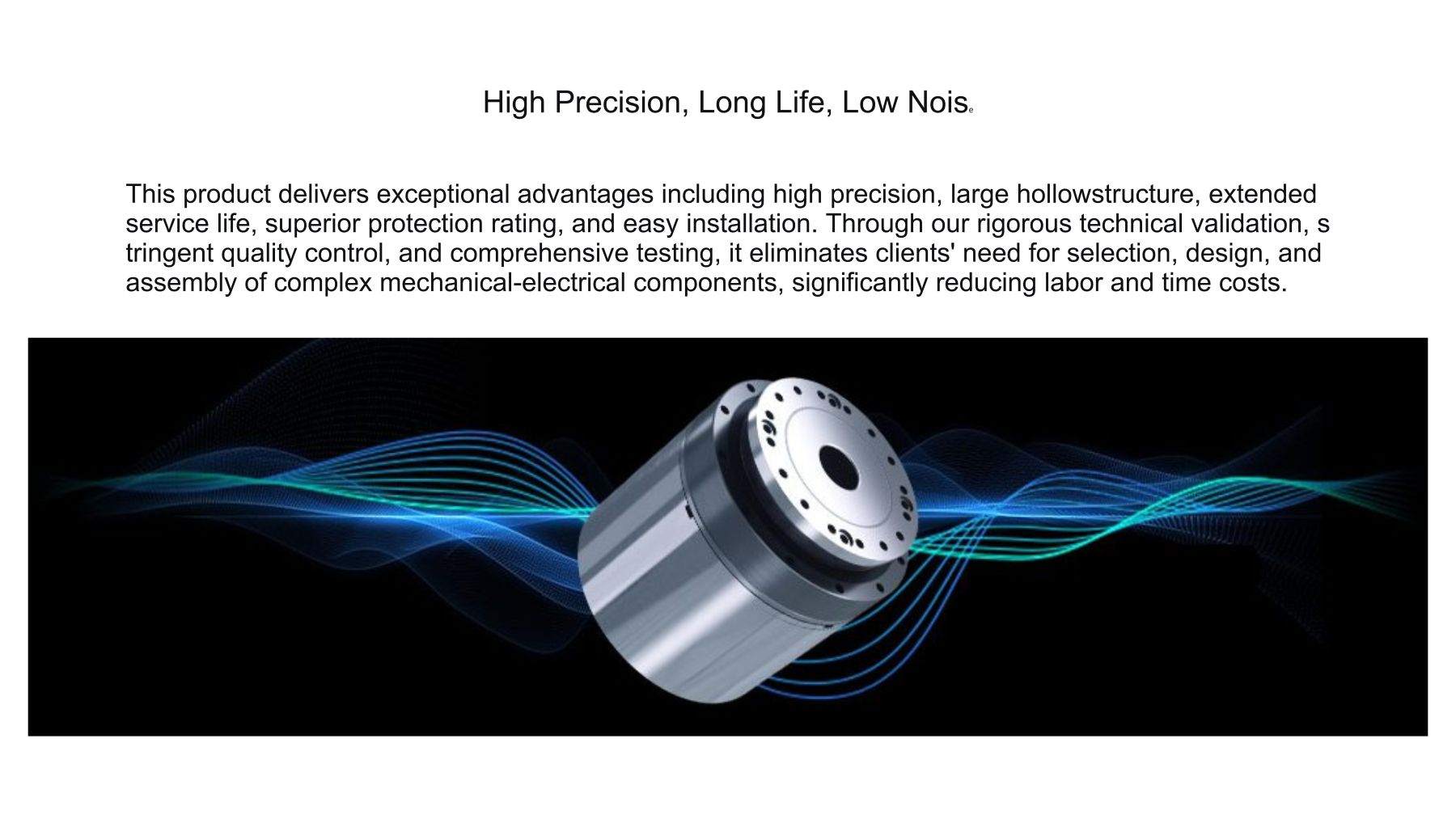

CmdRob L142I Motor detail image 3

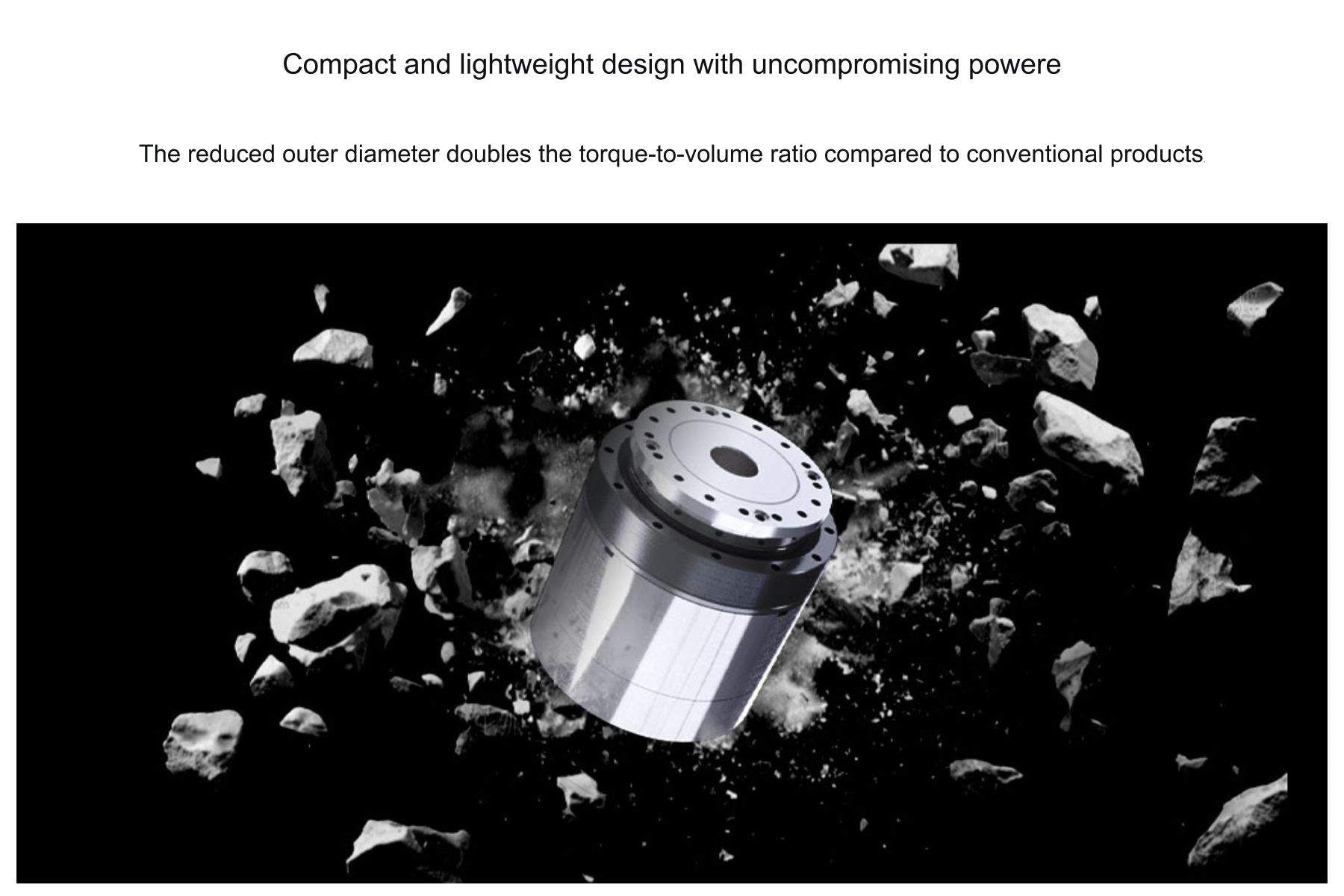

CmdRob L142I Motor detail image 4
CmdRob L142I Motor detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Reduction Ratio
L142I: 51 L142I: 81 L142I: 101 L142I: 121
Input Voltage
L142I: 48 (±10%)V L142I: 48 (±10%)V L142I: 48 (±10%)V L142I: 48 (±10%)V
Maximum Torque
L142I: 497N.m L142I: 738N.m L142I: 841N.m L142I: 892N.m
50.71kgf.m
L142I: 75.31kgf.m L142I: 85.82kgf.m L142I: 91.02kgf.m
Average Load Torque
L142I: 140N.m L142I: 217N.m L142I: 281N.m L142I: 281N.m
14.29kgf.m
L142I: 22.14kgf.m L142I: 28.67kgf.m L142I: 28.67kgf.m
Start-Stop Peak Torque
L142I: 281N.m L142I: 395N.m L142I: 433N.m L142I: 459N.m
28.67kgf.m
L142I: 40.31kgf.m L142I: 44.18kgf.m L142I: 46.84kgf.m
Maximum Speed
L142I: 58.8r/min L142I: 37.0r/min L142I: 29.7r/min L142I: 24.8r/min
Rated Speed
L142I: 39.2r/min L142I: 24.7r/min L142I: 19.8r/min L142I: 16.5r/min
Motor Torque Constant
L142I: 0.17N·m/A L142I: 0.17N·m/A L142I: 0.17N·m/A L142I: 0.17N·m/A
0.0173kgf·m/A
L142I: 0.0173kgf·m/A L142I: 0.0173kgf·m/A L142I: 0.0173kgf·m/A
Maximum Current
L142I: 38.93A L142I: 34.45A L142I: 30.29A L142I: 26.80A
Allowable Continuous Current
L142I: 19.40A L142I: 18.93A L142I: 19.66A L142I: 16.41A
Back EMF Constant
L142I: 11.2V/krpm L142I: 11.2V/krpm L142I: 11.2V/krpm L142I: 11.2V/krpm
Phase Resistance (20°C)
L142I: 0.036Ω L142I: 0.036Ω L142I: 0.036Ω L142I: 0.036Ω
Phase Inductance
L142I: 0.12mH L142I: 0.12mH L142I: 0.12mH L142I: 0.12mH
Moment of Inertia
L142I: 625(kg·mm²) L142I: 625(kg·mm²) L142I: 625(kg·mm²) L142I: 625(kg·mm²)
625*10^-4+(kgf·cm·s²)
L142I: 625*10^-4+(kgf·cm·s²) L142I: 625*10^-4+(kgf·cm·s²) L142I: 625*10^-4+(kgf·cm·s²)
Repeatable Positioning Accuracy(1)
L142I: 20arc-sec L142I: 20arc-sec L142I: 20arc-sec L142I: 20arc-sec
Positioning Accuracy(2)
L142I: 60arc-sec L142I: 60arc-sec L142I: 60arc-sec L142I: 60arc-sec
Bus Communication Protocol
L142I: Canopen / EtherCAT L142I: Canopen / EtherCAT L142I: Canopen / EtherCAT L142I: Canopen / EtherCAT
Encoder Resolution(Single-turn)
L142I: 17-bit (131,072 pulses/rev) L142I: 17-bit (131,072 pulses/rev) L142I: 17-bit (131,072 pulses/rev) L142I: 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn)
L142I: 16-bit (-32,768 to +32,767 revs) L142I: 16-bit (-32,768 to +32,767 revs) L142I: 16-bit (-32,768 to +32,767 revs) L142I: 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution
L142I: 6,684,672pulses/rev L142I: 10,616,832pulses/rev L142I: 13,238,272pulses/rev L142I: 15,859,712pulses/rev
Mass
L142I: 5.3 KG L142I: 5.3 KG L142I: 5.3 KG L142I: 5.3 KG
Ambient Environmental Conditions
L142I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L142I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L142I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L142I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m
Design Life（H）
L142I: 10000 L142I: 10000 L142I: 10000 L142I: 10000
Motor Insulation
L142I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L142I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L142I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L142I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C)
Mounting Orientation
L142I: Omnidirectional Mounting L142I: Omnidirectional Mounting L142I: Omnidirectional Mounting L142I: Omnidirectional Mounting
Protection Rating
L142I: Totally Enclosed, Non-Ventilated (IP54) L142I: Totally Enclosed, Non-Ventilated (IP54) L142I: Totally Enclosed, Non-Ventilated (IP54) L142I: Totally Enclosed, Non-Ventilated (IP54)
