DAMIAO

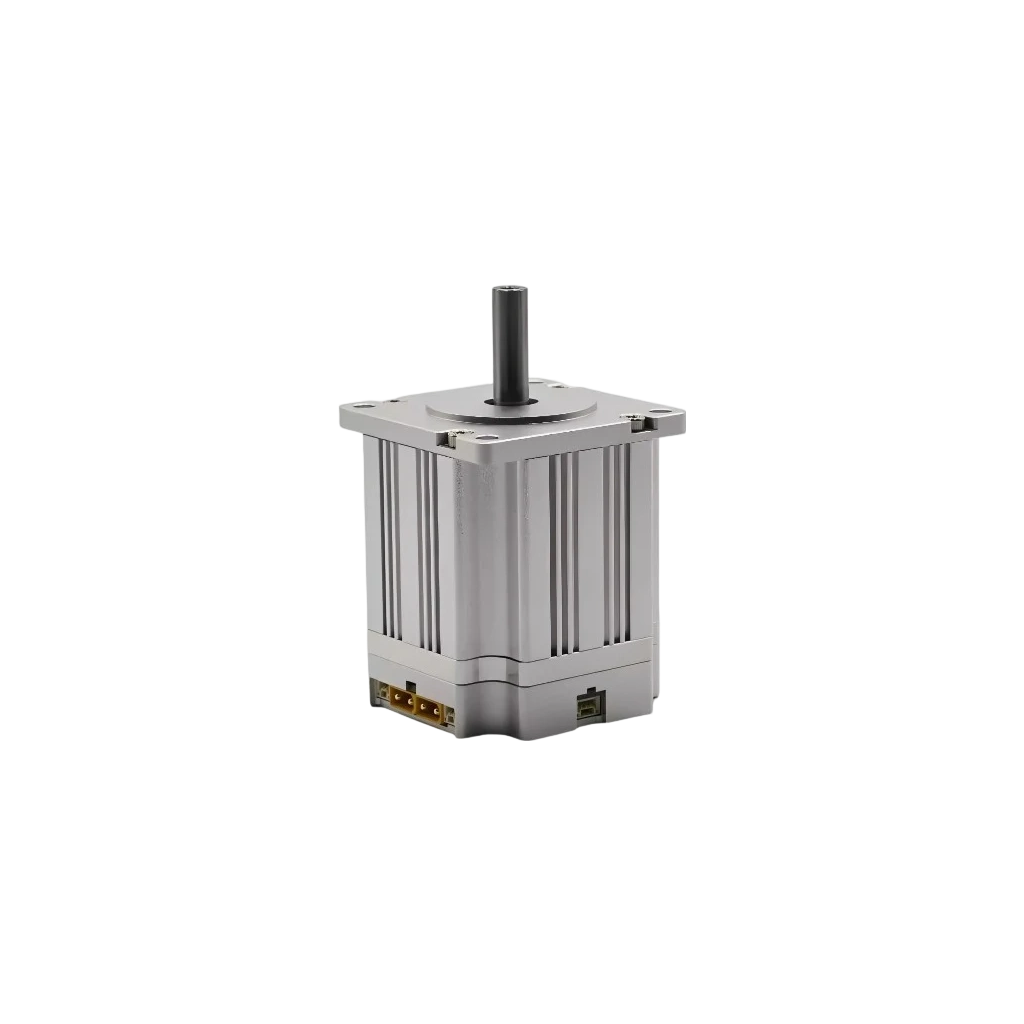

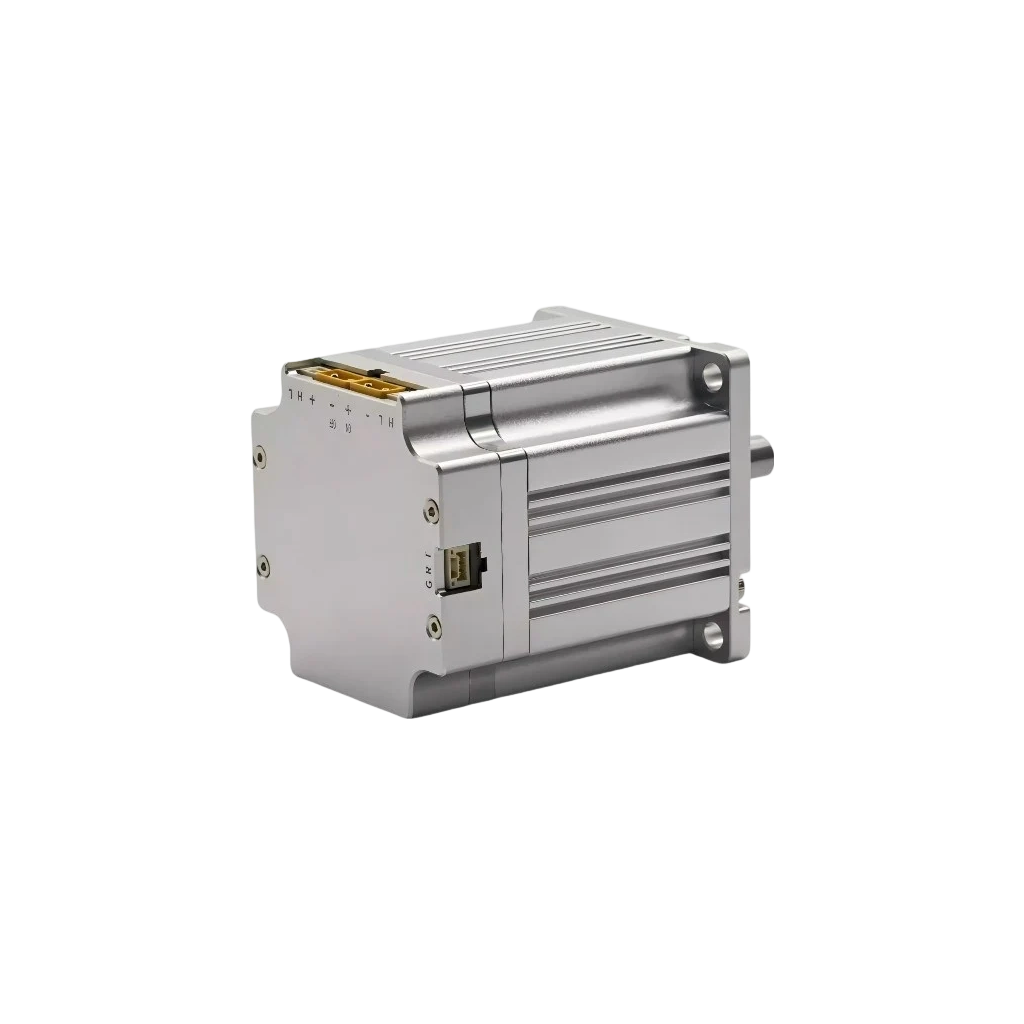

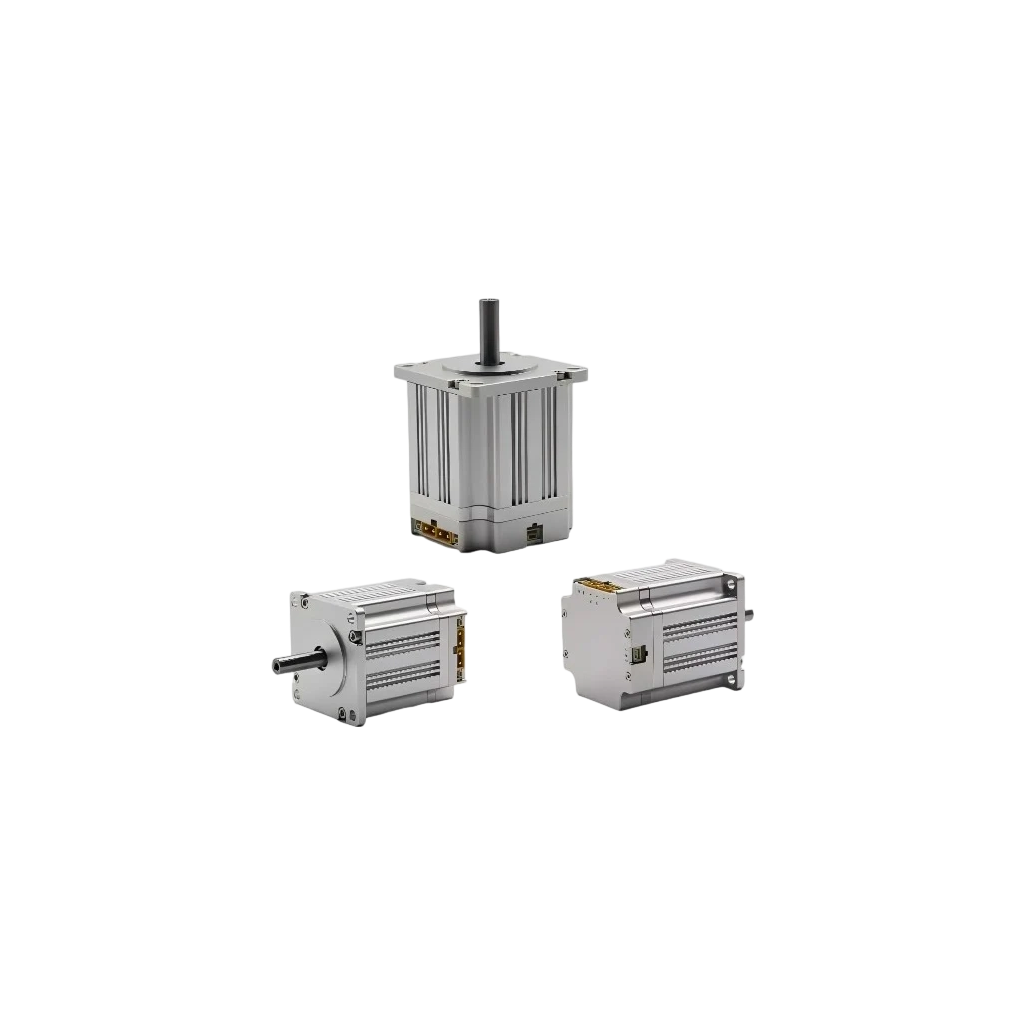

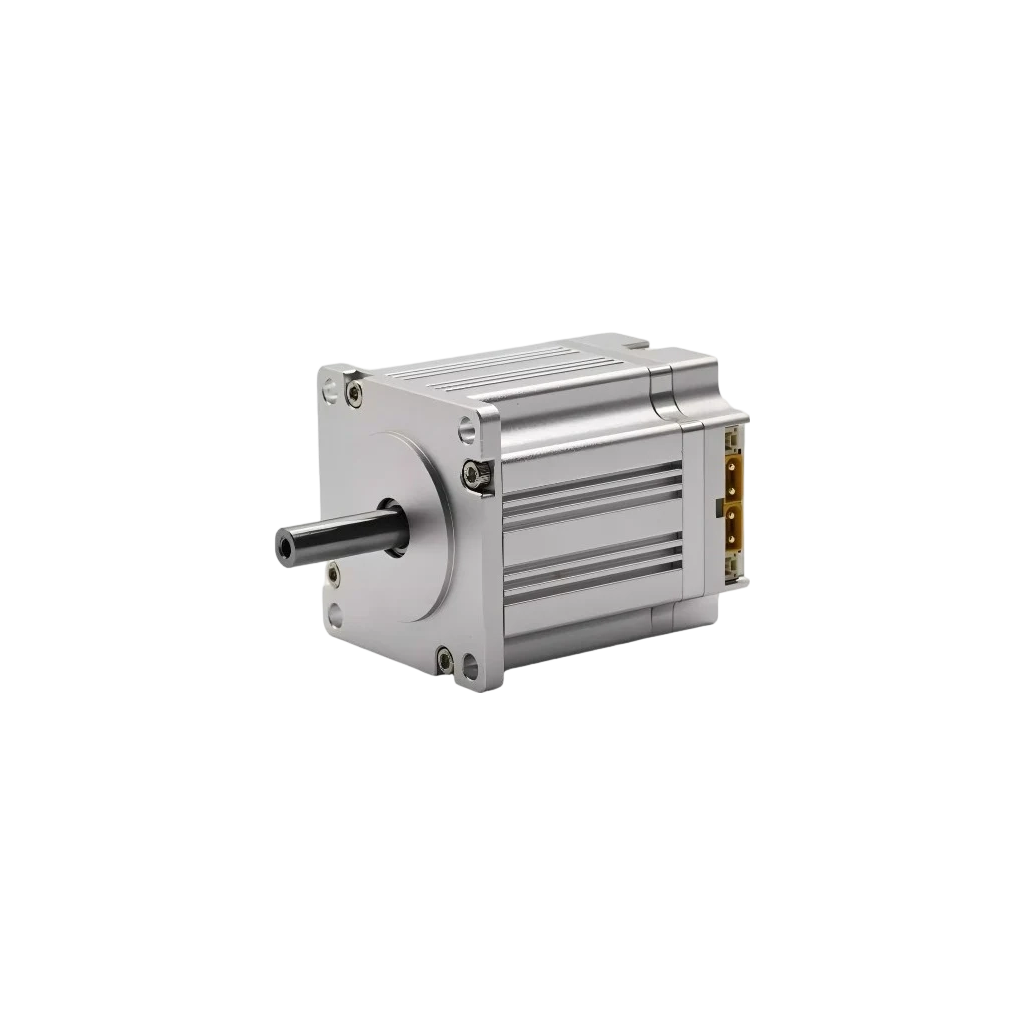

DAMIAO DM-D5730-1EC Servo Motor for Robotic Motion

Model: DM-D5730-1EC

$100
Version
Communication Module

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Parameter
Value
Rated Voltage
24 V (Wide-Voltage Version, supports 24–48 V DC input)
Rated Phase / Power Current
5.4 A / 4.2 A @ 24 V | 5.4 A / 2.2 A @ 48 V
Peak Phase / Power Current
16.2 A / 9.0 A @ 24 V | 16.2 A / 6.2 A @ 48 V
Rated Torque
0.65 N·m
Peak Torque
1.9 N·m
Rated Speed
1100 rpm
Maximum No-Load Speed
1500 rpm
Number of Slots
27
Pole Pairs
14
Phase Inductance
85 µH (@25°C)
Phase Resistance
0.17 Ω (@25°C)
Outer Diameter
57.0 mm
Height
62.5 mm
Motor Weight
Approx. 628 g
Encoder Resolution
17-bit
Encoder Accuracy
±0.05°
Number of Encoders
1
Control Interface
CAN (5 Mbps Max)
Configuration Interface
UART (921600 bps)
Control Modes
MIT Mode | Speed Mode | Position Mode | Position Hybrid Mode
Protection Functions
Drive Over-Temperature (120°C cutoff) | Motor Over-Temperature (Recommended <100°C) | Over-Voltage Protection (Recommended <55V) | Communication Loss Protection | Motor Over-Current Protection (Recommended <9.8A) | Under-Voltage Protection (Minimum 20V)

Technical Documentation

PDF
DAMIAO-DM-5730-1EC-Drawing.pdf
PDF
DAMIAO-DM-D5730-1EC-User_Manual-1-1.pdf
STP
DAMIAO-DM-5730-1EC.STEP
PDF
USB_to_CANFD_Module_User_Manual_V1.0.pdf
