HIGH TORQUE HTCP-4531-06-CYC Hollow Joint Module

  • Designed for humanoid robots, robotic arms, and compact robotics platforms.
  • Hollow joint design supports flexible cable routing and compact robot structures.
  • 31:1 reduction ratio provides efficient torque transmission for robotic motion.
  • Integrated encoder feedback enables precise joint control and stable operation.
  • CANFD/CAN communication supports flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

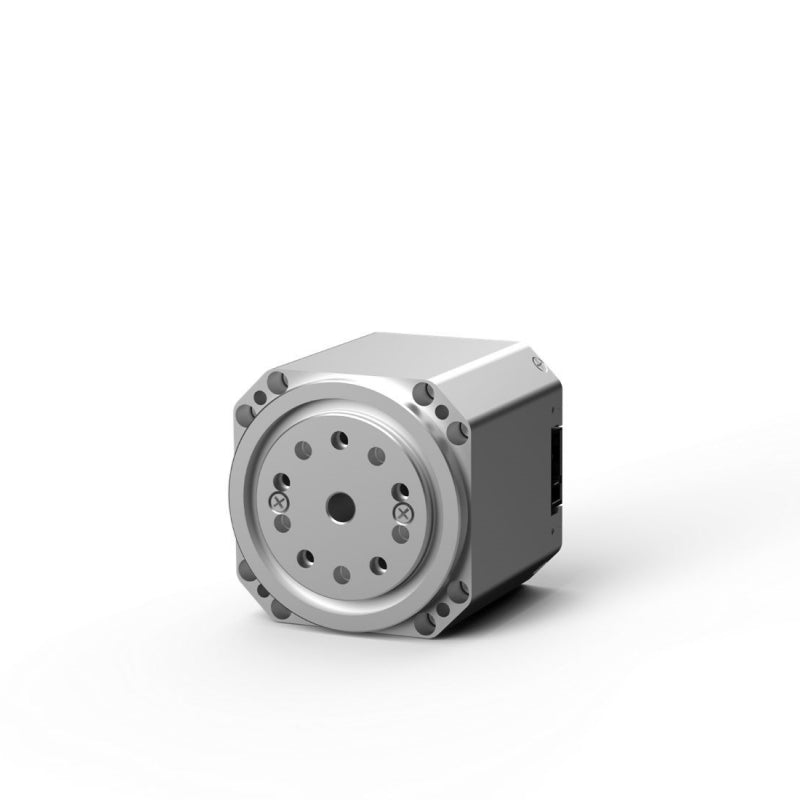

HIGH TORQUE HTCP-4531-06-CYC Hollow Joint Module

The HIGH TORQUE HTCP-4531-06-CYC is a compact hollow joint module designed for humanoid robots, robotic arms, and advanced robotics platforms. It integrates a motor, planetary reduction mechanism, encoder feedback, and communication interface into a lightweight joint actuator, providing a practical solution for robotic developers building precise and compact motion systems.

Hollow Joint Design

The HTCP-4531-06-CYC features a hollow shaft structure that enables cleaner cable routing and more flexible mechanical integration. Its compact 44 × 44.9 mm form factor makes it suitable for space-constrained robotic joints, including humanoid robots and lightweight robotic arms.

31:1 Planetary Reduction

Equipped with a 31:1 reduction ratio, the module delivers efficient torque transmission in a compact design. It provides 2 Nm rated torque and up to 10 Nm locked-rotor torque, supporting precise motion control for robotic joints and research platforms.

High-Precision Encoder Feedback

The integrated encoder system features 14-bit input and output encoder resolution, enabling accurate position feedback and responsive joint control. This helps robotic systems achieve smoother movement and improved control performance.

CANFD/CAN Communication Integration

The HTCP-4531-06-CYC supports CANFD/CAN communication and up to 3 kHz control frequency, allowing flexible integration with robotic controllers and embedded systems. It is suitable for robotics education, research projects, and customized robot development applications.

HIGH TORQUE HTCP-4531-06-CYC Hollow Joint Module
▤ PARAMETER ⌃

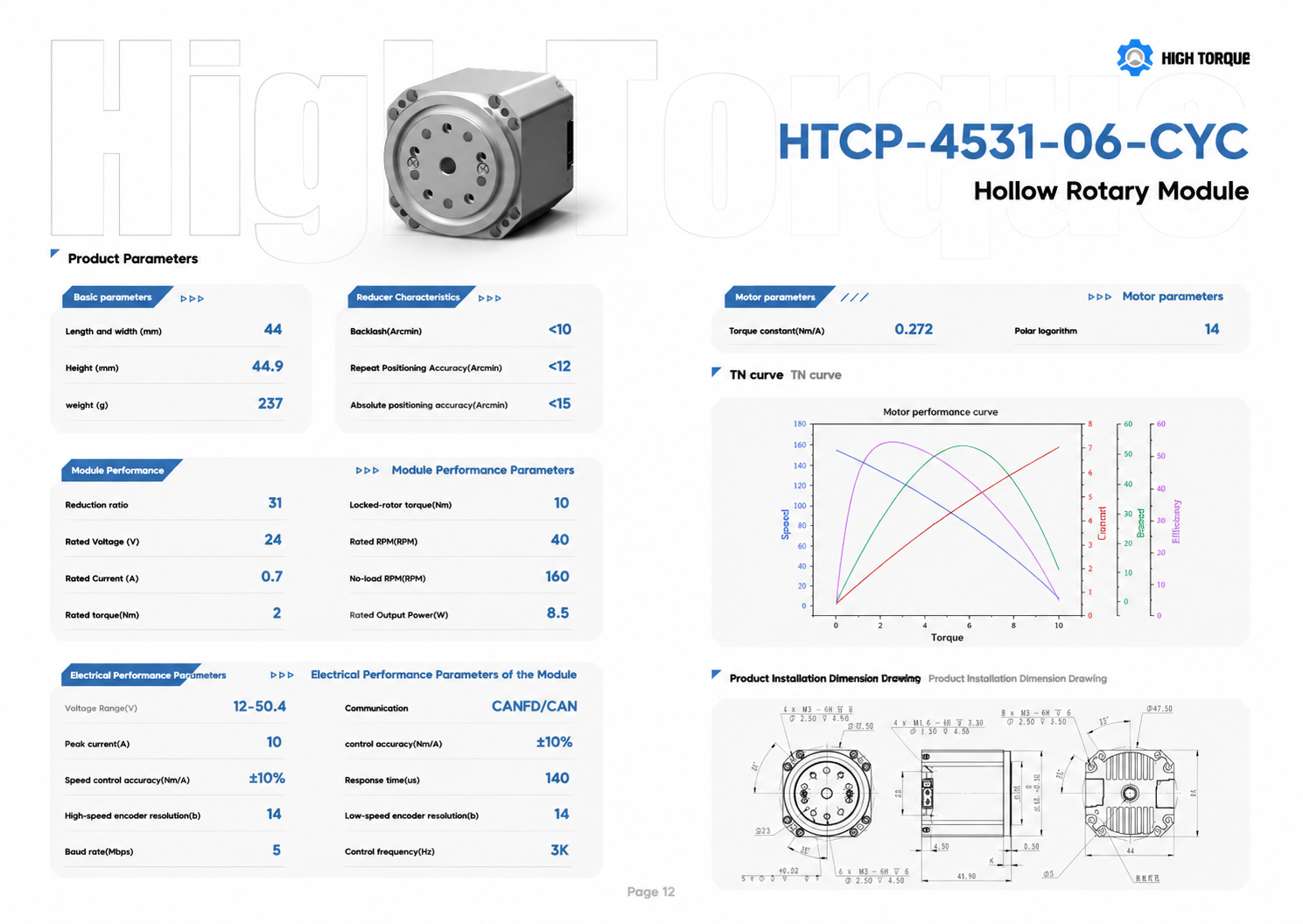

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 44 mm
Height 44.9 mm
Weight 237 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 31
Rated Voltage 24 V
Rated Current 0.7 A
Rated Torque 2 Nm
Locked-Rotor Torque 10 Nm
Rated RPM 40 RPM
No-Load RPM 160 RPM
Rated Output Power 8.5 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 10 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
