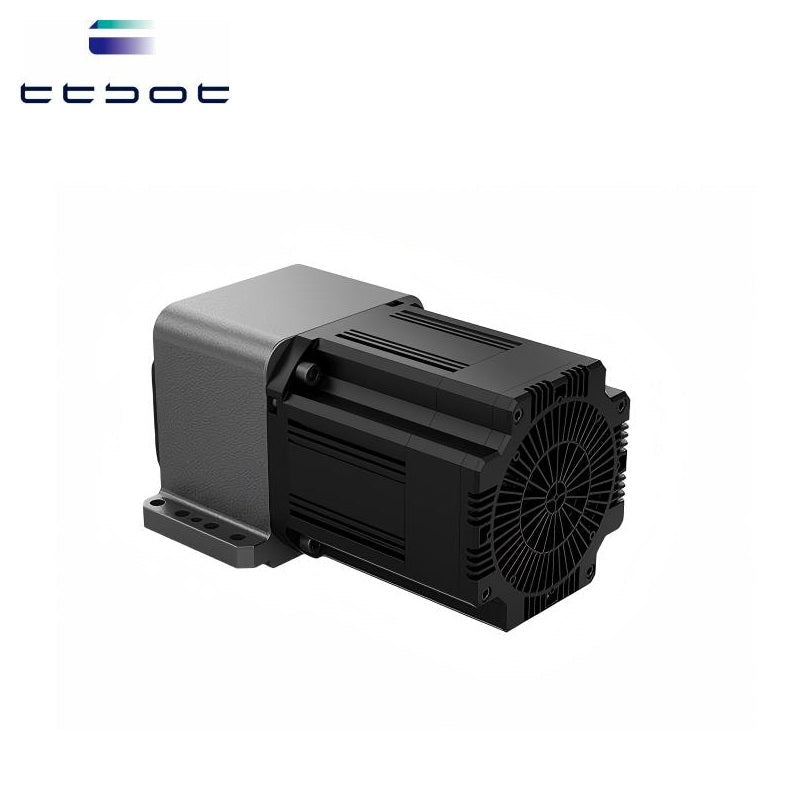

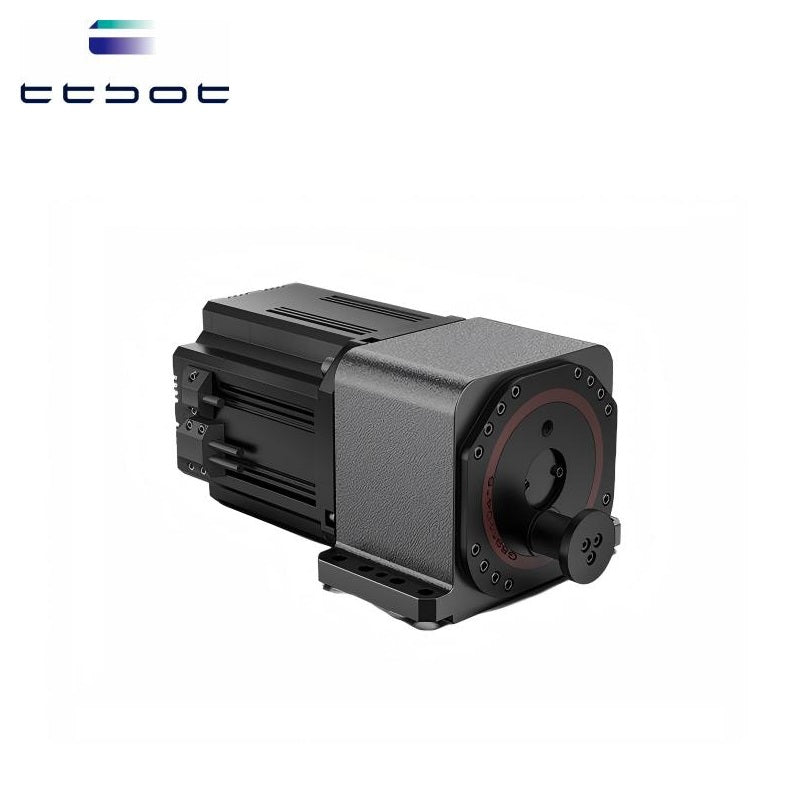

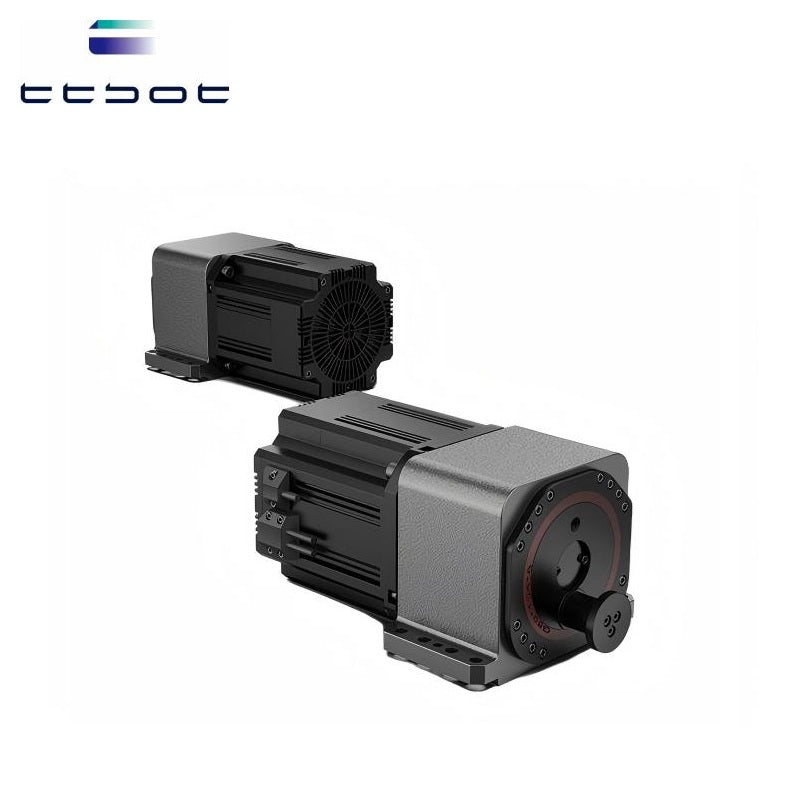

TTBOT D45B Motor | Robot Servo Motor for Robotics Development

  • TTBOT robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$1,105
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

TTBOT D45B Motor dimension drawing for installation reference.pdf ▶ TTBOT D45B Motor CAD model for mechanical integration.stp ▶
TTBOT D45B Motor | Robot Servo Motor for Robotics Development detail image 1
TTBOT D45B Motor | Robot Servo Motor for Robotics Development detail image 2

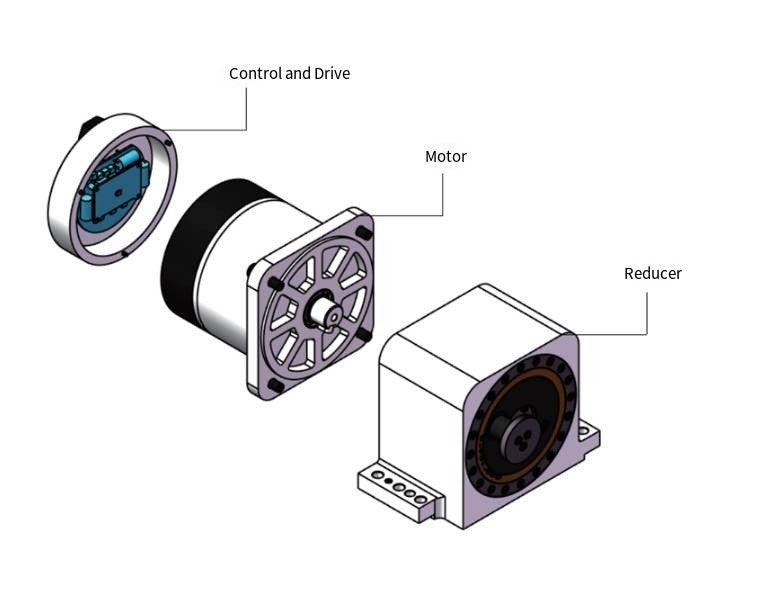

TTBOT D45B Motor | Robot Servo Motor for Robotics Development detail image 3
TTBOT D45B Motor | Robot Servo Motor for Robotics Development detail image 4
▤ PARAMETER ⌃
Module Model
D45B
Supply Voltage
48VDC
Rated Torque
350N.m
Starting Torque
590N.m
Peak Torque
590N.m
Rated Speed
20rpm
Peak Speed
30rpm
Communication
CAN
Encoder
15-bit single-turn absolute
Protection Grade
IP6X
Operating Noise
≤65dBA(@1m 20rpm)
Weight
17.9kg
Operating Temperature
0~40℃
Motor Rated Current
34.8Arms
Motor Peak Current
80Arms
Motor Rated Speed
2000rpm
Motor Rated Torque
5N.m
Back EMF Constant
10.6Vrms/Krpm
Torque Coefficient
0.163N.m/Arms
Motor Rotor Inertia
10.5×10⁻⁴kg.m²
Insulation Class
B
Reduction Ratio
1:100
Allowable Dynamic Load
29.7KN
Allowable Static Load
31.9KN
Backlash
≤1arcmin
Brake Type
Electromagnetic friction disc
Brake Holding Torque
≥8N.m
External Brake Release Voltage
48VDC(Max.5min)
