Hinson

Hinson FE50FA-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Digital Output: 4 × NPN: 4 × NPN
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$590
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Hinson FE50FA-01000 LiDAR dimension drawing for installation reference.pdf ▶ Hinson FE50FA-01000 LiDAR CAD model for mechanical integration.stp ▶

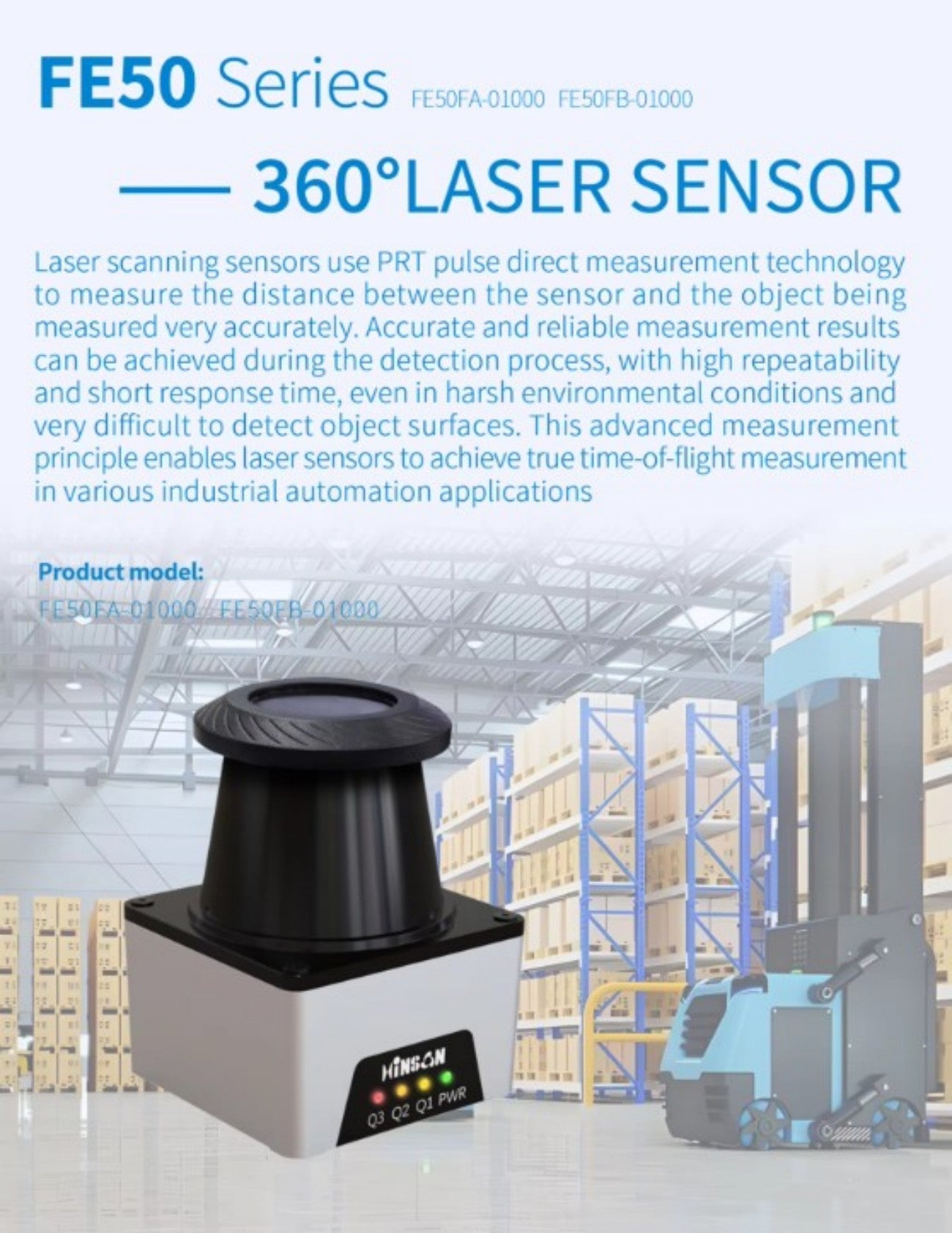

Hinson FE50FA-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

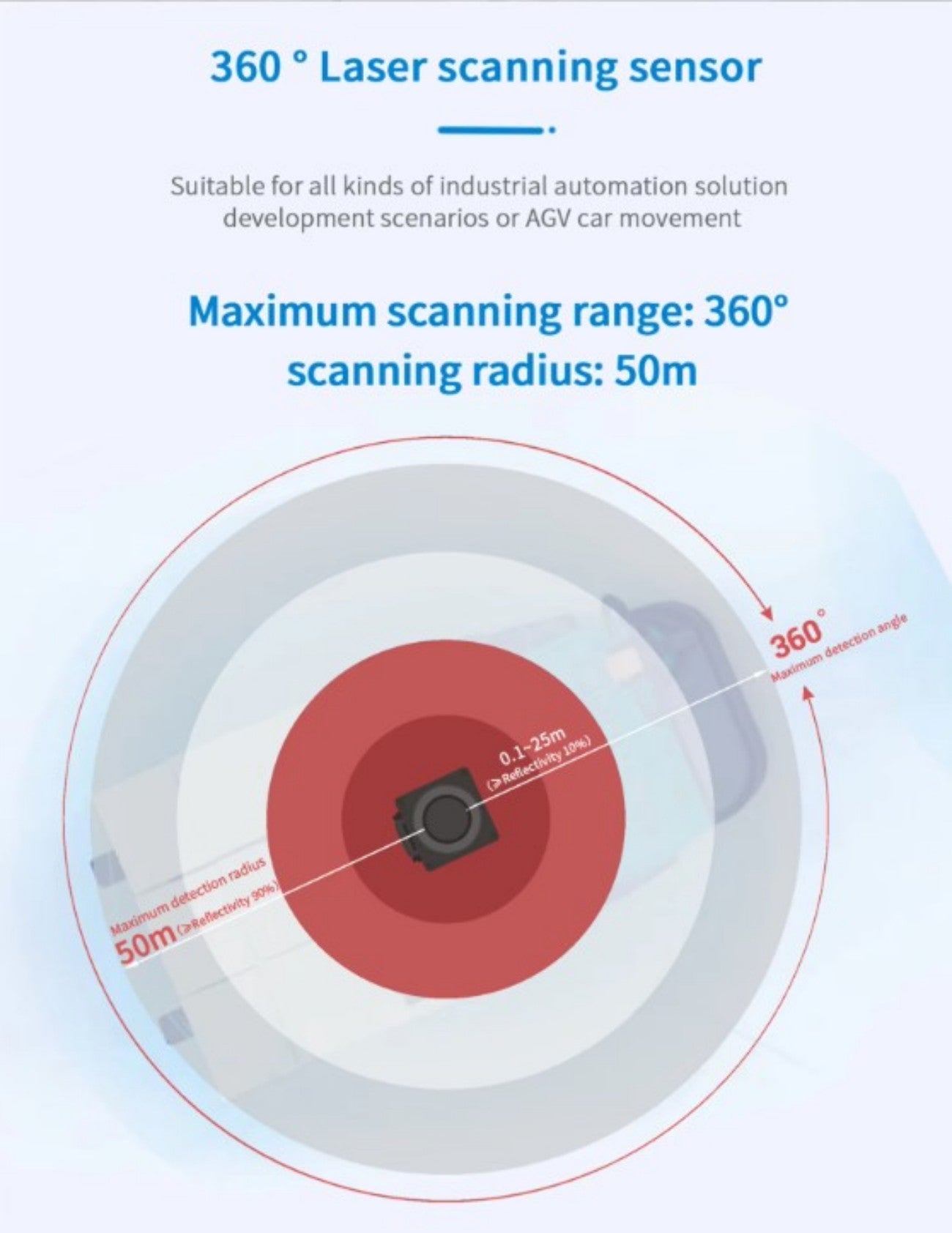

Hinson FE50FA-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

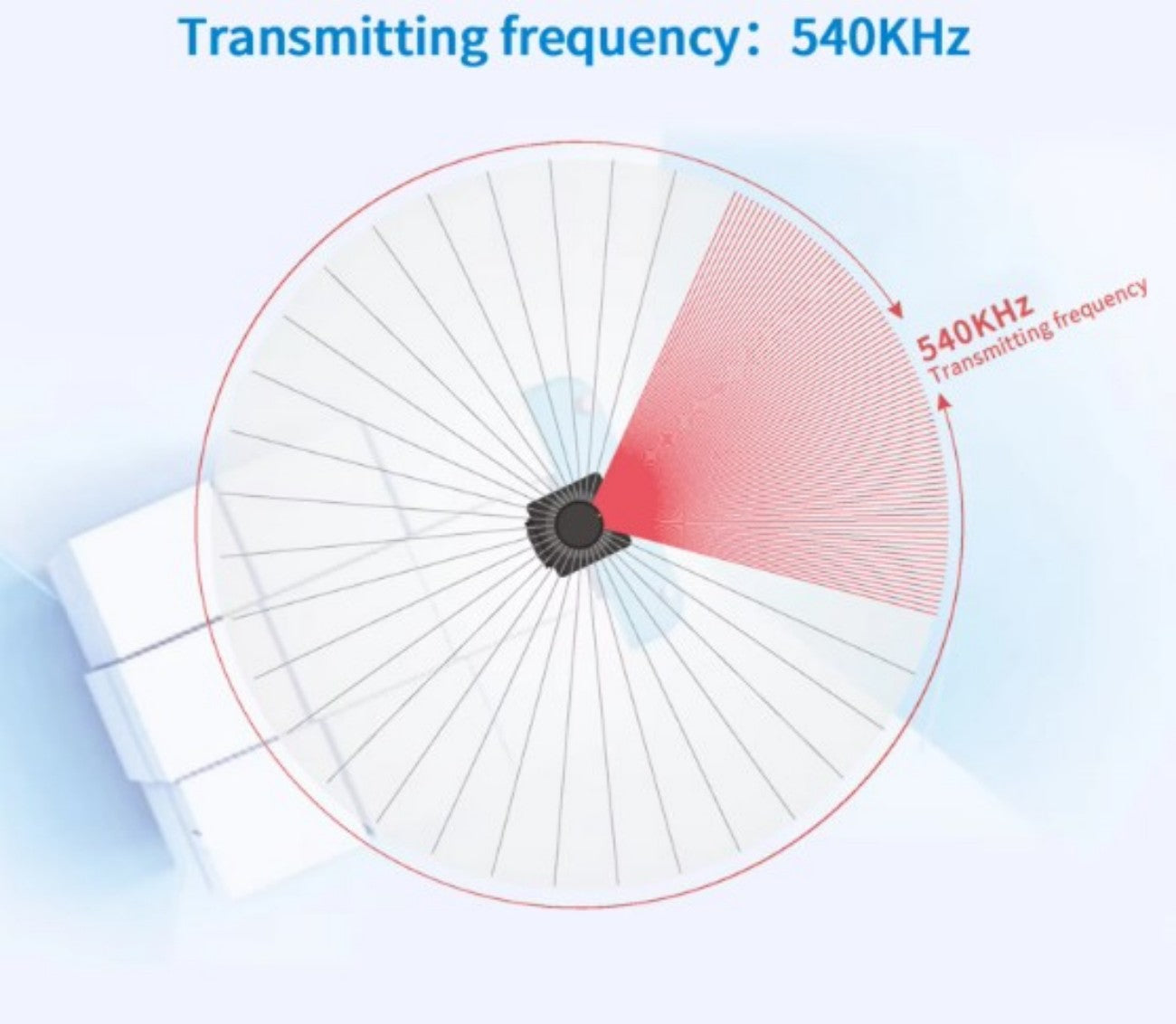

Hinson FE50FA-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

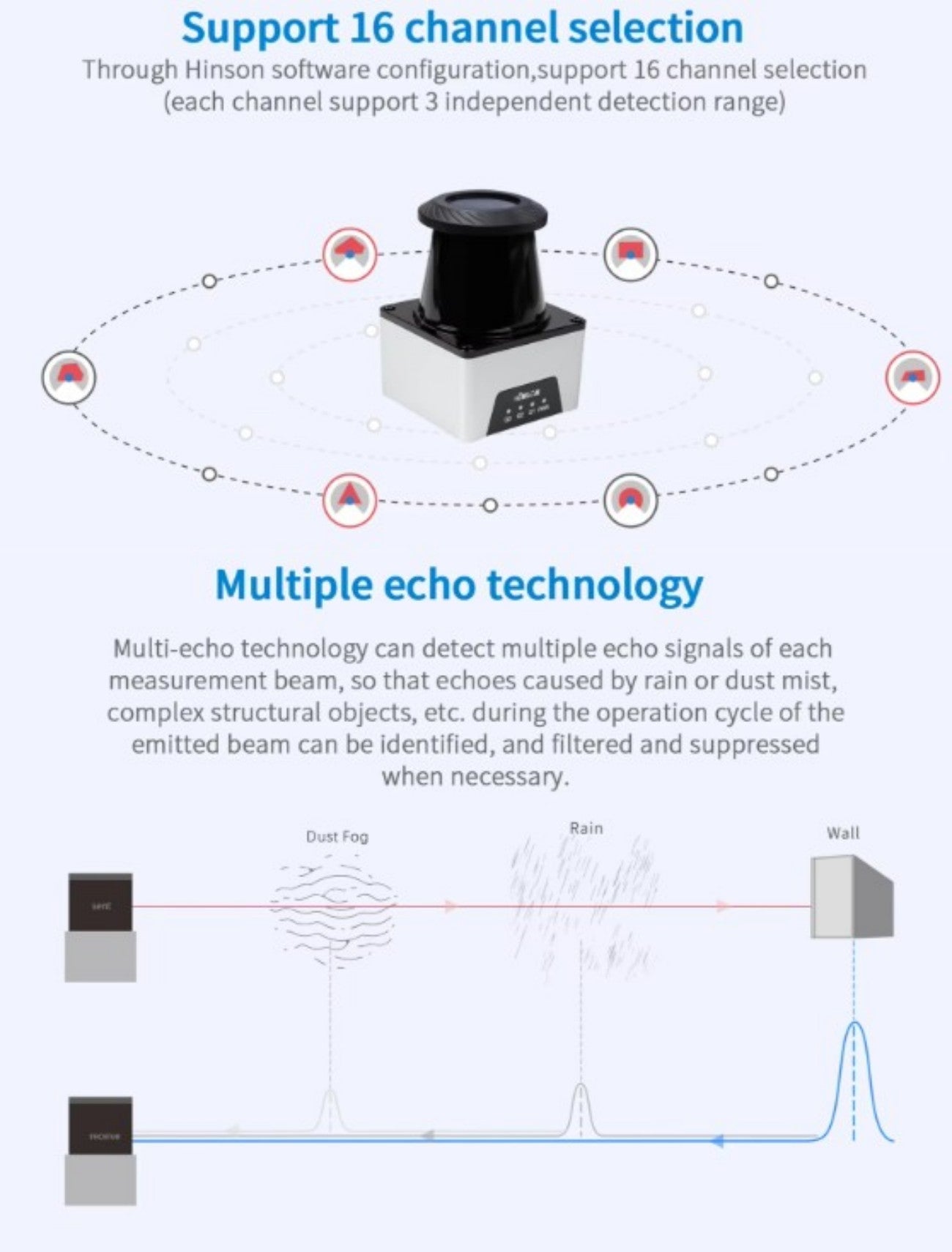

Hinson FE50FA-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

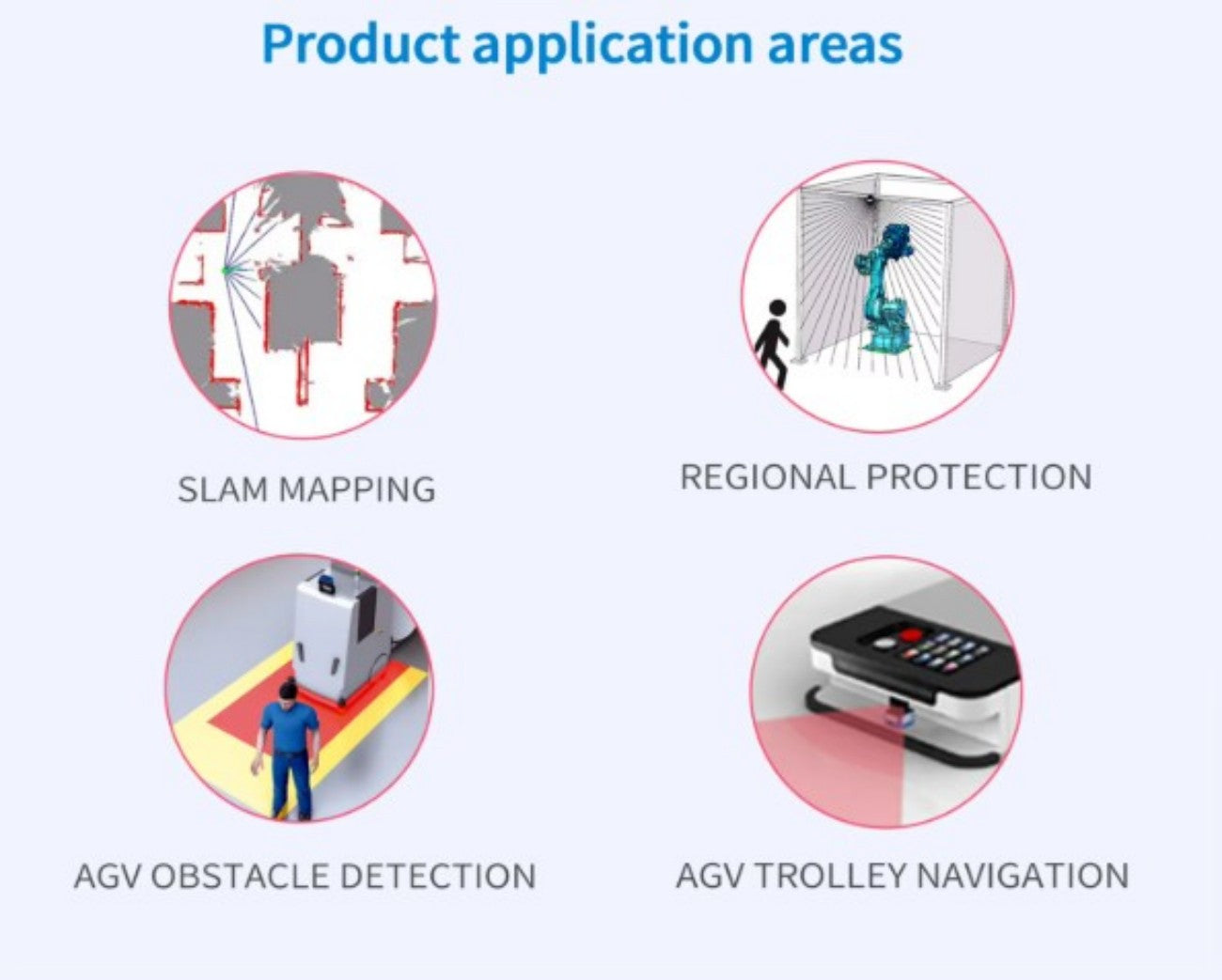

Hinson FE50FA-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

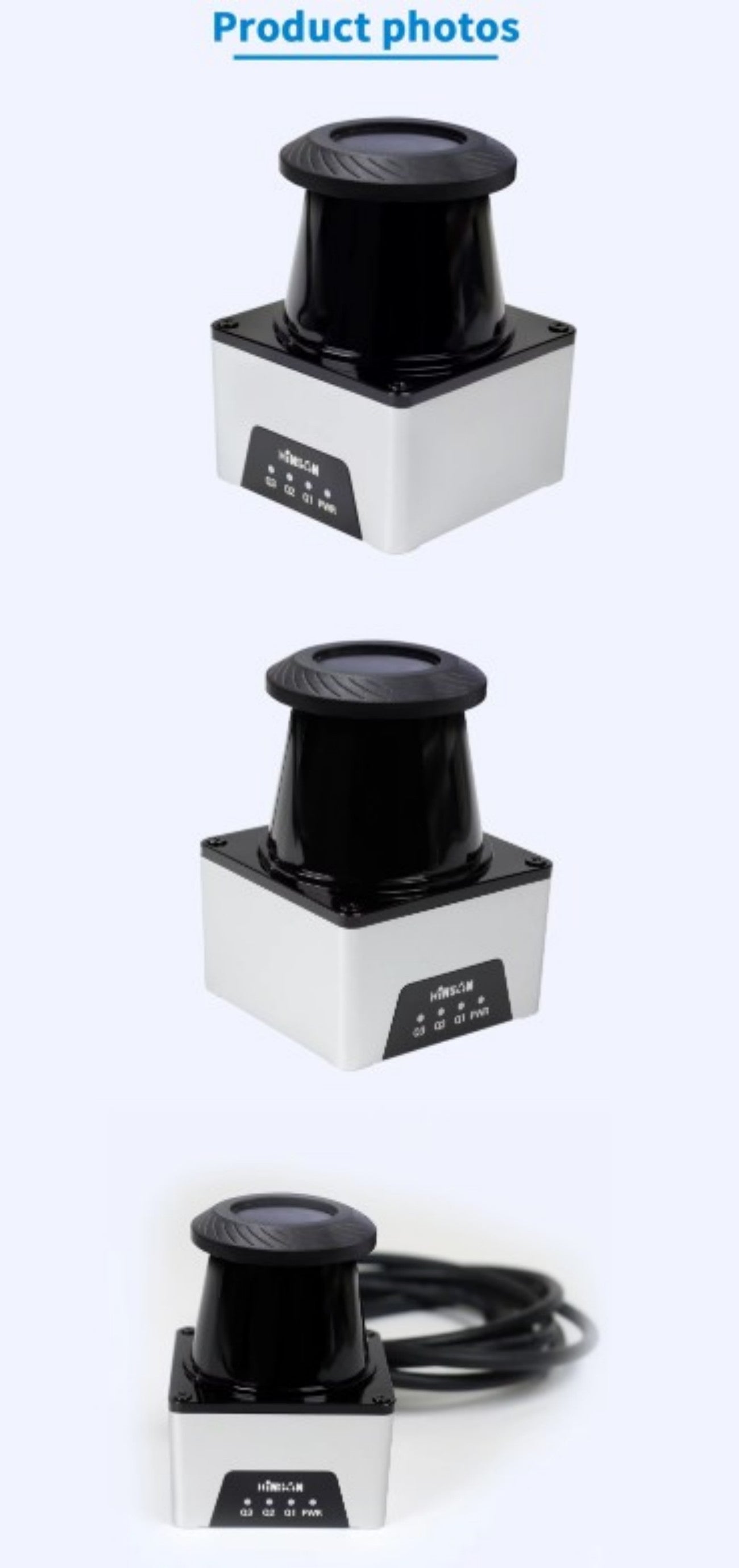

Hinson FE50FA-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6

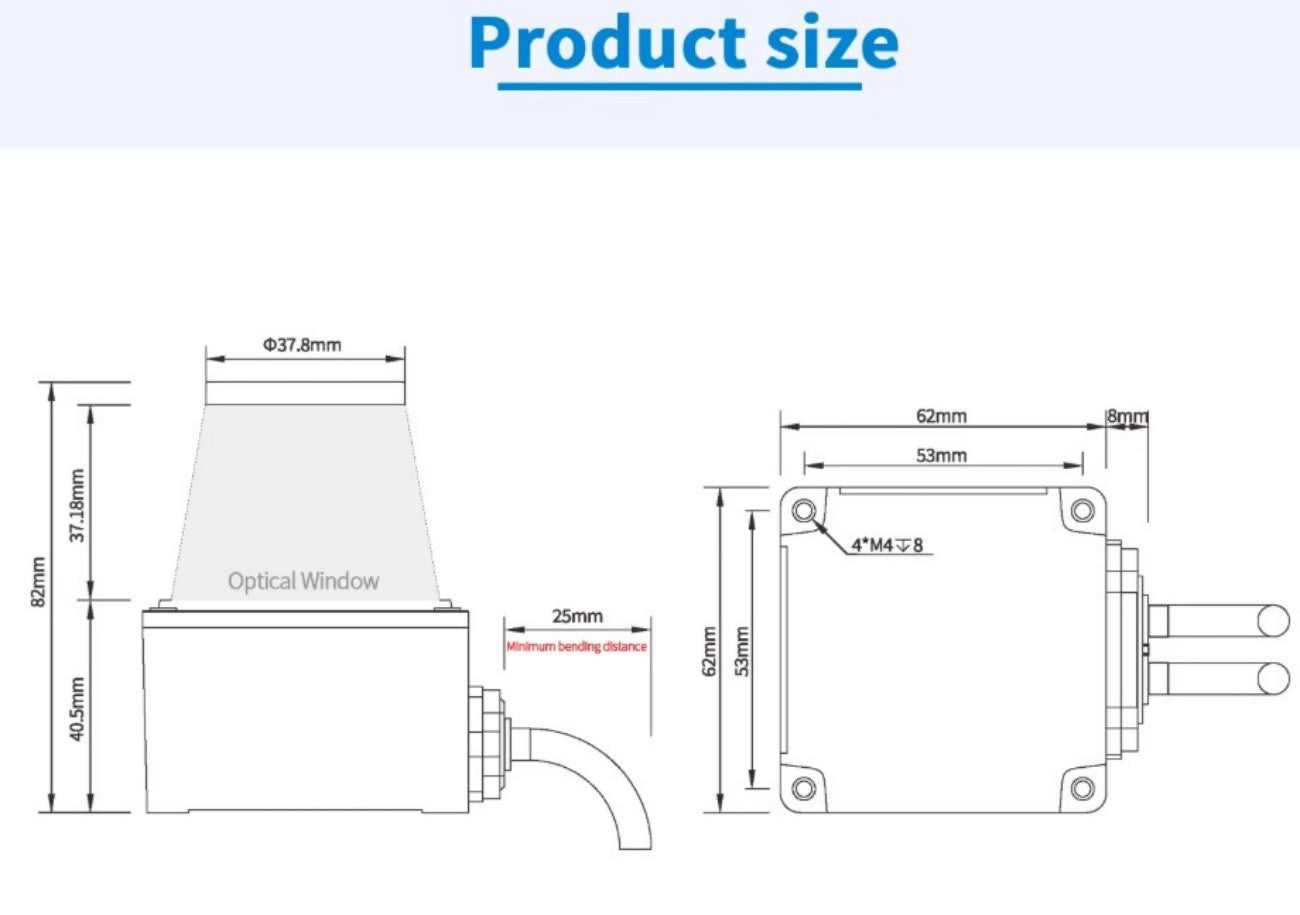

Hinson FE50FA-01000 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7
▤ PARAMETER ⌃
Digital Output
4 × NPN: 4 × NPN
CAN
4 × NPN: Yes
Ethernet
4 × NPN: TCP / UDP
Number of Echoes
4 × NPN: 3 (1st, 2nd, last, max. energy)
Raw Measurement Data Output
4 × NPN: Yes
Obstacle Avoidance Channels
4 × NPN: 64 (communication), 16 (I/O) — each channel provides 3 independent detection zones
Operating Voltage
4 × NPN: DC 10 ~ 30 V
Rated Power
4 × NPN: < 3.4 W
Laser Class
4 × NPN: 905 nm Class 1 (IEC 60825-1:2014)
Indicator Lights
4 × NPN: Green (Power), Red (Fault), Yellow / Orange / Red (Output status)
Cable
4 × NPN: 1 m straight cable (custom length available)
Material
4 × NPN: Aluminum alloy, PMMA
Scanning Window Process
4 × NPN: Nano electroplating, with dust cover
Protection Rating
4 × NPN: IP65
Object Reflectivity
4 × NPN: 2 ~ 1000%
Ambient Light
4 × NPN: < 80000 Lux (sunlight resistant)
Operating Environment
4 × NPN: Indoor, -10°C ~ 50°C, < 80% RH (non-condensing)
