SIMINICS

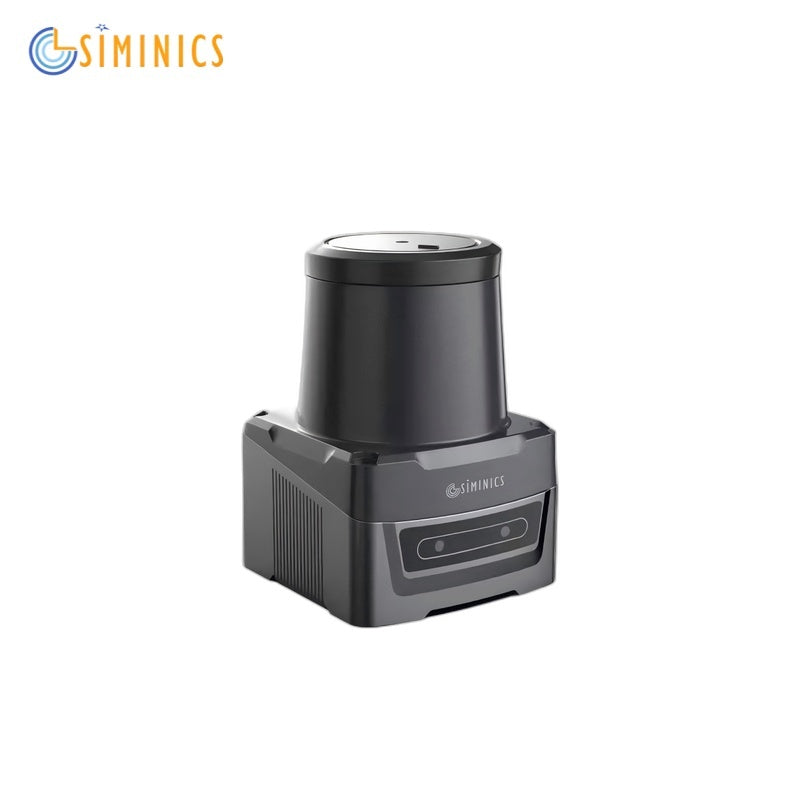

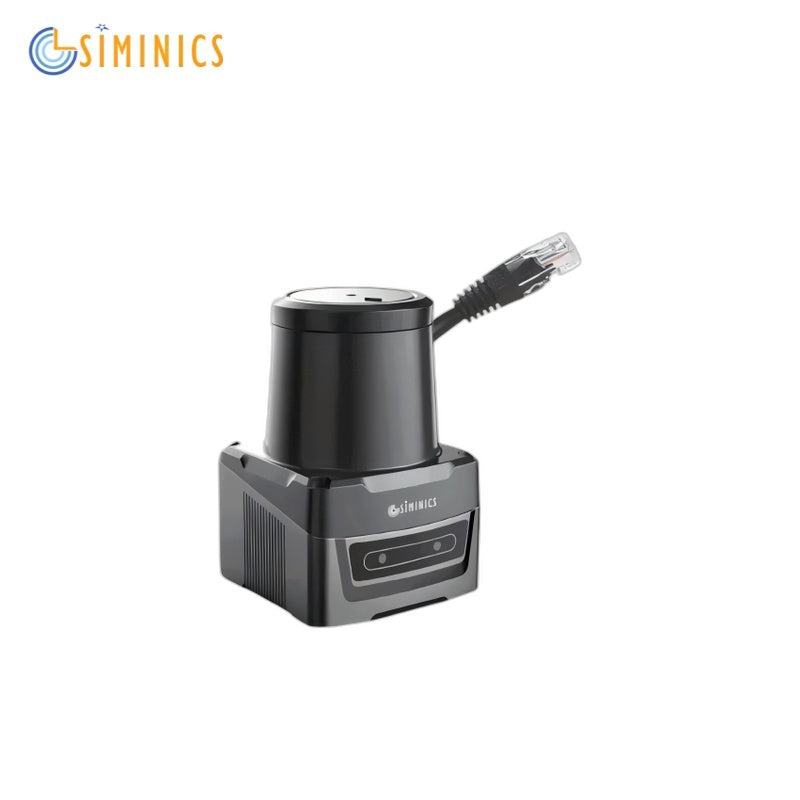

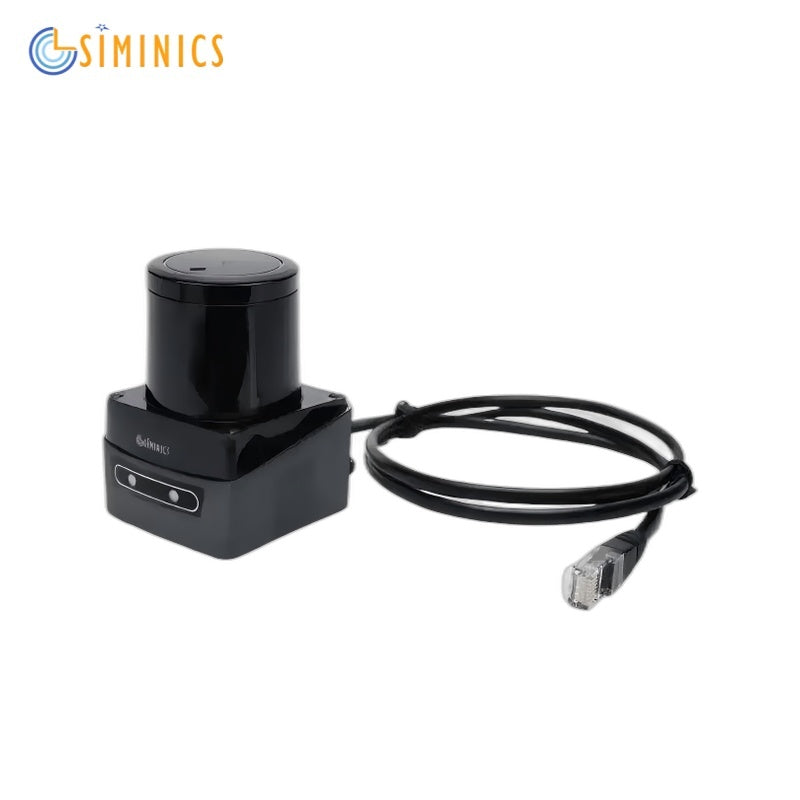

SIMINICS PAVO2E LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection Range: 0.1‑15 m @ 90% reflectivity 0.1‑5 m @ 10% reflectivity
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging, perception, and environmental awareness.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$668
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SIMINICS PAVO2E LiDAR dimension drawing for installation reference.pdf ▶

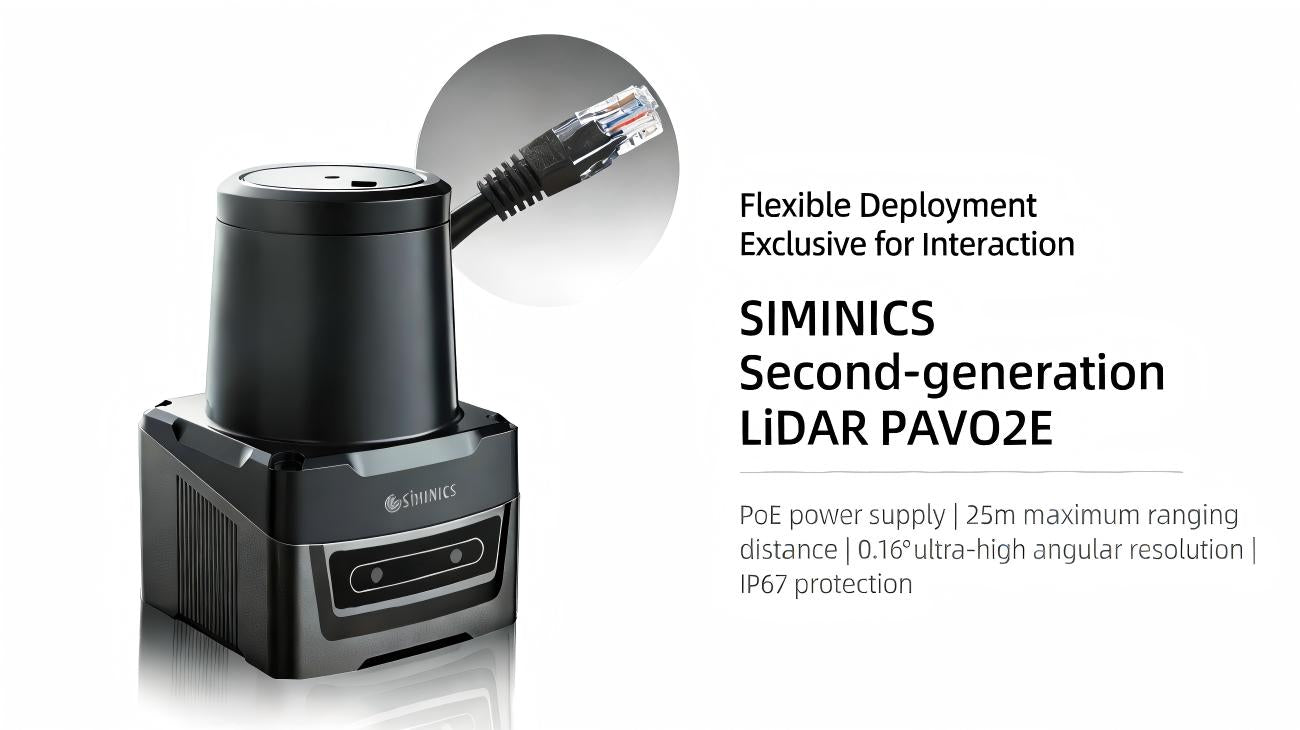

SIMINICS PAVO2E LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

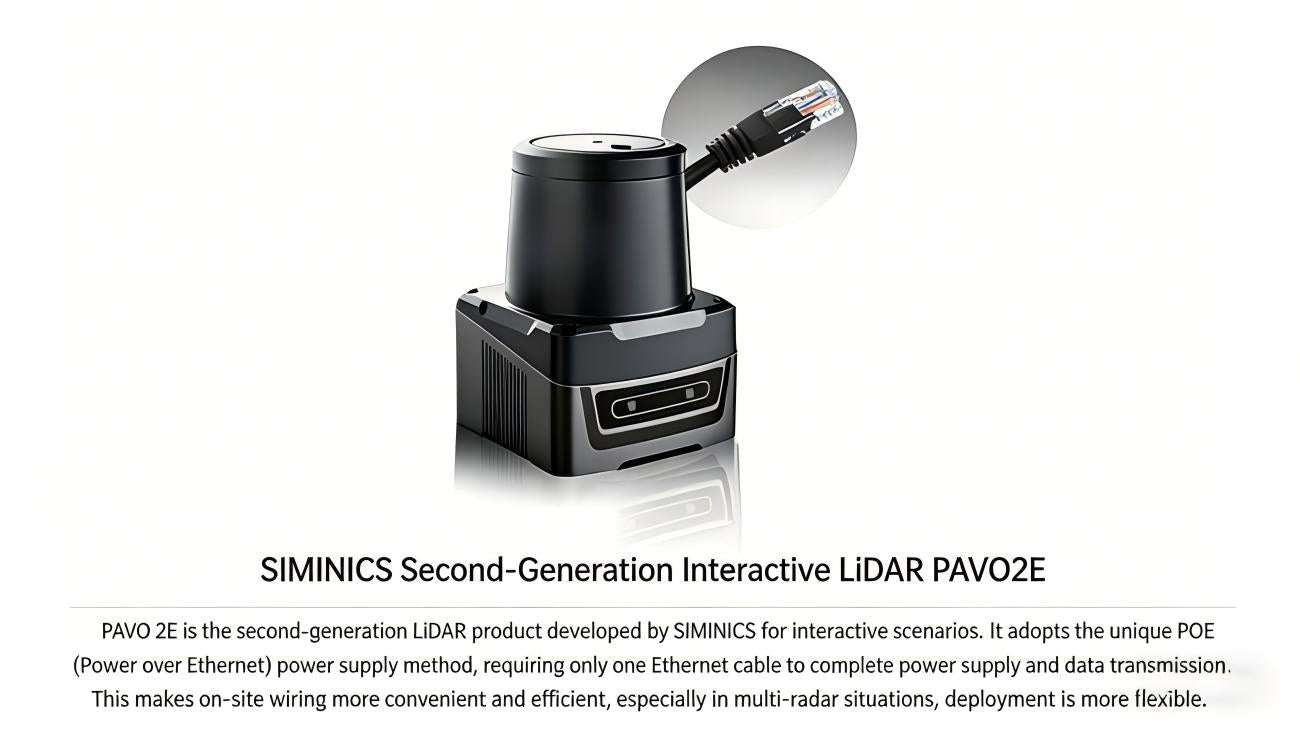

SIMINICS PAVO2E LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

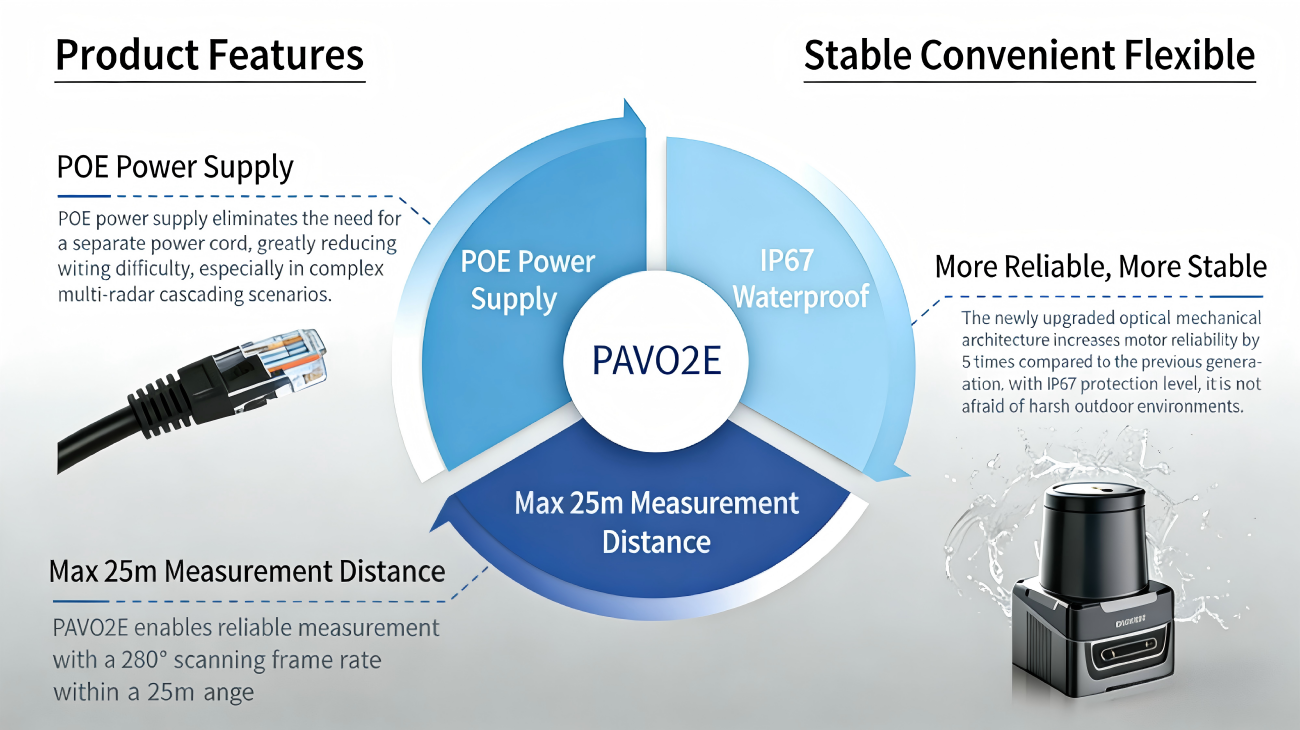

SIMINICS PAVO2E LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
SIMINICS PAVO2E LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
▤ Technical Specifications ⌃
Parameter PAVO2E-LS-15H PAVO2E-LS-25H
Detection Range 0.1‑15 m @ 90% reflectivity 0.1‑5 m @ 10% reflectivity 0.1‑15 m @ 90% reflectivity 0.1‑5 m @ 10% reflectivity
Repeatability Accuracy ±30 mm ±30 mm
Scanning Range 280° 280°
Angular Resolution 0.16° 0.16°
Scan Frame Rate 25 Hz 25 Hz
Supply Voltage DC 36‑57 V (standard PoE supply) DC 36‑57 V (standard PoE supply)
Operating Current 0.03 A @ 48 V (typical) 0.03 A @ 48 V (typical)
Laser Source 905 nm, Class I 905 nm, Class I
Power Consumption (typical) 1.5 W 1.5 W
Data Interface Ethernet 100BASE‑TX Ethernet 100BASE‑TX
Startup Time <10 s <10 s
Ambient Light Immunity >80,000 lux >80,000 lux
Operating Temperature ‑10 °C ~ 55 °C ‑10 °C ~ 55 °C
Storage Temperature ‑30 °C ~ 75 °C ‑30 °C ~ 75 °C
Mechanical Shock Test Acceleration: 50 g; Duration: 6 ms; Directions: X+, X‑, Y+, Y‑, Z+, Z‑; 3 times/direction (g = 10 m/s²) Acceleration: 50 g; Duration: 6 ms; Directions: X+, X‑, Y+, Y‑, Z+, Z‑; 3 times/direction (g = 10 m/s²)
Operating Life 5 years (motor life) 5 years (motor life)
Ingress Protection IP67 IP67
Dimensions 60 × 60 × 80 mm³ 60 × 60 × 80 mm³
Weight 180 g (without cable) 180 g (without cable)
