Benewake

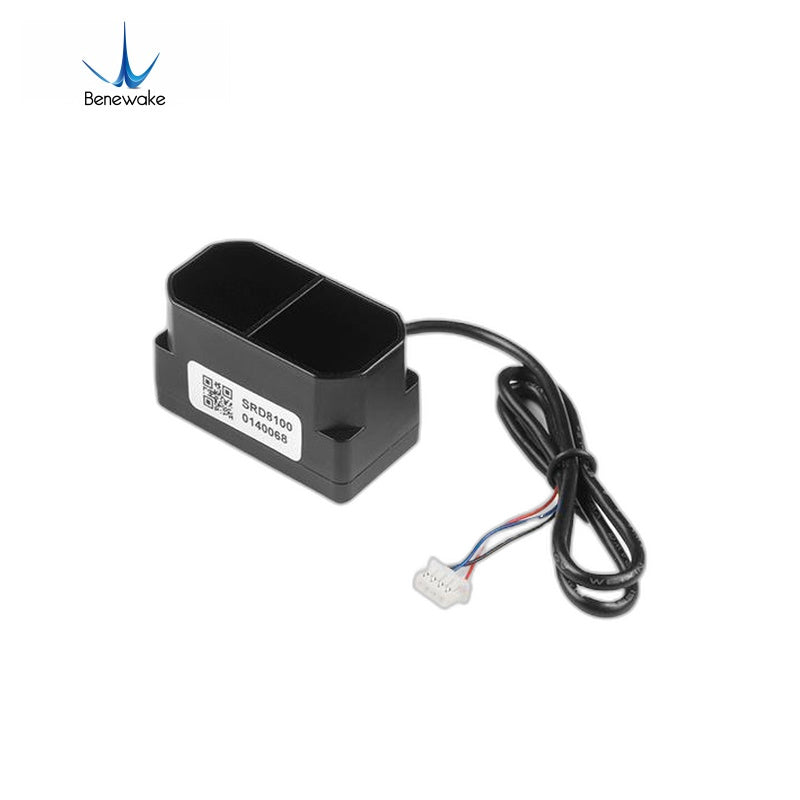

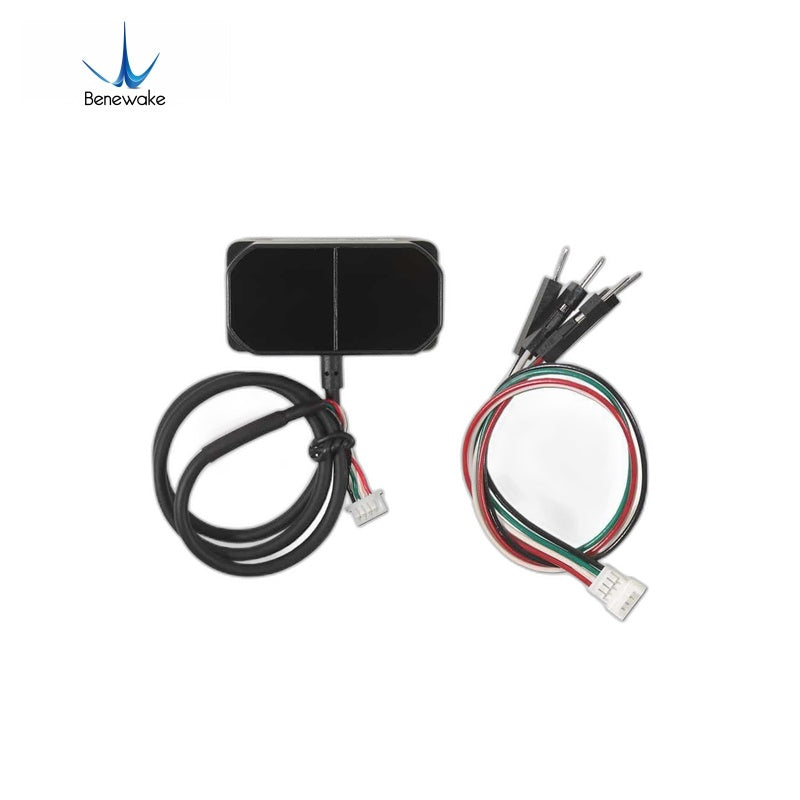

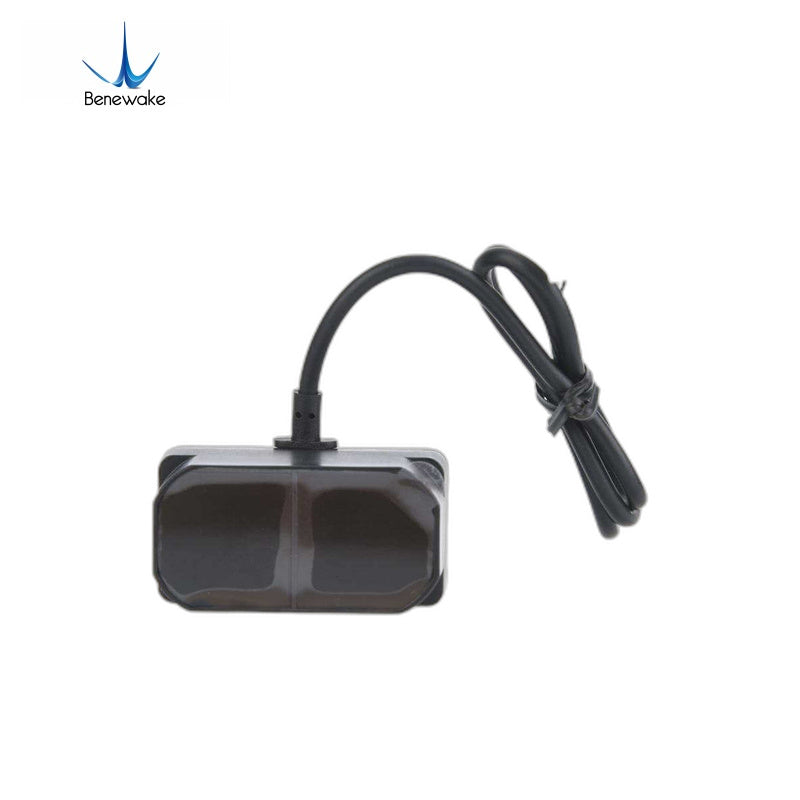

Benewake TFMini-Plus LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Operating Range: 0.1m ~ 12m @90% Reflectivity 0.1m ~ 4m @10% Reflectivity 0.1m ~ 12m @90% Reflectivity (70Klux) 0.1m ~ 4m @10% Reflectivity (70Klux)
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$80
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TFMini-Plus LiDAR datasheet with technical specifications.pdf ▶ Benewake TFMini-Plus LiDAR user manual for setup and integration.pdf ▶ Benewake TFMini-Plus LiDAR dimension drawing for installation reference.pdf ▶
Benewake TFMini-Plus LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Benewake TFMini-Plus LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Benewake TFMini-Plus LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
▤ Technical Specifications ⌃
Parameter UART I²C
Operating Range 0.1m ~ 12m @90% Reflectivity 0.1m ~ 4m @10% Reflectivity 0.1m ~ 12m @90% Reflectivity (70Klux) 0.1m ~ 4m @10% Reflectivity (70Klux) 0.1m ~ 12m @90% Reflectivity 0.1m ~ 4m @10% Reflectivity 0.1m ~ 12m @90% Reflectivity (70Klux) 0.1m ~ 4m @10% Reflectivity (70Klux)
Accuracy ±5cm @ (0.1-5m), ±1% @ (5m-12m) ±5cm @ (0.1-5m), ±1% @ (5m-12m)
Distance Resolution 1cm 1cm
Frame rate 1-1000Hz (adjustable) 1-100Hz (adjustable)
Repeatability 1σ: <3cm (@100Hz) 1σ: <4cm (@100Hz)
Ambient light resistance 70Klux 70Klux
Operation temperature -20°C ~ 60°C -20°C ~ 60°C
Protection Level IP65 IP65
Light source LED LED
Central wavelength 850nm 850nm
Photobiological safety Exemption level (EN62471) Exemption level (EN62471)
Field of View (FOV) 3.6° 3.6°
Supply voltage 5V ± 0.5V 5V ± 0.5V
Average Current ≤110mA ≤110mA
Power consumption 550mW (Low Power Mode: <100mW) 550mW (Low Power Mode: <100mW)
Peak Current 140mA 140mA
Communication level LVTTL (3.3V) LVTTL (3.3V)
Communication interface UART, I/O I2C
Dimensions (L×W×H) 35mm × 18.5mm × 21mm 35mm × 18.5mm × 21mm
Enclosure material PC/ABS PC/ABS
Storage temperature -20°C ~ 75°C -20°C ~ 75°C
Weight 12g ± 1g 12g ± 1g
Cable length 30cm 30cm
