LINKERBOT

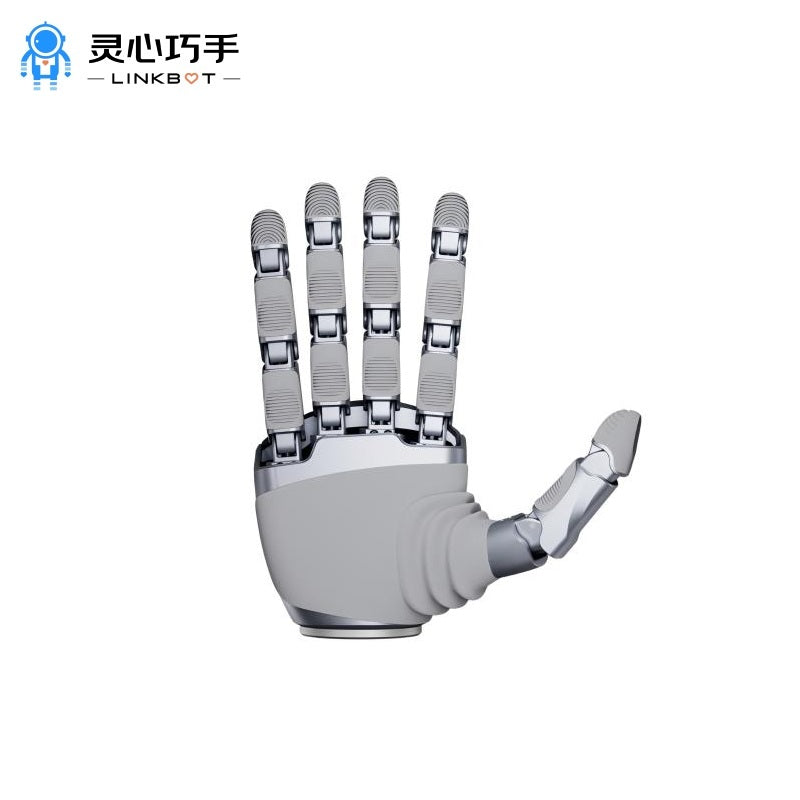

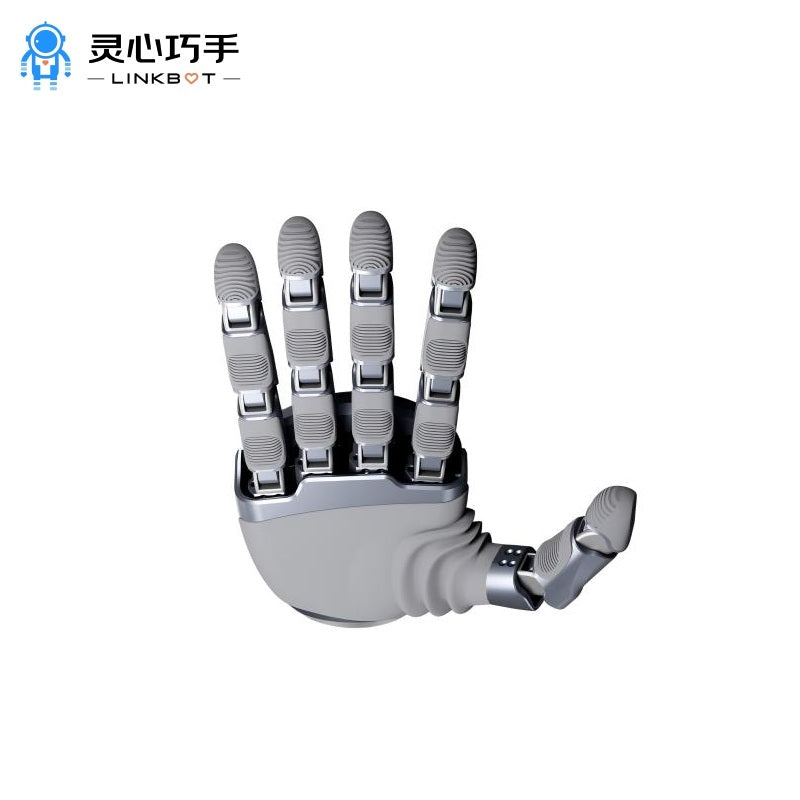

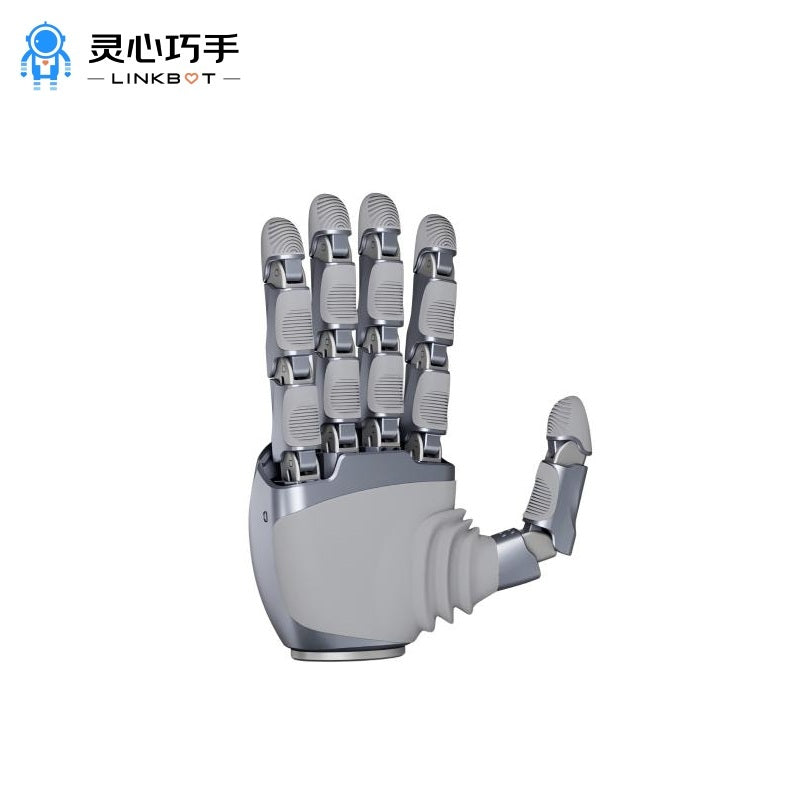

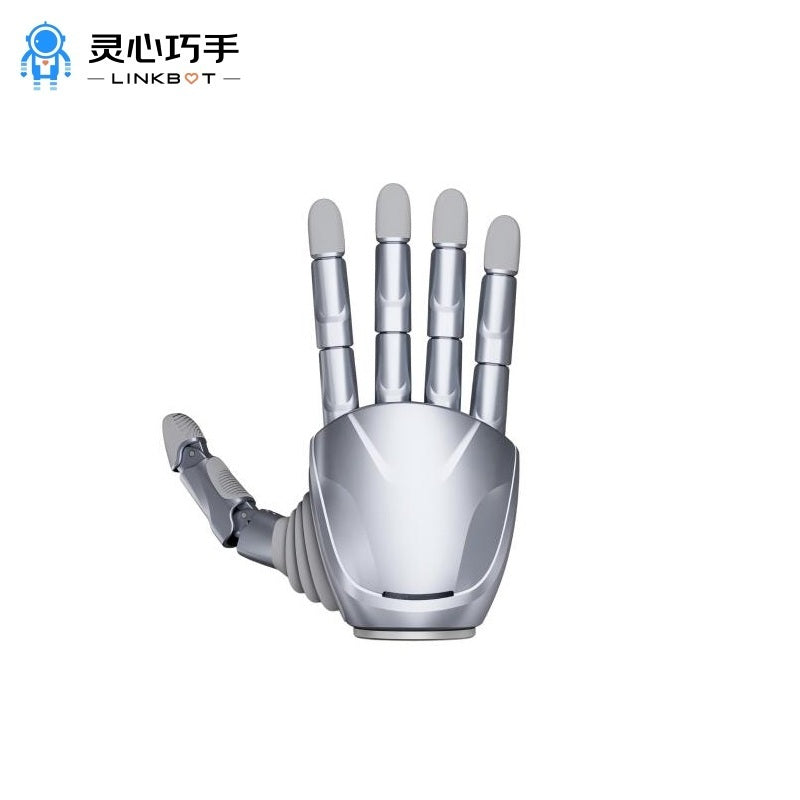

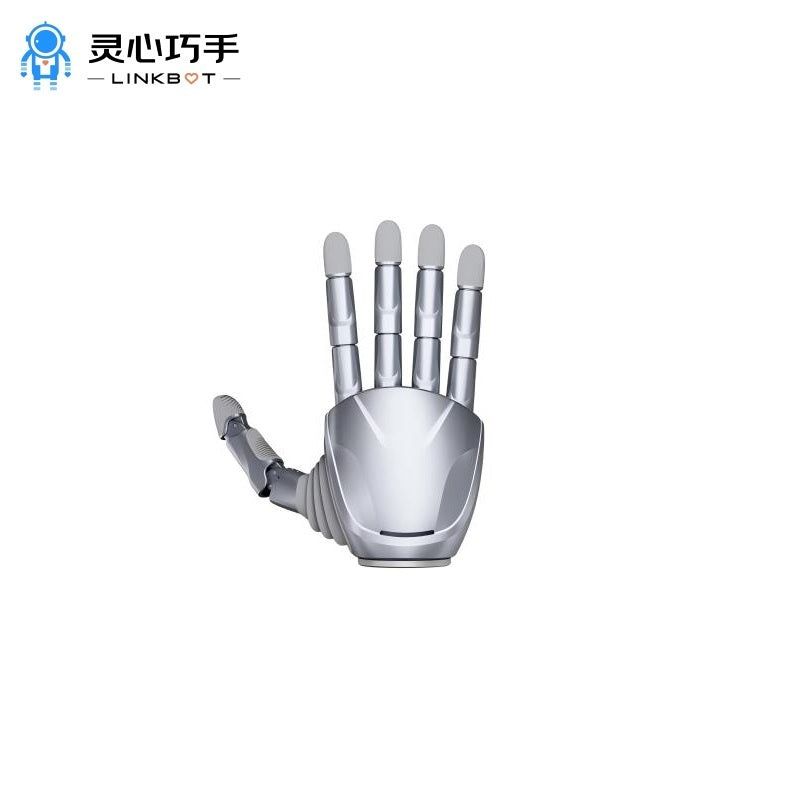

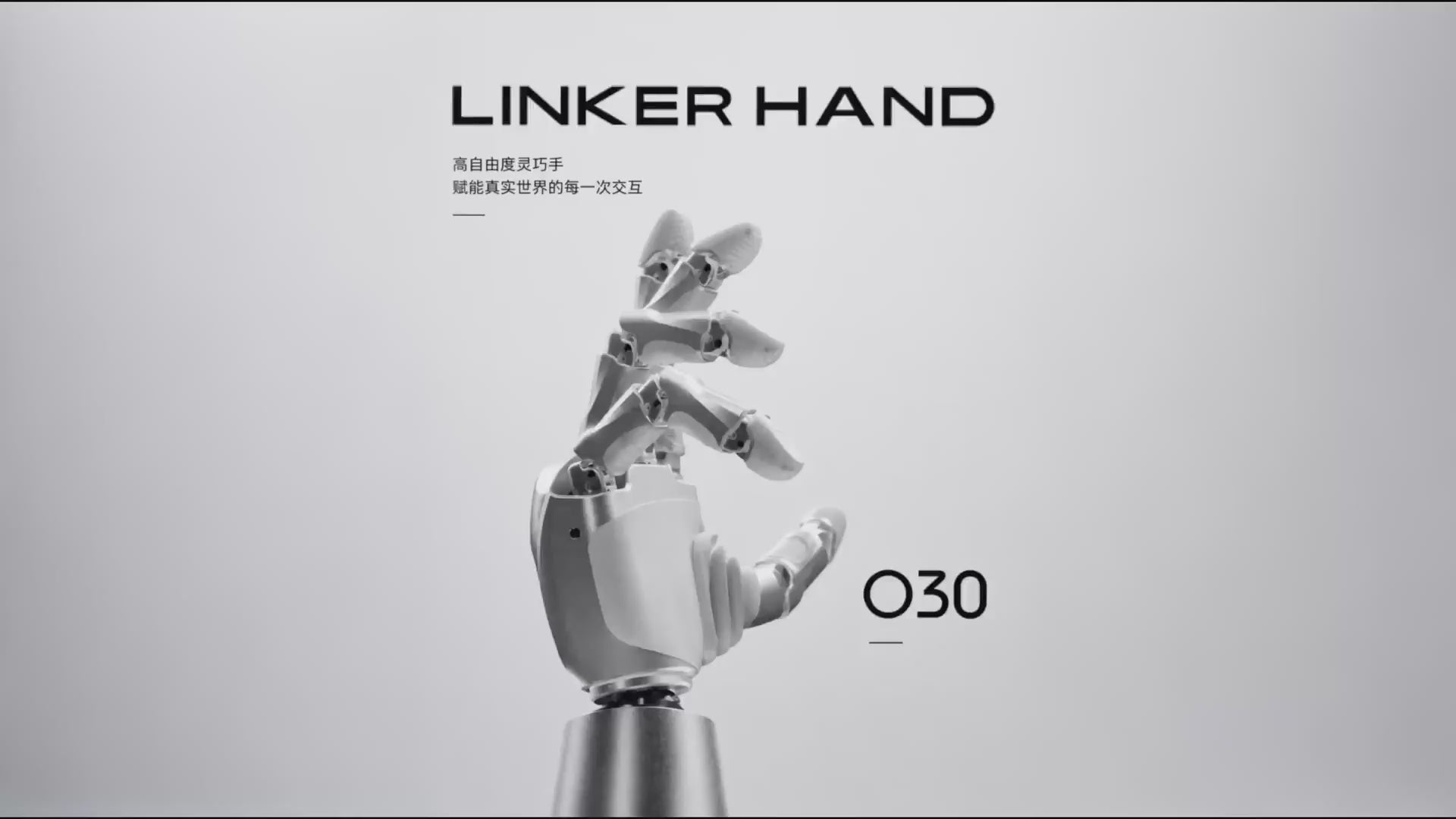

LINKERBOT Linker Hand O30 Dexterous Robot Hand

  • Designed for humanoid robots, robotic arms, and robotics research.
  • 20 active DOF enables highly flexible hand movement.
  • Direct drive provides precise and responsive finger control.
  • 30 kg payload supports demanding manipulation tasks.
  • CAN/CAN-FD communication enables flexible robot integration.
$9,990
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

LINKERBOT linker hand O30 product manual for introduction and installation.pdf ▶ LINKERBOT linker hand O30 technical drawing.pdf ▶

LINKERBOT Linker Hand O30 Dexterous Robot Hand

The LINKERBOT Linker Hand O30 is a high-dexterity robotic hand designed for humanoid robots, robotic arms, and advanced robotics research. With independently controlled joints, direct-drive actuation, and flexible communication, it provides a versatile platform for dexterous manipulation and robot development.

20-DOF Dexterous Movement

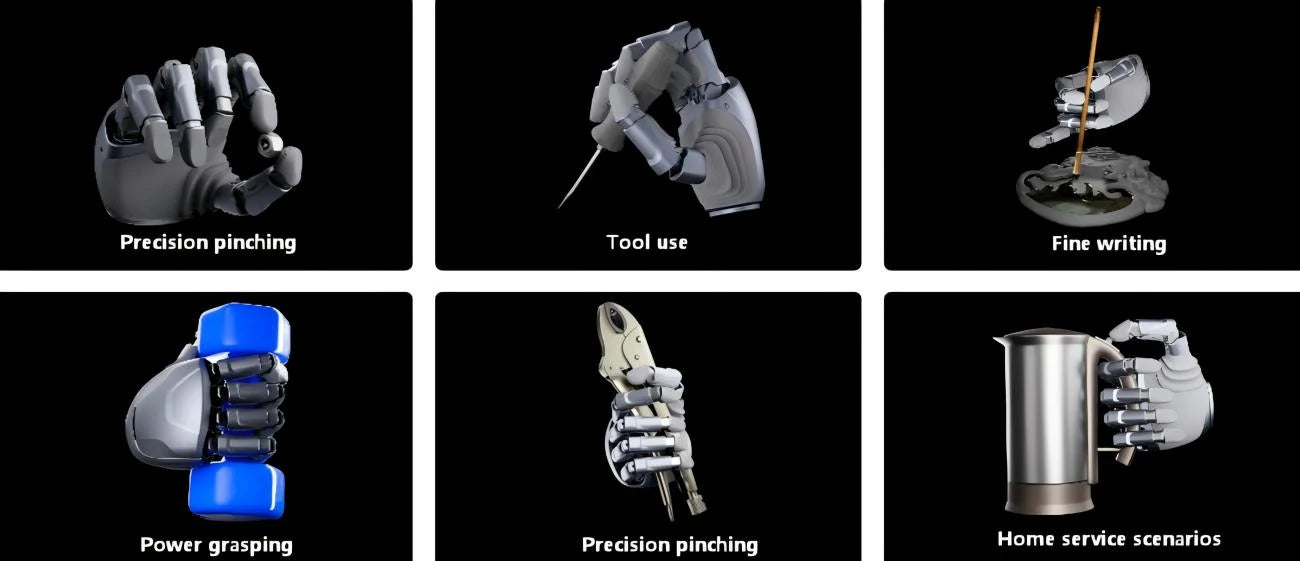

The O30 features 20 active degrees of freedom, allowing its fingers to perform complex and human-like movements. This makes it well suited for dexterous manipulation research, humanoid robot development, and advanced robotic applications.

Direct-Drive Architecture

The direct-drive design provides responsive finger movement and precise motion control while simplifying the mechanical transmission structure. It is designed for applications that require accurate and repeatable manipulation.

High Payload and Grasping Capability

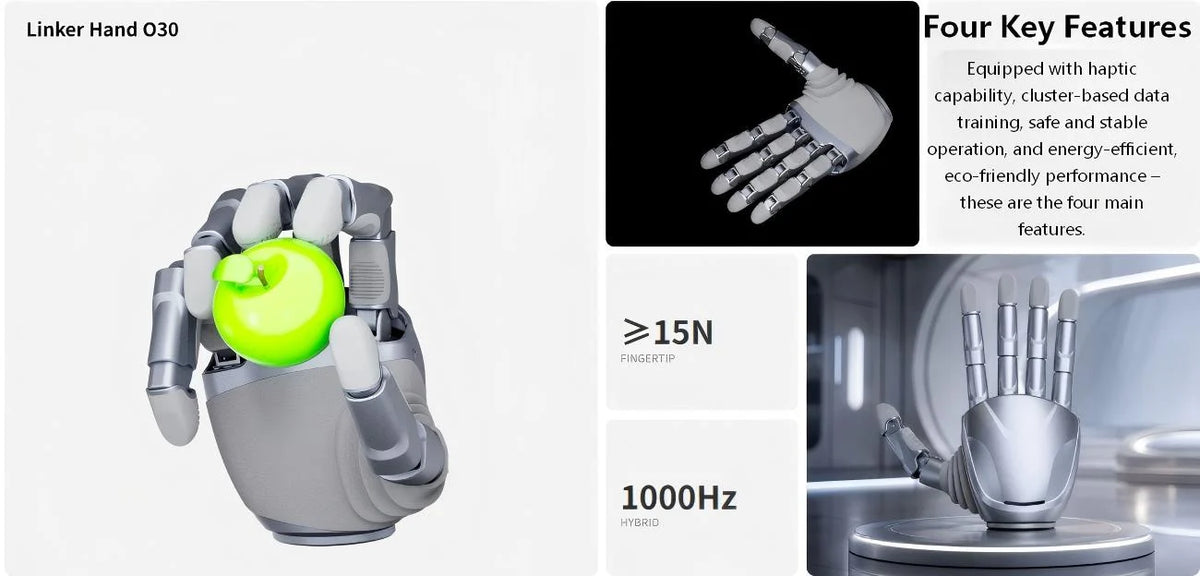

With a 30 kg maximum payload and up to 70 N five-finger grasping force, the O30 can handle demanding grasping and manipulation tasks while maintaining a compact 740 g form factor.

Fast and Flexible Robot Integration

The O30 supports CAN/CAN-FD communication at 500 Hz, making it suitable for integration with robotic controllers and custom development platforms. Its 24–48 V DC operating range further supports integration into different robotic systems.

LINKERBOT Linker Hand O30 Dexterous Robot Hand
LINKERBOT Linker Hand O30 Dexterous Robot Hand
LINKERBOT Linker Hand O30 Dexterous Robot Hand
▤ PARAMETER ⌃
Product Parameters
Parameter Specification
Degrees of Freedom 20
Number of Joints 20
Drive Mode Direct Drive
Control Interface CAN / CAN-FD
Communication Frequency 500 Hz
Weight 740 g
Max Payload 30 kg
Operating Voltage DC 24 V – 48 V
Static Current 0.4 A
Average Current (no-load motion) 1.1 A
Max Power 150 W
Repeat Positioning Accuracy 0.2 mm
Opening/Closing Time 0.8 s
Thumb Max Fingertip Force 24 N
Four-Finger Max Fingertip Force 15 N
Five-Finger Max Grasping Force 70 N
