HIGH TORQUE HTPU-6035-04-CNE Ultra Thin Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and compact robotics platforms.
  • Ultra-thin planetary joint module optimized for space-constrained robotic designs.
  • 35:1 reduction ratio provides balanced torque output and motion performance.
  • Integrated encoder feedback enables precise joint control and stable operation.
  • CANFD/CAN communication supports flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

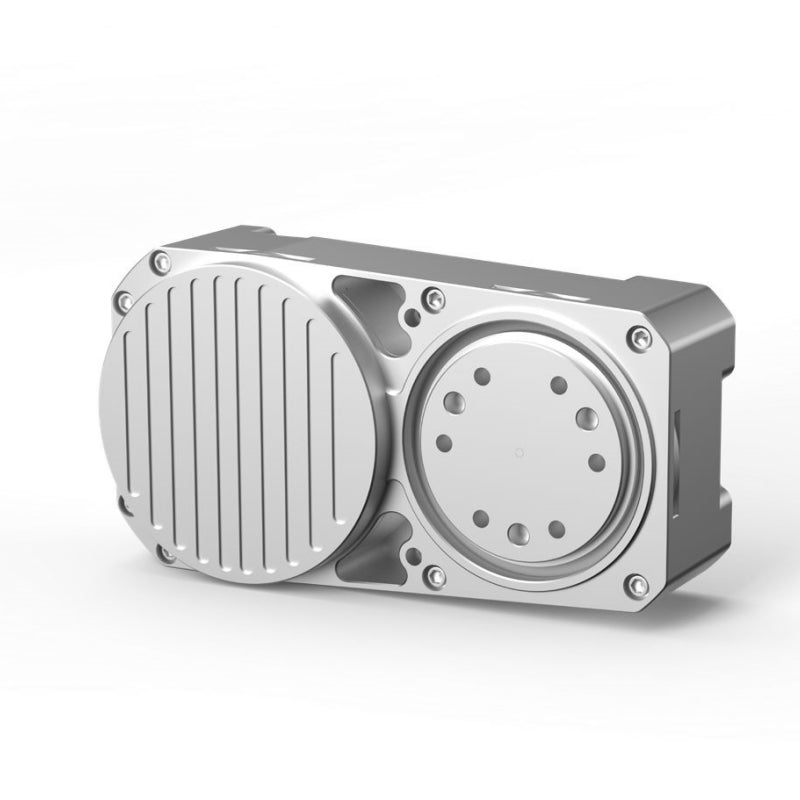

HIGH TORQUE HTPU-6035-04-CNE Ultra Thin Planetary Joint Module

The HIGH TORQUE HTPU-6035-04-CNE is an ultra-thin planetary joint module designed for humanoid robots, robotic arms, and compact robotics platforms. It integrates a motor, planetary gearbox, encoder feedback system, and communication interface into a lightweight joint actuator solution, providing efficient motion control for robotics development and research applications.

Ultra Thin Joint Module Design

The HTPU-6035-04-CNE features a compact 115 × 61.9 × 37 mm structure with an ultra-thin mechanical design. Its space-efficient configuration makes it suitable for robotic systems where installation space, weight, and joint integration flexibility are important considerations.

35:1 Planetary Reduction System

Equipped with a 35:1 reduction ratio, the module provides efficient torque transmission for robotic motion applications. It delivers 10 Nm rated torque and up to 36 Nm locked-rotor torque, making it suitable for robotic joints requiring stable torque output in compact designs.

High-Precision Encoder Feedback

The integrated encoder system provides 14-bit input and output encoder resolution, enabling accurate position feedback and responsive joint control. It supports precise movement control for humanoid robots, robotic arms, and robotics research platforms.

CANFD/CAN Communication Integration

Supporting CANFD/CAN communication with up to 3 kHz control frequency, the HTPU-6035-04-CNE enables flexible connection with robotic controllers and embedded systems. Its integrated control interface simplifies deployment in custom robotic platforms.

Robotics Development Applications

With its ultra-thin structure, integrated actuator design, and precise motion capabilities, the HTPU-6035-04-CNE is suitable for humanoid robot development, educational robotics, robotic research projects, and next-generation automation systems.

HIGH TORQUE HTPU-6035-04-CNE Ultra Thin Planetary Joint Module
▤ PARAMETER ⌃

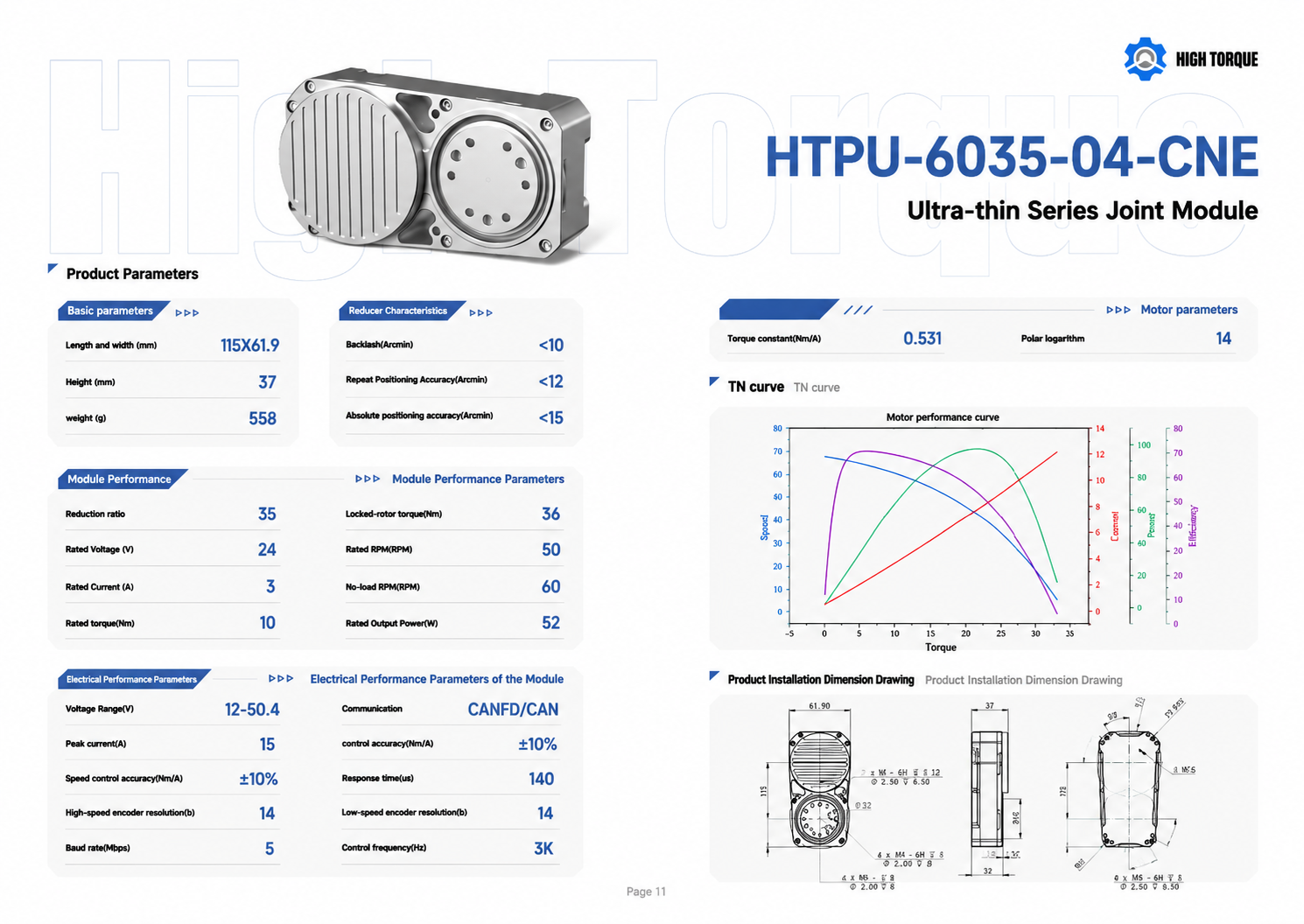

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 115×61.9 mm
Height 37 mm
Weight 558 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 35
Rated Voltage 24 V
Rated Current 3 A
Rated Torque 10 Nm
Locked-Rotor Torque 36 Nm
Rated RPM 50 RPM
No-Load RPM 60 RPM
Rated Output Power 52 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 15 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
