Hobber

Hobber HBM Motor | Robot Servo Motor for Robotics Development

  • Hobber robot servo motor for robot joints, actuator builds, motion-control systems, and robotics development.
  • Suitable for engineering teams building automation hardware, research platforms, education projects, and prototypes.
  • Designed for practical integration in robot servo motor, actuator, gearbox, and compact motion applications.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$200
Version
Outer Diameter
Voltage

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Hobber HBM Motor dimension drawing for installation reference.pdf ▶ Hobber HBM Motor user manual for setup and integration.pdf ▶

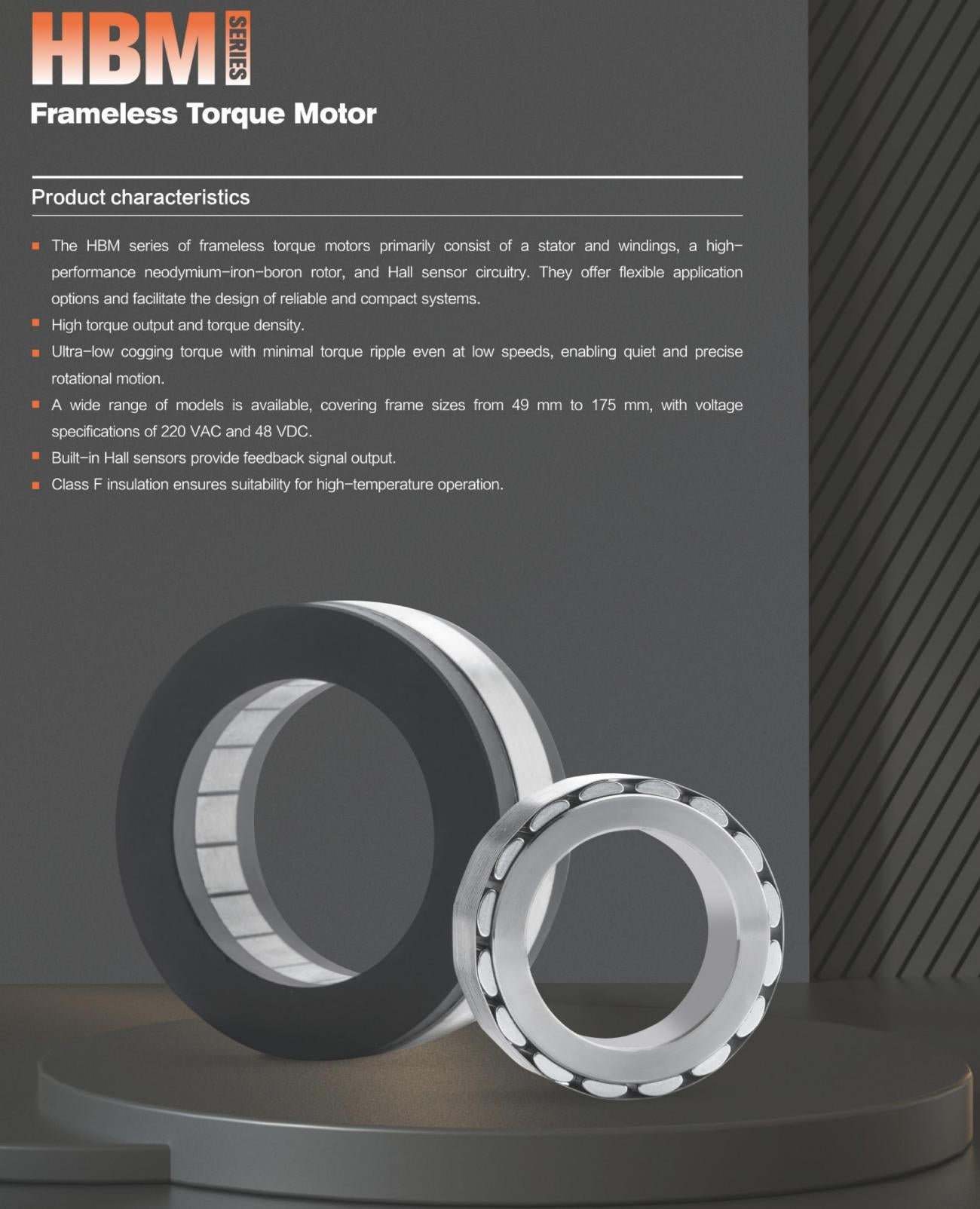

Hobber HBM Motor | Robot Servo Motor for Robotics Development detail image 1

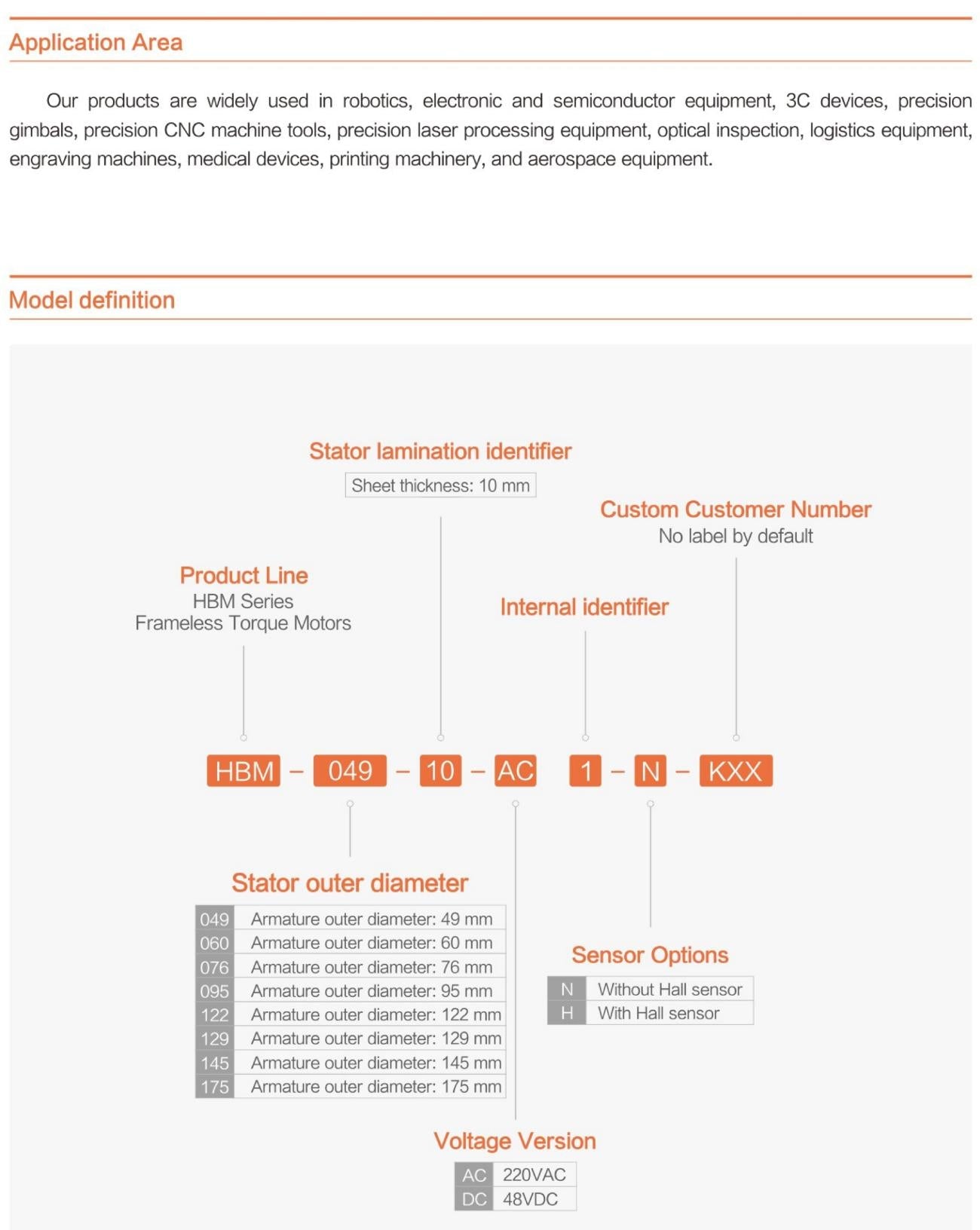

Hobber HBM Motor | Robot Servo Motor for Robotics Development detail image 2

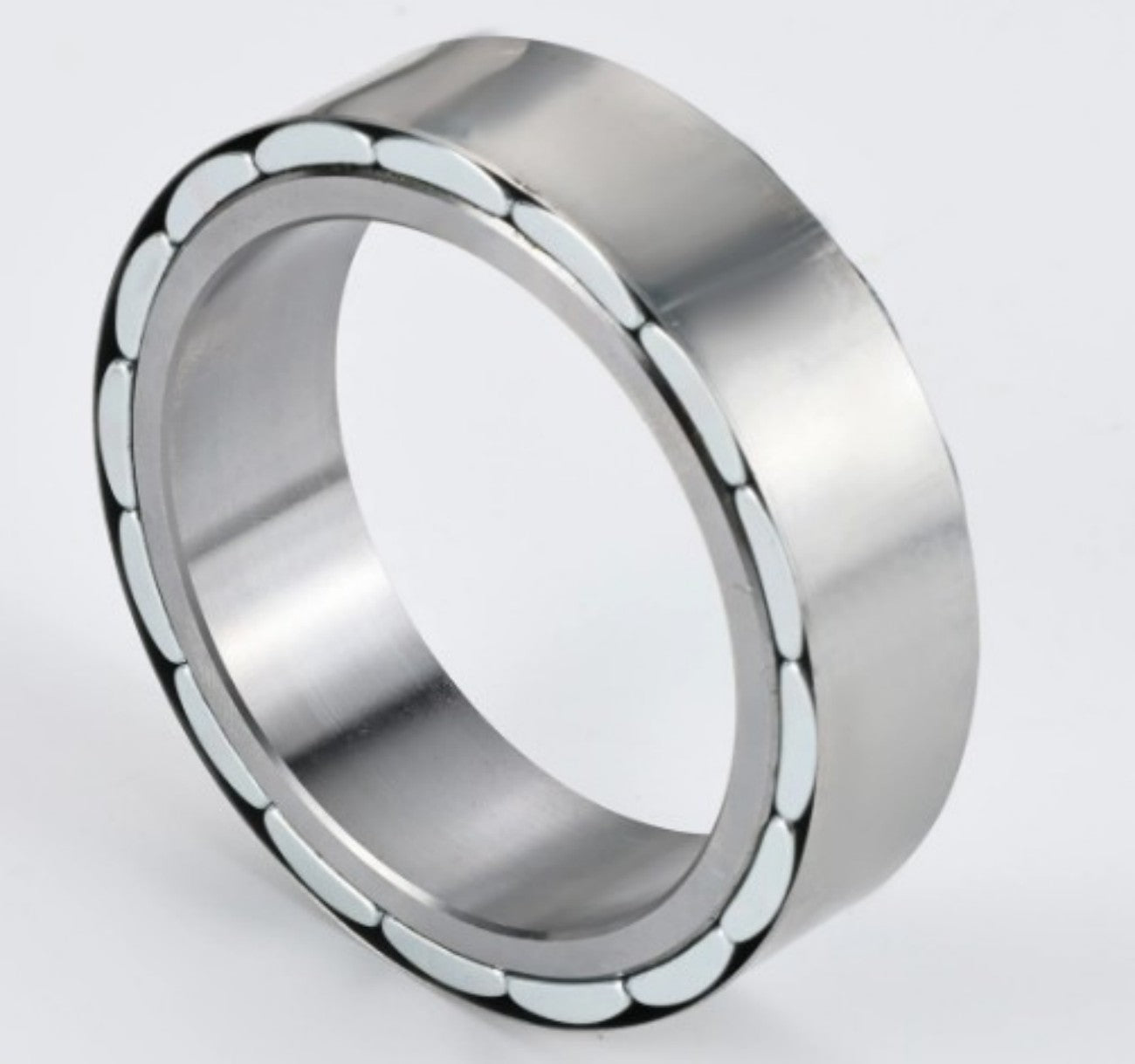

Hobber HBM Motor | Robot Servo Motor for Robotics Development detail image 3

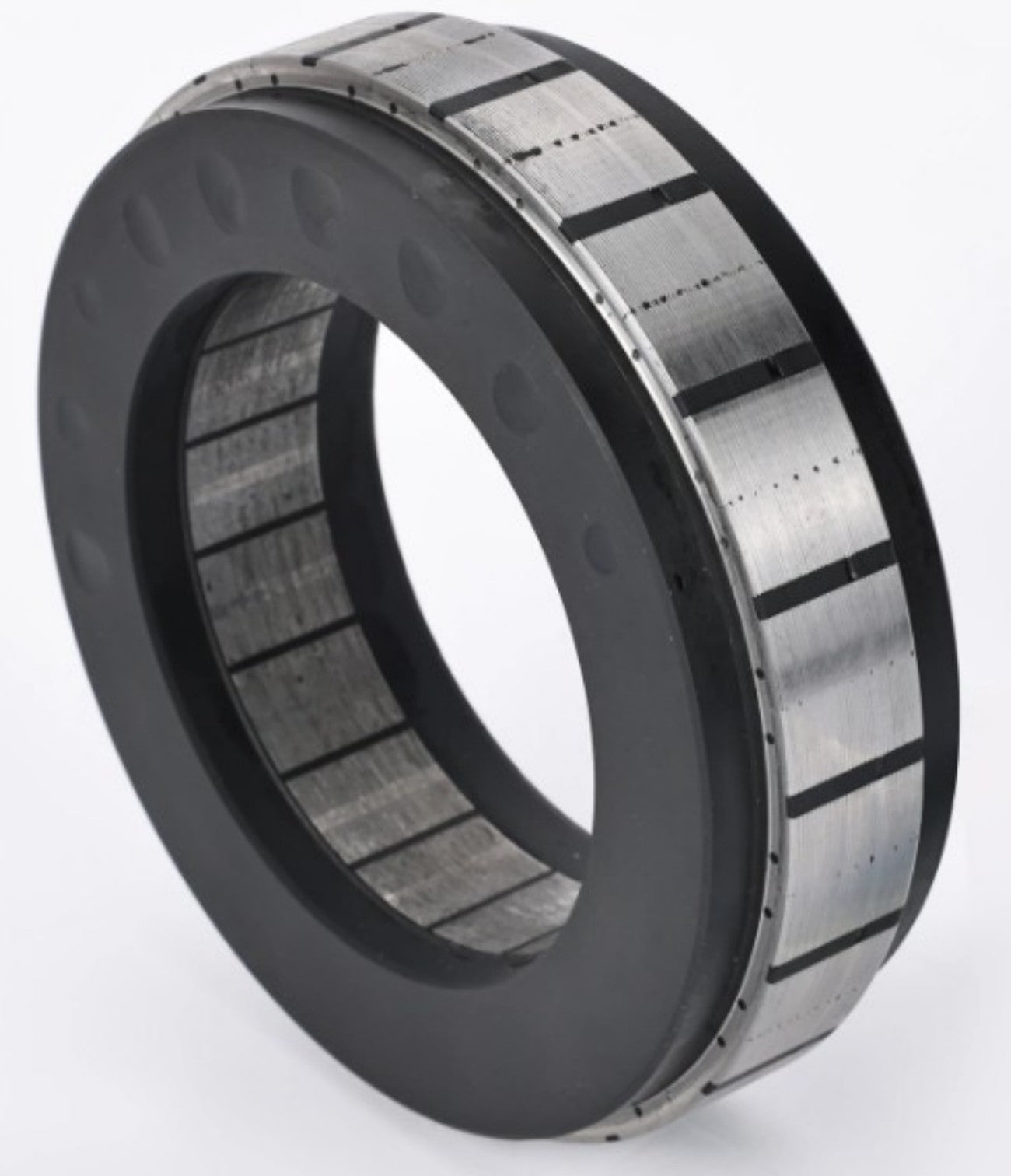

Hobber HBM Motor | Robot Servo Motor for Robotics Development detail image 4

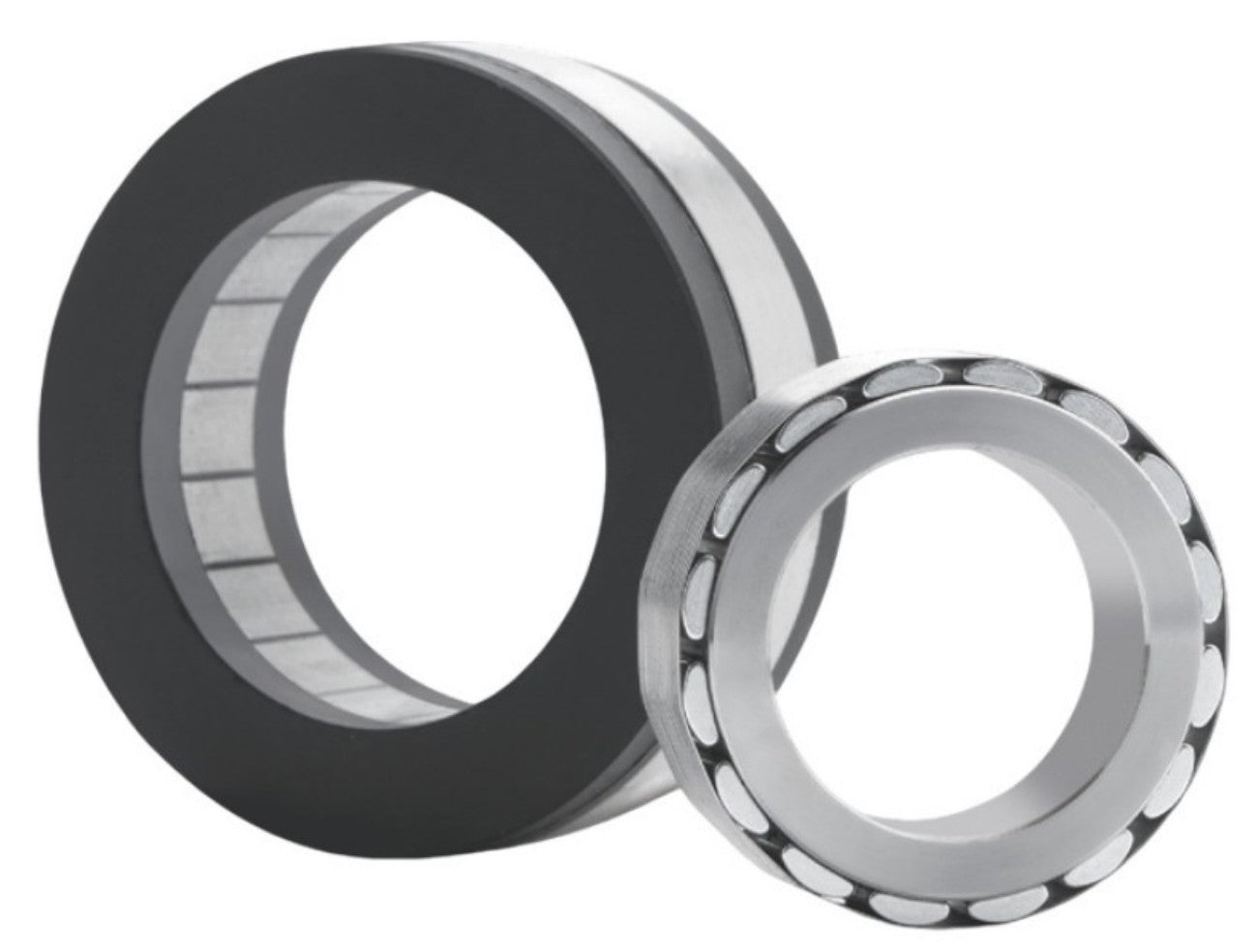

Hobber HBM Motor | Robot Servo Motor for Robotics Development detail image 5

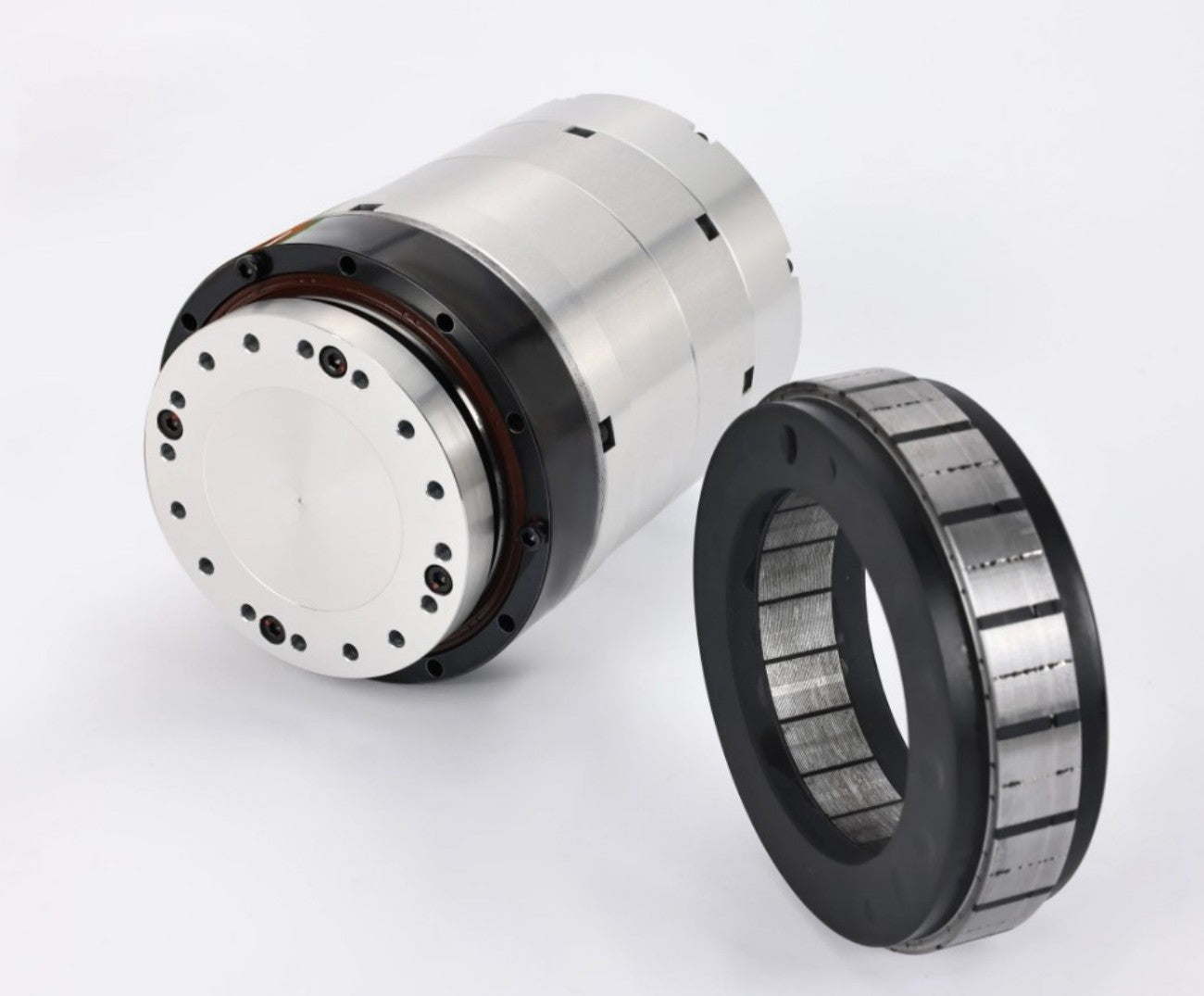

Hobber HBM Motor | Robot Servo Motor for Robotics Development detail image 6
▤ Technical Specifications ⌃
Parameter Value
HBM SERIES — 220VAC
Model 049-10-AC1-N / 060-14-AC1-N / 076-12-AC1-N / 095-14-AC1-N / 122-16-AC1-N / 129-16-AC1-N / 145-20-AC1-N / 175-40-AC1-N
Number of Phases 3 / 3 / 3 / 3 / 3 / 1 / 3 / 3
Number of Poles 10 / 16 / 16 / 16 / 16 / 16 / 20 / 20
Peak Speed (rpm) 5900 / 5900 / 5000 / 4800 / 3800 / 4600 / 4000 / 4000
Rated Speed (rpm) 4000 / 3500 / 3000 / 2600 / 2500 / 2500 / 2000 / 2500
Rated Torque (N.m) 0.11 / 0.275 / 0.66 / 1.64 / 2 / 3.1 / 6.00 / 15
Rated Power (W) 50 / 100 / 210 / 450 / 530 / 800 / 1256 / 3930
Rated Current (Arms) 1 / 1 / 2.3 / 3.8 / 4 / 5.40 / 9.00 / 18
Peak Current (Arms) 3 / 3 / 6.9 / 11.4 / 12 / 16.20 / 18.00 / 35
Peak Torque (N.m) 0.33 / 0.825 / 1.98 / 4.92 / 6 / 9.2 / 12.00 / 28.6
Wire Resistance (Ω) 12 / 7.5 / 6.2 / 3.55 / 2.1 / 0.9 / 0.8 / 0.126
Wire Inductance (mH) 9.5 / 11.5 / 7.7 / 10 / 12 / 6 / 8.0 / 0.65
Torque Constant (N.m/A) 0.1 / 0.27 / 0.28 / 0.43 / 0.53 / 0.56 / 0.68 / 0.84
Back‑EMF Constant (V/kRPM) 10.5 / 25 / 25 / 40 / 52.5 / 40.0 / 44 / 52
Weight (Kg) 0.12 / 0.27 / 0.4 / 0.6 / 1 / 1.2 / 1.9 / 5.2
Common Specifications
Insulation Class Class B
Dielectric Strength 500 VDC (1 minute)
Insulation Resistance 200 MΩ or higher (500 VDC)
Note The current ratings should be limited according to the integrated drive chassis specifications when used as a complete unit.
