OCServo

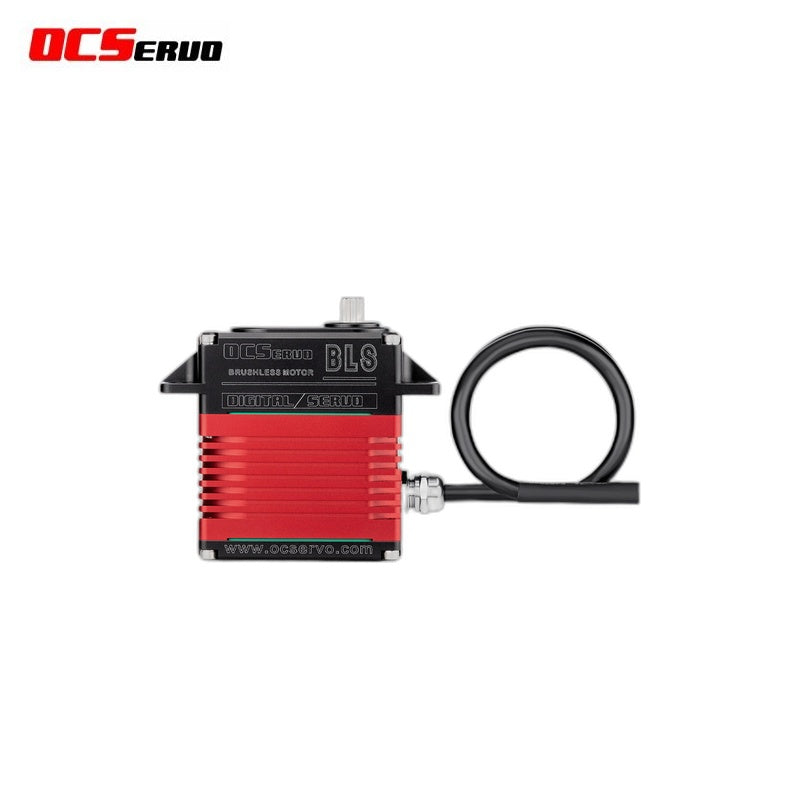

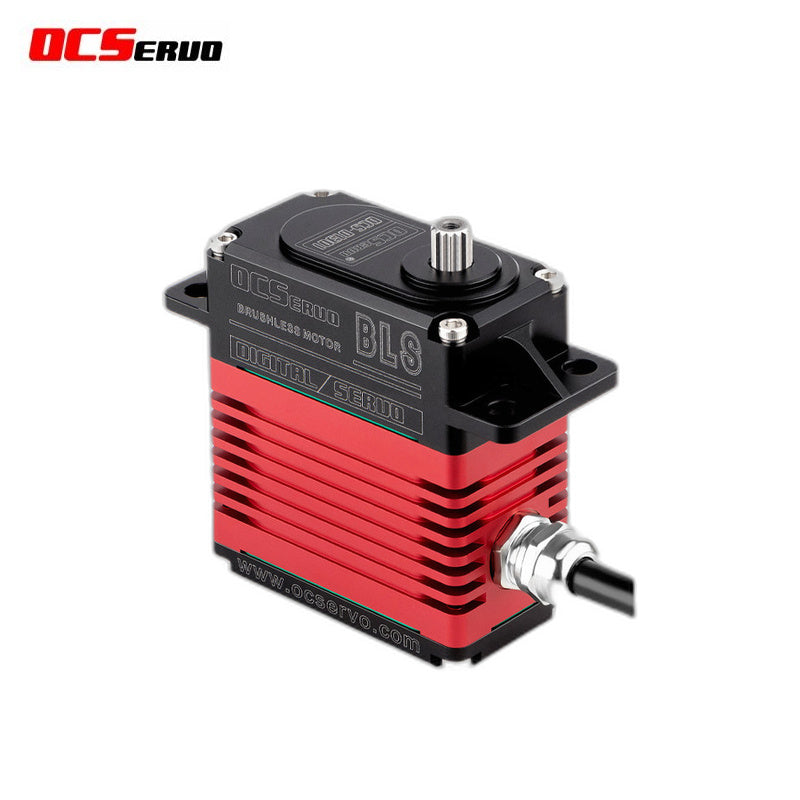

OCServo OCS-D1301 Servo Motor

  • Peak stall torque (kg·cm): 8.4V: 100; 12.6V: 115; 16.8V: 130
  • Operating Voltage: 8.4V / 12.6V / 16.8V
  • No load speed (sec/60°): 8.4V: 0.28; 12.6V: 0.17; 16.8V: 0.14
  • Motor Type: BLS motor
  • Gear Type: Steel Gear
$325
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-D1301 dimensional drawing.pdf ▶

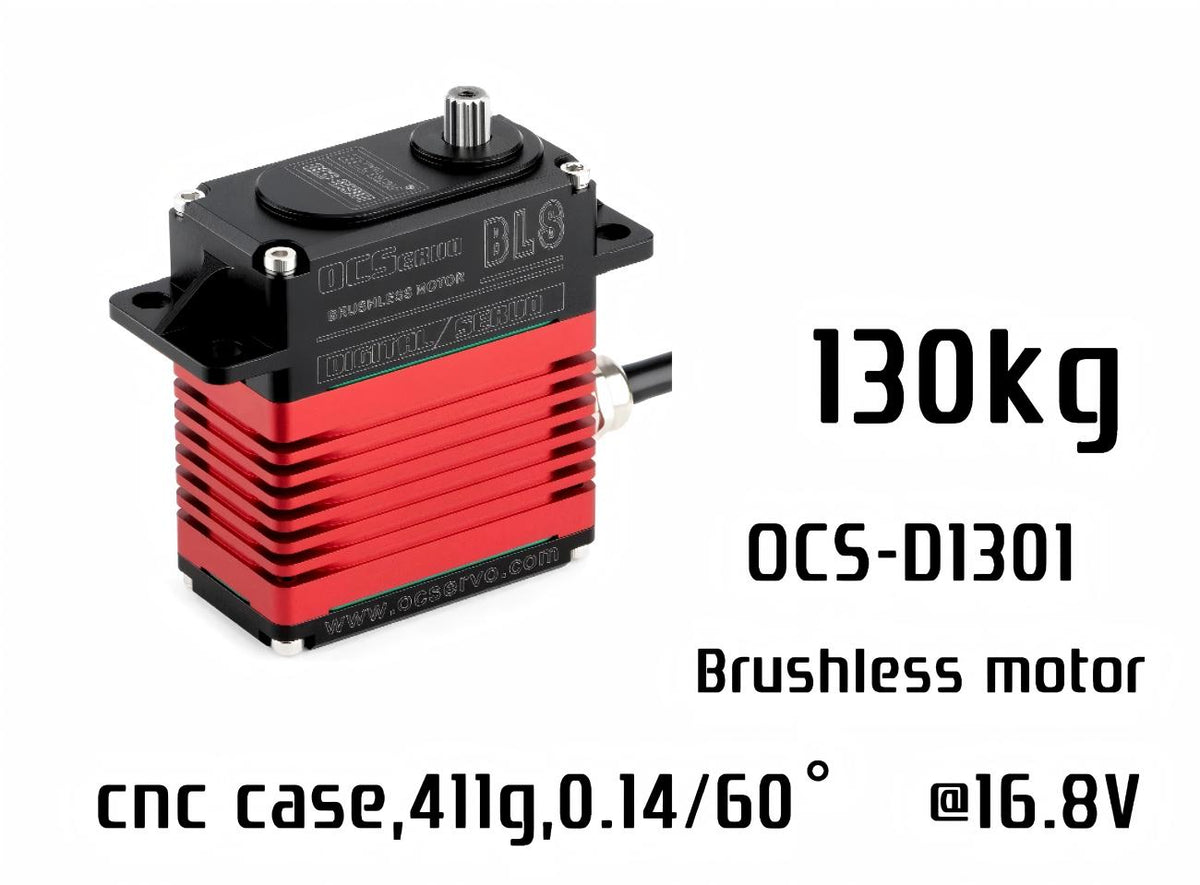

OCServo OCS-D1301 Servo Motor detail image
OCServo OCS-D1301 Servo Motor detail image
▤ PARAMETER ⌃
Product Name
16.8V130kg-cm BLS Servo
Item No.
OCS-D1301
Storage Temperature Range
-30°C ~ 70°C
Operating Temperature Range
-20°C ~ 60°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
64.0 × 33.0 × 76.0
Weight (g)
411
Gear Type
Steel Gear
Limit Angle
220°
Bearings
2 Ball bearings
Output Spline
25T - Φ9.95mm
Horn Type
Metal
Case Material
7075 Aluminium CNC
Connector Wire
500 mm
Motor Type
BLS motor
Waterproof Performance
Yes
Operating Voltage
8.4V / 12.6V / 16.8V
No load speed (sec/60°)
8.4V: 0.28; 12.6V: 0.17; 16.8V: 0.14
Running current (at no load) (mA)
8.4V: 150; 12.6V: 270; 16.8V: 400
Peak stall torque (kg·cm)
8.4V: 100; 12.6V: 115; 16.8V: 130
Stall current (A)
8.4V: 6.5; 12.6V: 8; 16.8V: 9
Idle current (mA)
50 (all voltages)
Command Signal
PWM 50~333Hz
Amplifier Type
Digital Controller
Pulse Width Range
800~2200 μsec (customizable)
Neutral Position
1500 μsec (customizable)
Running Degree
90° (when 1000~2000 μsec) customizable
Dead Band Width
4 μsec
Rotating Direction
CCW (when 1000~2000 μsec) customizable
