SIMINICS

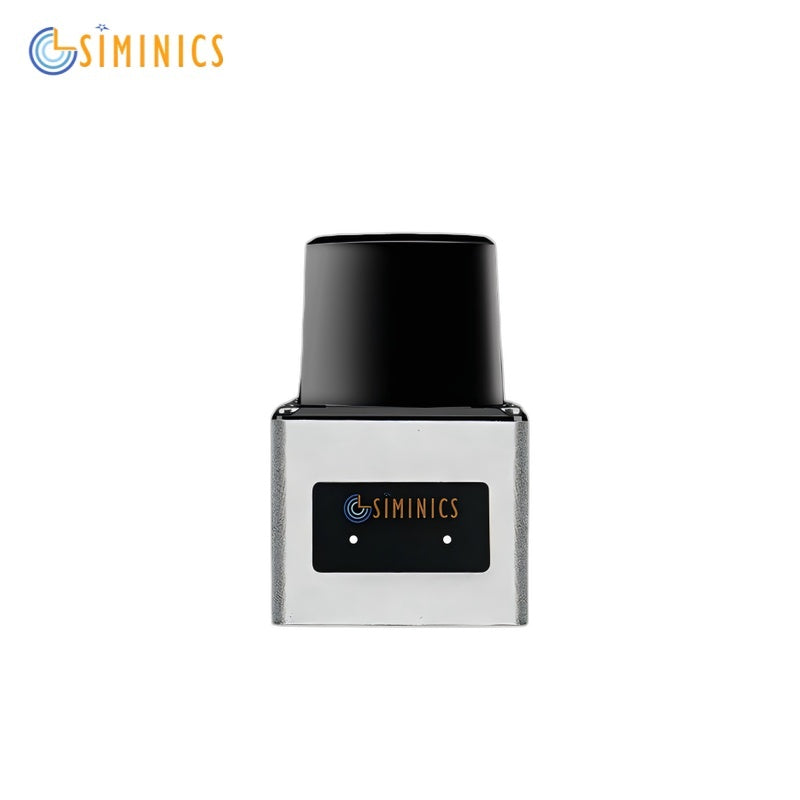

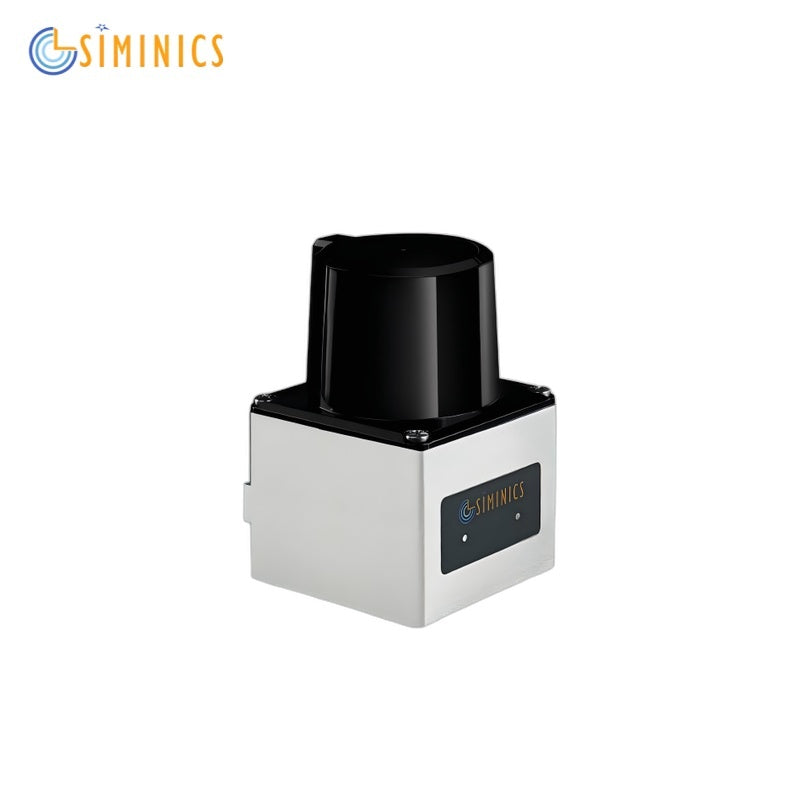

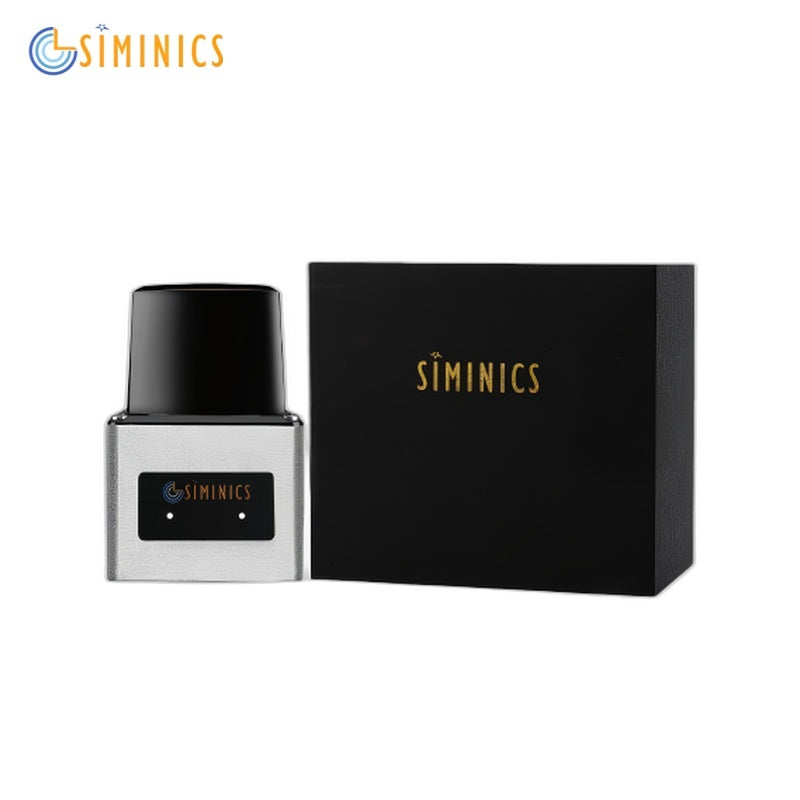

SIMINICS PAVO LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection Range @90% Reflectivity: 10m
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging, perception, and environmental awareness.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$479
Model

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SIMINICS PAVO LiDAR CAD model for mechanical integration.stp ▶ SIMINICS PAVO LiDAR dimension drawing for installation reference.pdf ▶
SIMINICS PAVO LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

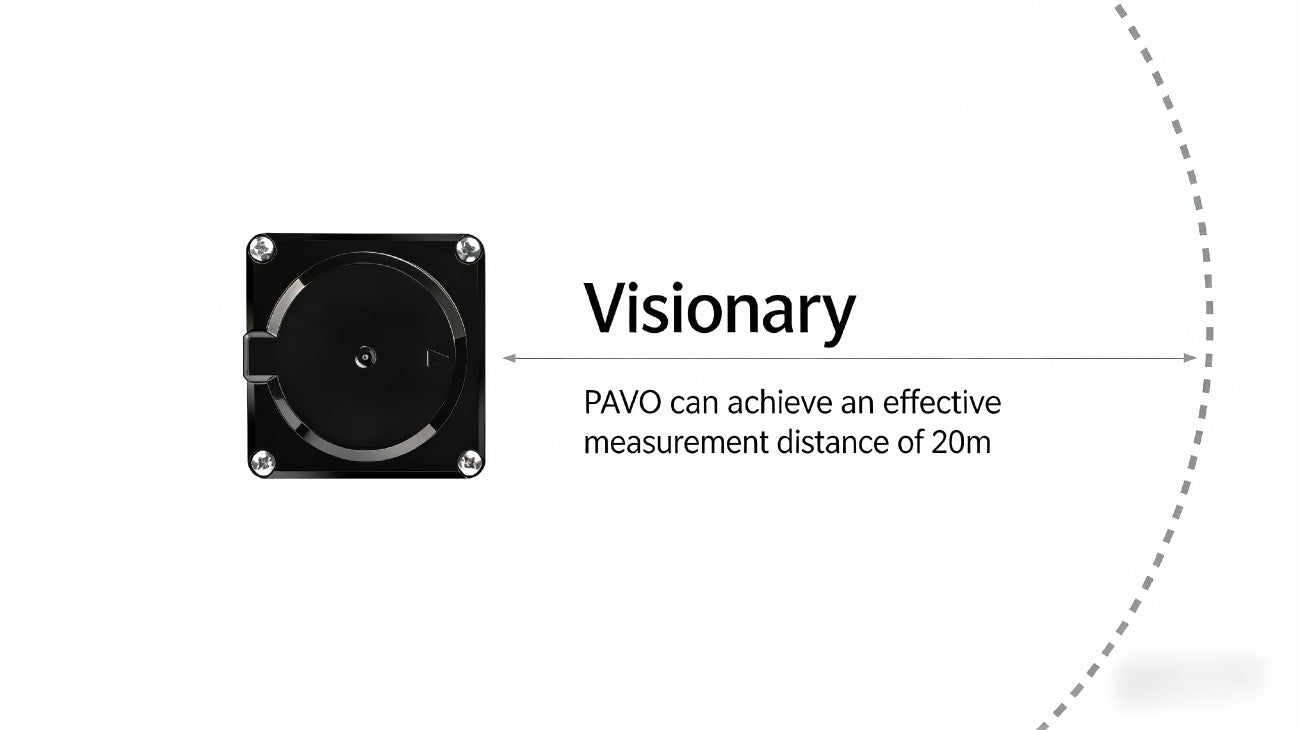

SIMINICS PAVO LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

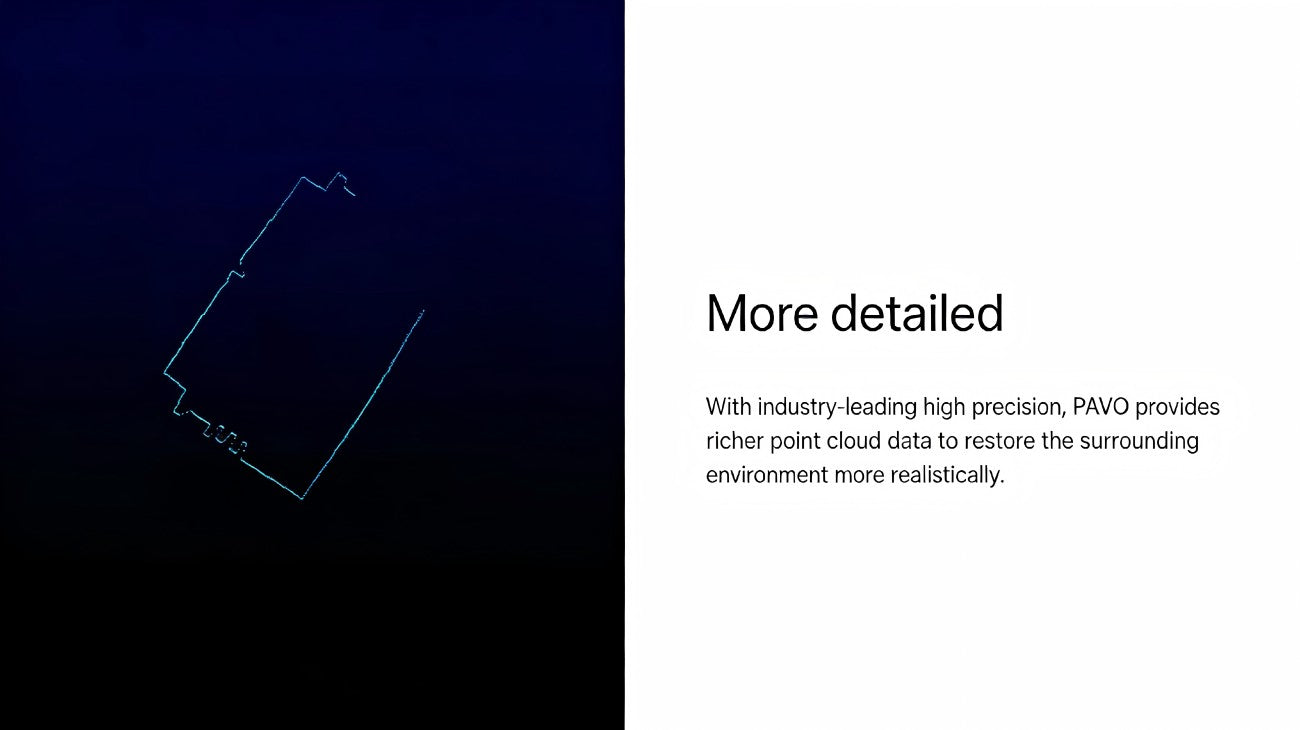

SIMINICS PAVO LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

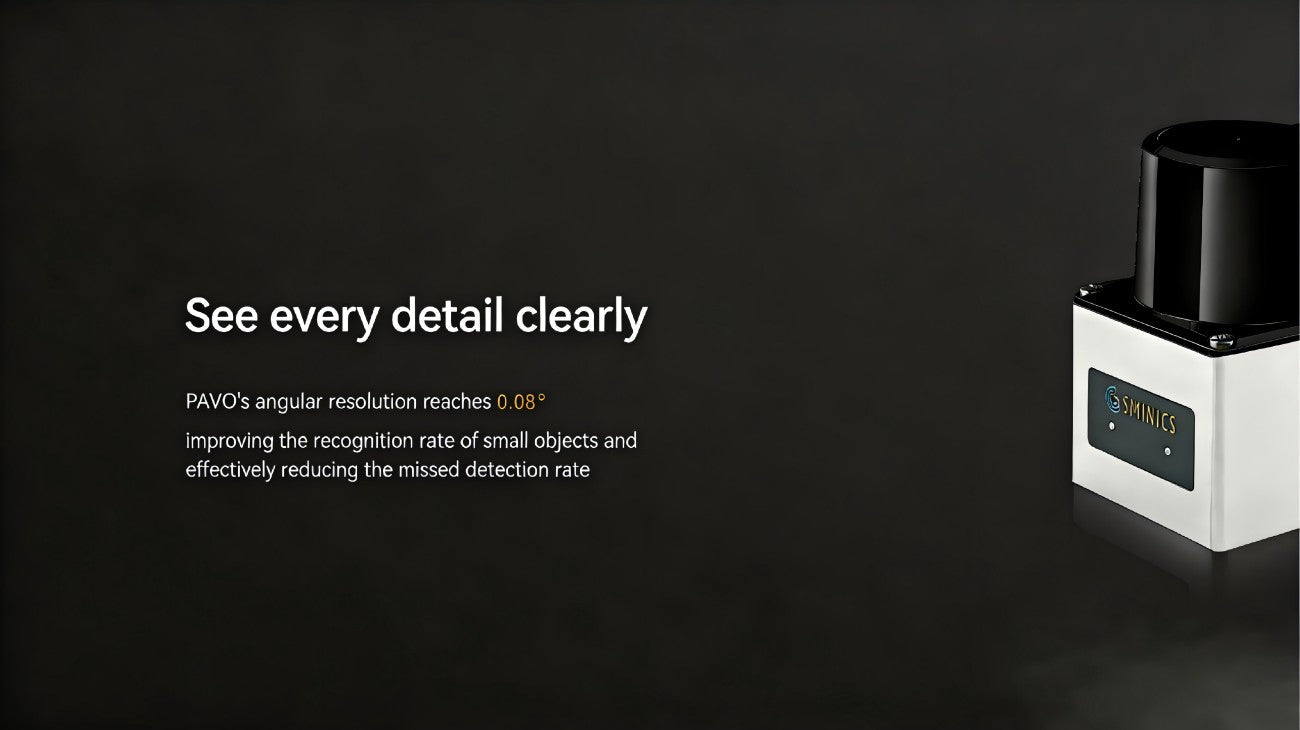

SIMINICS PAVO LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
SIMINICS PAVO LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
SIMINICS PAVO LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6

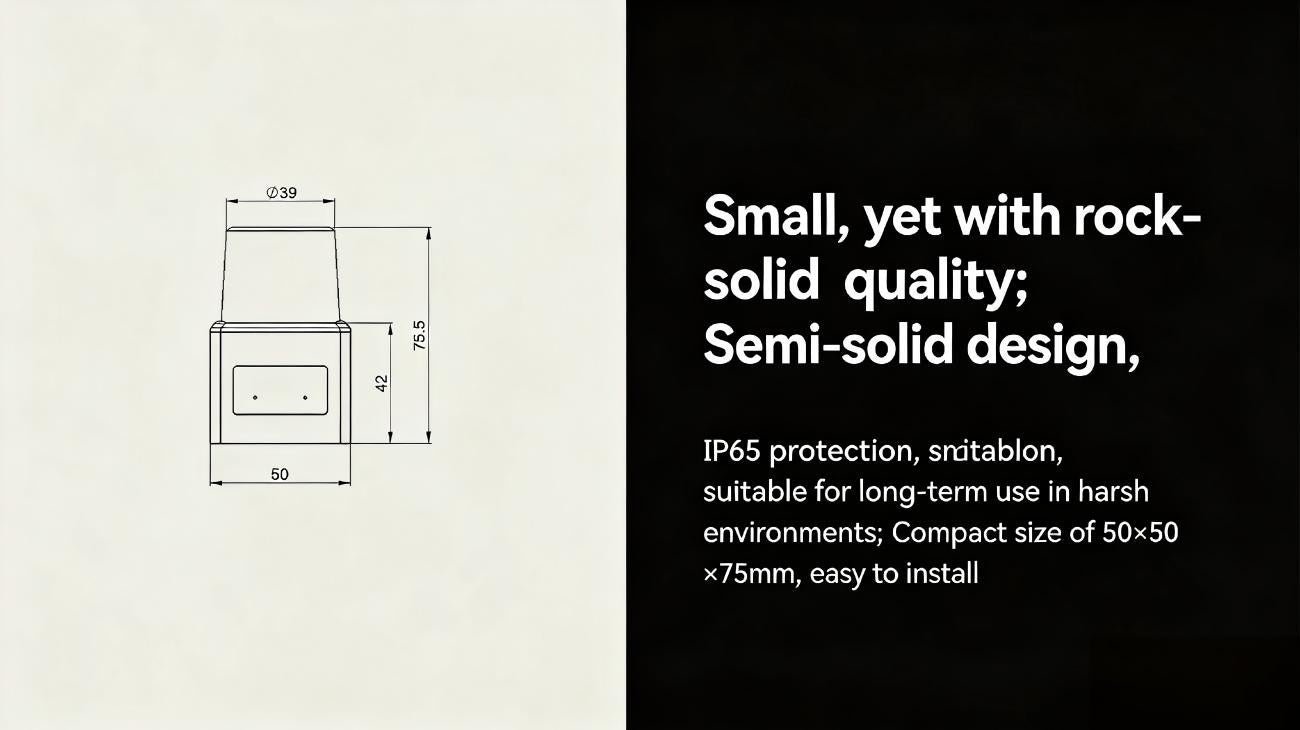

SIMINICS PAVO LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7
▤ Technical Specifications ⌃
Parameter SIMO-LS-10H SIMO-LS-20H SIMO-LS-30H
Detection Range @90% Reflectivity 10m 20m 30m
Detection Range @10% Reflectivity 5m 8m 10m
Ranging Accuracy ±30mm ±30mm ±30mm
Scanning Range 270° 270° 270°
Point Cloud Merging 1/2/4/8 points 1/2/4/8 points 1/2/4/8 points
Scan Frame Rate 10-30Hz 10-30Hz 10-30Hz
Min Angular Resolution 0.08° (adjustable) 0.08° (adjustable) 0.08° (adjustable)
Supply Voltage DC 12V-24V DC 12V-24V DC 12V-24V
Operating Current 0.21A @12V (typical) 0.21A @12V (typical) 0.21A @12V (typical)
Laser Source 905nm class 1 905nm class 1 905nm class 1
Power Consumption 2W 2W 2W
Data Interface Ethernet 100BASE-TX Ethernet 100BASE-TX Ethernet 100BASE-TX
Startup Time <10s <10s <10s
Indicators Power indicator, Status indicator Power indicator, Status indicator Power indicator, Status indicator
Ambient Light Immunity >50,000 lux >50,000 lux >50,000 lux
Operating Temperature -10°C ~ 55°C -10°C ~ 55°C -10°C ~ 55°C
Storage Temperature -30°C ~ 75°C -30°C ~ 75°C -30°C ~ 75°C
Humidity <80% <80% <80%
Operating Life 5 years (motor life) 5 years (motor life) 5 years (motor life)
Vibration Test 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each
Ingress Protection IP67 IP67 IP67
Dimensions 50×50×76mm 50×50×76mm 50×50×76mm
Weight 148g (without cable) 148g (without cable) 148g (without cable)
