ASTRALL

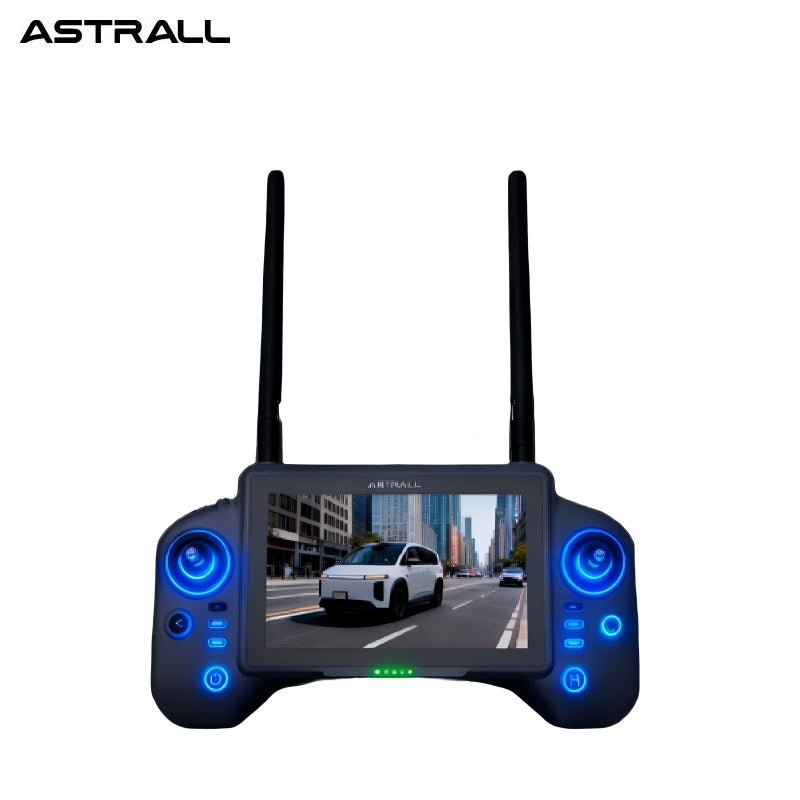

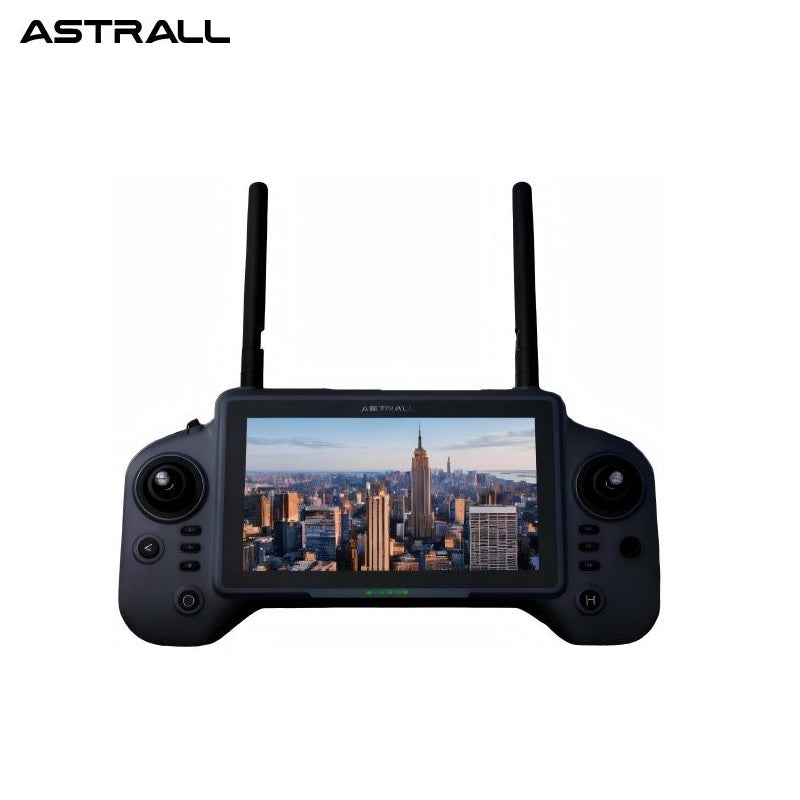

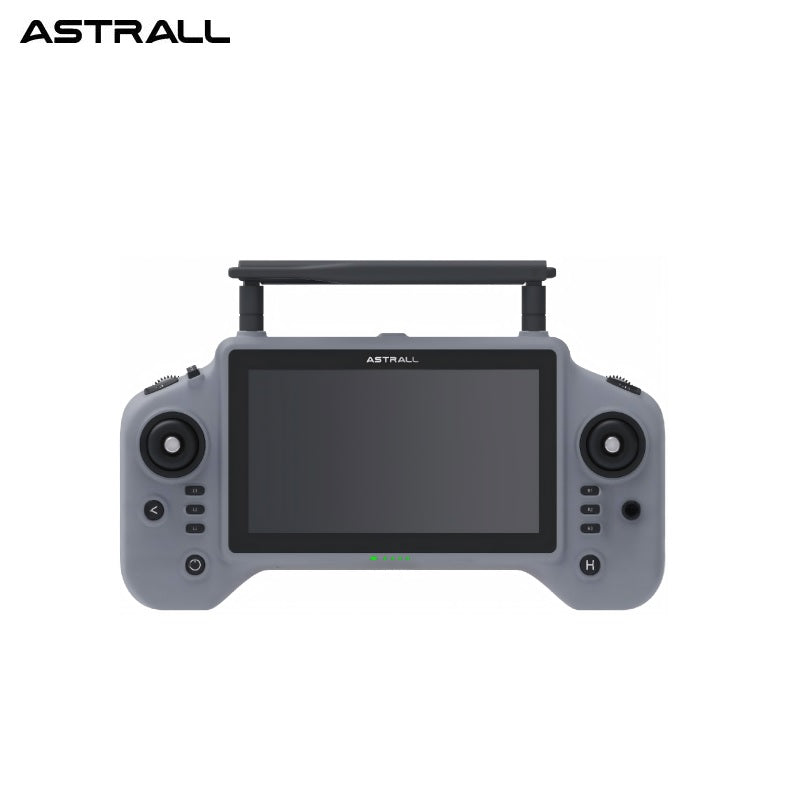

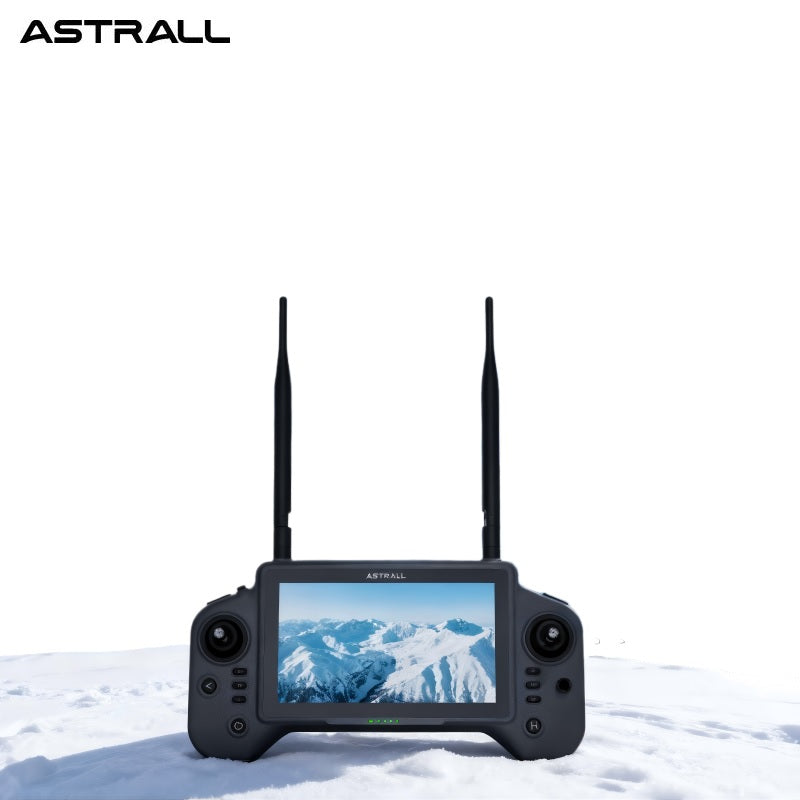

ASTRALL RM 100 Controller

  • ASTRALL robot controller for quadruped robot control, robotics development, and integration workflows.
  • Suitable for teams building robot operation, control, testing, and field robotics systems.
  • Designed for developers and engineering teams working with quadruped robot platforms.
  • Supports practical robotics lab, education, automation, and deployment-oriented development.
$1,735
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 1
ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 2
ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 3

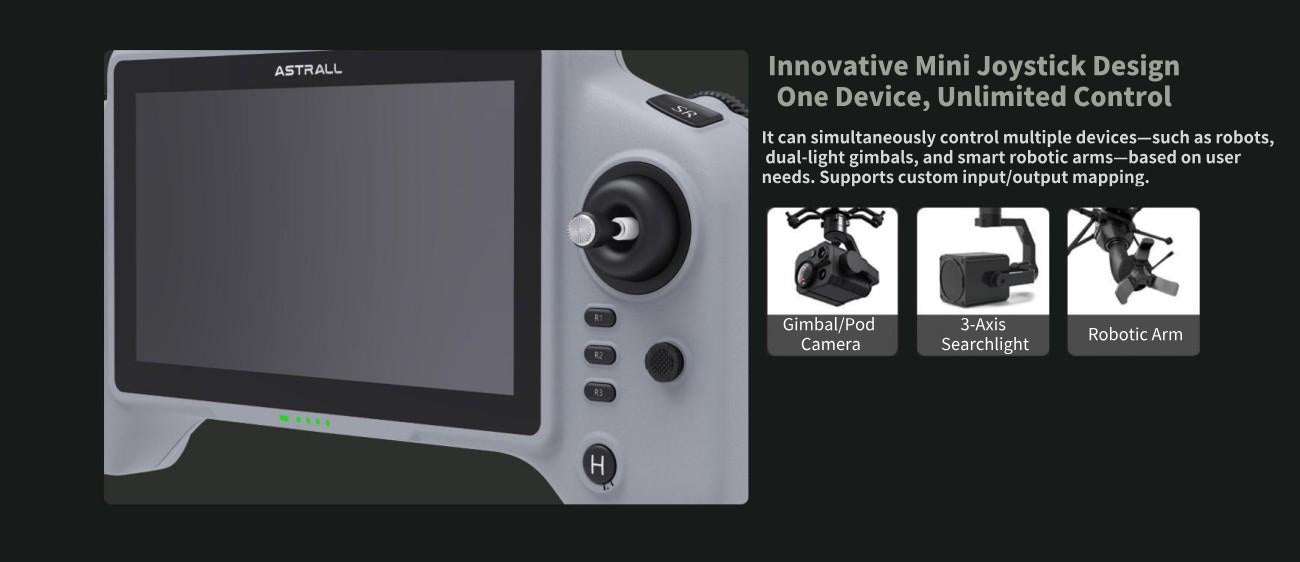

ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 4

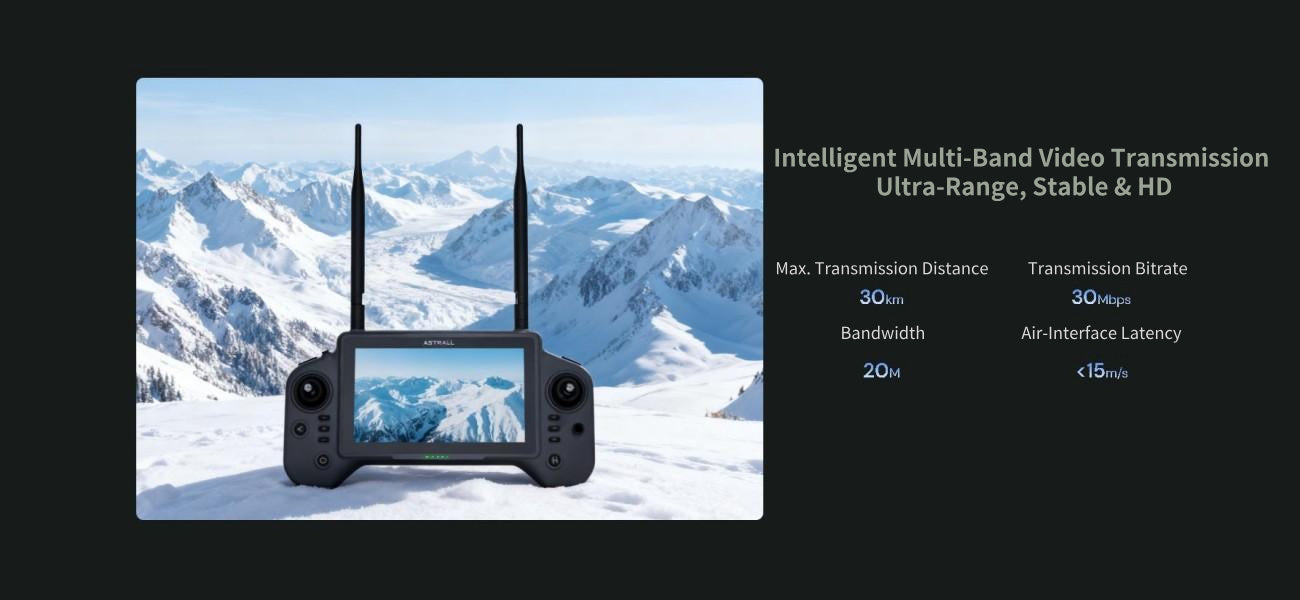

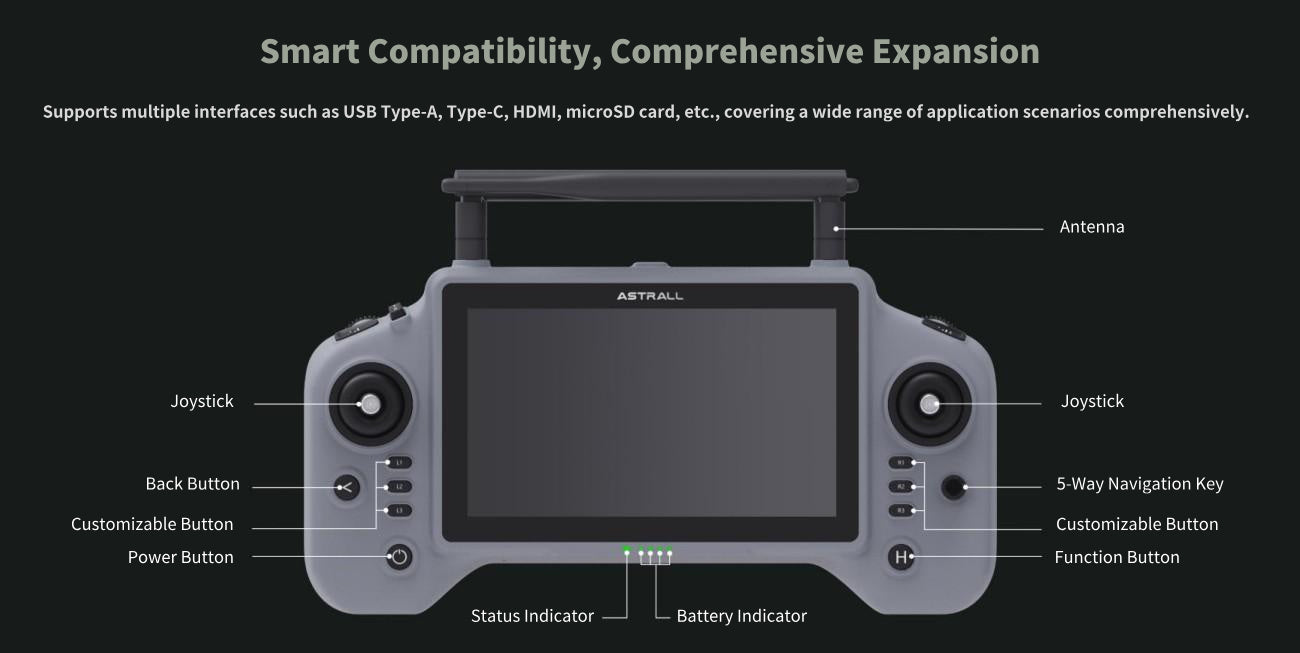

ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 5

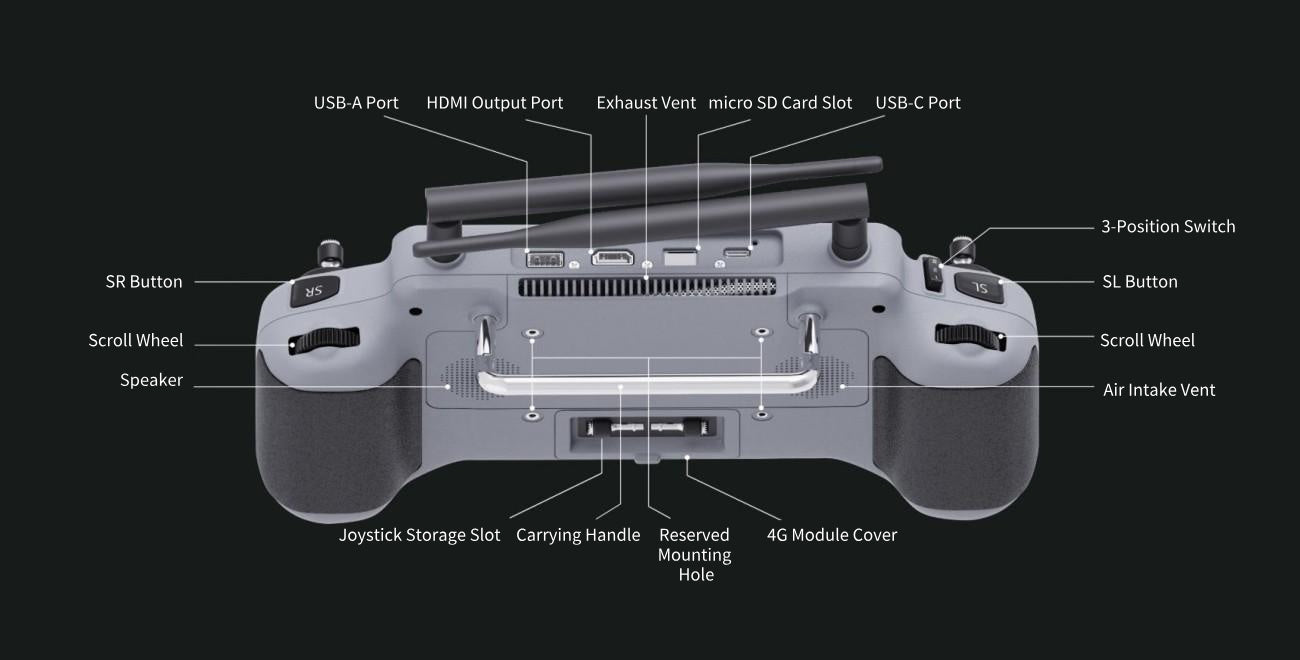

ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 6

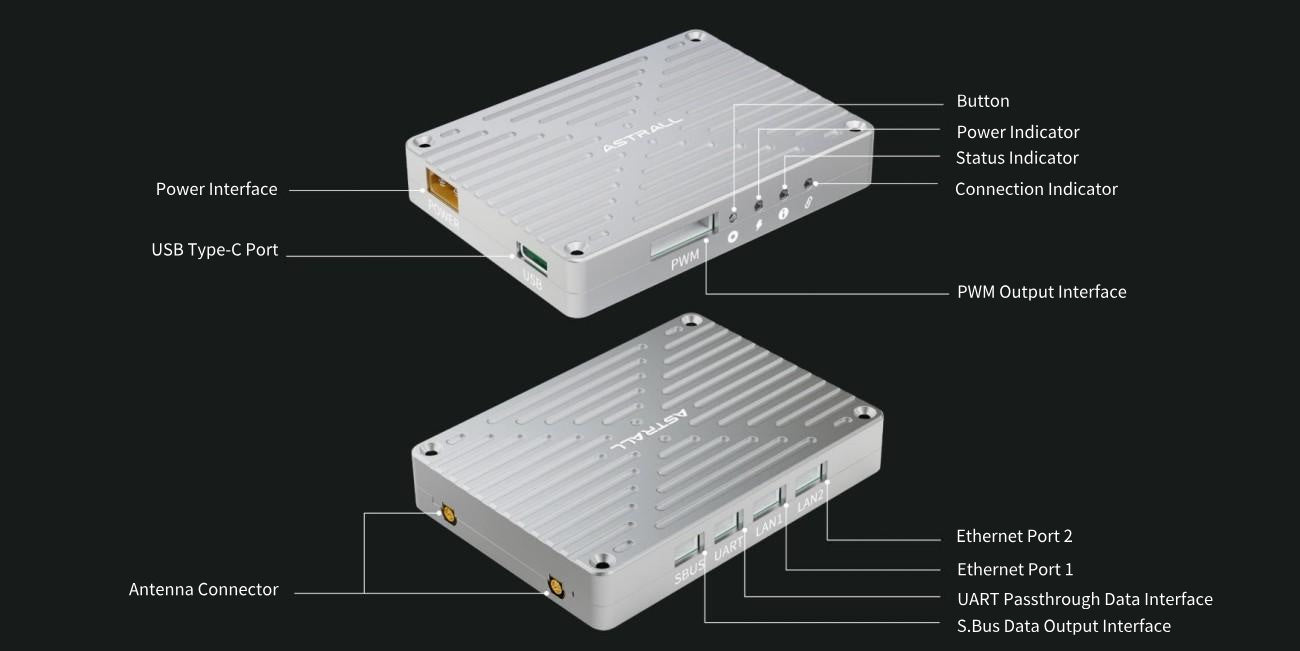

ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 7
ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 8
ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 9
ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 10
ASTRALL RM 100 Controller | Robot Controller for Quadruped Robot Control And Robotics Development detail image 11
▤ PARAMETER ⌃
Communication
ASTRALL RM 100: Max. 30 km long-range digital link, 30 Mbps, air interface latency <15 ms (Max. video range depends on configuration)
Video Transmission Frequencies
ASTRALL RM 100: 800 MHz, 1.4 GHz, 2.4 GHz
Input Channels
ASTRALL RM 100: Buttons ×9, 3-position switch ×1, joysticks ×2, scroll wheels ×2
Output Channels
ASTRALL RM 100: 16-channel S.BUS, 8-channel PWM
Operating Temperature
ASTRALL RM 100: -20°C to 40°C
Processor
ASTRALL RM 100: 8-core high-performance CPU

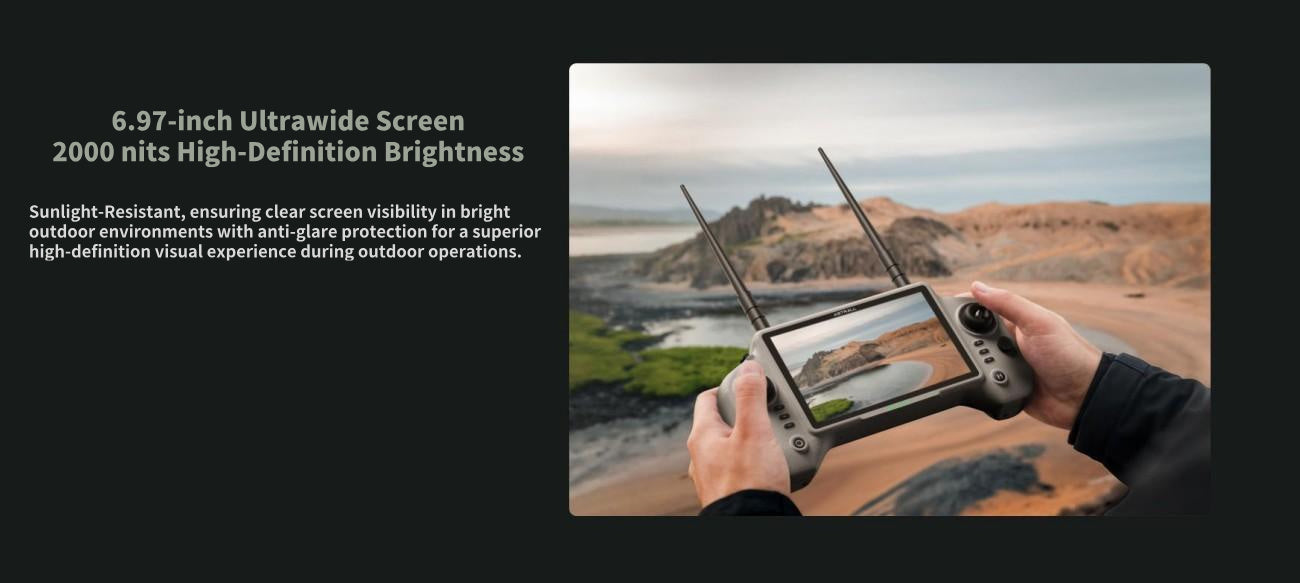

Display
ASTRALL RM 100: 6.97-inch, 1920×1080 @60p, brightness >2000 nits
OS
ASTRALL RM 100: Android 12
Memory
ASTRALL RM 100: 4 GB RAM + 32 GB ROM (expandable via microSD)
Wireless
ASTRALL RM 100: Bluetooth: 5.0 4G: Optional 4G module Wi-Fi: 802.11 a/b/g/n/ac, dual-band 2.4 GHz/5.8 GHz
External I/O
ASTRALL RM 100: USB Type-A: For internal storage expansion or external USB devices USB Type-C: Charging microSD Slot: Internal storage expansion HDMI: Supports HDMI 2.1 mini-PCIE: For 4G module connection
Positioning
ASTRALL RM 100: GPS, GLONASS, Galileo, BeiDou
Battery
ASTRALL RM 100: 9600 mAh @ 7.4 V
Charging
ASTRALL RM 100: Supports PD 2.0, PD 3.0/3.1 fast charging (up to 35 W)

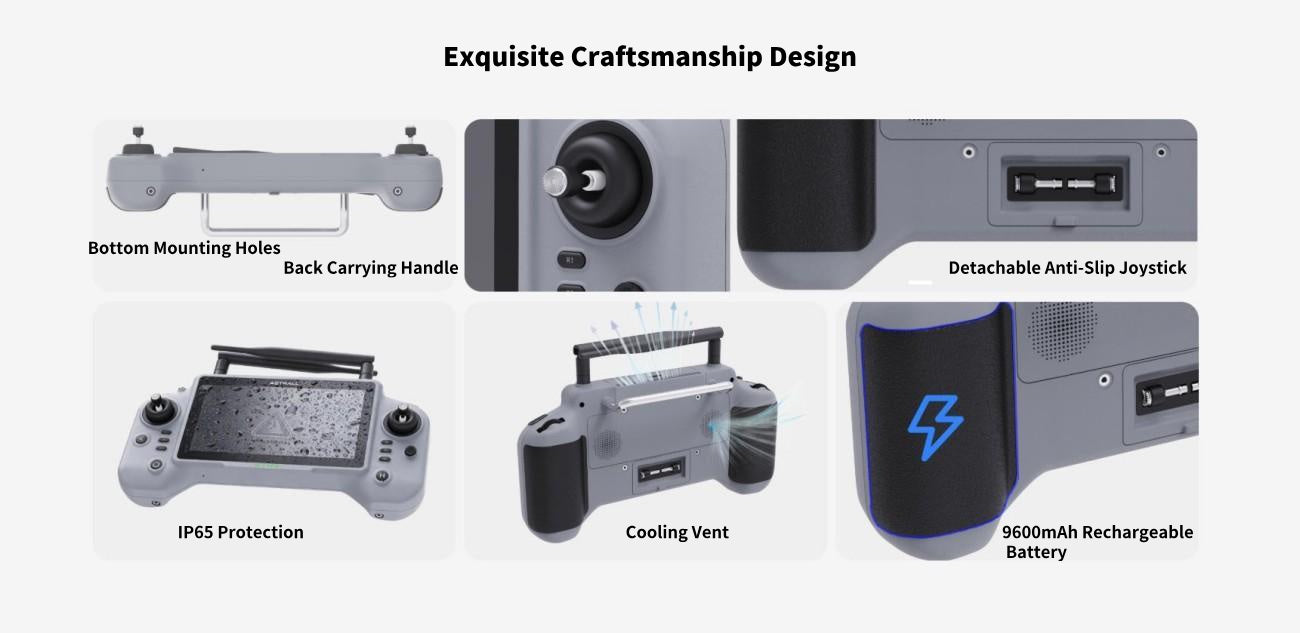

Protection Rating
ASTRALL RM 100: IP65
Dimensions
ASTRALL RM 100: 290 mm (L) × 150 mm (W) × 80 mm (H)
Weight
ASTRALL RM 100: Approx. 1220 g (without antenna)
External I/O
ASTRALL RM 100: USB Type-C: High-bandwidth data transfer (video, files, etc.) S.BUS: Real-time joystick & button data UART: Data passthrough interface Ethernet ×2: Image & data transmission PWM: Real-time joystick & button data
Average Power Consumption
ASTRALL RM 100: Approx. 4 W
Power Supply Voltage
ASTRALL RM 100: 10 to 56 V DC
Dimensions
ASTRALL RM 100: 75 mm (L) × 55 mm (W) × 13 mm (H)
Weight
ASTRALL RM 100: Approx. 80 g (without antenna)
