Benewake

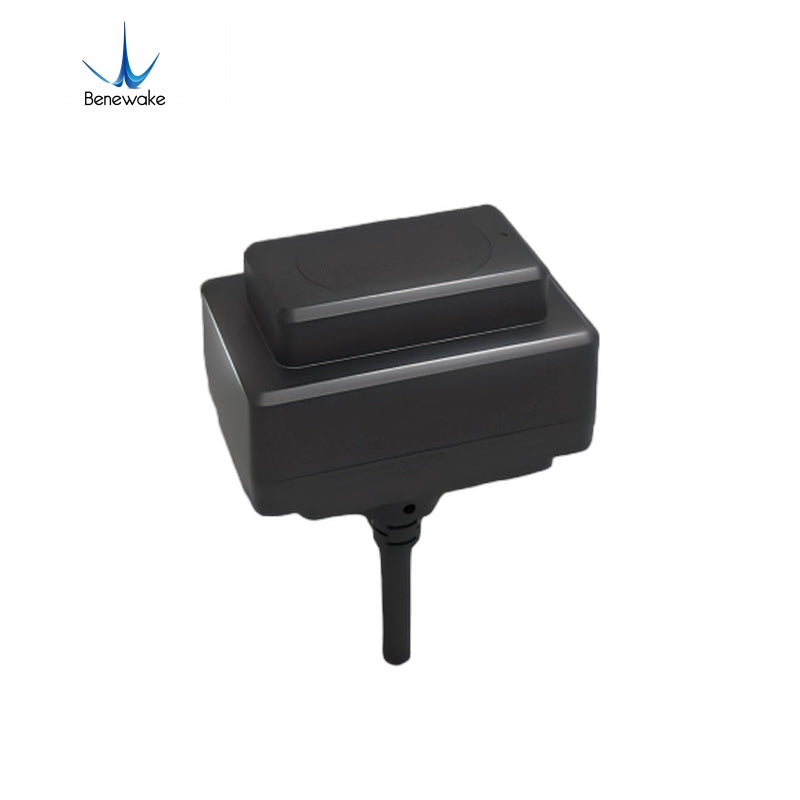

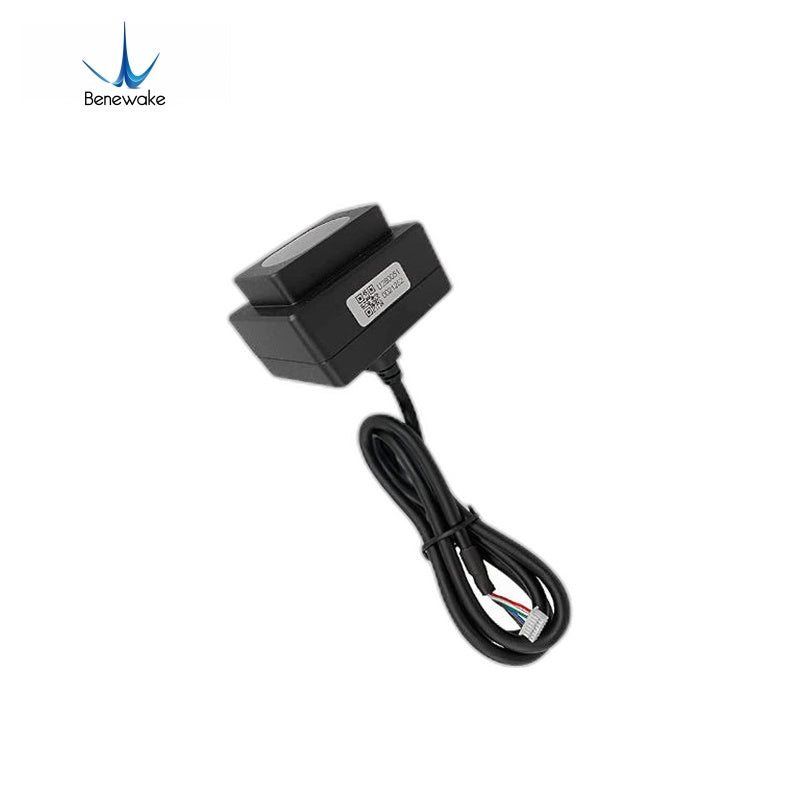

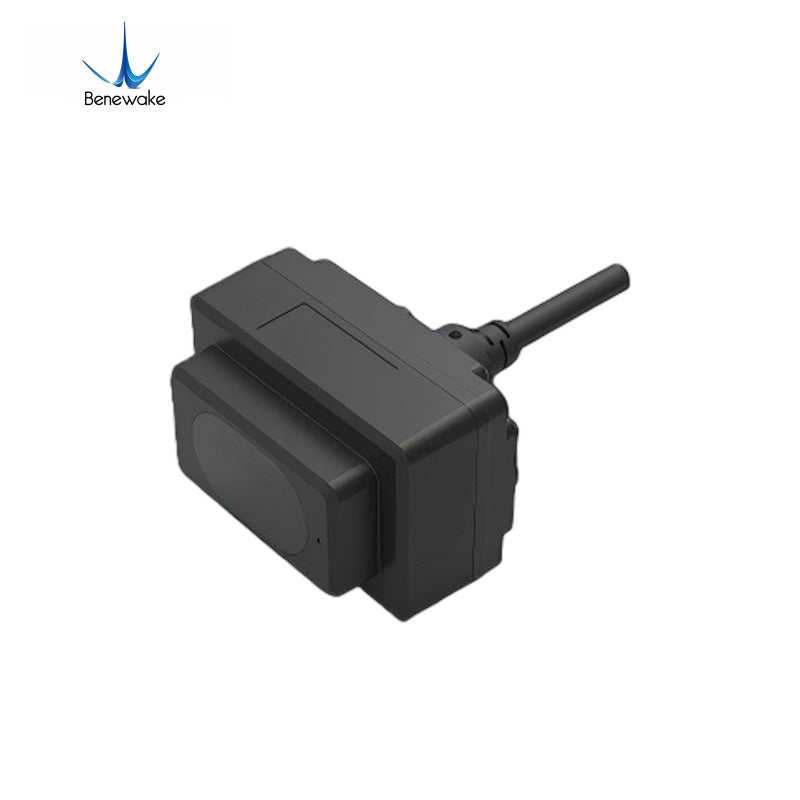

Benewake TFmini-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Operating Range: Indoor 0Klux: 0.1m~12m @90% reflectivity Indoor 0Klux: 0.1m~7m @10% reflectivity Outdoor 70Klux: 0.1m~12m @90% reflectivity Outdoor 70Klux: 0.1m~7m @10% reflectivity
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$115
Version
Communication Interface

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TFmini-i LiDAR datasheet with technical specifications.pdf ▶ Benewake TFmini-i LiDAR user manual for setup and integration.pdf ▶ Benewake TFmini-i LiDAR dimension drawing for installation reference.pdf ▶
Benewake TFmini-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

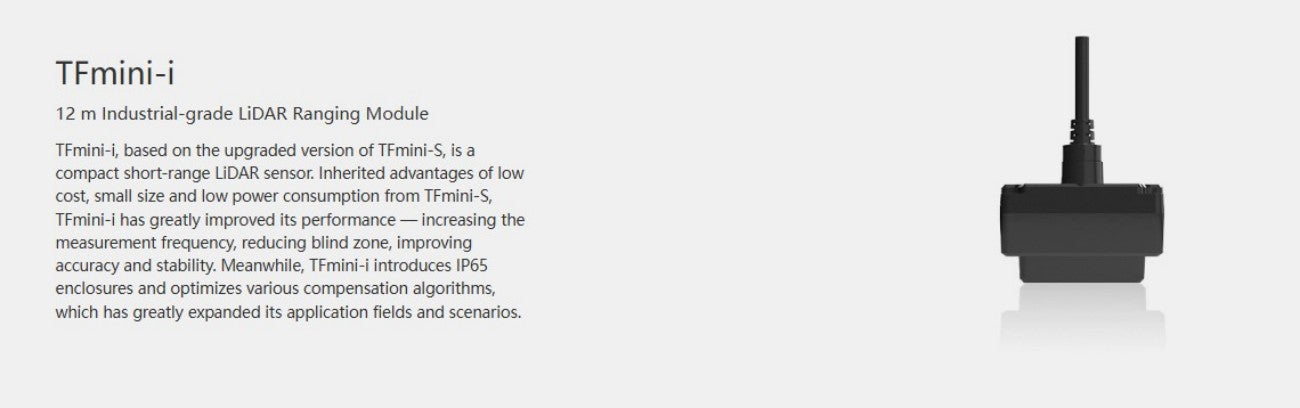

Benewake TFmini-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

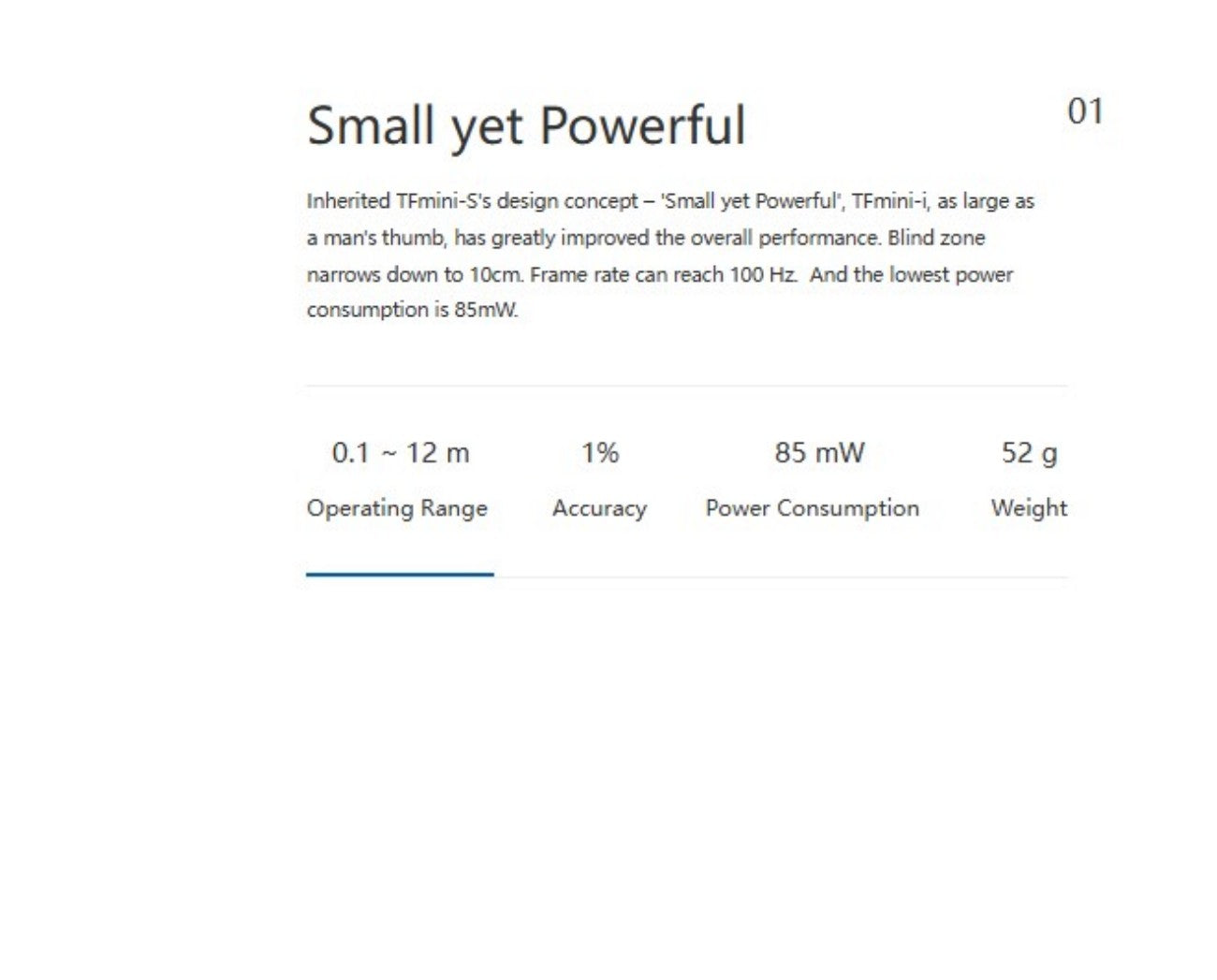

Benewake TFmini-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

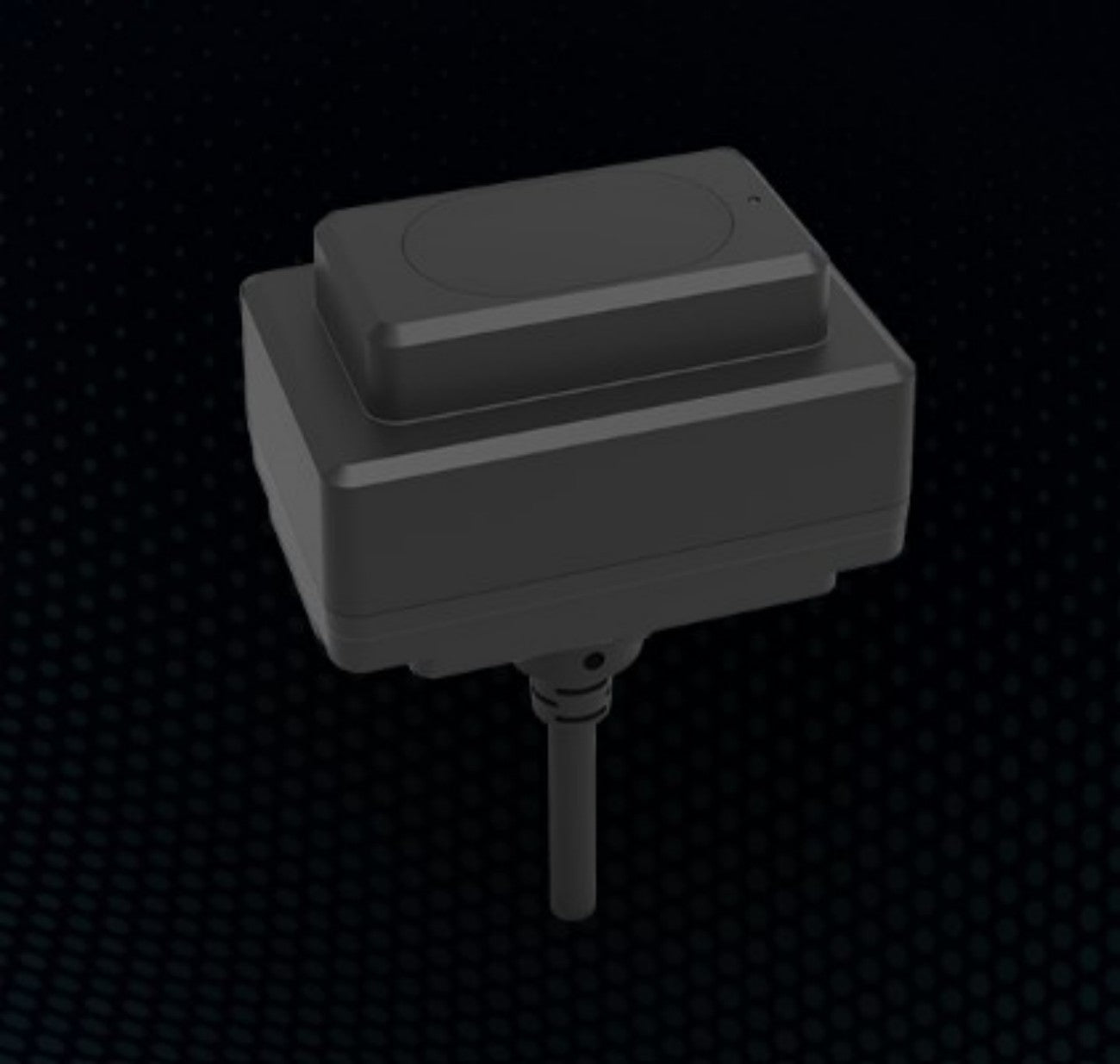

Benewake TFmini-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

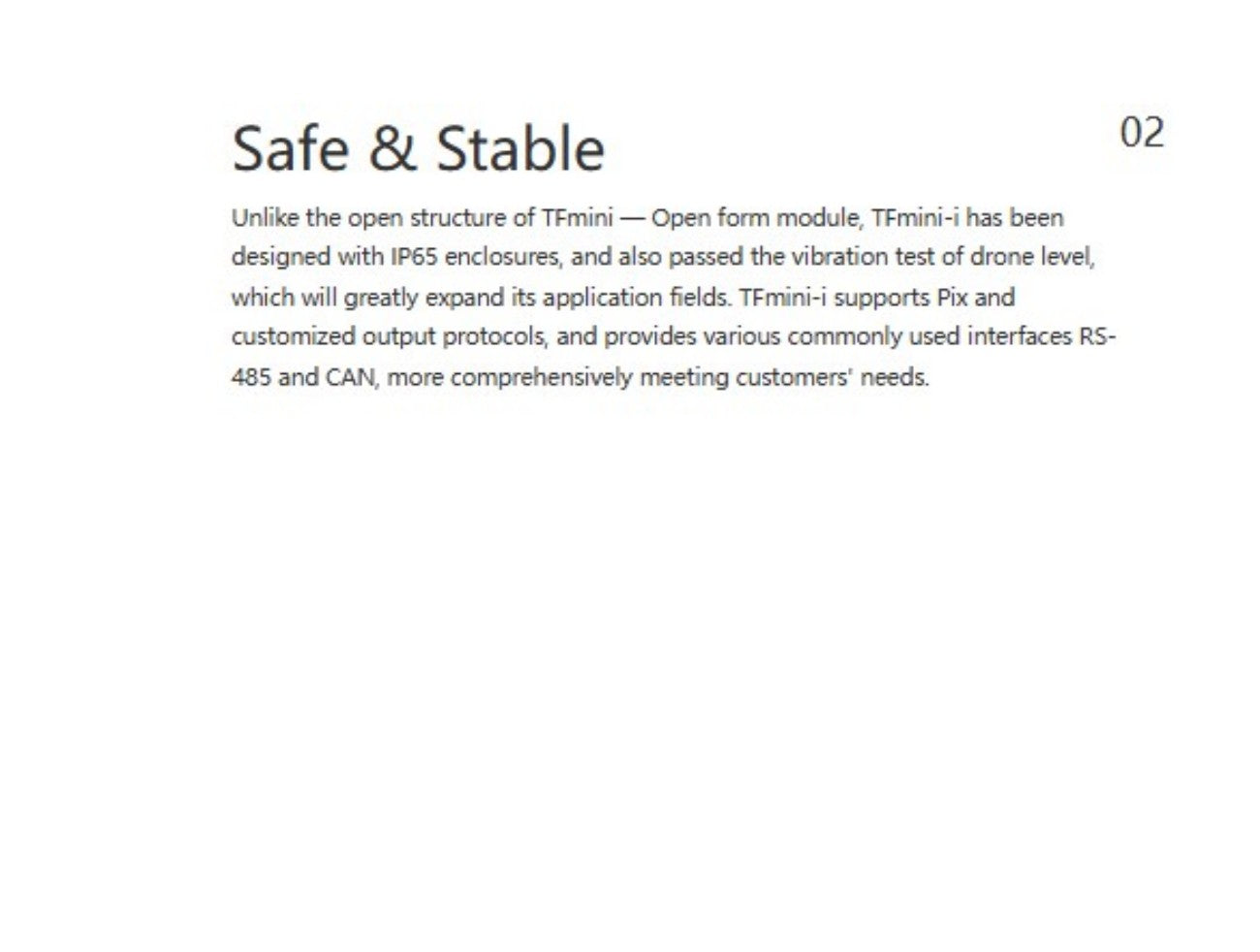

Benewake TFmini-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

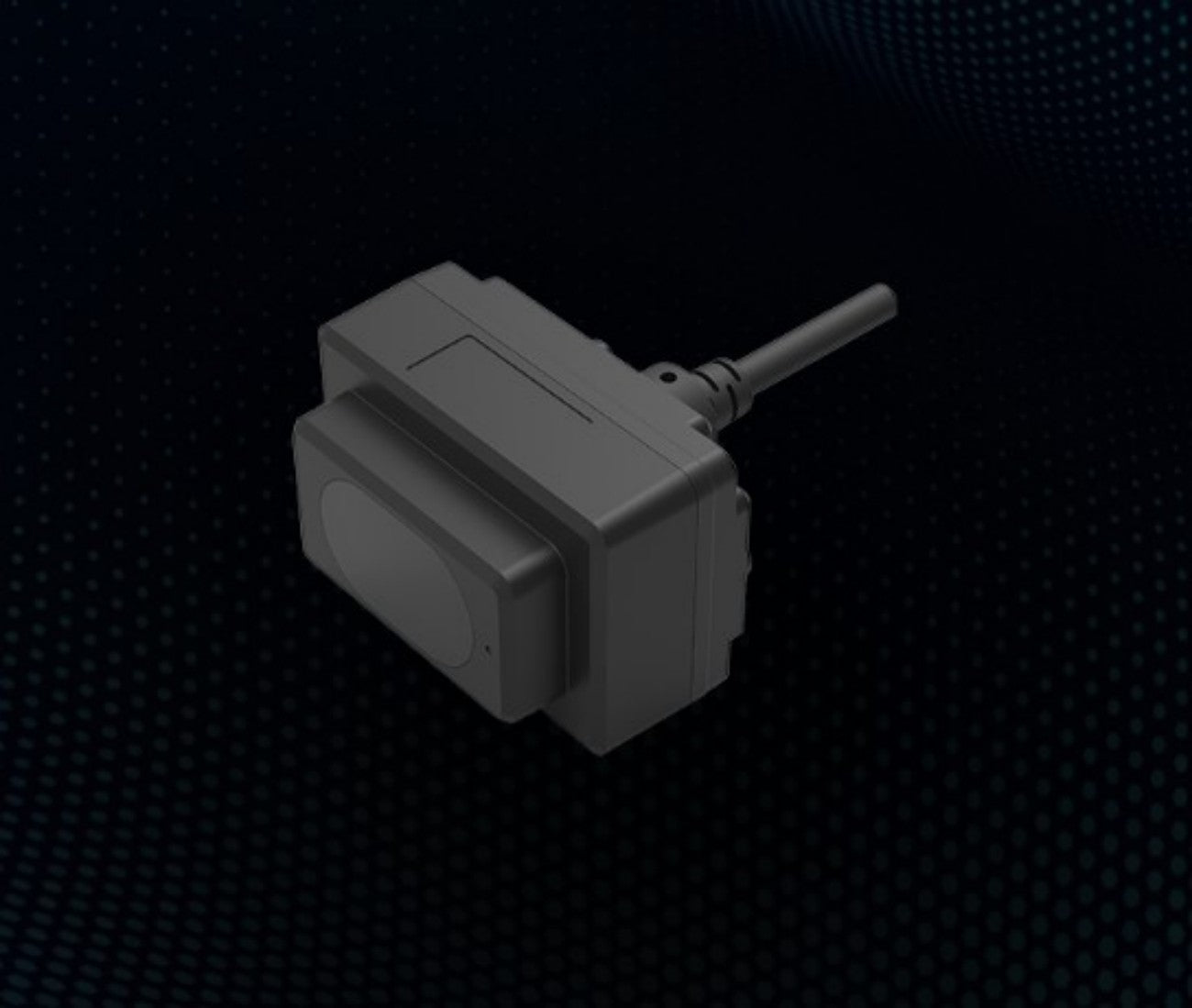

Benewake TFmini-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
▤ PARAMETER ⌃
Operating Range
Indoor 0Klux: 0.1m~12m @90% reflectivity Indoor 0Klux: 0.1m~7m @10% reflectivity Outdoor 70Klux: 0.1m~12m @90% reflectivity Outdoor 70Klux: 0.1m~7m @10% reflectivity
Accuracy
±6cm @ (0.1m~6m) ; ±1% @ (6m~12m)
Distance resolution
1cm
Frame rate
1Hz~100Hz (adjustable, default 100Hz)
Ambient light immunity
70Klux
Enclosure rating
IP65
Photobiological safety
Class 1 (IEC60825)
Central wavelength
850nm
Light source
VCSEL
Field of View (FoV)
2°
Supply voltage
DC 7V ~ 30V
Average current
≤65mA @12V
Power consumption
≤0.8W @12V
Peak current
100mA @12V
Dimension (L×H×W)
50mm × 34mm × 41mm
Housing
ABS/PC/PMMA
Operating temperature
-20℃ ~ 60℃
Storage temperature
-30℃ ~ 75℃
Weight
52g (with cables)
Cable length
70cm (including 7P terminal) / 200cm (no terminal)
Interface parameters (RS-485)
Baud rate: 115200, Data bit: 8, Stop bit: 1, Parity: None
Interface parameters (CAN)
Baud rate: 250kbps, Receiving ID: 0x00000003, Transmitting ID: 0x00000003, Frame Format: Standard frame
