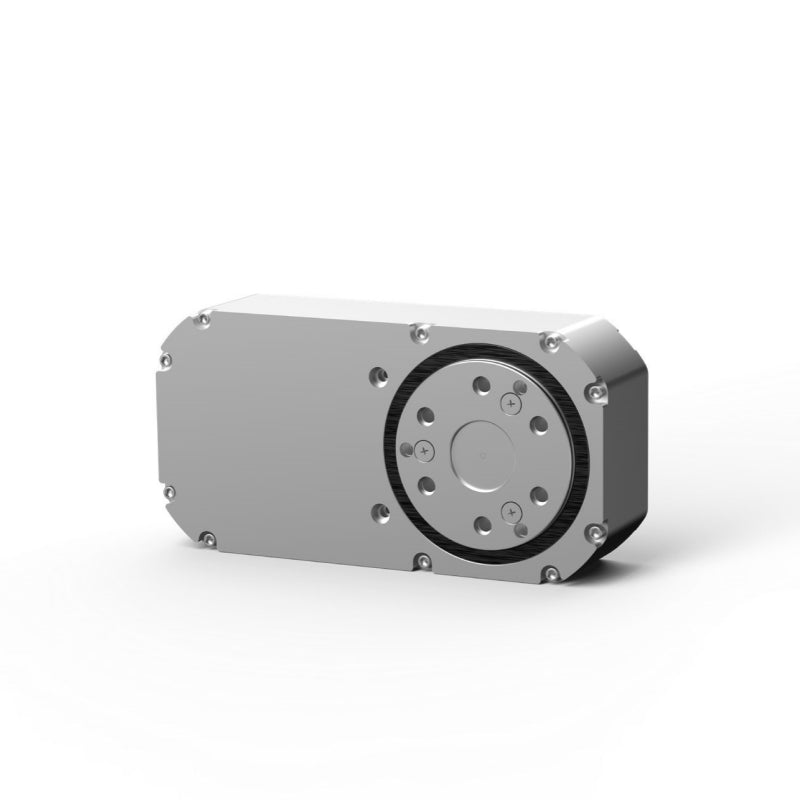

HIGH TORQUE HTPU-7033-04-CNE Ultra Thin Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and compact robotics platforms.
  • Ultra-thin joint module optimized for lightweight robotic structures.
  • 33:1 reduction ratio provides efficient torque transmission for robotic motion.
  • High torque output supports demanding robotic joint applications.
  • CANFD/CAN communication enables flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTPU-7033-04-CNE Ultra Thin Planetary Joint Module

The HIGH TORQUE HTPU-7033-04-CNE is an ultra-thin planetary joint module designed for humanoid robots, robotic arms, and advanced robotics platforms. It integrates a motor, planetary gearbox, encoder feedback system, and communication interface into a compact actuator solution, providing reliable motion control for robotics research, education, and development applications.

Ultra Thin Joint Module Design

The HTPU-7033-04-CNE features a compact 140.5 × 71.5 × 36.9 mm structure with an ultra-thin design optimized for space-limited robotic systems. Its integrated architecture simplifies installation and helps reduce the complexity of custom robotic joint designs.

33:1 Planetary Reduction System

Equipped with a 33:1 reduction ratio, the module provides efficient torque transmission for robotic motion. It delivers 20 Nm rated torque and 50 Nm locked-rotor torque, making it suitable for robotic joints requiring higher torque output while maintaining a compact form factor.

High-Precision Encoder Feedback

The integrated encoder system provides 14-bit input and output encoder resolution, enabling accurate position feedback and responsive joint control. This supports precise movement control for humanoid robots, robotic arms, and robotics development platforms.

CANFD/CAN Communication Integration

The HTPU-7033-04-CNE supports CANFD/CAN communication with up to 3 kHz control frequency, allowing flexible integration with robotic controllers and embedded systems. The module is designed for developers building customized robotic platforms requiring reliable communication and control performance.

HIGH TORQUE HTPU-7033-04-CNE Ultra Thin Planetary Joint Module

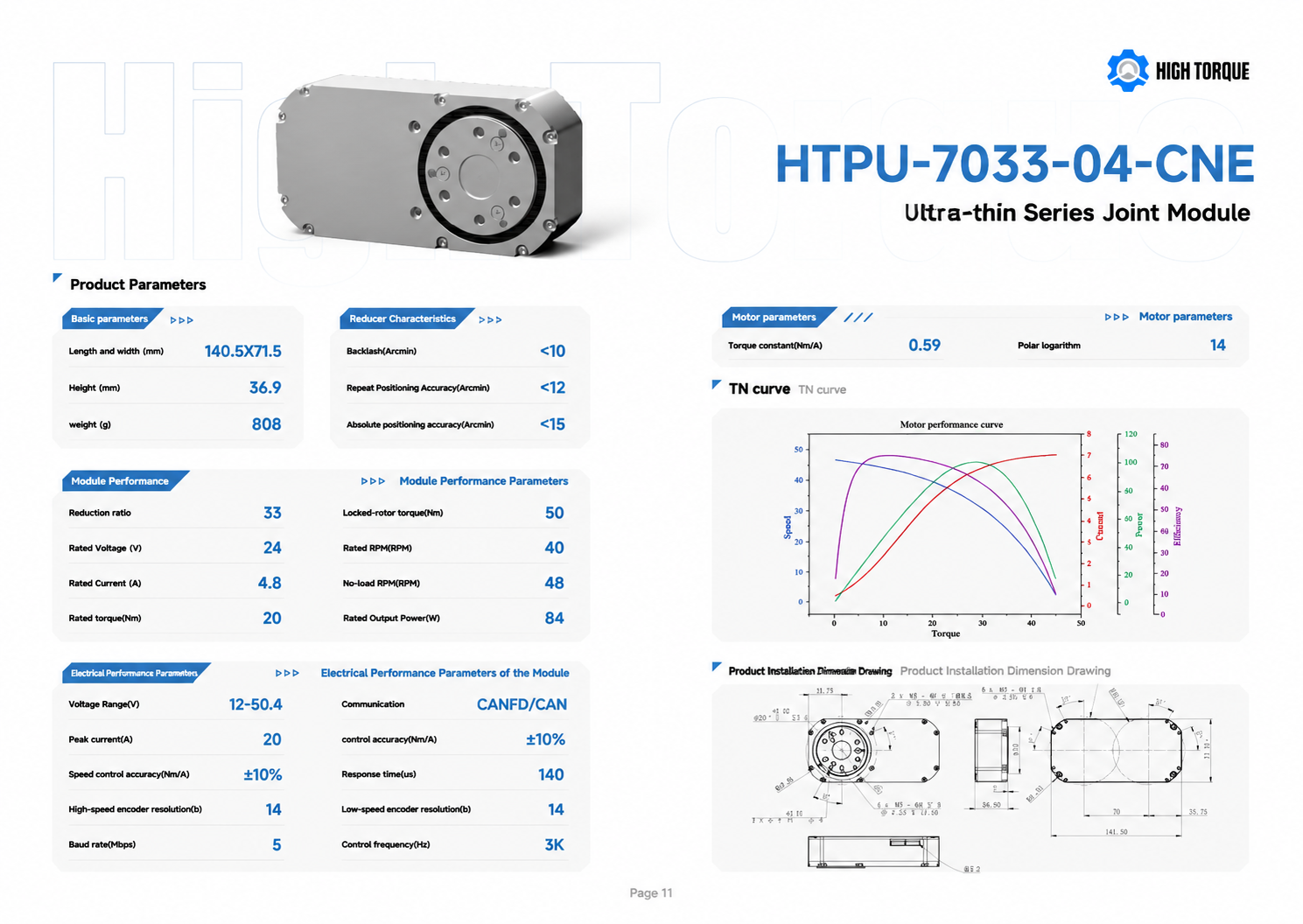

▤ PARAMETER ⌃
Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 140.5×71.5 mm
Height 36.9 mm
Weight 808 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 33
Rated Voltage 24 V
Rated Current 4.8 A
Rated Torque 20 Nm
Locked-Rotor Torque 50 Nm
Rated RPM 40 RPM
No-Load RPM 48 RPM
Rated Output Power 84 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 20 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
