XGRIDS

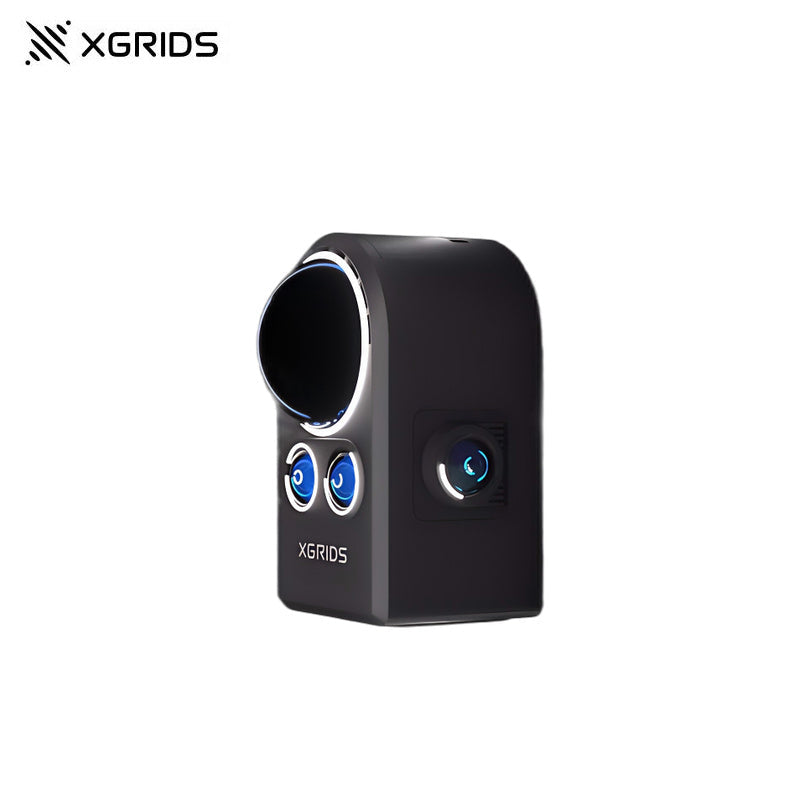

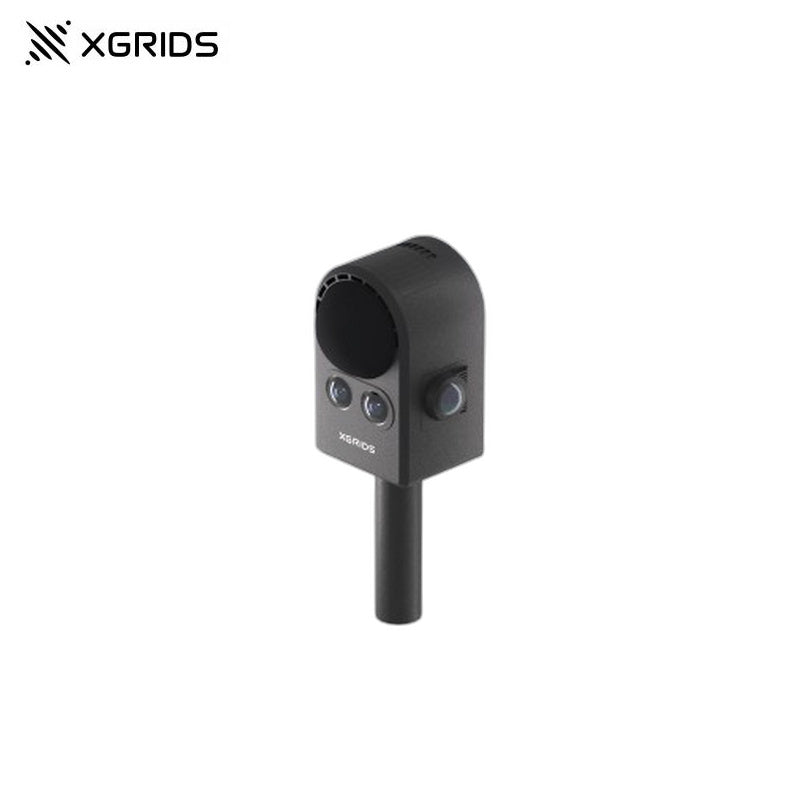

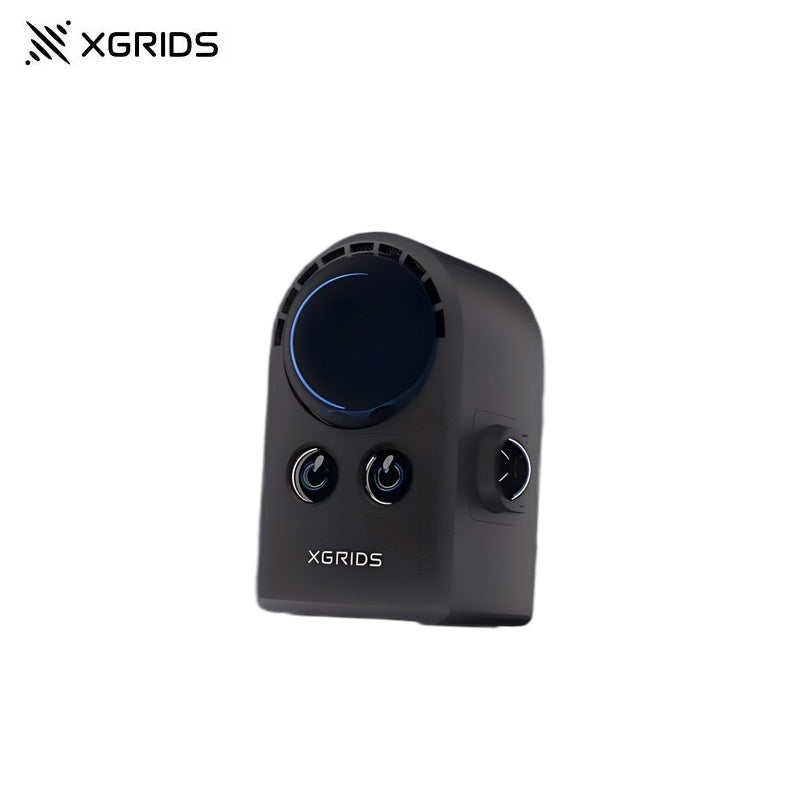

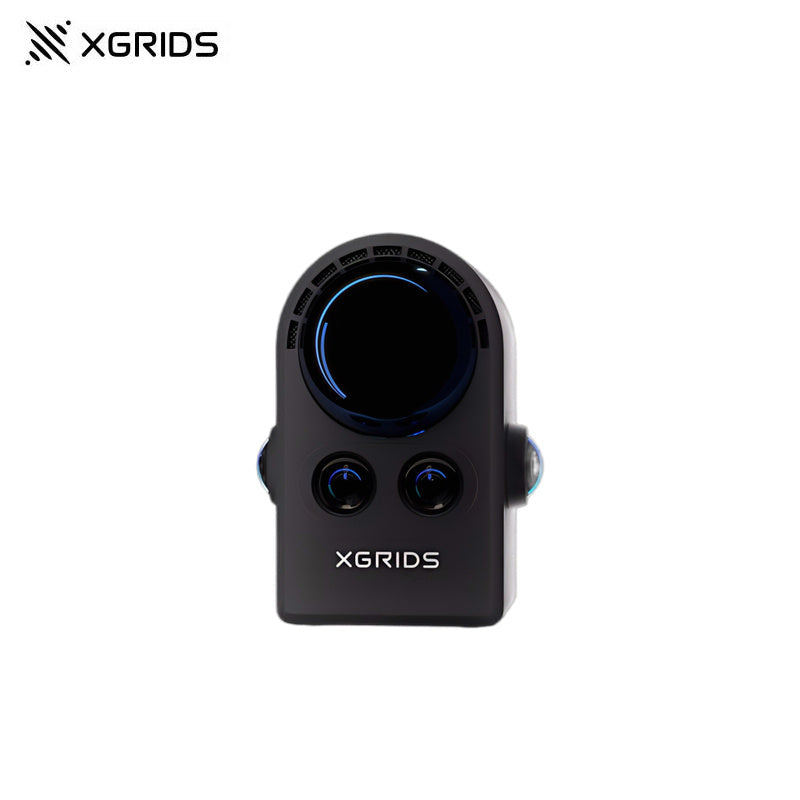

XGRIDS PortalCam | Robot Camera for Robotics & Mapping

  • Power Consumption: <19W
  • Suitable for mobile robots, autonomous platforms, robotics research, field mapping, and automation systems.
  • Designed for robot sensing workflows that require perception, localization, and environmental awareness.
  • Useful for developers building SLAM, spatial mapping, robot vision, and autonomous robotics applications.
$10,850
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

XGRIDS PortalCam product documentation for robotics integration.pdf ▶

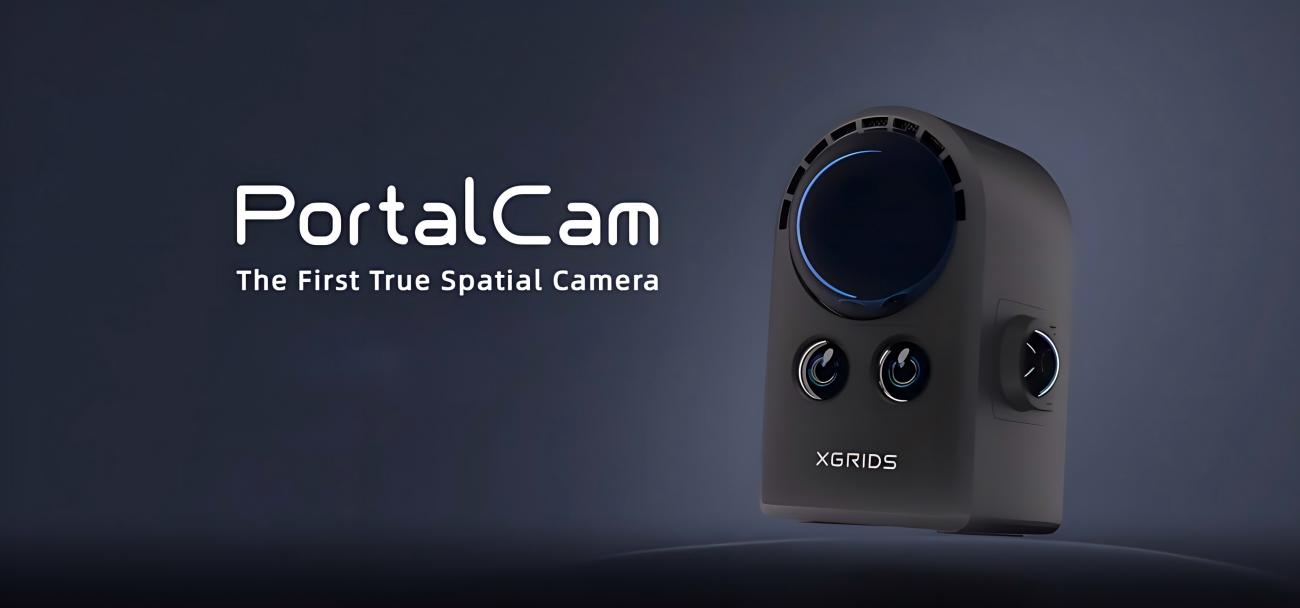

XGRIDS PortalCam | Robot Camera for Robotics & Mapping detail image 1
XGRIDS PortalCam | Robot Camera for Robotics & Mapping detail image 2

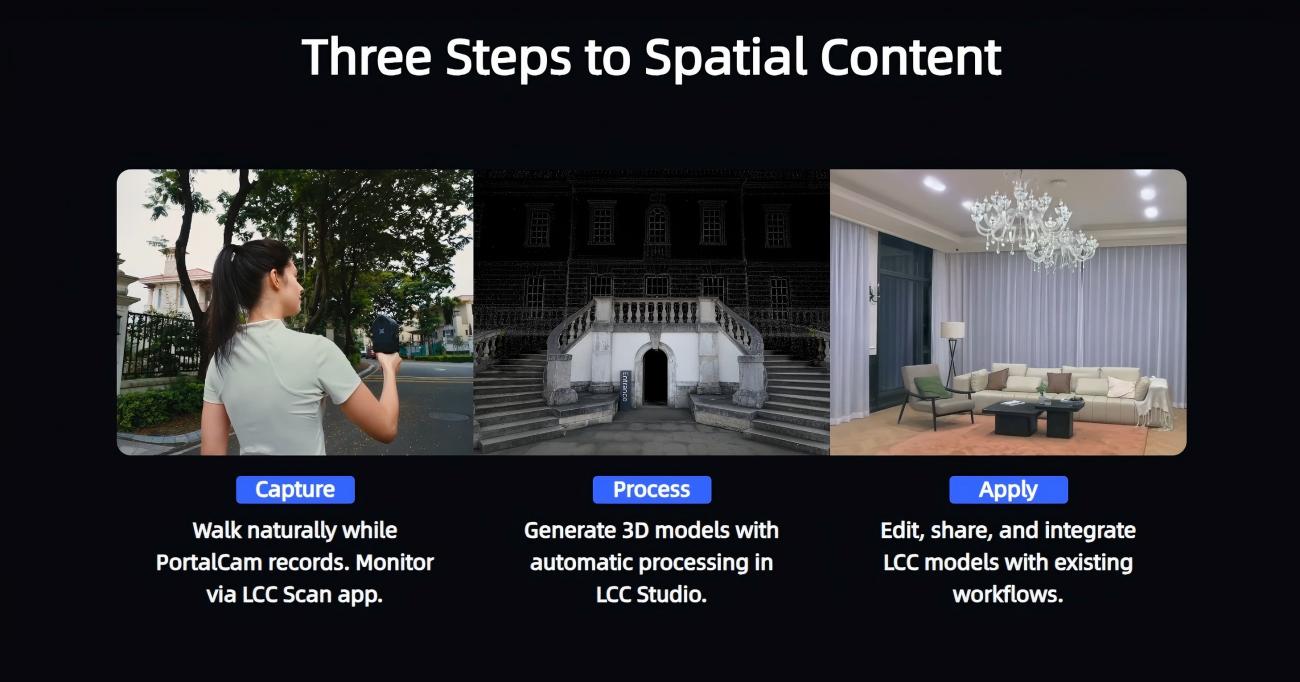

XGRIDS PortalCam | Robot Camera for Robotics & Mapping detail image 3
XGRIDS PortalCam | Robot Camera for Robotics & Mapping detail image 4
XGRIDS PortalCam | Robot Camera for Robotics & Mapping detail image 5
XGRIDS PortalCam | Robot Camera for Robotics & Mapping detail image 6
XGRIDS PortalCam | Robot Camera for Robotics & Mapping detail image 7
▤ PARAMETER ⌃
Power Consumption
<19W
Body Weight
870g (1.9 lbs) without tripod
Dimensions
130mm × 90mm × 77mm (5.1×3.5×3.0 in)
Housing Material
Aerospace-grade Aluminum Alloy
Data Interface
USB 3.0
Internal Storage
512GB
GPS Module
Supported
WiFi
802.11 a/b/g/n/ac/ax 2.4GHz: 2412-2472MHz 5GHz: 5180-5240MHz 5GHz: 5745-5825MHz
Bluetooth
5.2
Wireless Range
20m (65.6 ft)
Battery Type
Removable Li-ion
Battery Capacity
23.04Wh
Operating Time
60 minutes (continuous scanning)
Charging Time (25°C/77°F)
0-90%: 70 minutes 0-100%: 90 minutes
Operating Temperature
-20°C to 45°C (-4°F to 113°F) (indirect sunlight only)
Charging Temperature
5-30°C (41-86°F)
Laser Classification
Class 1 / 940nm
Scanning Range
0.1m-30m (4 in-98 ft) @ 10% reflectivity 60m (197 ft) @ 90% reflectivity
Field of View
180° azimuth × 180° elevation
Point Rate
856,000 points/second
Camera Configuration
4-camera array 2× Fisheye, 2× Front
Image Resolution
4000 × 3000 px
Sensor Size
1/2" CMOS
Shutter Type
Rolling Shutter
Fisheye Camera FOV
200° × 200°
Front Camera FOV
100° × 85°
Input
100-240V, 50-60Hz, 1.5A, 80VA
Output
20V, 2.0A
Rated Power
PD Protocol, >25W Standard: USB-C 45W single port Dual port: 25W + 20W
Backpack with Protective Insert
Included
Extension Pole (2m / 6.6 ft)
Optional
External Storage (512GB/1TB SSD)
Optional
