Eyevolution

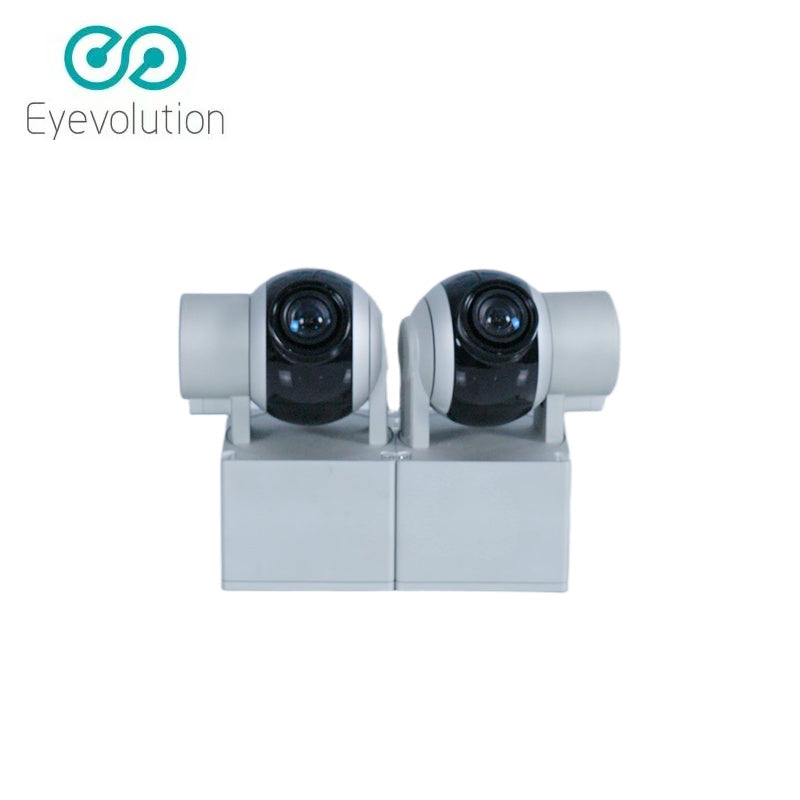

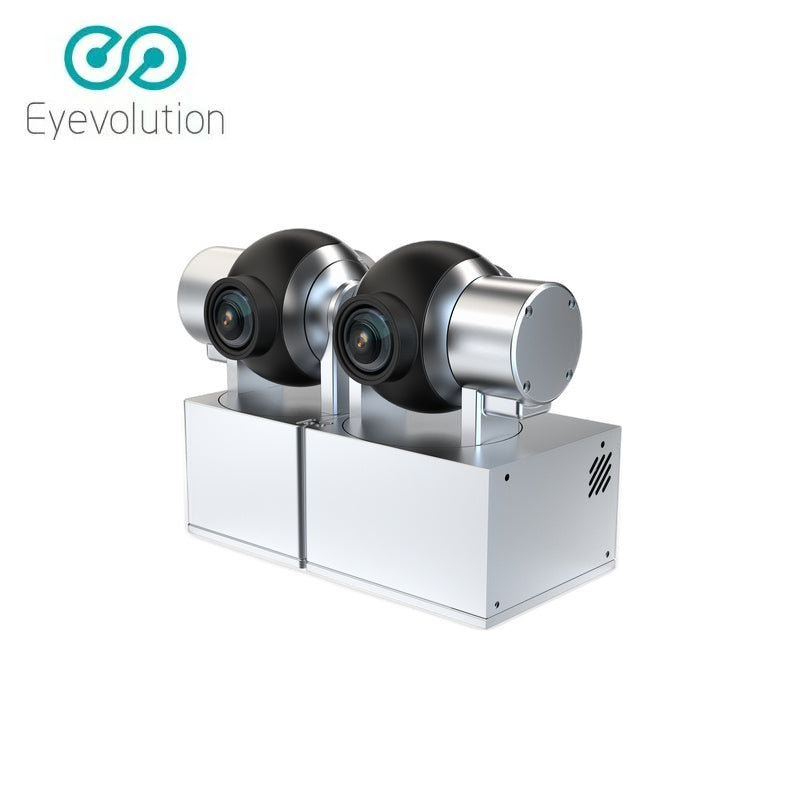

Eyevolution S520 Camera | Robot Camera for AI Vision

  • Eyevolution robot camera for AI vision, machine vision, robotics development, and automation projects.
  • Suitable for engineering teams building robot vision systems, inspection platforms, research rigs, and perception prototypes.
  • Useful for imaging, embedded perception, robot camera testing, and AI vision integration workflows when supported by the selected model.
  • Designed for practical deployment in robotics labs, automation projects, education platforms, and developer test systems.
$13,600
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

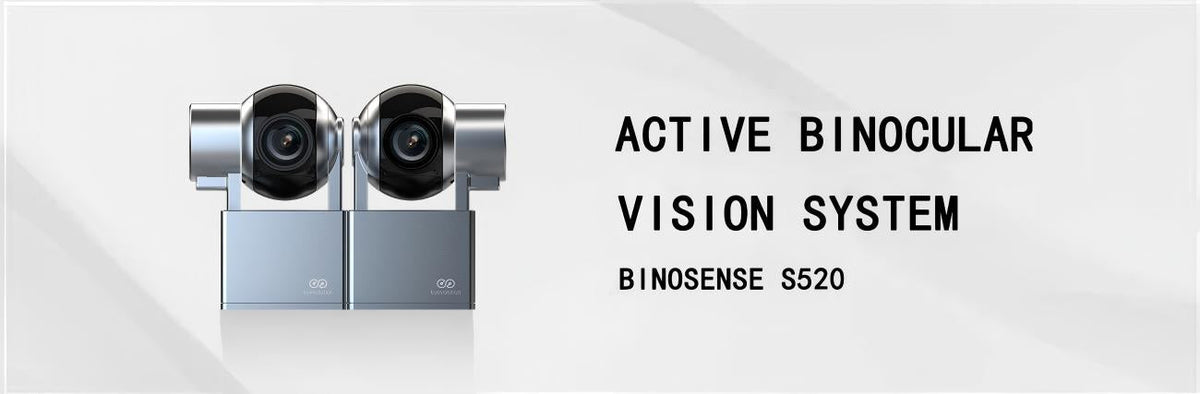

Eyevolution S520 Camera | Robot Camera for AI Vision detail image 1

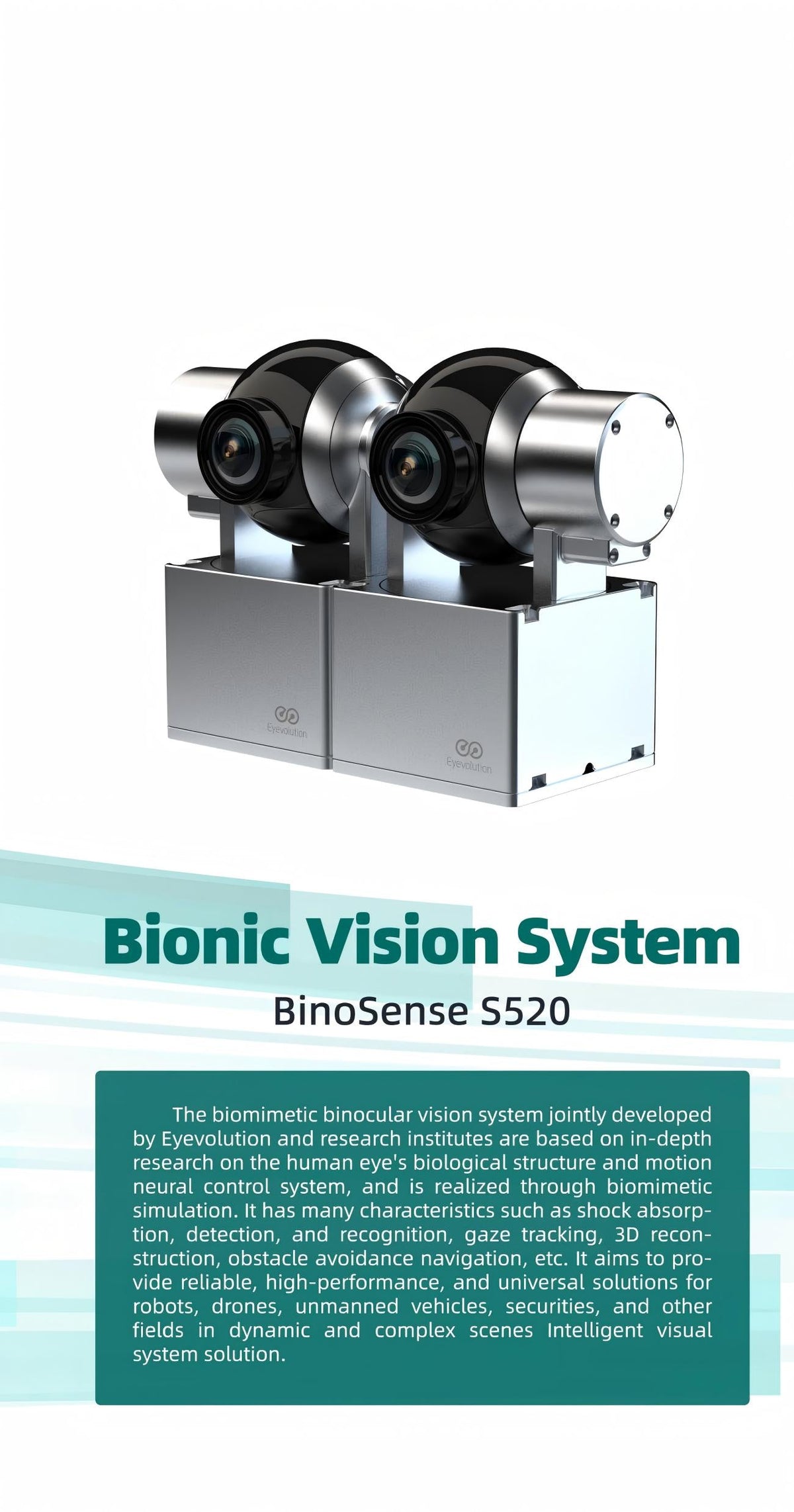

Eyevolution S520 Camera | Robot Camera for AI Vision detail image 2

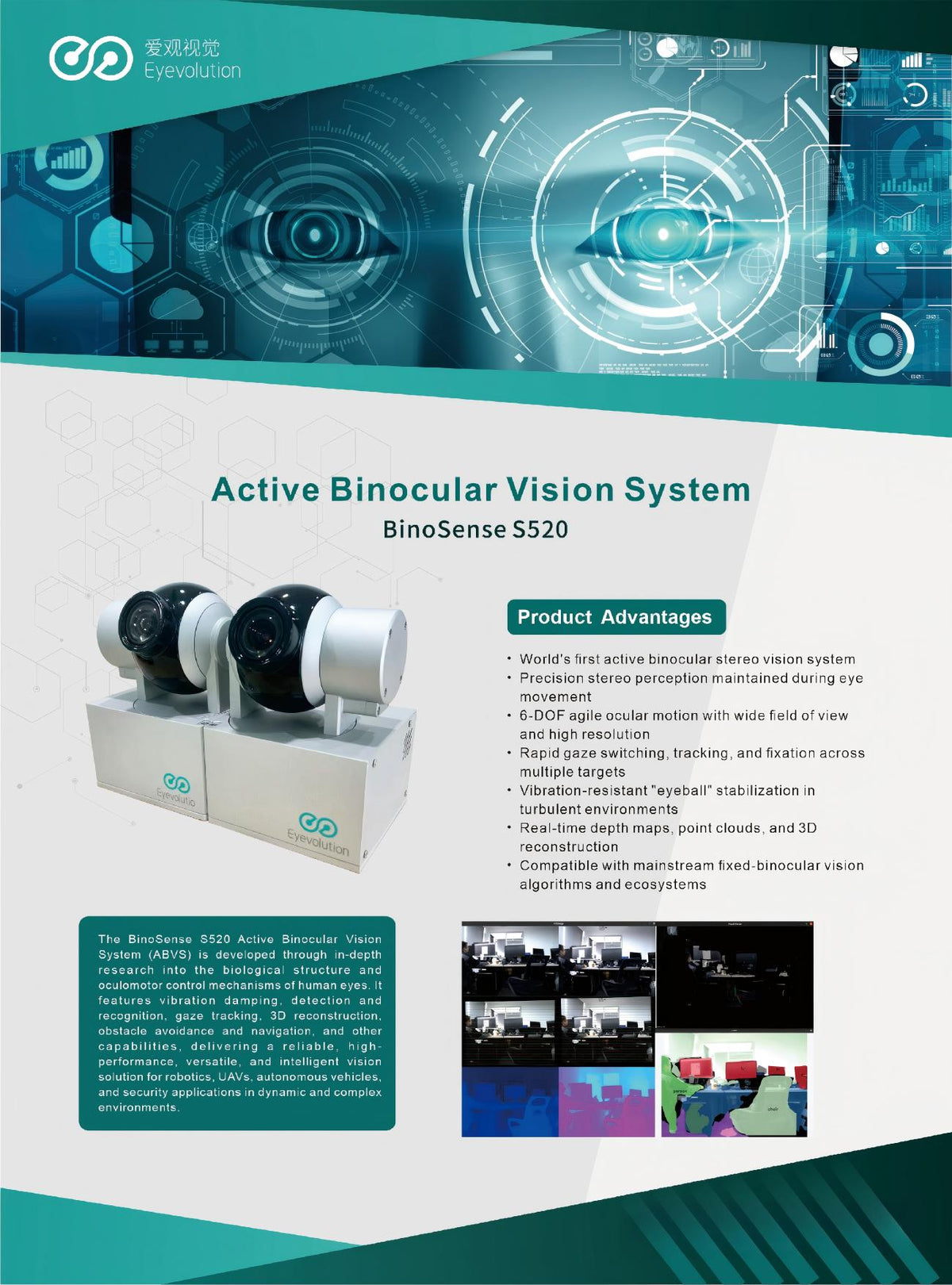

Eyevolution S520 Camera | Robot Camera for AI Vision detail image 3

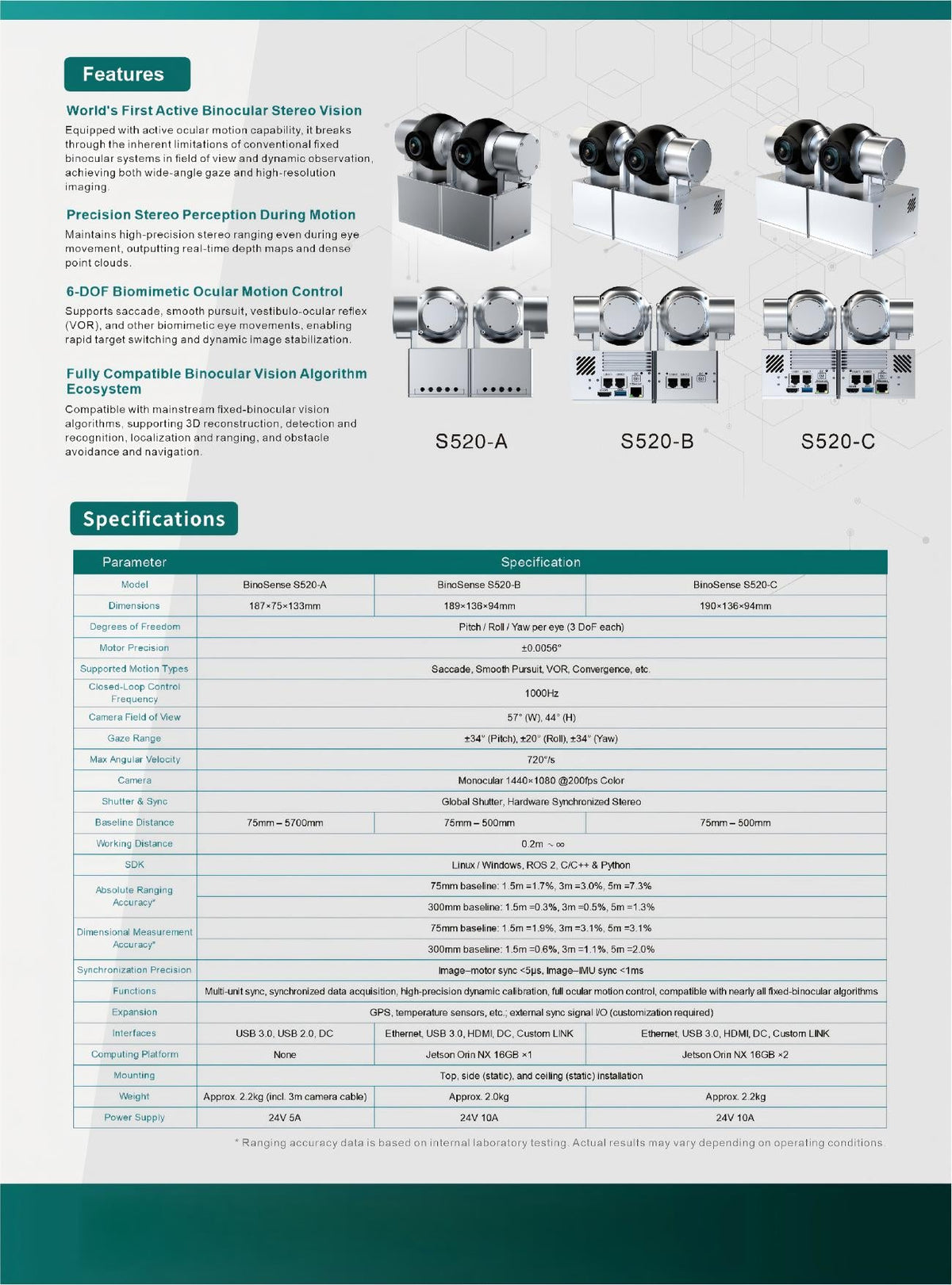

Eyevolution S520 Camera | Robot Camera for AI Vision detail image 4

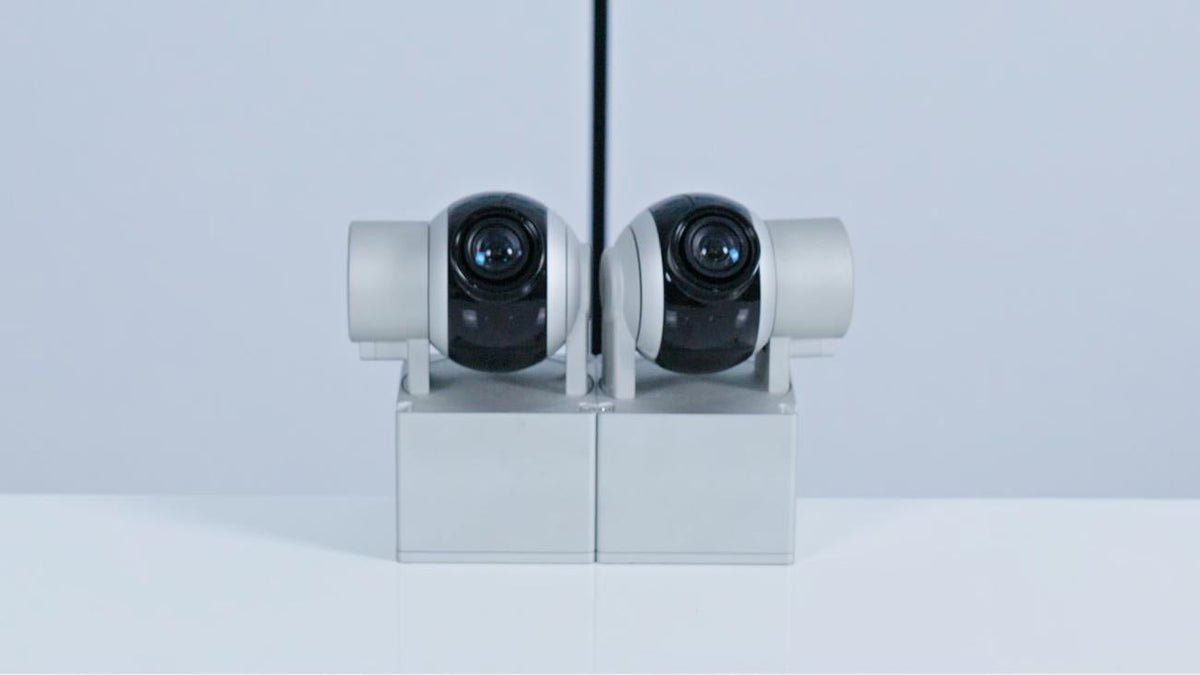

Eyevolution S520 Camera | Robot Camera for AI Vision detail image 5

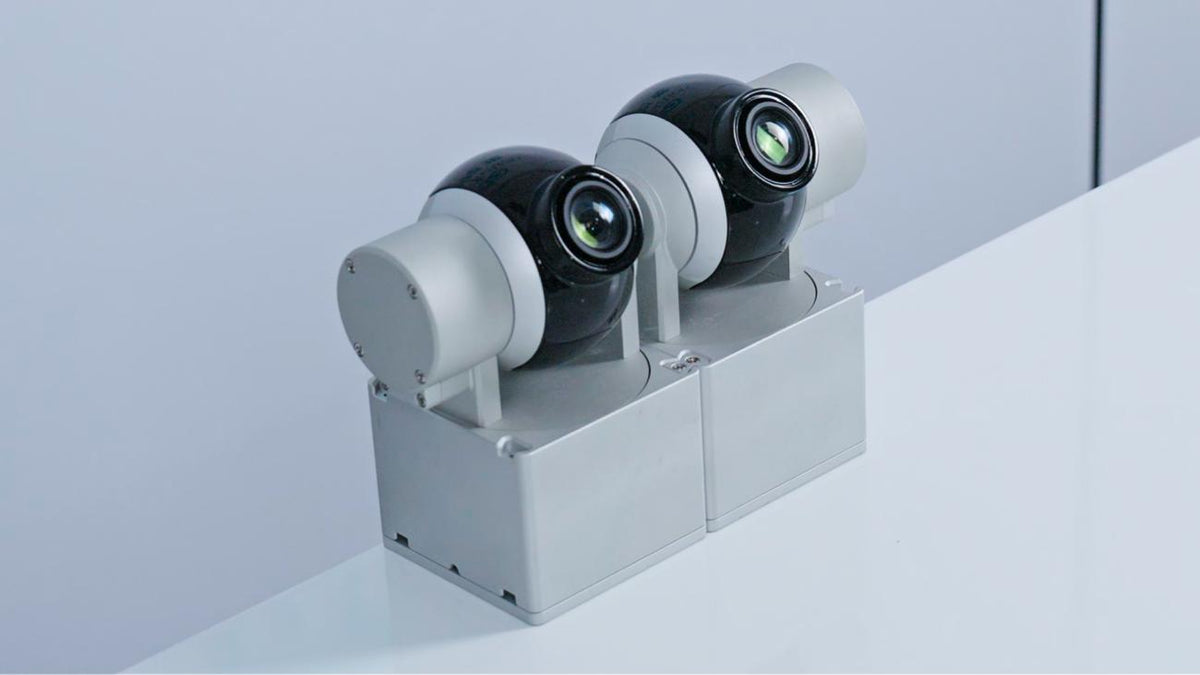

Eyevolution S520 Camera | Robot Camera for AI Vision detail image 6

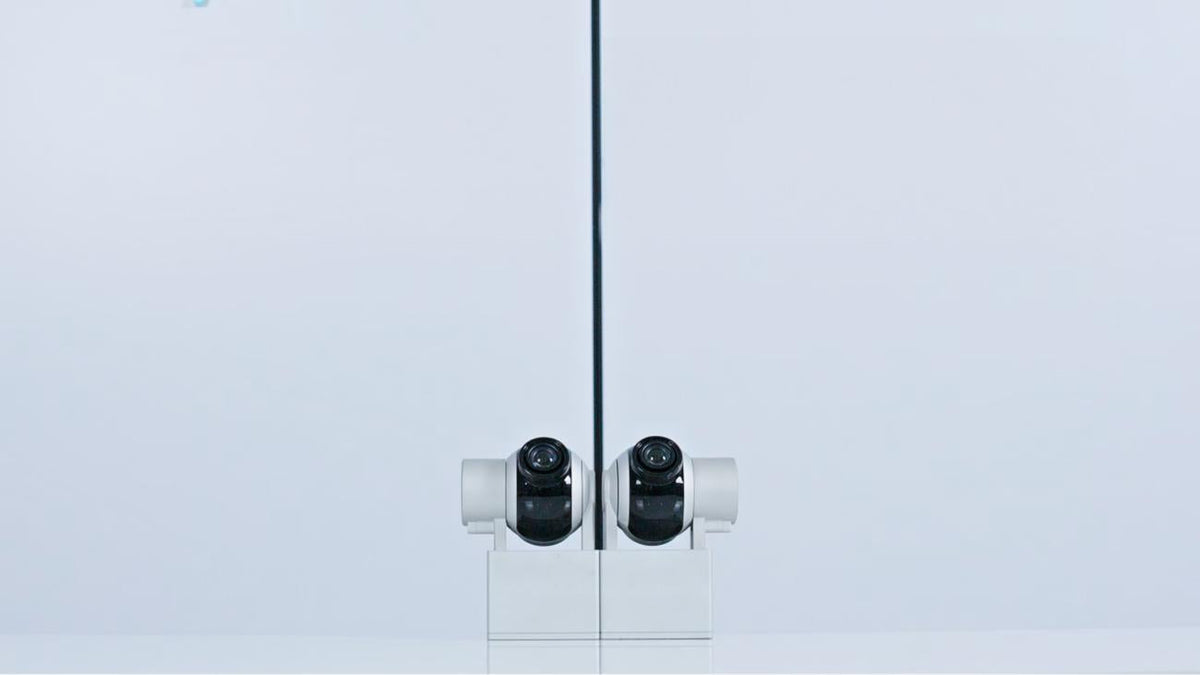

Eyevolution S520 Camera | Robot Camera for AI Vision detail image 7
▤ Technical Specifications ⌃
Parameter Value Value 3 Value 4
Model BinoSense S520‑A BinoSense S520‑B BinoSense S520‑C
Degrees of Freedom Pitch / Roll / Yaw per eye (3 DoF each)
Motor Precision ±0.0056°
Supported Motion Types Saccade, Smooth Pursuit, VOR, Convergence, etc.
Closed‑Loop Control Frequency 1000 Hz
Camera Field of View 57° (W) × 44° (H)
Gaze Range ±34° (Pitch), ±20° (Roll), ±34° (Yaw)
Max Angular Velocity 720°/s
Camera Monocular 1440 × 1080 @ 200 fps, Color
Shutter & Sync Global Shutter, Hardware Synchronized Stereo
Working Distance 0.2 m ~ ∞
SDK Linux / Windows, ROS 2, C/C++ & Python
Image‑motor sync <5 µs, Image‑IMU sync <1 ms
Functions Multi‑unit sync, synchronized data acquisition, high‑precision dynamic calibration, full ocular motion control, compatible with nearly all fixed‑binocular algorithms
Expansion GPS, temperature sensors, etc.; external sync signal I/O (customization required)
Mounting Top, side (static), and ceiling (static) installation
Dimensions 187 × 75 × 133 mm 189 × 139 × 64 mm 190 × 136 × 94 mm
Baseline Distance 75 – 5700 mm 75 – 500 mm 75 – 500 mm
Absolute Ranging Accuracy 75 mm baseline: 1.5 m = 1.7%, 3 m = 3.0%, 5 m = 7.3% 300 mm baseline: 1.5 m = 0.3%, 3 m = 0.5%, 5 m = 1.3% 75 mm baseline: 1.5 m = 1.7%, 3 m = 3.0%, 5 m = 7.3% 300 mm baseline: 1.5 m = 0.3%, 3 m = 0.5%, 5 m = 1.3% 75 mm baseline: 1.5 m = 1.7%, 3 m = 3.0%, 5 m = 7.3% 300 mm baseline: 1.5 m = 0.3%, 3 m = 0.5%, 5 m = 1.3%
Dimension Measurement Accuracy 75 mm baseline: 1.5 m = 1.9%, 3 m = 3.1%, 5 m = 3.1% 300 mm baseline: 1.5 m = 0.6%, 3 m = 1.1%, 5 m = 2.0% 75 mm baseline: 1.5 m = 1.9%, 3 m = 3.1%, 5 m = 3.1% 300 mm baseline: 1.5 m = 0.6%, 3 m = 1.1%, 5 m = 2.0% 75 mm baseline: 1.5 m = 1.9%, 3 m = 3.1%, 5 m = 3.1% 300 mm baseline: 1.5 m = 0.6%, 3 m = 1.1%, 5 m = 2.0%
Interfaces USB 3.0, USB 2.0, DC Ethernet, USB 3.0, HDMI, DC, Custom LINK Ethernet, USB 3.0, HDMI, DC, Custom LINK
Computing Platform None Jetson Orin NX 16 GB ×1 Jetson Orin NX 16 GB ×2
Weight Approx. 2.2 kg (incl. 3 m camera cable) Approx. 2.0 kg Approx. 2.2 kg
Power Supply 24 V 5 A 24 V 10 A 24 V 10 A
