CmdRob M90 Motor

  • CmdRob motor for robot joint development, actuator integration, and automation hardware.
  • Available configurations support compact servo actuator and motion-control component selection.
  • Suitable for engineering teams building robot joints, test platforms, automation systems, and lab prototypes.
  • Designed for practical robot hardware integration where reliable motion components matter.
$670
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CmdRob M90 Motor dimension drawing for installation reference.pdf ▶ CmdRob M90 Motor dimension drawing for installation reference.pdf ▶ CmdRob M90 Motor CAD model for mechanical integration.stp ▶ CmdRob M90 Motor CAD model for mechanical integration.stp ▶

CmdRob M90 Motor

The CmdRob M90 Motor is a CmdRob motor for robotics development, robot joint hardware, actuator systems, automation projects, and engineering lab integration.

Features

  • **Robot joint integration:** Suitable for servo systems, actuator builds, and motion hardware.
  • **Configuration options:** Supports model selection for robot actuator and motion-control development.
  • **Engineering use:** Designed for robotics developers, automation engineers, education labs, and prototype teams.
  • **Component-focused design:** Useful for compact robot hardware and integrated motor applications.

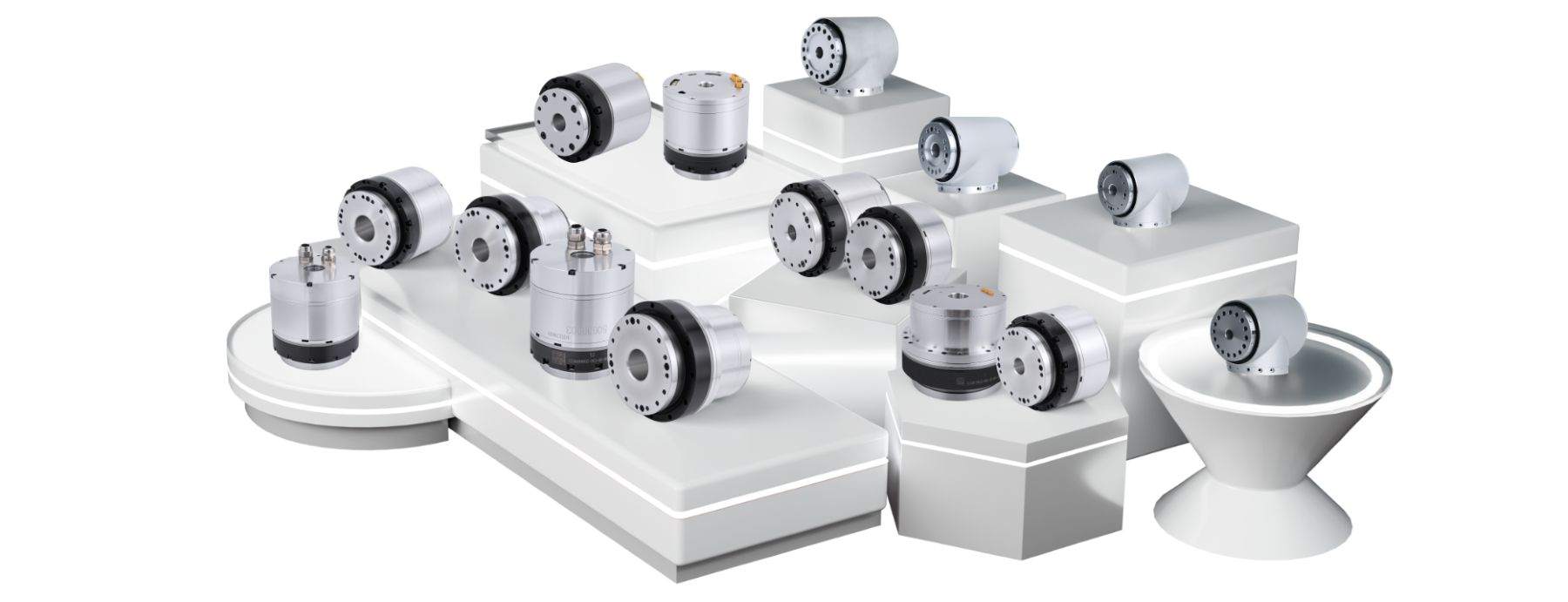

CmdRob M90 Motor detail image 1

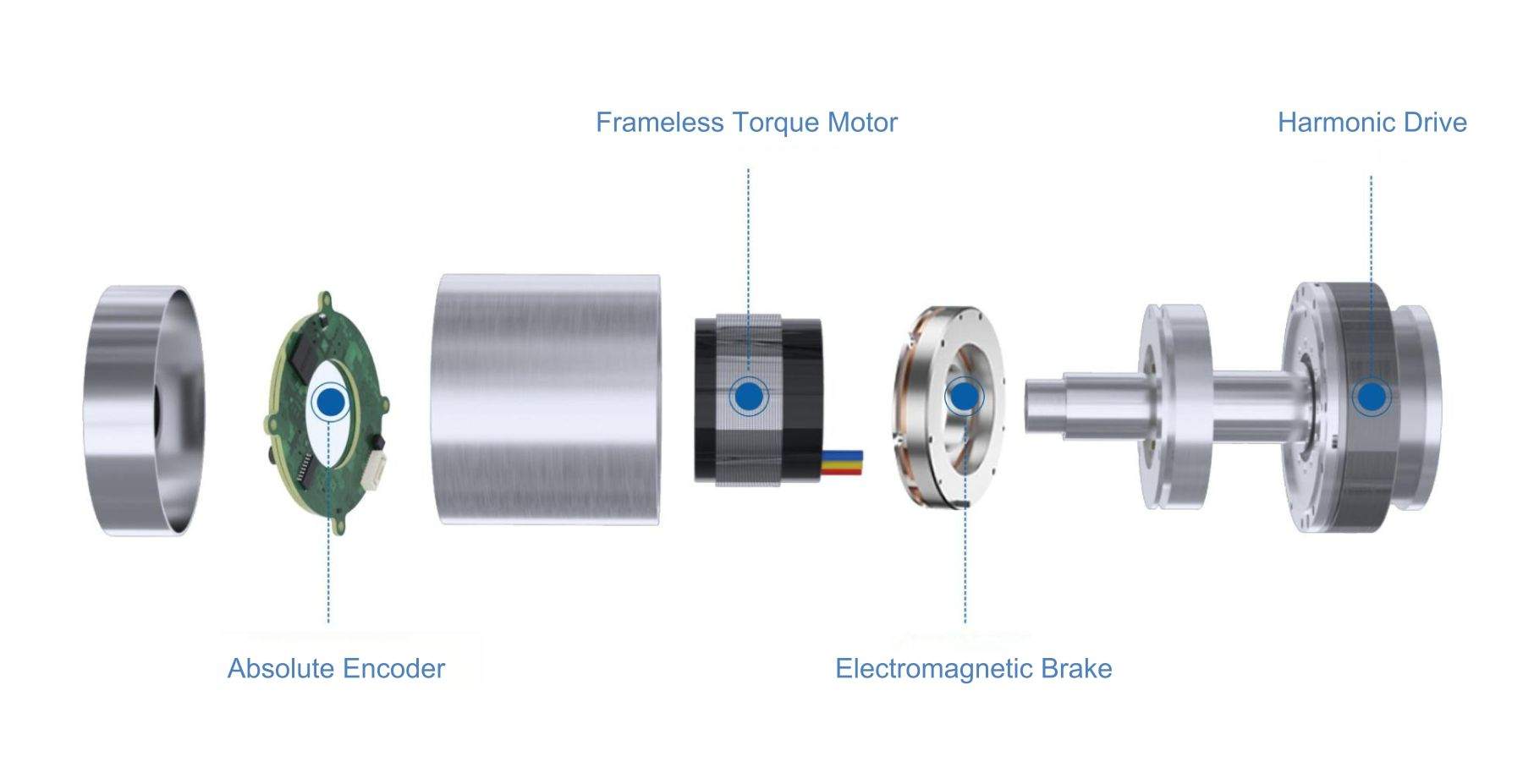

CmdRob M90 Motor detail image 2
CmdRob M90 Motor detail image 3
CmdRob M90 Motor detail image 4
CmdRob M90 Motor detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Reduction Ratio
M90: 51 M90: 81 M90: 101 M90: 121
Input Voltage
M90: 220 (±10%)V M90: 220 (±10%)V M90: 220 (±10%)V M90: 220 (±10%)V
Maximum Torque
M90: 127N.m M90: 165N.m M90: 191N.m M90: 191N.m
12.96kgf.m
M90: 16.83kgf.m M90: 19.49kgf.m M90: 19.49kgf.m
Average Load Torque
M90: 44N.m M90: 61N.m M90: 64N.m M90: 64N.m
4.49kgf.m
M90: 6.22kgf.m M90: 6.53kgf.m M90: 6.53kgf.m
Start-Stop Peak Torque
M90: 73N.m M90: 96N.m M90: 107N.m M90: 113N.m
7.45kgf.m
M90: 9.79kgf.m M90: 10.92kgf.m M90: 11.53kgf.m
Maximum Speed
M90: 118r/min M90: 75r/min M90: 60r/min M90: 50r/min
Rated Speed
M90: 59r/min M90: 37r/min M90: 30r/min M90: 25r/min
Motor Torque Constant
M90: 0.40N·m/A M90: 0.40N·m/A M90: 0.40N·m/A M90: 0.40N·m/A
0.041kgf·m/A
M90: 0.041kgf·m/A M90: 0.041kgf·m/A M90: 0.041kgf·m/A
Maximum Current
M90: 5.17A M90: 4.28A M90: 3.82A M90: 3.37A
Allowable Continuous Current
M90: 3.11A M90: 2.72A M90: 2.29A M90: 1.91A
Back EMF Constant
M90: 26.72V/krpm M90: 26.72V/krpm M90: 26.72V/krpm M90: 26.72V/krpm
Phase Resistance (20°C)
M90: 1.56Ω M90: 1.56Ω M90: 1.56Ω M90: 1.56Ω
Phase Inductance
M90: 3.67mH M90: 3.67mH M90: 3.67mH M90: 3.67mH
Moment of Inertia
M90: 116(kg·mm²) M90: 116(kg·mm²) M90: 116(kg·mm²) M90: 116(kg·mm²)
116*10^-4(kgf·cm·s²)
M90: 116*10^-4(kgf·cm·s²) M90: 116*10^-4(kgf·cm·s²) M90: 116*10^-4(kgf·cm·s²)
Repeatable Positioning Accuracy(1)
M90: 20arc-sec M90: 20arc-sec M90: 20arc-sec M90: 20arc-sec
Positioning Accuracy(2)
M90: 60arc-sec M90: 60arc-sec M90: 60arc-sec M90: 60arc-sec
Encoder Communication Protocol
M90: BISS / TAMAGAWA M90: BISS / TAMAGAWA M90: BISS / TAMAGAWA M90: BISS / TAMAGAWA
Encoder Communication Interface
M90: BISS-C / TAMAGAWA M90: BISS-C / TAMAGAWA M90: BISS-C / TAMAGAWA M90: BISS-C / TAMAGAWA
Encoder Resolution(Single-turn)
M90: 17-bit (131,072 pulses/rev) M90: 17-bit (131,072 pulses/rev) M90: 17-bit (131,072 pulses/rev) M90: 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn)
M90: 16-bit (-32,768 to +32,767 revs) M90: 16-bit (-32,768 to +32,767 revs) M90: 16-bit (-32,768 to +32,767 revs) M90: 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution
M90: 6,684,672pulses/rev M90: 10,616,832pulses/rev M90: 13,238,272pulses/rev M90: 15,859,712pulses/rev
Mass
M90: 1.9 KG M90: 1.9 KG M90: 1.9 KG M90: 1.9 KG
Ambient Environmental Conditions
M90: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M90: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M90: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M90: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m
Design Life
M90: 10000 M90: 15000 M90: 15000 M90: 15000
Motor Insulation
M90: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M90: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M90: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M90: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C)
Mounting Orientation
M90: Omnidirectional Mounting M90: Omnidirectional Mounting M90: Omnidirectional Mounting M90: Omnidirectional Mounting
Protection Rating
M90: Totally Enclosed, Non-Ventilated (IP54) M90: Totally Enclosed, Non-Ventilated (IP54) M90: Totally Enclosed, Non-Ventilated (IP54) M90: Totally Enclosed, Non-Ventilated (IP54)
