CmdRob

CmdRob L70I Motor

  • CmdRob motor for robot joint development, actuator integration, and automation hardware.
  • Available configurations support compact servo actuator and motion-control component selection.
  • Suitable for engineering teams building robot joints, test platforms, automation systems, and lab prototypes.
  • Designed for practical robot hardware integration where reliable motion components matter.
$920
Version
Reduction Ratio
Bus communication protocol

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CmdRob L70I Motor dimension drawing for installation reference.pdf ▶ CmdRob L70I Motor dimension drawing for installation reference.pdf ▶ CmdRob L70I Motor CAD model for mechanical integration.stp ▶ CmdRob L70I Motor CAD model for mechanical integration.stp ▶

CmdRob L70I Motor

The CmdRob L70I Motor is a CmdRob motor for robotics development, robot joint hardware, actuator systems, automation projects, and engineering lab integration.

Features

  • **Robot joint integration:** Suitable for servo systems, actuator builds, and motion hardware.
  • **Configuration options:** Supports model selection for robot actuator and motion-control development.
  • **Engineering use:** Designed for robotics developers, automation engineers, education labs, and prototype teams.
  • **Component-focused design:** Useful for compact robot hardware and integrated motor applications.

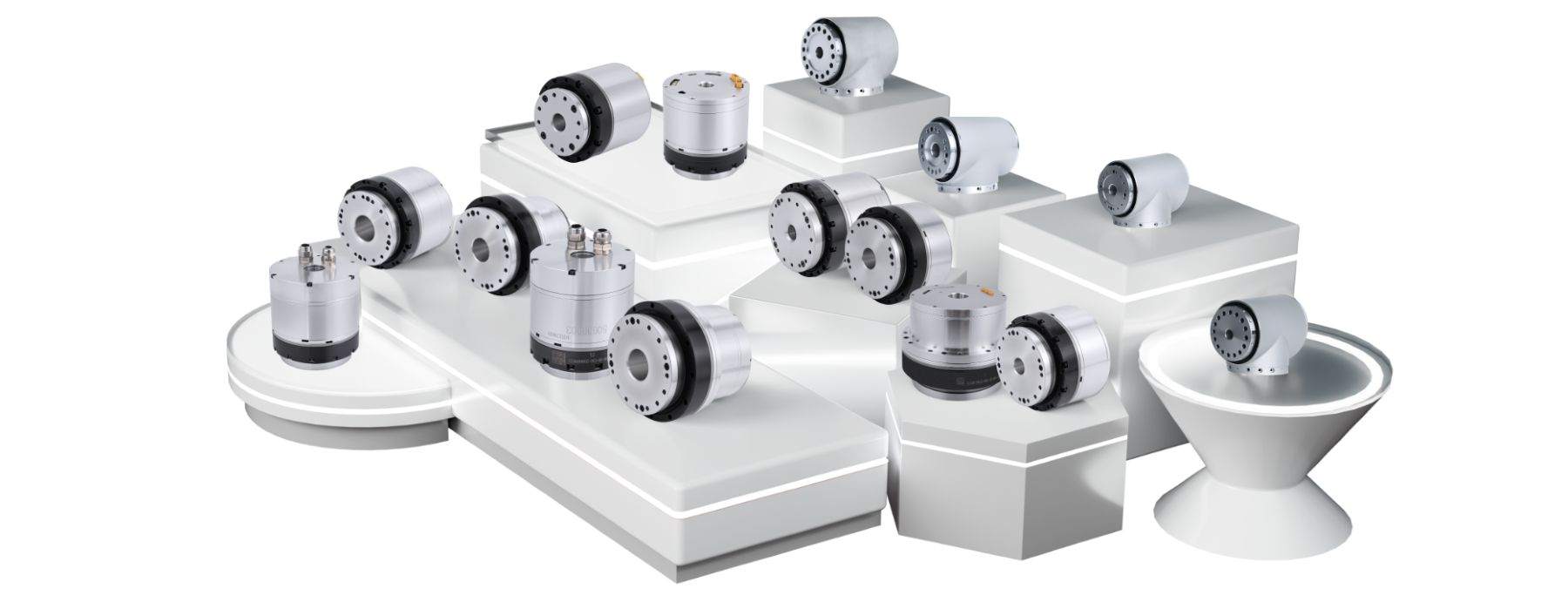

CmdRob L70I Motor detail image 1

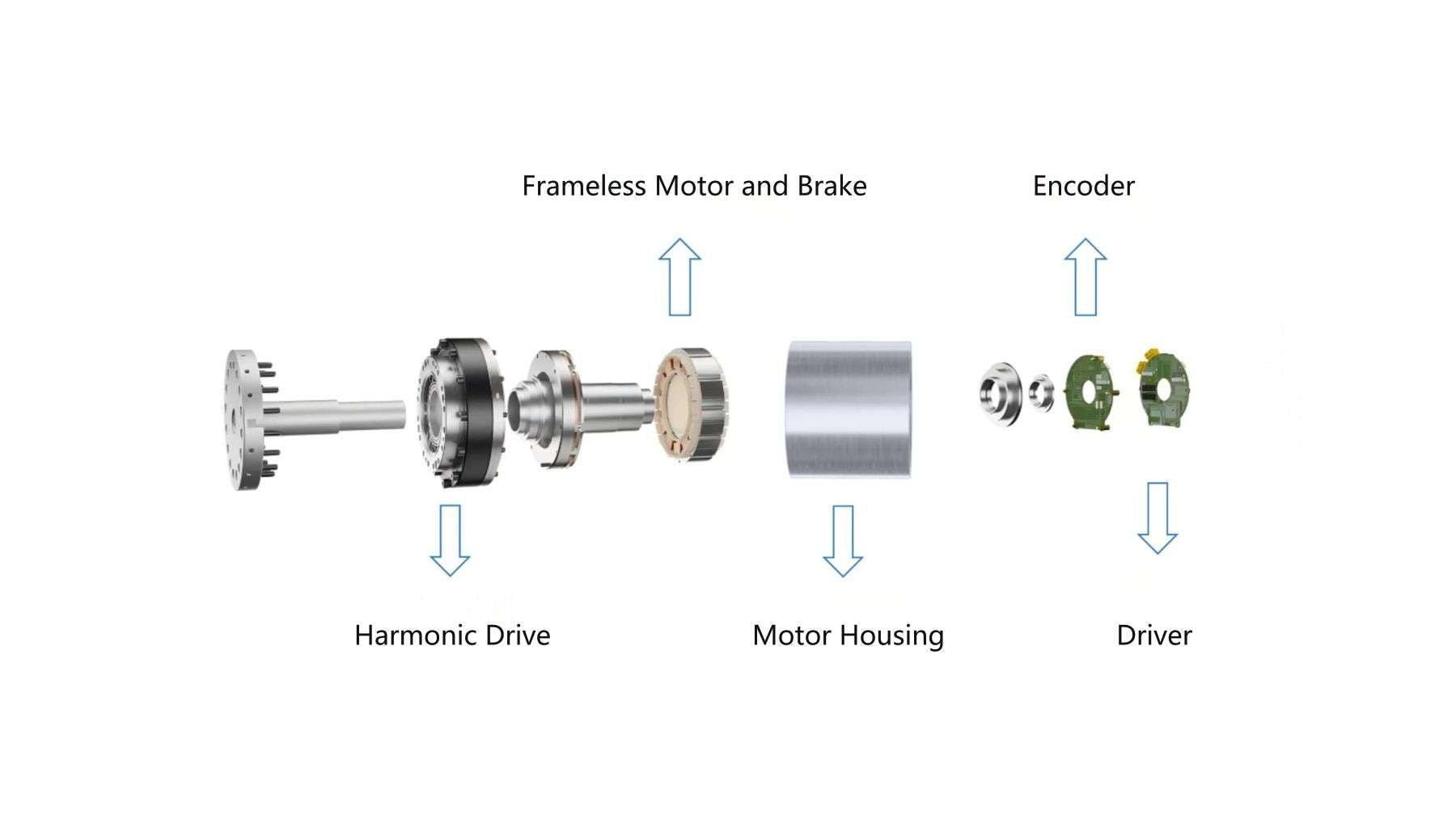

CmdRob L70I Motor detail image 2
CmdRob L70I Motor detail image 3
CmdRob L70I Motor detail image 4
CmdRob L70I Motor detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Reduction Ratio
L70I: 51 L70I: 81 L70I: 101
Input Voltage
L70I: 48 (±10%)V L70I: 48 (±10%)V L70I: 48 (±10%)V
Maximum Torque
L70I: 46N.m L70I: 61N.m L70I: 70N.m
4.69kgf.m
L70I: 6.22kgf.m L70I: 7.14kgf.m
Average Load Torque
L70I: 9N.m L70I: 14N.m L70I: 14N.m
0.92kgf.m
L70I: 1.43kgf.m L70I: 1.43kgf.m
Start-Stop Peak Torque
L70I: 23N.m L70I: 30N.m L70I: 36N.m
2.35kgf.m
L70I: 3.06kgf.m L70I: 3.67kgf.m0
Maximum Speed
L70I: 107.8r/min L70I: 67.9r/min L70I: 54.5r/min
Rated Speed
L70I: 58.8r/min L70I: 37.0r/min L70I: 29.7r/min
Motor Torque Constant
L70I: 0.08N·m/A L70I: 0.08N·m/A L70I: 0.08N·m/A
0.0082kgf·m/A
L70I: 0.0082kgf·m/A L70I: 0.0082kgf·m/A
Maximum Current
L70I: 8.25A L70I: 6.77A L70I: 6.52A
Allowable Continuous Current
L70I: 3.23A L70I: 3.16A L70I: 2.53A
Back EMF Constant
L70I: 6.15V/krpm L70I: 6.15V/krpm L70I: 6.15V/krpm
Phase Resistance (20°C)
L70I: 0.39Ω L70I: 0.39Ω L70I: 0.39Ω
Phase Inductance
L70I: 0.3mH L70I: 0.3mH L70I: 0.3mH
Moment of Inertia
L70I: 37.6(kg·mm²) L70I: 37.6(kg·mm²) L70I: 37.6(kg·mm²)
37.6*10^-4(kgf·cm·s²)
L70I: 37.6*10^-4J(kgf·cm·s²) L70I: 37.6*10^-4J(kgf·cm·s²)
Repeatable Positioning Accuracy(1)
L70I: 20arc-sec L70I: 20arc-sec L70I: 20arc-sec
Positioning Accuracy(2)
L70I: 60arc-sec L70I: 60arc-sec L70I: 60arc-sec
Bus Communication Protocol
L70I: Canopen / EtherCAT L70I: Canopen / EtherCAT L70I: Canopen / EtherCAT
Encoder Resolution(Single-turn)
L70I: 17-bit (131,072 pulses/rev) L70I: 17-bit (131,072 pulses/rev) L70I: 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn)
L70I: 16-bit (-32,768 to +32,767 revs) L70I: 16-bit (-32,768 to +32,767 revs) L70I: 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution
L70I: 6,684,672pulses/rev L70I: 10,616,832pulses/rev L70I: 13,238,272pulses/rev
Mass
L70I: 1.4KG L70I: 1.4KG L70I: 1.4KG
Ambient Environmental Conditions
L70I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L70I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m L70I: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m
Design Life（H）
L70I: 10000 L70I: 10000 L70I: 10000
Motor Insulation
L70I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L70I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) L70I: Insulation Resistance: 500 MΩ or greater Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C)
Mounting Orientation
L70I: Omnidirectional Mounting L70I: Omnidirectional Mounting L70I: Omnidirectional Mounting
Protection Rating
L70I: Totally Enclosed, Non-Ventilated (IP54) L70I: Totally Enclosed, Non-Ventilated (IP54) L70I: Totally Enclosed, Non-Ventilated (IP54)
