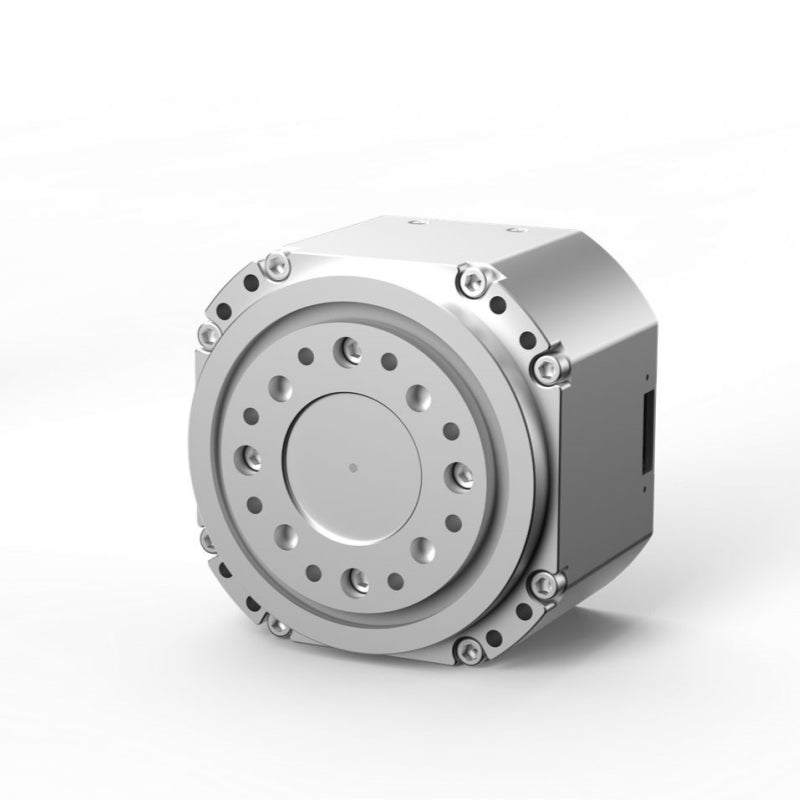

HIGH TORQUE HTDW-7535-02-CNE Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and advanced robotics research platforms.
  • Compact planetary joint module with integrated motor and gearbox design.
  • 35:1 reduction ratio delivers high torque output for robotic motion control.
  • Cross roller bearing structure improves joint rigidity and load performance.
  • CANFD/CAN communication supports flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTDW-7535-02-CNE Planetary Joint Module

The HIGH TORQUE HTDW-7535-02-CNE is a high-performance planetary joint module designed for humanoid robots, robotic arms, and advanced robotics platforms. It integrates a motor, planetary gearbox, cross roller bearing structure, encoder feedback system, and communication interface into a compact actuator solution, providing strong torque output and precise motion control for robotics development and research applications.

High Torque Joint Module Design

The HTDW-7535-02-CNE features a compact 75 × 56 mm structure with an integrated motor and gearbox design. Its optimized mechanical design provides a balance between torque capability, installation efficiency, and system integration for robotic joints.

35:1 Planetary Reduction System

Equipped with a 35:1 reduction ratio, the module provides efficient torque transmission for robotic motion applications. It delivers 18 Nm rated torque and up to 60 Nm locked-rotor torque, making it suitable for robotic systems requiring higher torque output and stable joint performance.

Cross Roller Bearing Structure

The HTDW-7535-02-CNE adopts a cross roller bearing structure to improve joint rigidity and mechanical stability. This design supports reliable operation in robotic applications that require accurate positioning and consistent load handling performance.

High-Precision Encoder Feedback

The integrated encoder system provides 14-bit input and output encoder resolution, enabling precise position feedback and responsive joint control. It supports accurate motion control for humanoid robots, robotic arms, and robotics research platforms.

CANFD/CAN Communication Integration

Supporting CANFD/CAN communication with up to 3 kHz control frequency, the HTDW-7535-02-CNE allows flexible integration with robotic controllers and embedded systems. It is suitable for robotics engineers developing humanoid robots, educational robotics platforms, and advanced automation systems.

HIGH TORQUE HTDW-7535-02-CNE Planetary Joint Module
▤ PARAMETER ⌃

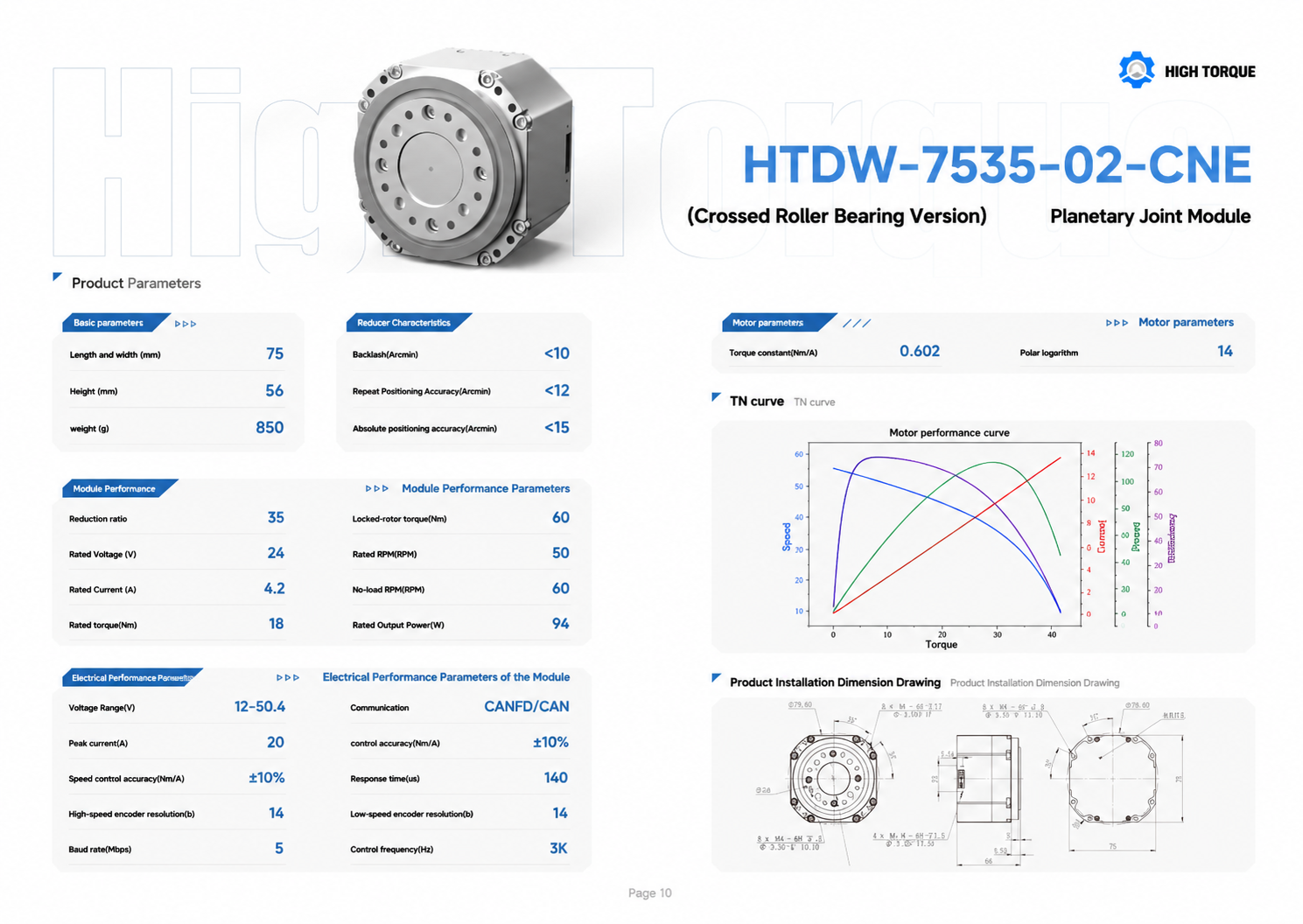

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 75 mm
Height 56 mm
Weight 850 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 35
Rated Voltage 24 V
Rated Current 4.2 A
Rated Torque 18 Nm
Locked-Rotor Torque 60 Nm
Rated RPM 50 RPM
No-Load RPM 60 RPM
Rated Output Power 94 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 20 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
