OYMotion

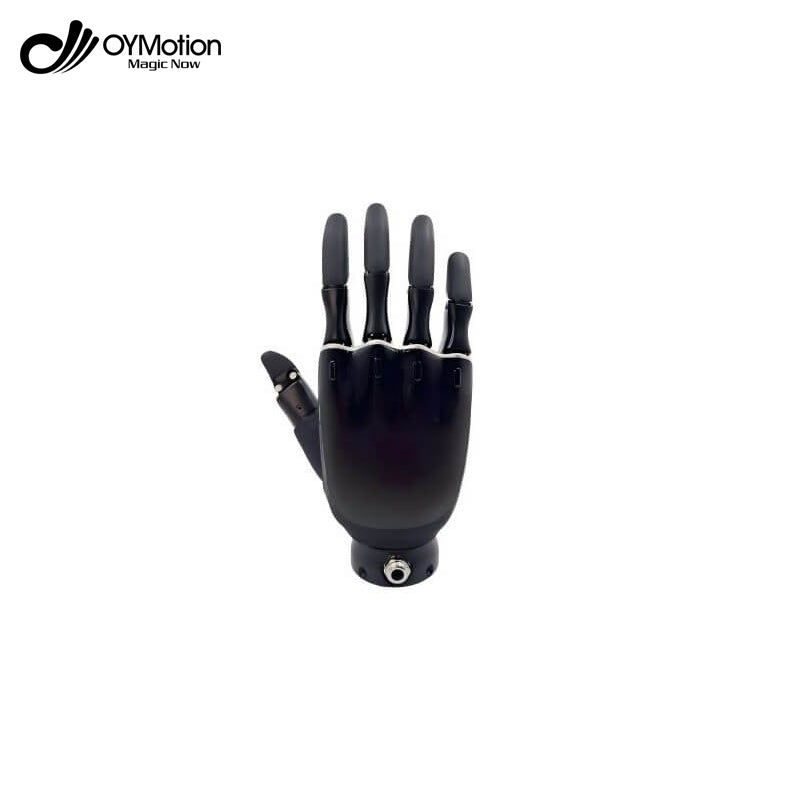

OYMotion ROH-AP001 Dexterous Hand

  • OYMotion ROH-AP001 Dexterous Hand for dexterous manipulation, humanoid robotics, and embodied AI research.
  • Suitable for robotics developers, research labs, education teams, and teleoperation projects.
  • Designed for robotic hand integration in grasping, interaction, and automation workflows.
  • Useful for prototyping robot manipulation, hand control, and human robot interaction applications.
$15,000
Version
Model
Color

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OYMotion ROH-AP001 Dexterous Hand product documentation for robotics integration.pdf ▶

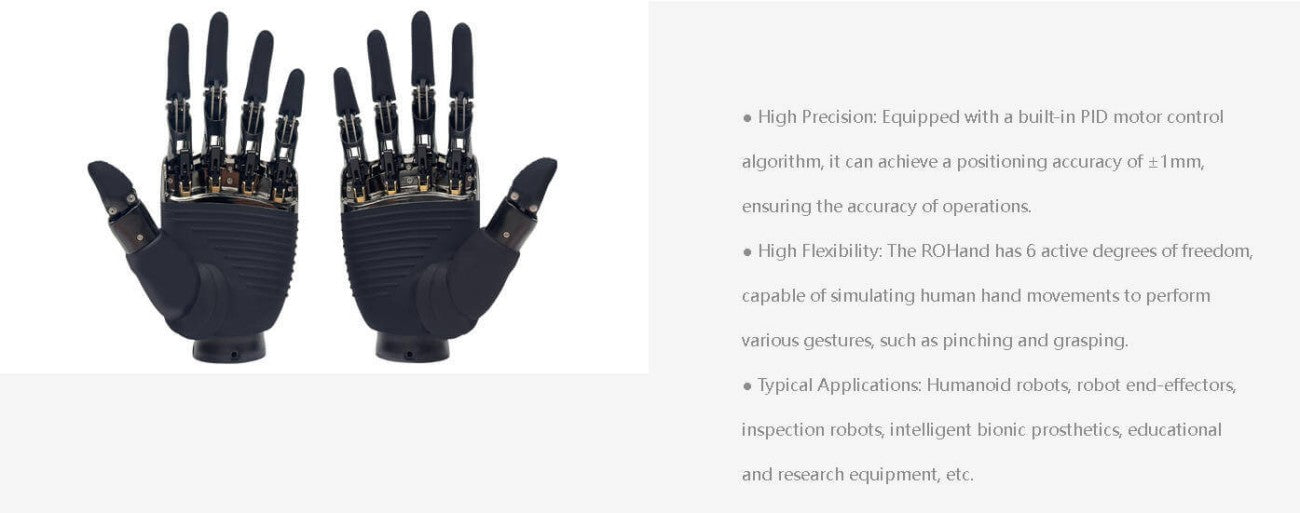

OYMotion ROH-AP001 Dexterous Hand detail image 1

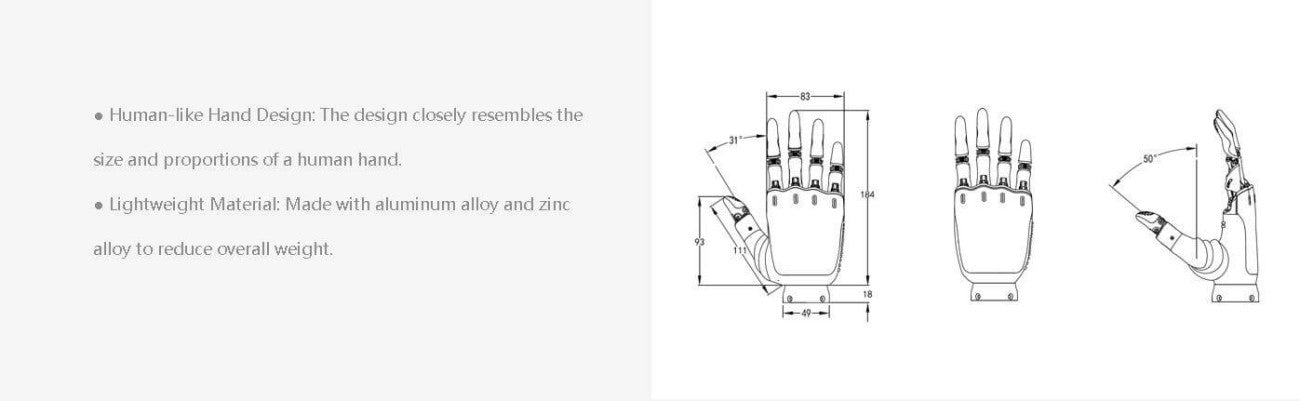

OYMotion ROH-AP001 Dexterous Hand detail image 2

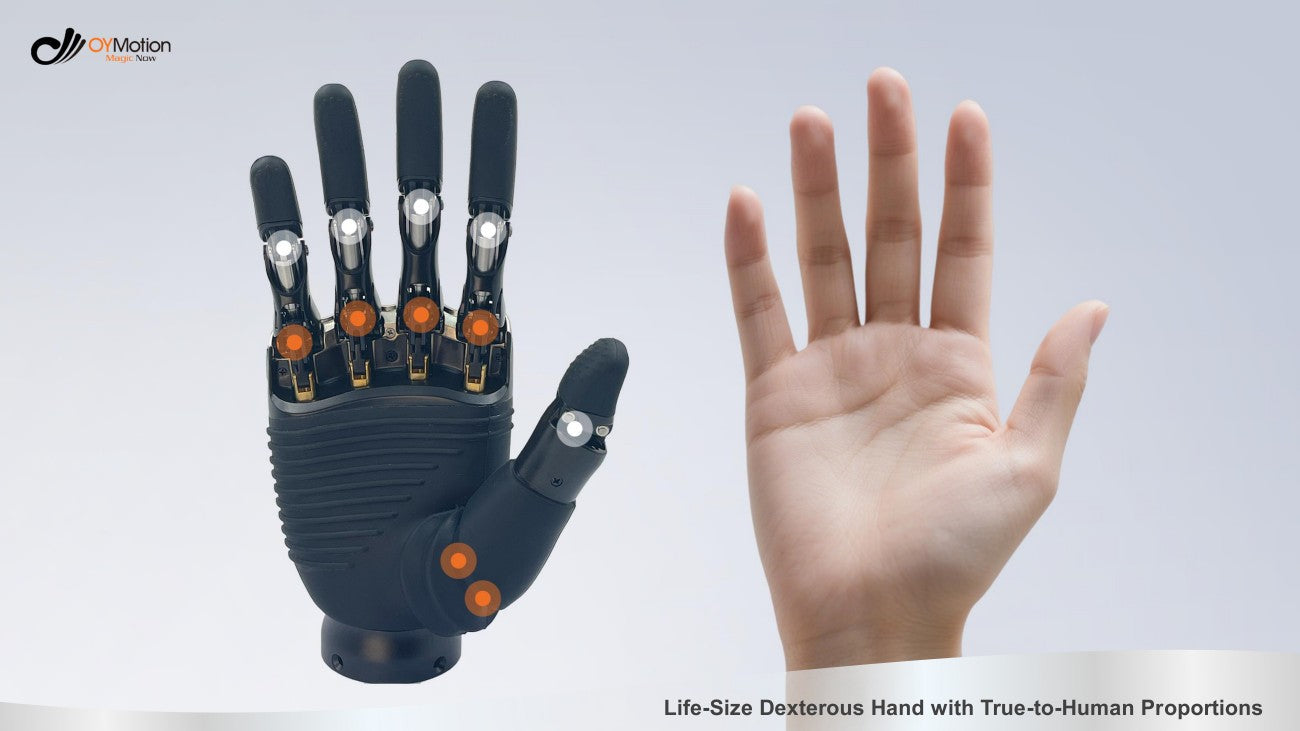

OYMotion ROH-AP001 Dexterous Hand detail image 3

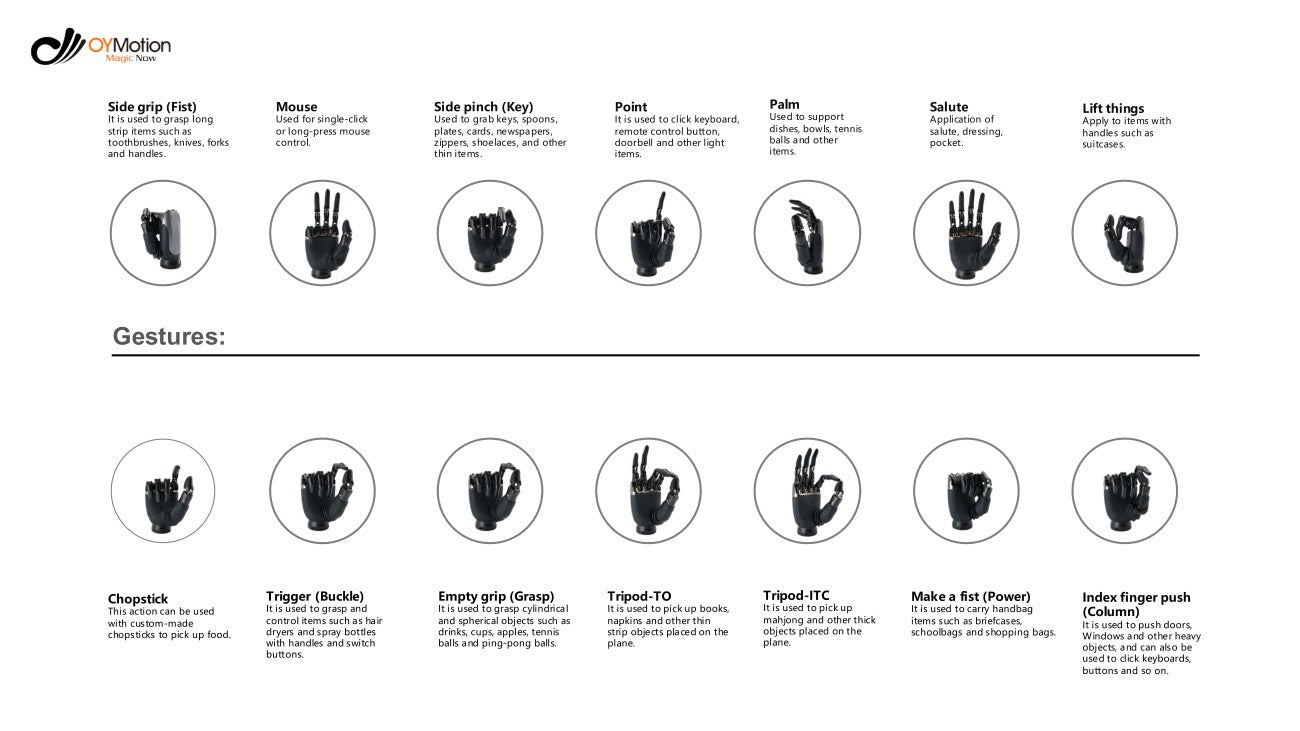

OYMotion ROH-AP001 Dexterous Hand detail image 4

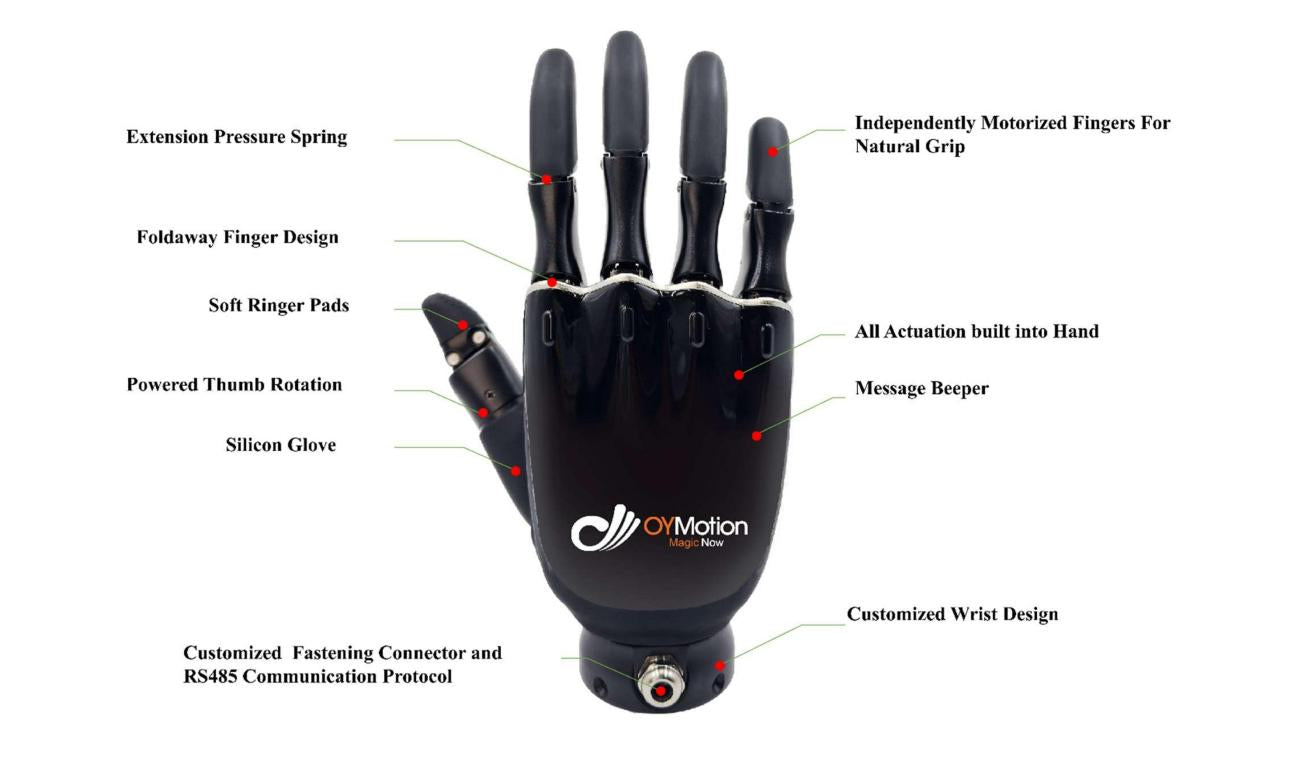

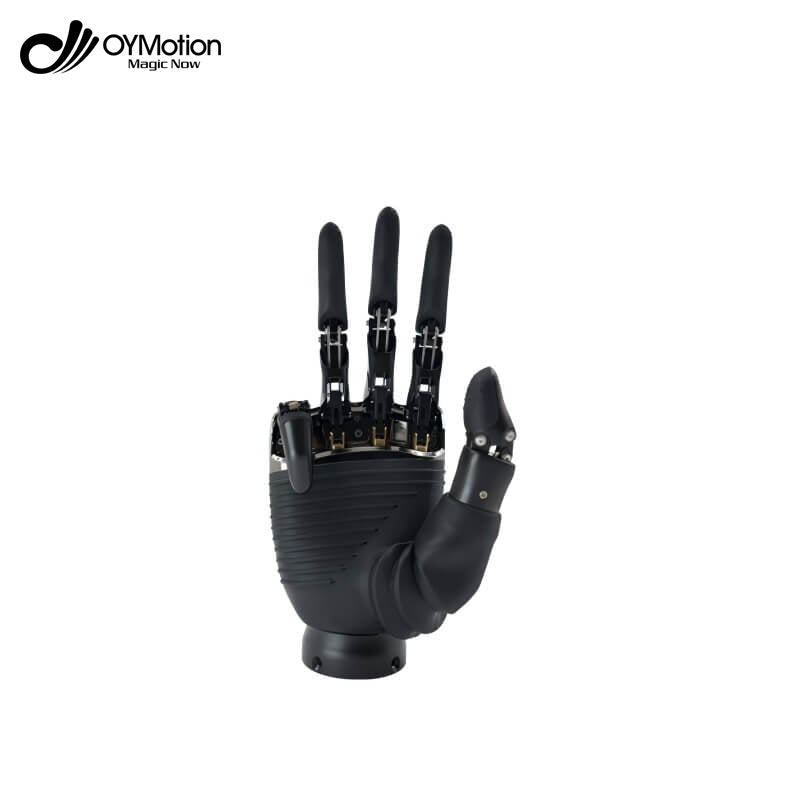

OYMotion ROH-AP001 Dexterous Hand detail image 5

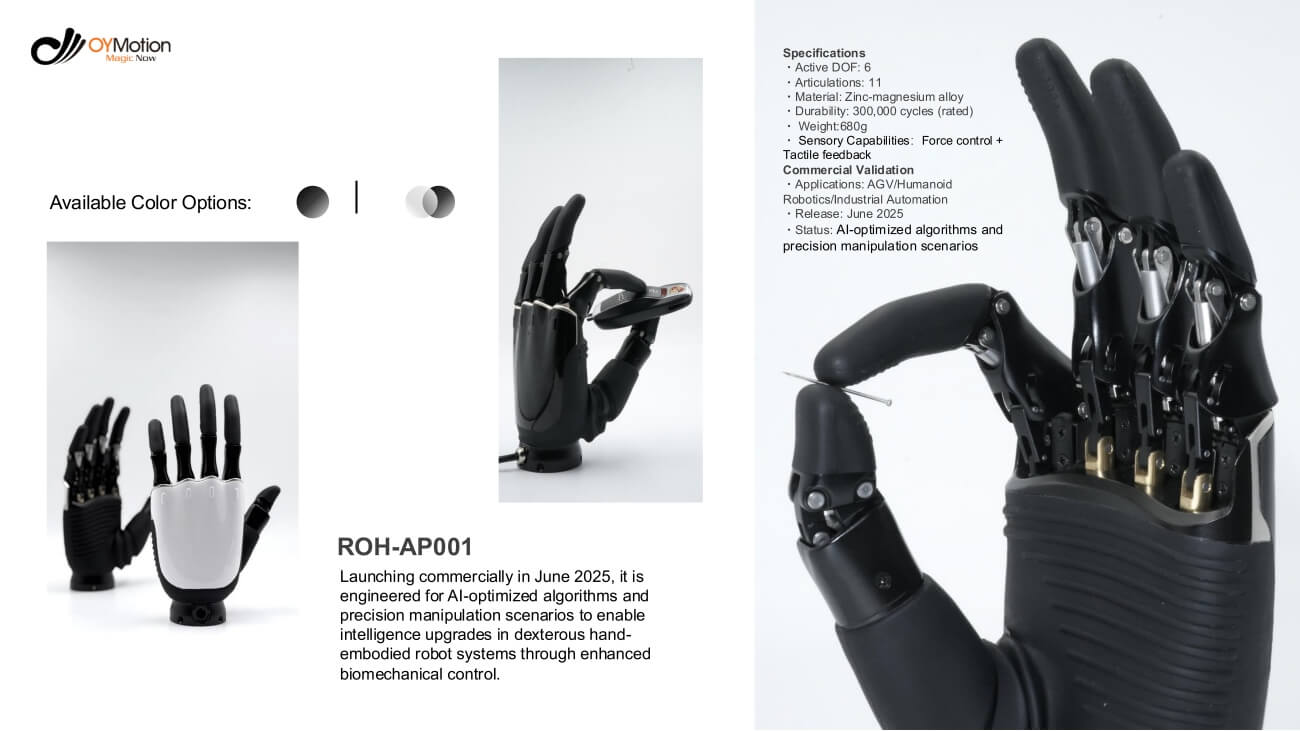

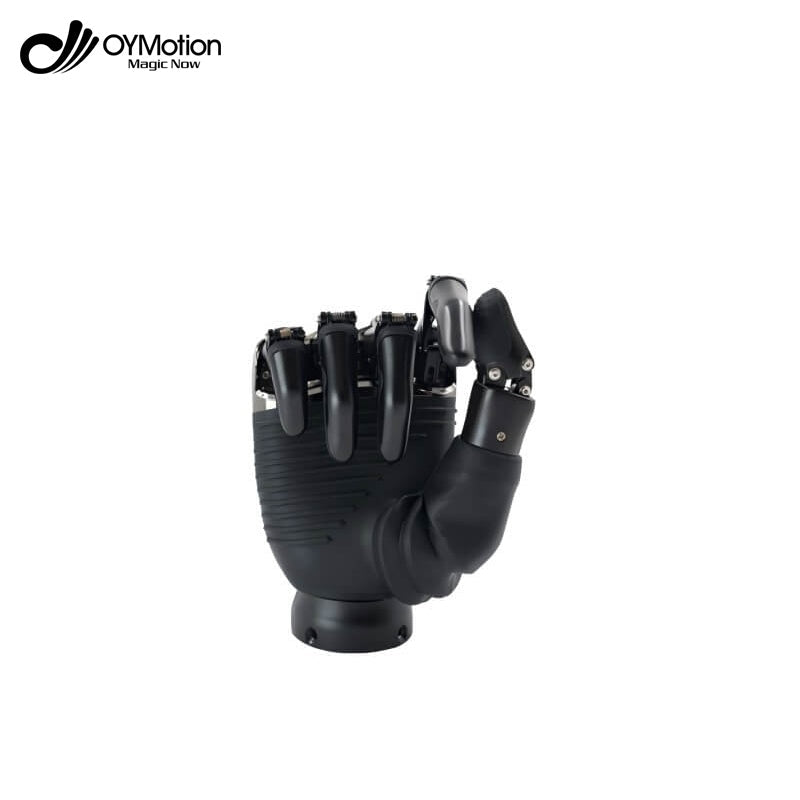

OYMotion ROH-AP001 Dexterous Hand detail image 6
▤ PARAMETER ⌃
Vertical distance from the tip of the middle finger to the wrist
183 mm
Vertical distance from thumb tip to wrist
95 mm
Thumb length
111 mm
Maximum palm width
82 mm
Wrist diameter
49 mm
Maximum opening and closing angle of the thumb side
0~31 Degrees
Maximum opening and closing angle of thumb to palm
0~50 Degrees
Thumb lateral rotation angle
0~90 Degrees
Finger touch screen function
Supported
Finger force feedback
Supported
Working environment
temperature: -10 degrees Celsius ~ +40 degrees Celsius Humidity: Maximum relative humidity 85%
Bending/stretching time for full range at maximum speed
0.7 second
Rotation time of thumb for full range at maximum speed
0.7 second
Active force of each finger tip on stretched state
≥0.5 Kgf
Active force of each finger tip on bended state
≥1.0 Kgf
Maximum active force of thumb tip
≥1.0 Kgf
Maximum passive load for four fingers on bended state
30 Kg
Maximum passive load for each fingers on bended state
10 Kg
Maximum passive load for each finger on stretched state
8 Kg
Weight (including wrist)
640g ± 5g
Communication Interface
UART/RS485/CAN
Baud Rate
UART: 9600/19200/38400/57600/115200/230400/460800/921600 RS485:9600/19200/38400/57600/115200/230400/460800 CAN:1M
Supported Protocol
UART:SerialCtrl \ModBus-RTU RS485:SerialCtrl \ModBus-RTU CAN:SerialCtrl
