Benewake

Benewake TF-NOVA LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection range: ≥14m @90% reflectivity, 0Klux ≥13m @10% reflectivity, 0Klux ≥7m @90% reflectivity, 100Klux ≥4m @10% reflectivity, 100Klux
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$55
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TF-NOVA LiDAR datasheet with technical specifications.pdf ▶ Benewake TF-NOVA LiDAR user manual for setup and integration.pdf ▶ Benewake TF-NOVA LiDAR dimension drawing for installation reference.pdf ▶
Benewake TF-NOVA LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

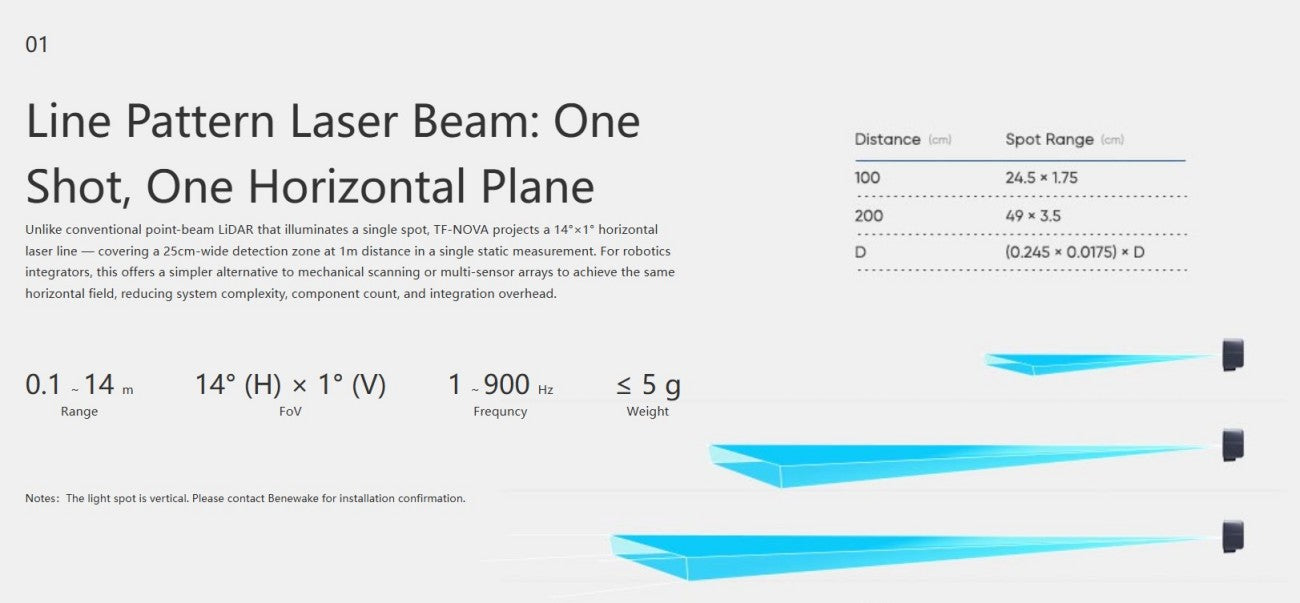

Benewake TF-NOVA LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

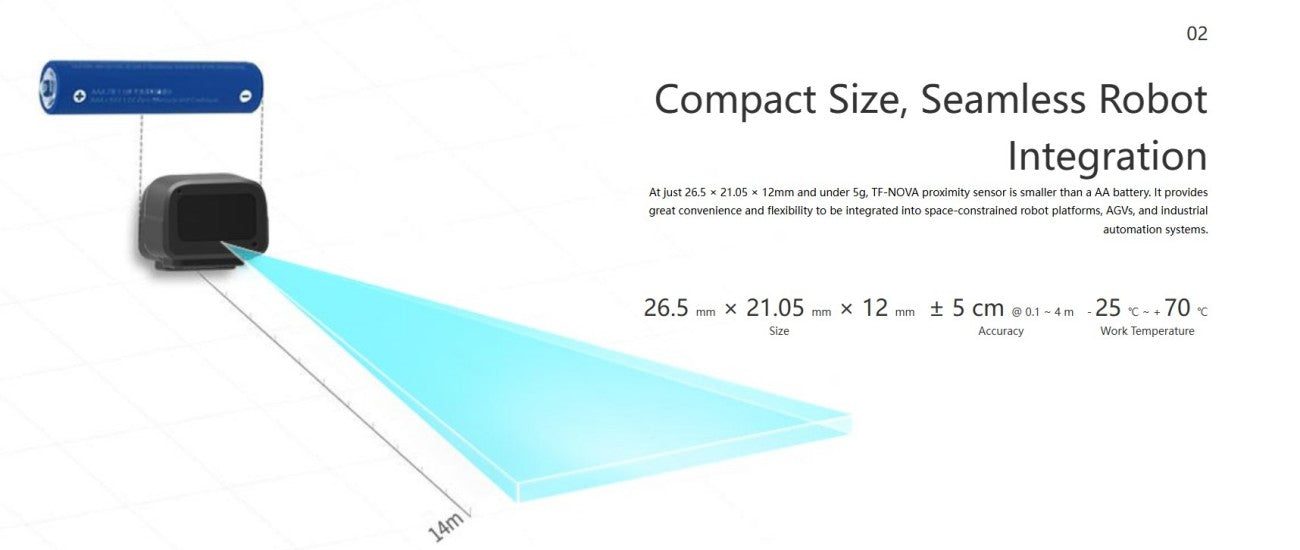

Benewake TF-NOVA LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

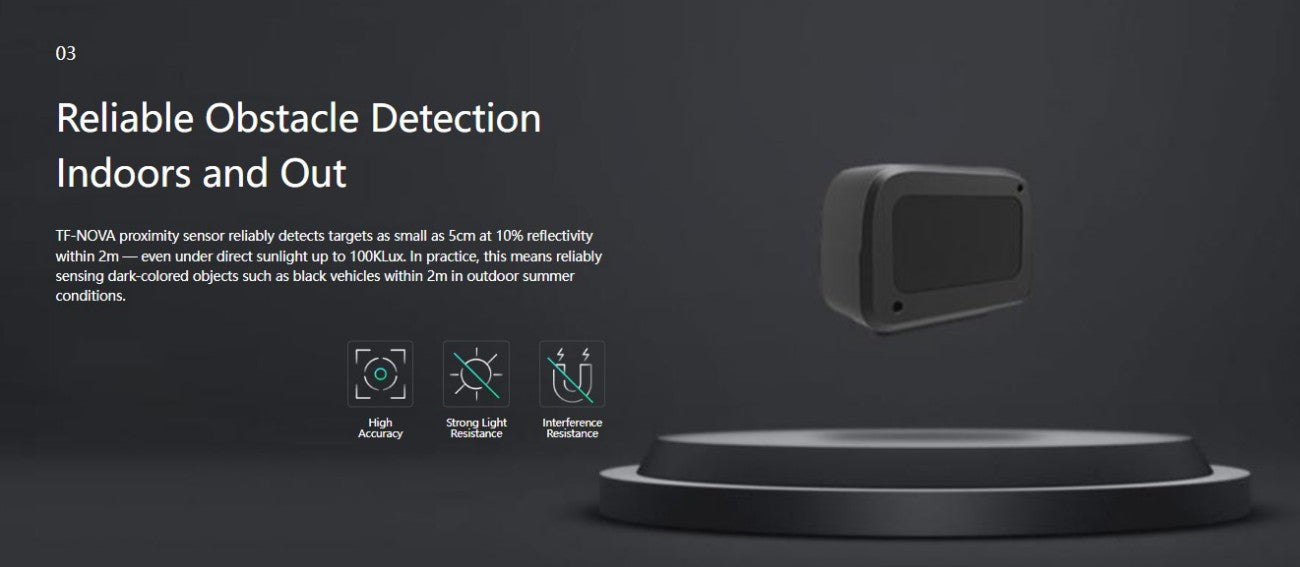

Benewake TF-NOVA LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
Benewake TF-NOVA LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
▤ PARAMETER ⌃
Detection range
≥14m @90% reflectivity, 0Klux ≥13m @10% reflectivity, 0Klux ≥7m @90% reflectivity, 100Klux ≥4m @10% reflectivity, 100Klux
Blind zone
≤ 0.1m
Accuracy
±5cm @ 0.1–4m
Repeatability
< 1cm (1 sigma) @ 0.1–4m
Distance resolution
1cm
Default frame rate
Default 100Hz, 1–900Hz customizable
Light source
VCSEL
Central wavelength
905nm
FoV of laser emission
Typ. 14°×1°
Eye safety
Class 1 Eye-safe [EN60825]
Average power consumption
< 500mW
Peak current when starting
< 850mA
Start-up time
< 1s
Power supply
DC 5±5%V
Operating temperature
-25℃ ~ +70℃
Storage temperature
-30℃ ~ +80℃
Dimensions
TYP. 26.5 × 21.05 × 12.0 mm³
Weight
<5g
Connector
1.25mm-5P
Protection Level
N.A.
Front window protection level
IP65
Cable length
10cm
Communication Interface
UART, IIC, I/O
Baud rate
Default 115200
Data bit
8
Stop bit
1
Parity
None
