HIGH TORQUE HTDW-5036-02-DNE Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and robotics research platforms.
  • Compact planetary joint module with integrated motor and gearbox design.
  • 36:1 reduction ratio provides stable torque output for robotic motion.
  • Dual encoder feedback enables precise joint control and reliable operation.
  • CANFD/CAN communication supports flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTDW-5036-02-DNE Planetary Joint Module

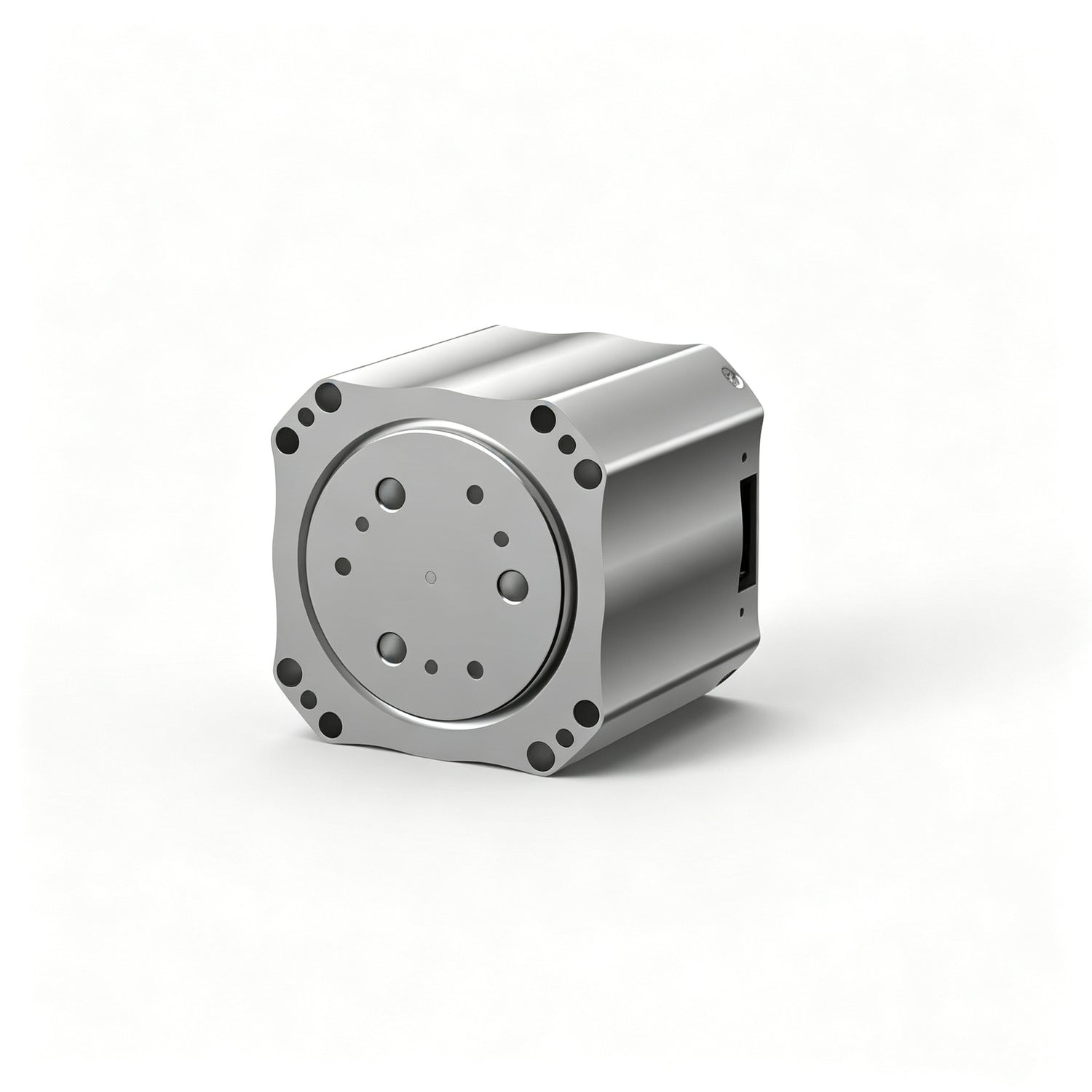

The HIGH TORQUE HTDW-5036-02-DNE is a compact planetary joint module designed for humanoid robots, robotic arms, and advanced robotics platforms. It integrates a motor, planetary reduction mechanism, encoder feedback, and communication interface into a reliable actuator solution for precise robotic motion control.

Compact Joint Module Design

The HTDW-5036-02-DNE combines motor and gearbox components into an integrated joint module, providing a compact and efficient solution for robotic systems where space optimization and simplified integration are important.

36:1 Planetary Reduction

Featuring a 36:1 reduction ratio, the module provides enhanced torque output and stable power transmission for robotic joints. It is suitable for applications requiring controlled movement and reliable joint performance.

High-Precision Encoder Feedback

The integrated encoder system provides accurate position feedback for improved motion control and repeatability. This enables stable operation in robotic arms, humanoid robots, and research platforms.

CANFD/CAN Communication

Supporting CANFD/CAN communication, the HTDW-5036-02-DNE allows flexible integration with robotic controllers and embedded systems, making it suitable for custom robotics development and research projects.

Robotics Research and Development Applications

With its compact structure and integrated control capabilities, the HTDW-5036-02-DNE is ideal for robotics laboratories, educational platforms, humanoid robot development, and next-generation automation systems.

HIGH TORQUE HTDW-5036-02-DNE Planetary Joint Module
▤ PARAMETER ⌃
Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 50 mm
Height 47.4 mm
Weight 345 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 36
Rated Voltage 24 V
Rated Current 2 A
Rated Torque 6 Nm
Locked-Rotor Torque 21 Nm
Rated RPM 50 RPM
No-Load RPM 75 RPM
Rated Output Power 30 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 10 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
