FEETECH

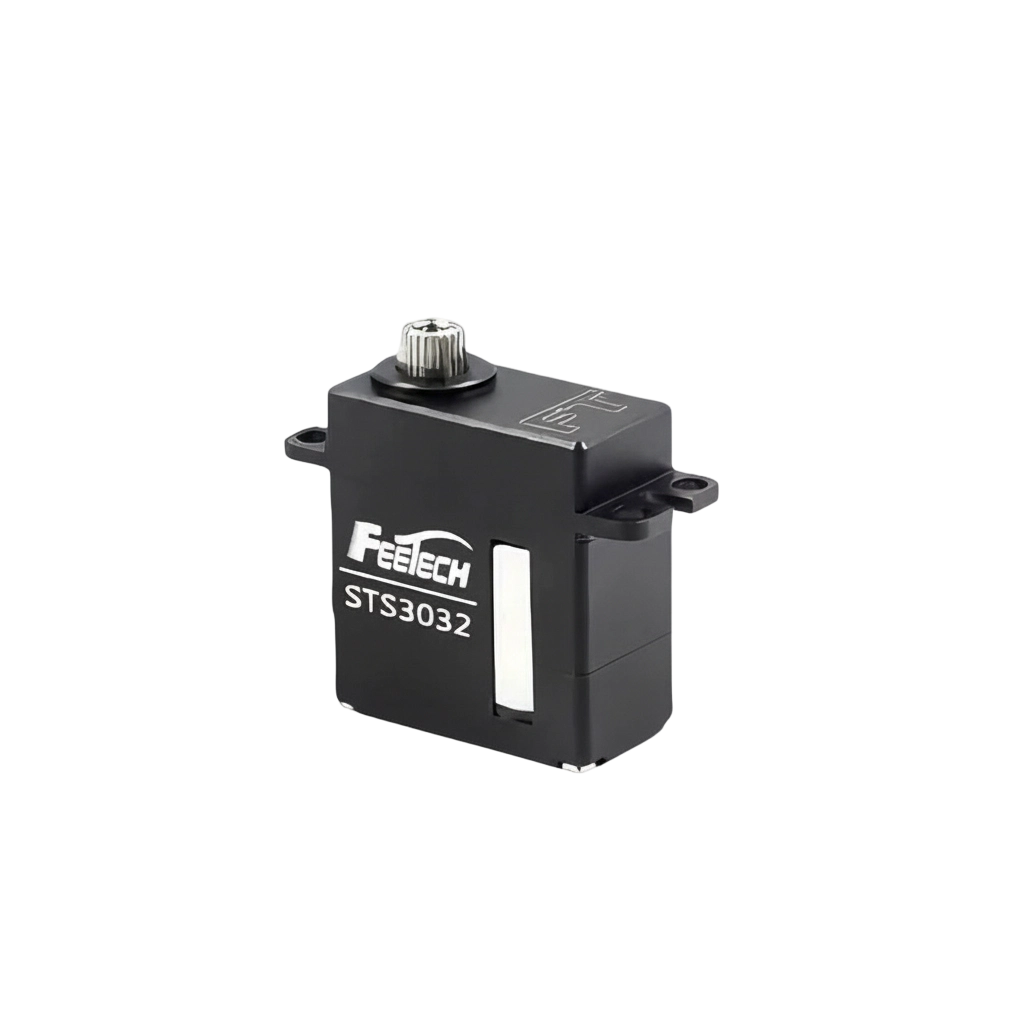

FEETECH STS3032 Serial Bus Servo Motor for Robotics

Model: STS3032

Product Name: 6V 4.5kg magnetically coded 360-degree serial bus servo

$90
Version

Care Information

Operate this precision servo within the specified voltage and load limits, and avoid stall conditions or prolonged overload. Ensure correct wiring and secure mechanical mounting with proper alignment. Do not disassemble or expose the unit to excessive shock, moisture, or contaminants; installation should be performed by qualified personnel.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
≡ PARAMETER ⌃
Operating Voltage Range
4.8V – 6.0V DC
Rated Voltage
6.0V
No-Load Speed
0.09 sec/60° @ 6V
No-Load Current
150 mA @ 6V
Rated Torque
1.5 kg·cm @ 6V
Peak Stall Torque
4.5 kg·cm @ 6V
Stall Current
1.2 A @ 6V
Rotation Range
360° (Continuous, 0–4096 steps)
Position Resolution
4096 steps (≈0.088° per step)
Control Modes
Servo Mode / Motor Mode
Communication Interface
TTL Serial Bus (Half-Duplex Asynchronous)
Command Signal
Digital Bus Packet
ID Range
0 – 253
Baud Rate
38400 bps – 1 Mbps
Feedback Parameters
Position, Speed, Load, Voltage, Temperature
Gear Type
Metal Gear
Gear Spline
25T
Bearing Type
Dual Ball Bearings
Motor Type
Core Motor
Case Material
Aluminum Alloy
Horn Material
POM Plastic
Dimensions (L × W × H)
23.2 mm × 12.1 mm × 28.5 mm
Weight
20 g
Cable Length
200 mm ±5 mm
Operating Temperature Range
-15°C – 70°C
Storage Temperature Range
-30°C – 80°C
Protection Features
Over-Voltage, Over-Temperature Protection

Technical Documentation

STP
STS3032-SCS2332_20200609.stp
