DAMIAO

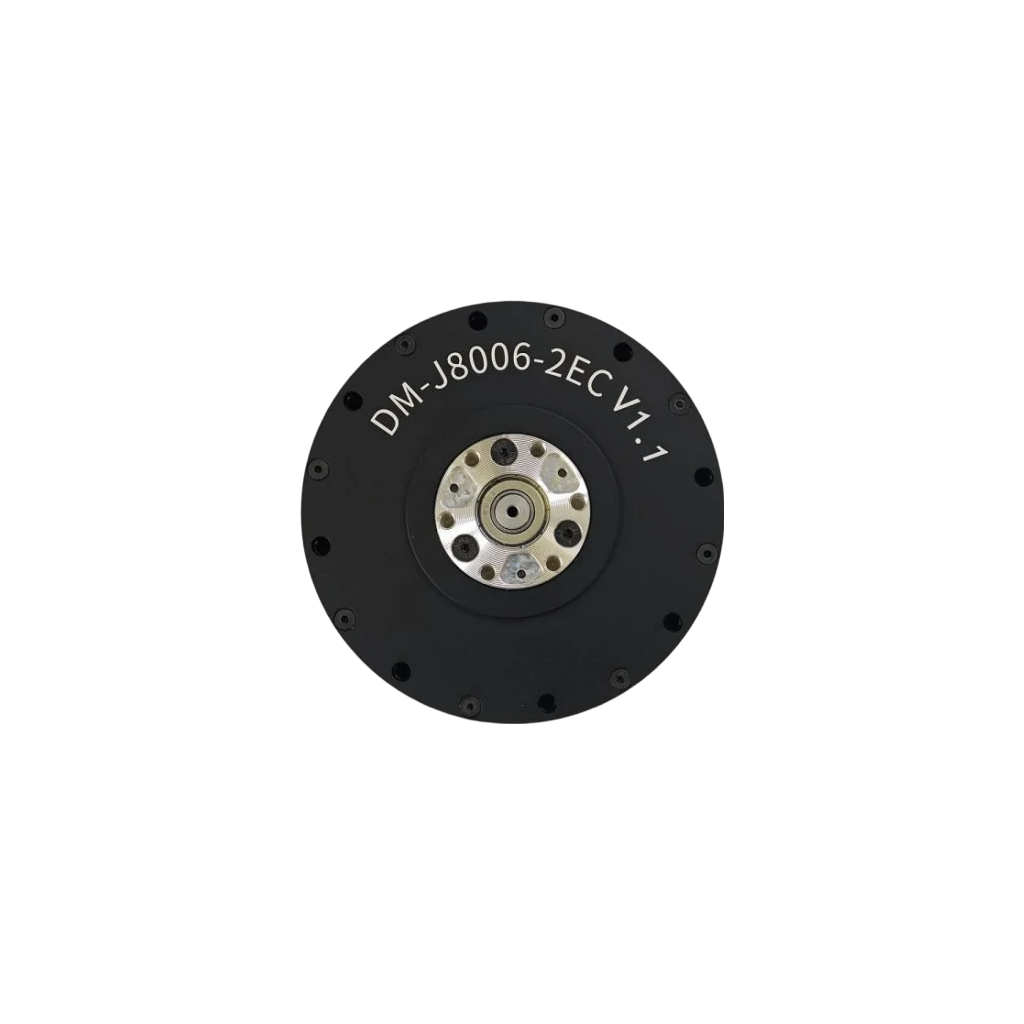

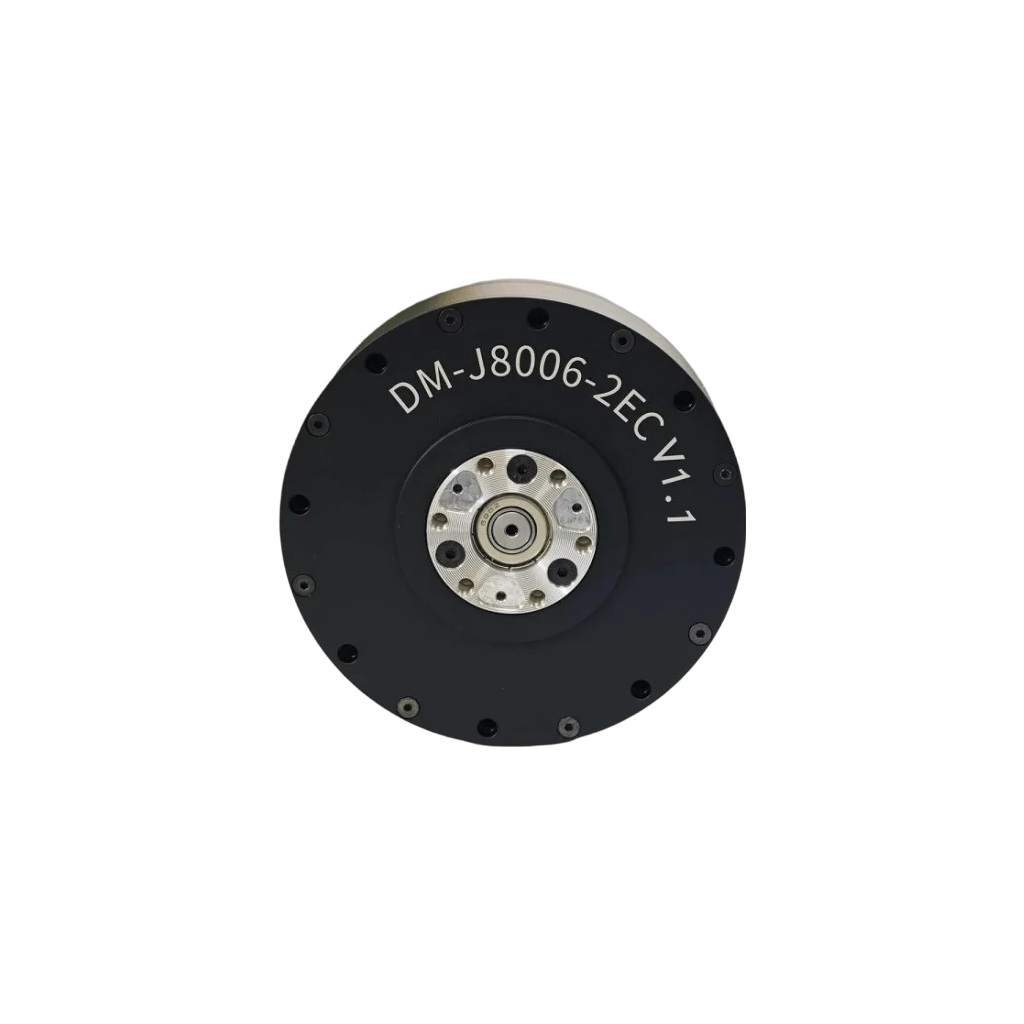

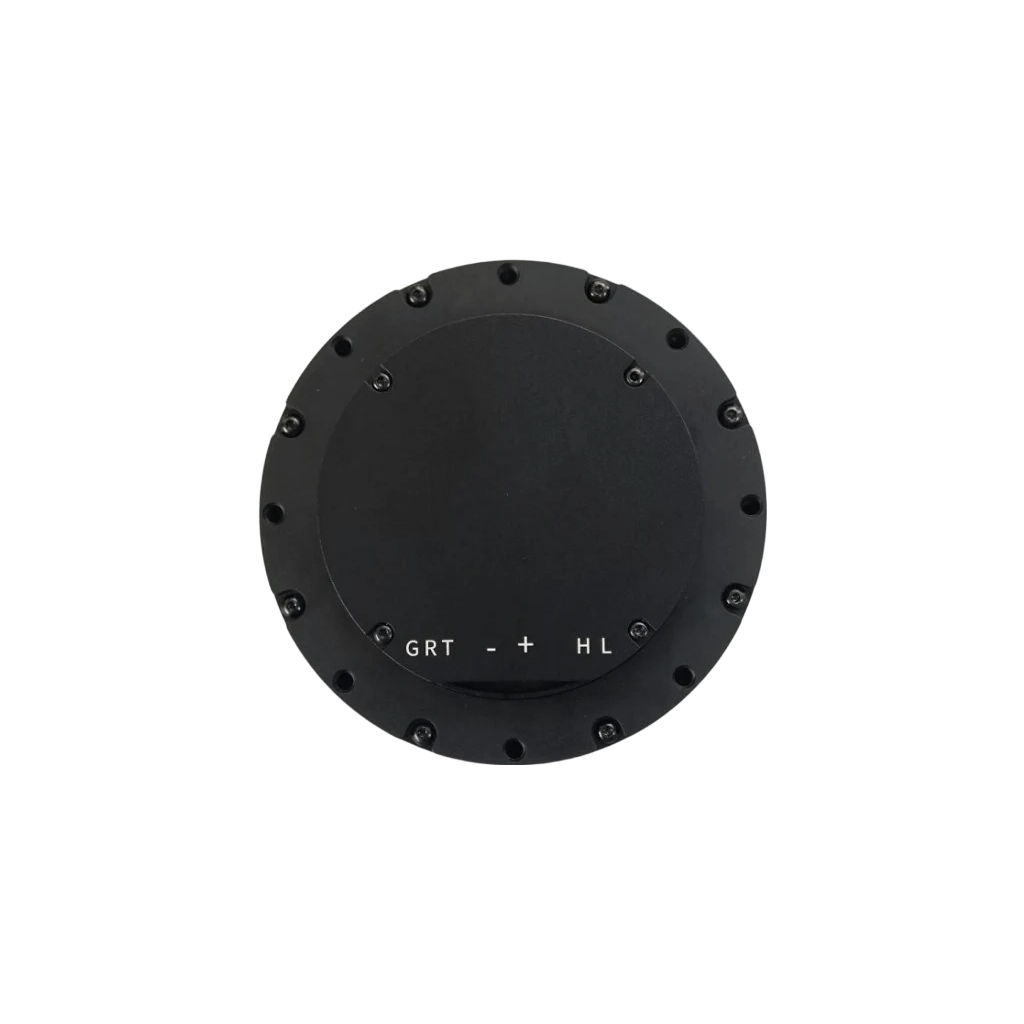

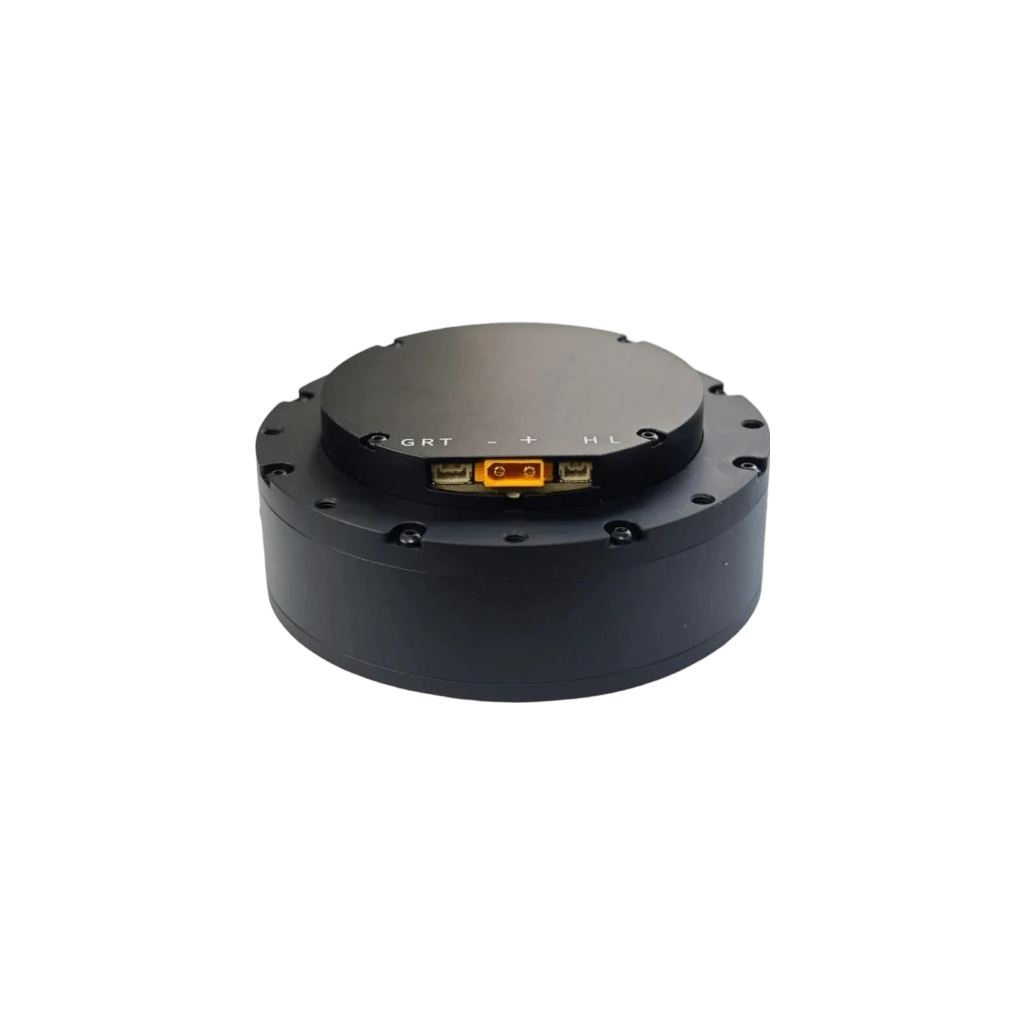

DAMIAO DM-J8006-2EC V1.1 Servo Motor for Robotics

Model: DM-J8006-2EC
$210
Version
Communication Module

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Parameter
Value
Model
DM-J8006-2EC V1.1
Nominal Voltage
24 V (Wide-Voltage Version, supports 24–48 V DC input)
Nominal Current
9 A
Peak Current
21 A
Nominal Torque
8 N·m
Peak Torque
20 N·m
Nominal Speed
120 rpm
Maximum No-Load Speed
190 rpm @ 24 V | 390 rpm @ 48 V
Reduction Ratio
6:1
Pole Pairs
21
Phase Inductance
215 µH
Phase Resistance
0.4 Ω
Outer Diameter
96 mm
Height
40 mm
Motor Weight
559 g
Encoder Resolution
14-bit
Encoder Quantity
2
Encoder Type
Single-Turn Magnetic Encoder
Control Interface
CAN (1 Mbps)
Configuration Interface
UART (921600 bps)

Technical Documentation

PDF
DAMIAO-DM-J8006-2EC-User_Manual-1-1.pdf
PDF
DM_J8006_V1.1_instalation_drawing.pdf
PDF
USB_to_CANFD_Module_User_Manual_V1.0.pdf
GLB
DAMIAO_DM_J8006_2EC_V1_1_Motor.glb.zip
