DAMIAO

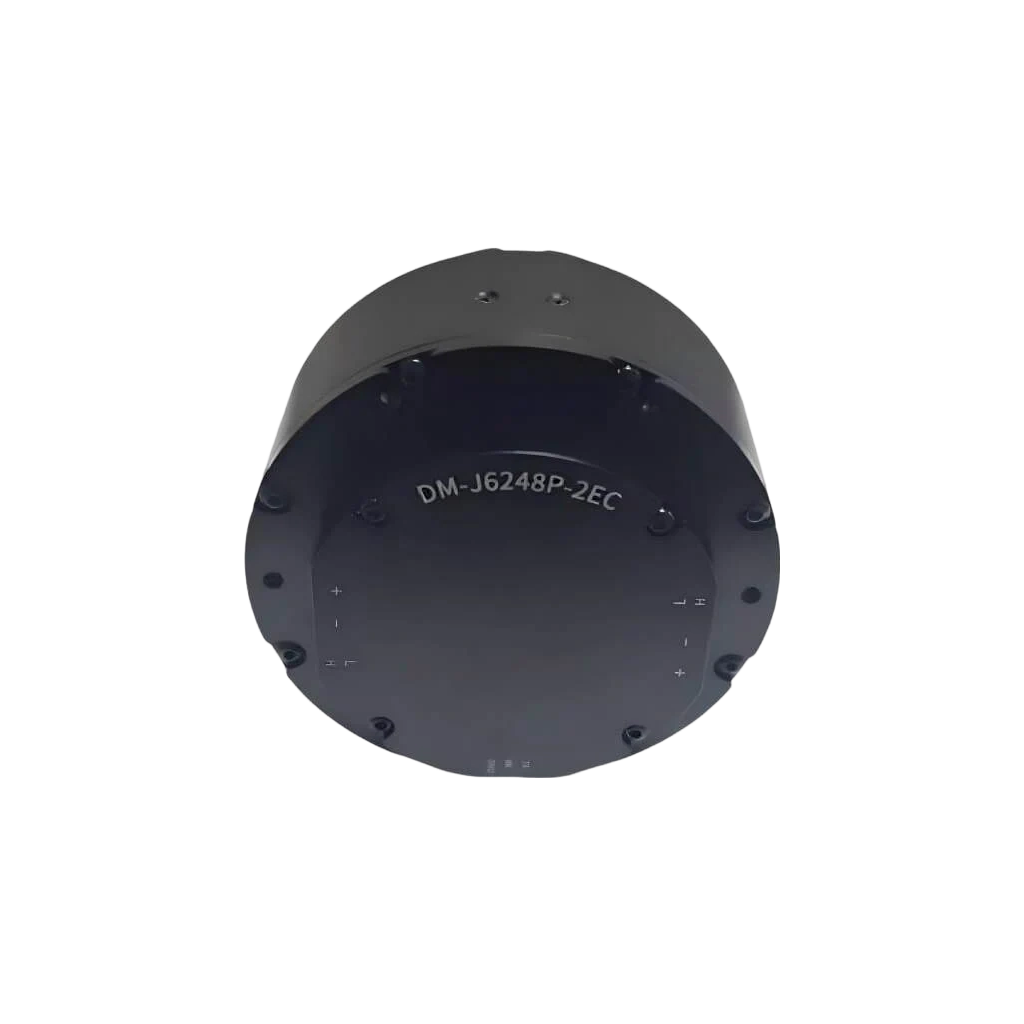

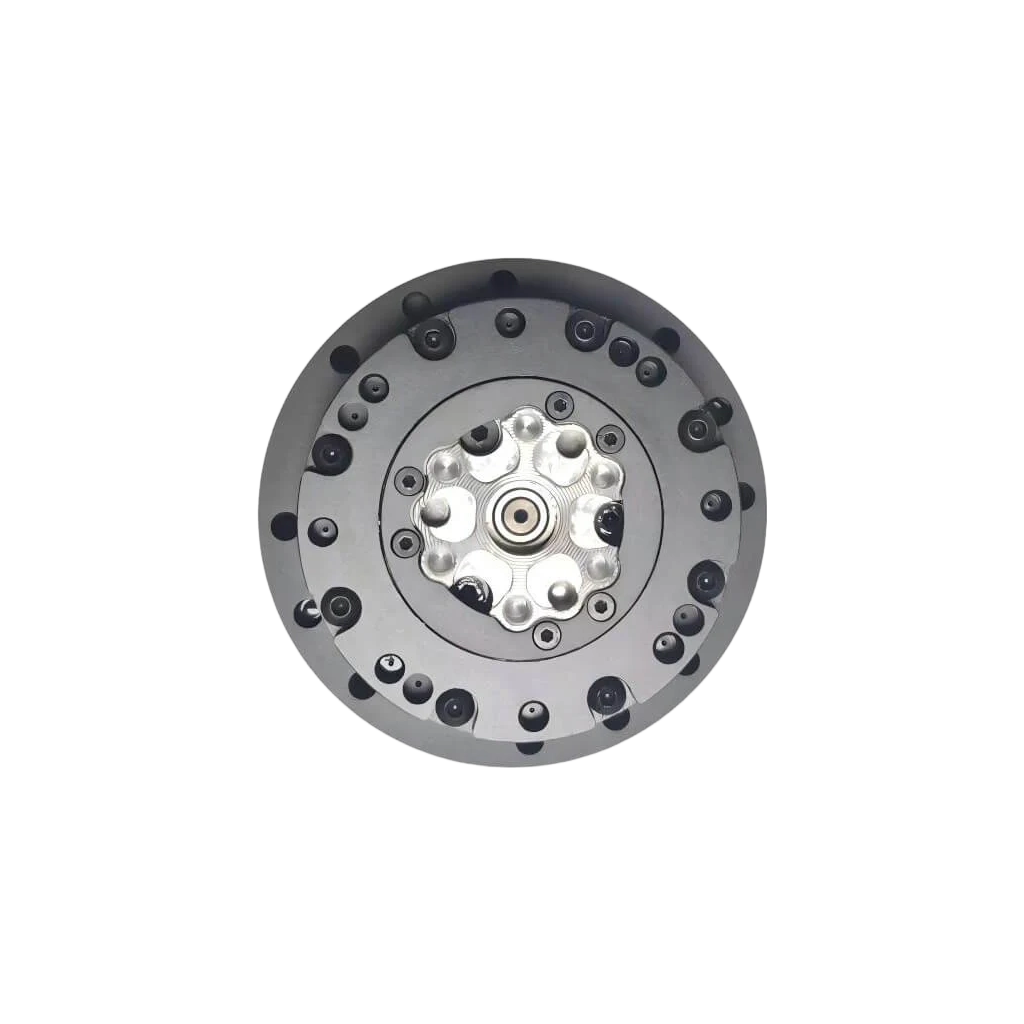

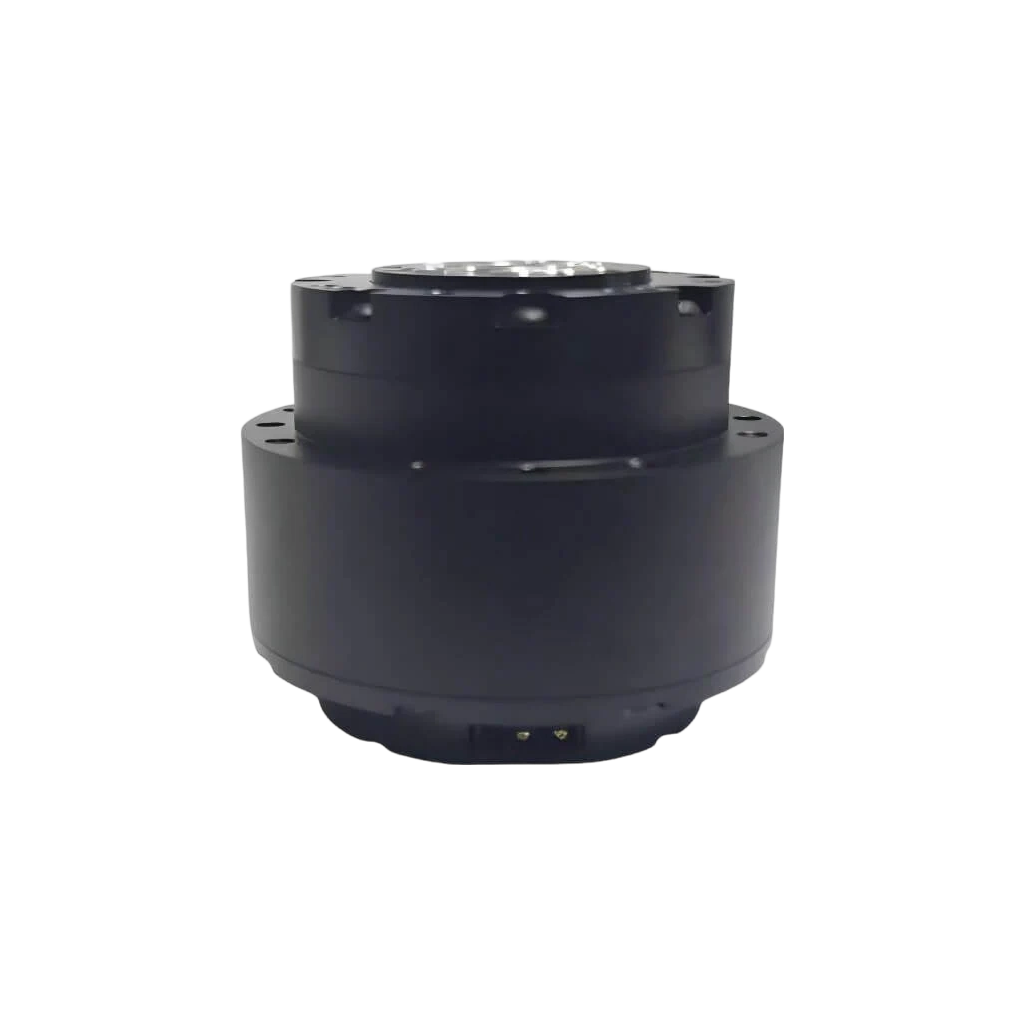

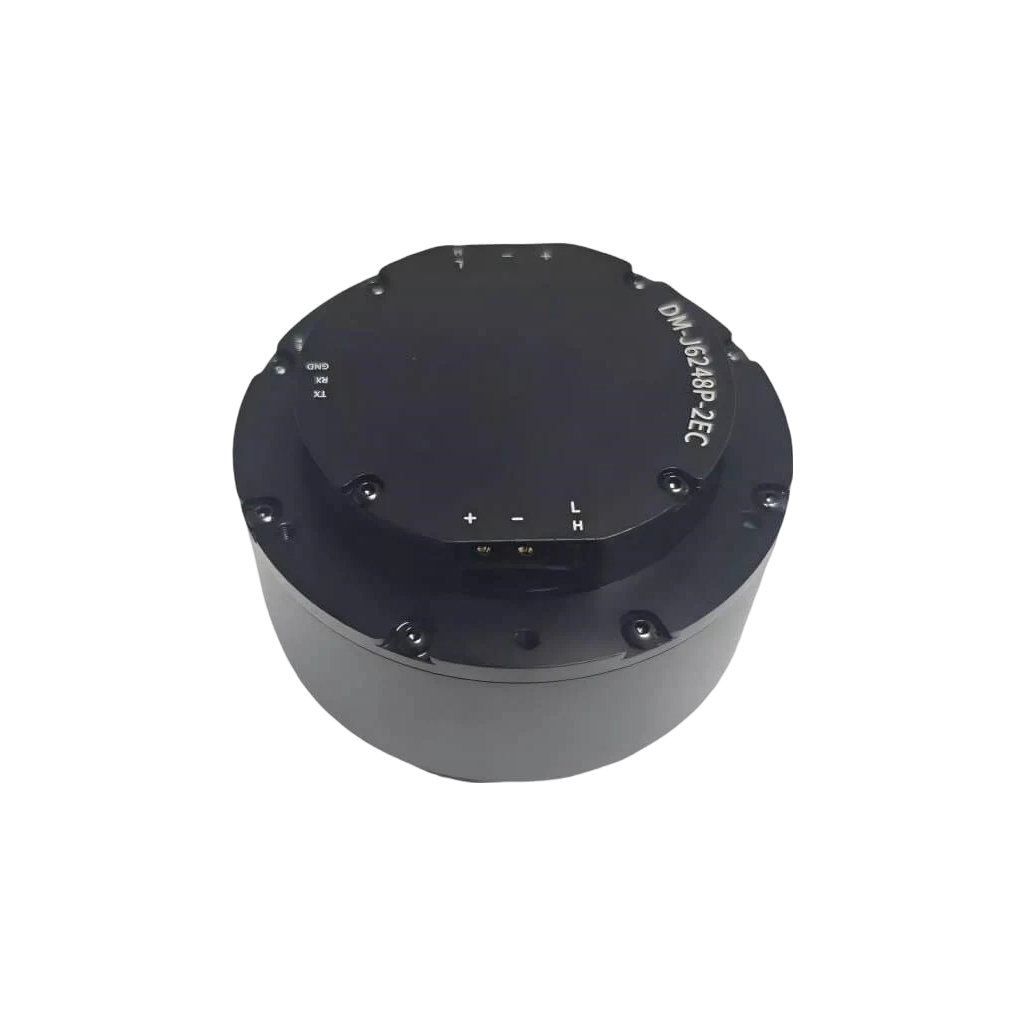

DAMIAO DM-J6248P-2EC Servo Motor for Robot Joints | Bulk Supply

Model: DM-J6248P-2EC
$255
Version
Communication Module
Accessory Kit

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Parameter
Value
Model
DM-J6248P-2EC
Nominal Voltage
24 V DC (Wide-voltage version, supports 24 – 48 V DC power supply)
Rated Phase / Power Current
24 V: 11.3 A / 7 A | 48 V: 11.3 A / 3.7 A
Peak Phase / Power Current
24 V: 38.7 A / 16 A | 48 V: 38.7 A / 8 A
Nominal Torque
30 N·m
Peak Torque
97 N·m
Nominal Speed
40 rpm
Maximum No-Load Speed
60 rpm
Reduction Ratio
48:1
Pole Pairs
14
Phase Inductance
85 µH (@25 °C)
Phase Resistance
0.17 Ω (@25 °C)
Outer Diameter
76 mm
Height
62.5 mm
Motor Weight
628 g
Encoder Resolution
16-bit
Encoder Quantity
2
Encoder Type
Magnetic Encoder (Single-Turn)
Control Interface
CAN (Up to 5 Mbps)
Configuration Interface
UART (921600 bps)
Control Modes
MIT Mode | Speed Mode | Position Mode
Protection Features
Drive Over-Temperature Protection (120 °C shutdown); Motor Over-Temperature Protection (Recommended ≤100 °C); Overvoltage Protection (Recommended ≤65 V); Communication Loss Protection (CAN timeout exit enable mode); Motor Overcurrent Protection (Recommended ≤0.98 A); Under-Voltage Protection (Minimum supply ≥15 V)

Technical Documentation

PDF
DAMIAODM-J6248P-2EC_User_Manual-1.pdf
STP
DM_6248P.stp
PDF
DM_6248P-Motor_Installation_Dimension_Drawing.pdf
PDF
USB_to_CANFD_Module_User_Manual_V1.0.pdf
