DAMIAO

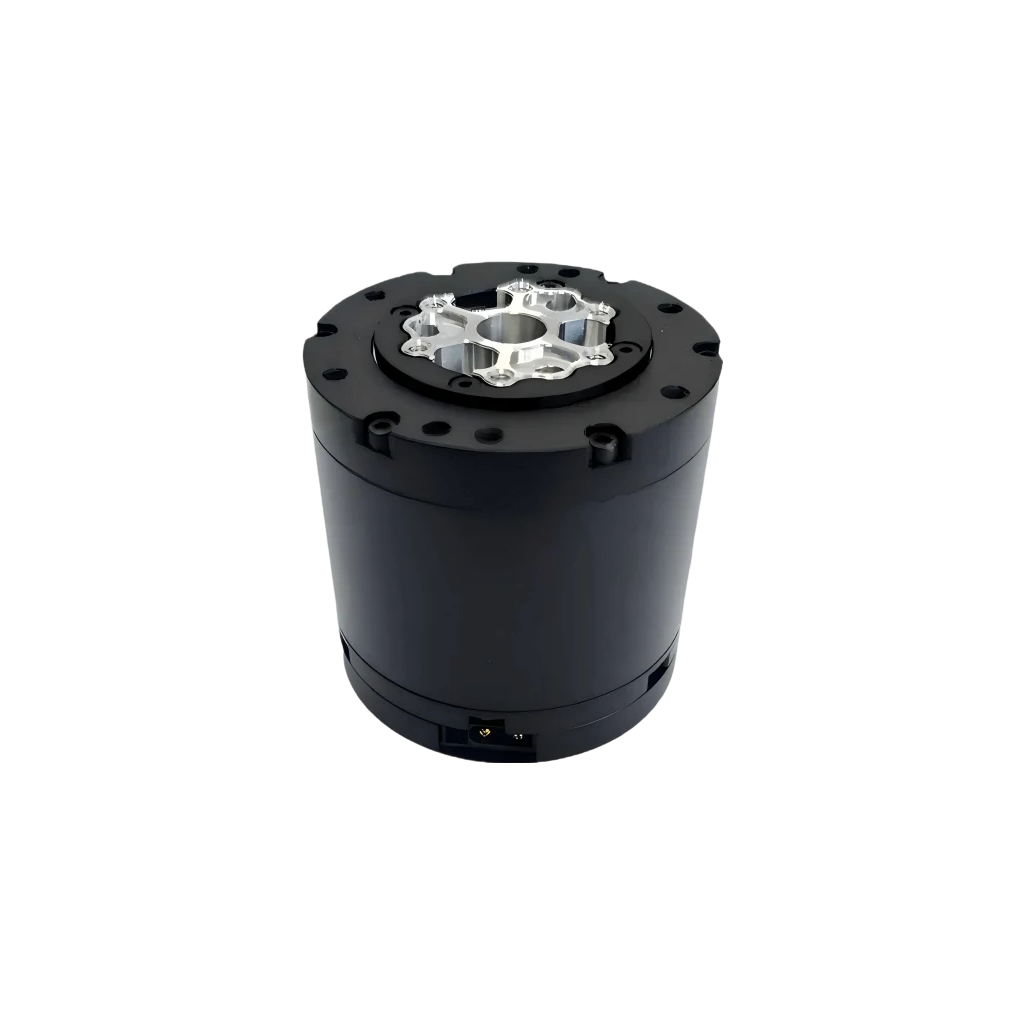

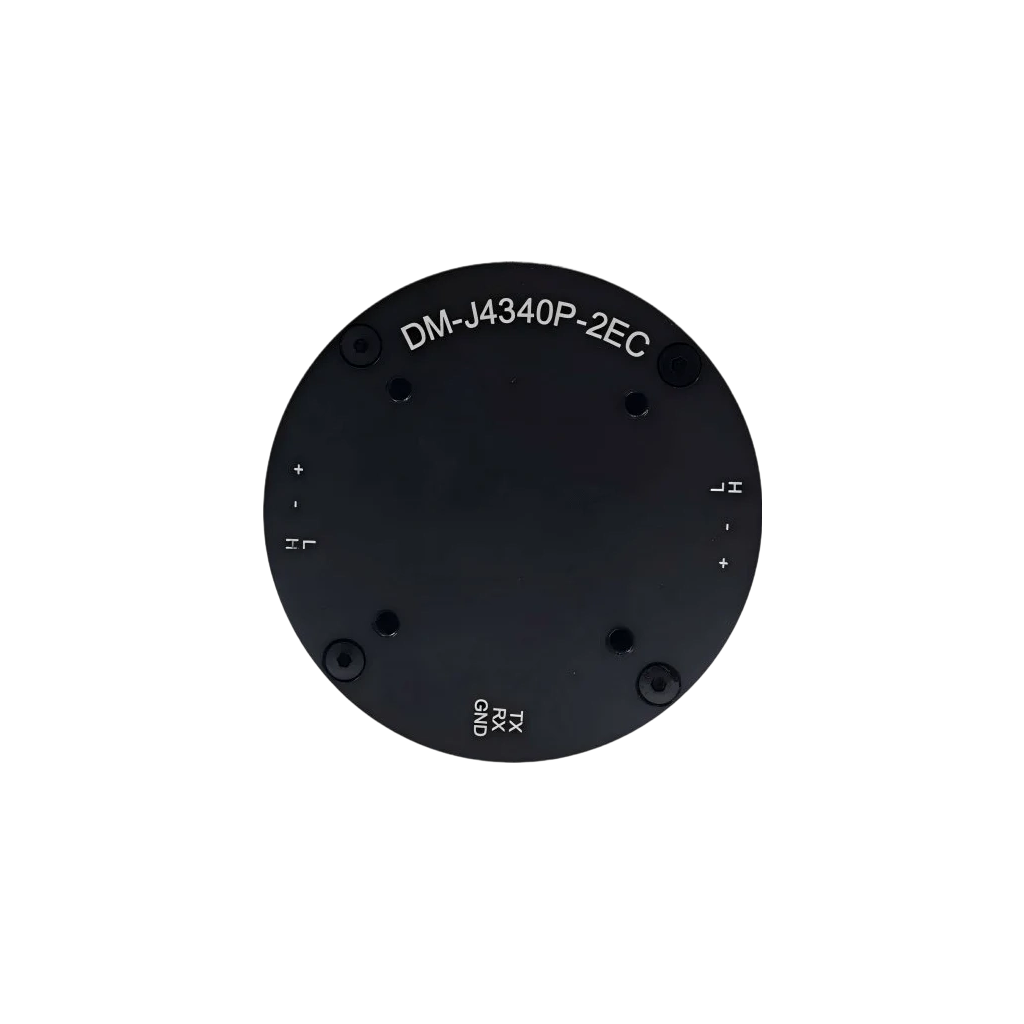

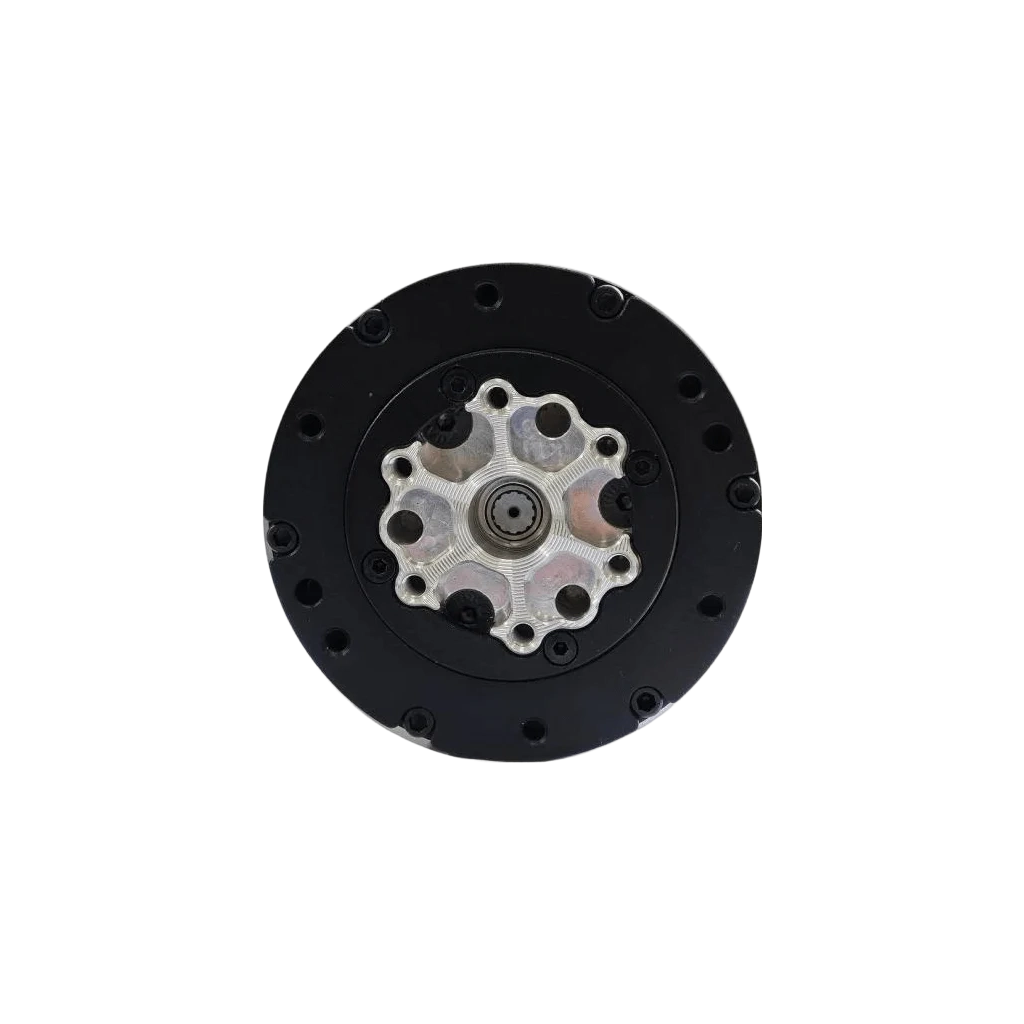

DAMIAO DM-J4340P-2EC Servo Motor for Robot Joints | Bulk Supply

Model: DM-J4340P-2EC
$175
Version
Communication Module
Accessory Kit

Care information

Store in a dry, dust-free environment and avoid impact or excessive vibration during handling. Do not disassemble the motor or modify internal components, as this may affect performance and void warranty. Ensure proper voltage supply and secure mounting before operation.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Open Source Integration

OpenArm

OpenArm is a fully open-source humanoid robot arm designed for physical AI research and deployment in contact-rich environments.

View

Technical Specifications

Parameter Value 1 Value 2
Model DM-J4340P-2EC (24V) DM-J4340P-2EC (48V)
Nominal Voltage 24 V DC 48 V DC
Nominal Current 2.5 A 2.5 A
Peak Current 8 A 8 A
Nominal Torque 9 N·m 9 N·m
Peak Torque 27 N·m 27 N·m
Nominal Speed 36 rpm 36 rpm
Maximum No-Load Speed 52 rpm 100 rpm
Reduction Ratio 40:1 40:1
Pole Pairs 14 14
Phase Inductance 360 µH 360 µH
Phase Resistance 880 mΩ 880 mΩ
Outer Diameter 57 mm 57 mm
Height 56.5 mm 56.5 mm
Motor Weight 375 g 375 g
Encoder Resolution 14-bit 14-bit
Encoder Quantity 2 2
Encoder Type Single-Turn Magnetic Encoder Single-Turn Magnetic Encoder
Control Interface CAN (1 Mbps) CAN (1 Mbps)
Configuration Interface UART (921600 bps) UART (921600 bps)

Technical Documentation

PDF
DM4340P_-instalation_drawing.pdf
PDF
DAMIAO-DM-J4340P-2EC-User_Manual-1-1.pdf
STP
DAMIAO_DM_J4340P_2EC_Motor.stp
PDF
USB_to_CANFD_Module_User_Manual_V1.0.pdf
