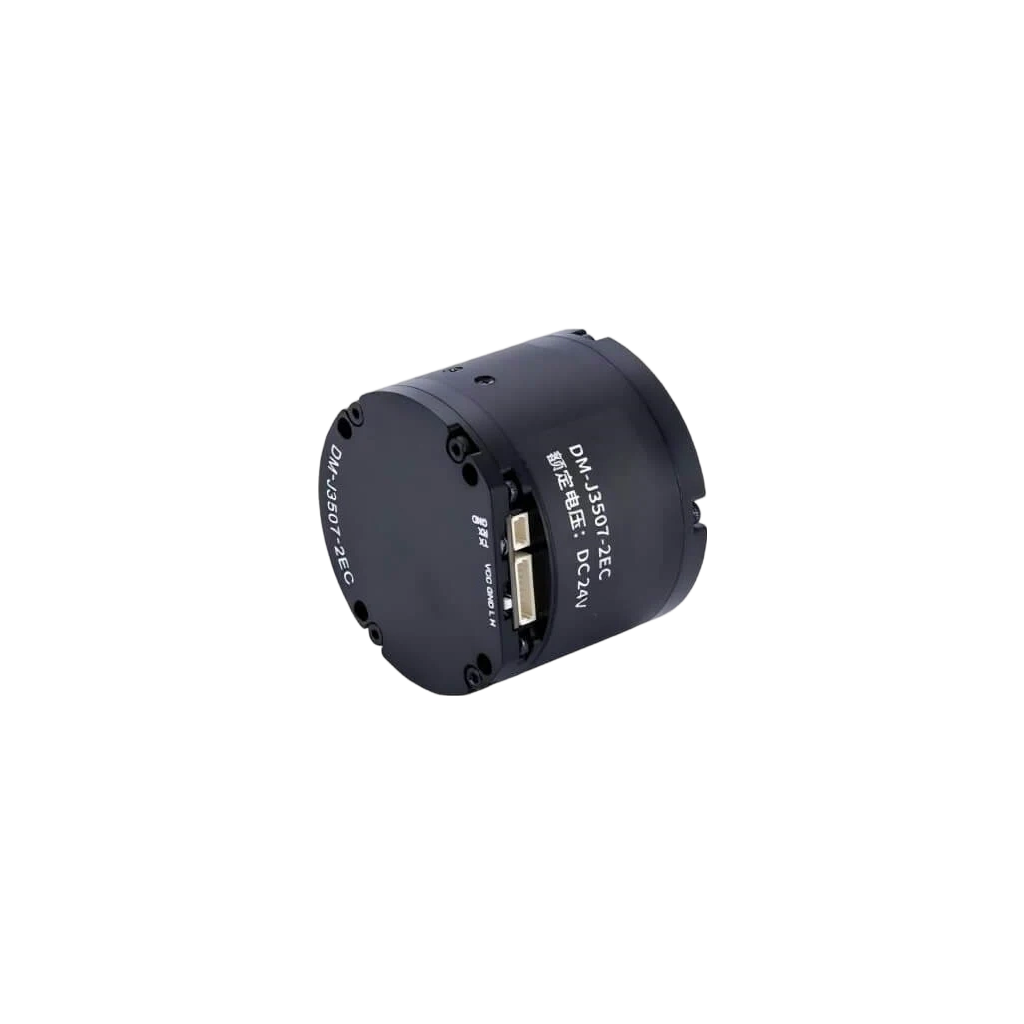

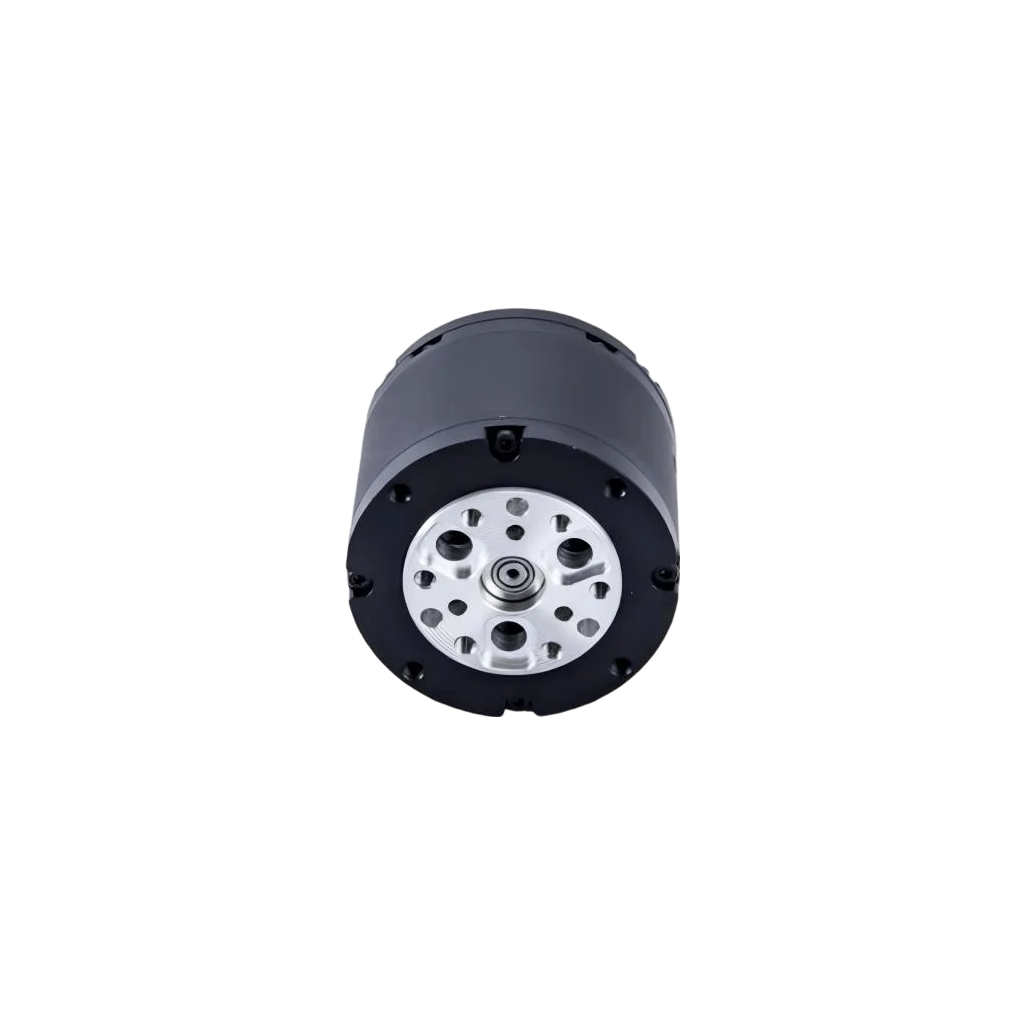

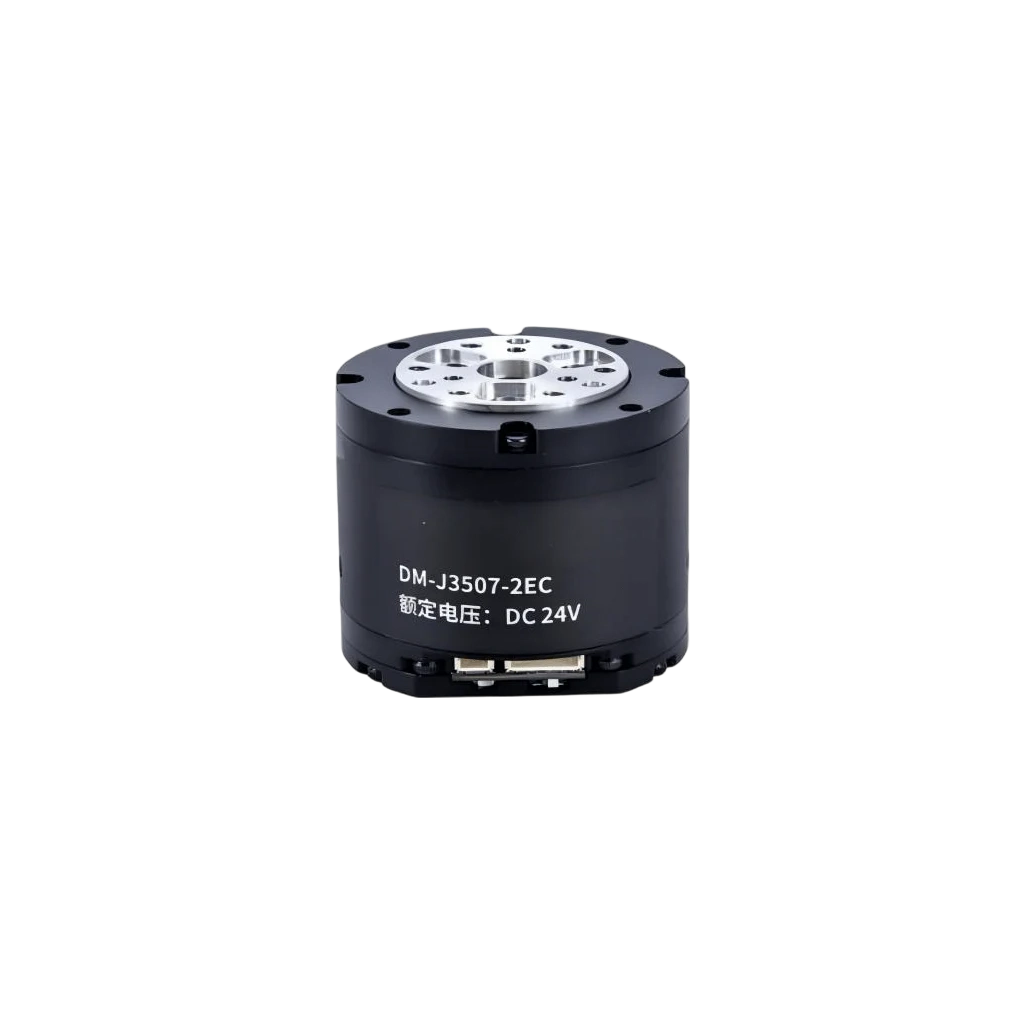

DAMIAO DM-J3507-2EC Servo Motor for Robot Joints | Bulk Supply

Model: DM-J3507-2EC
$120
Version

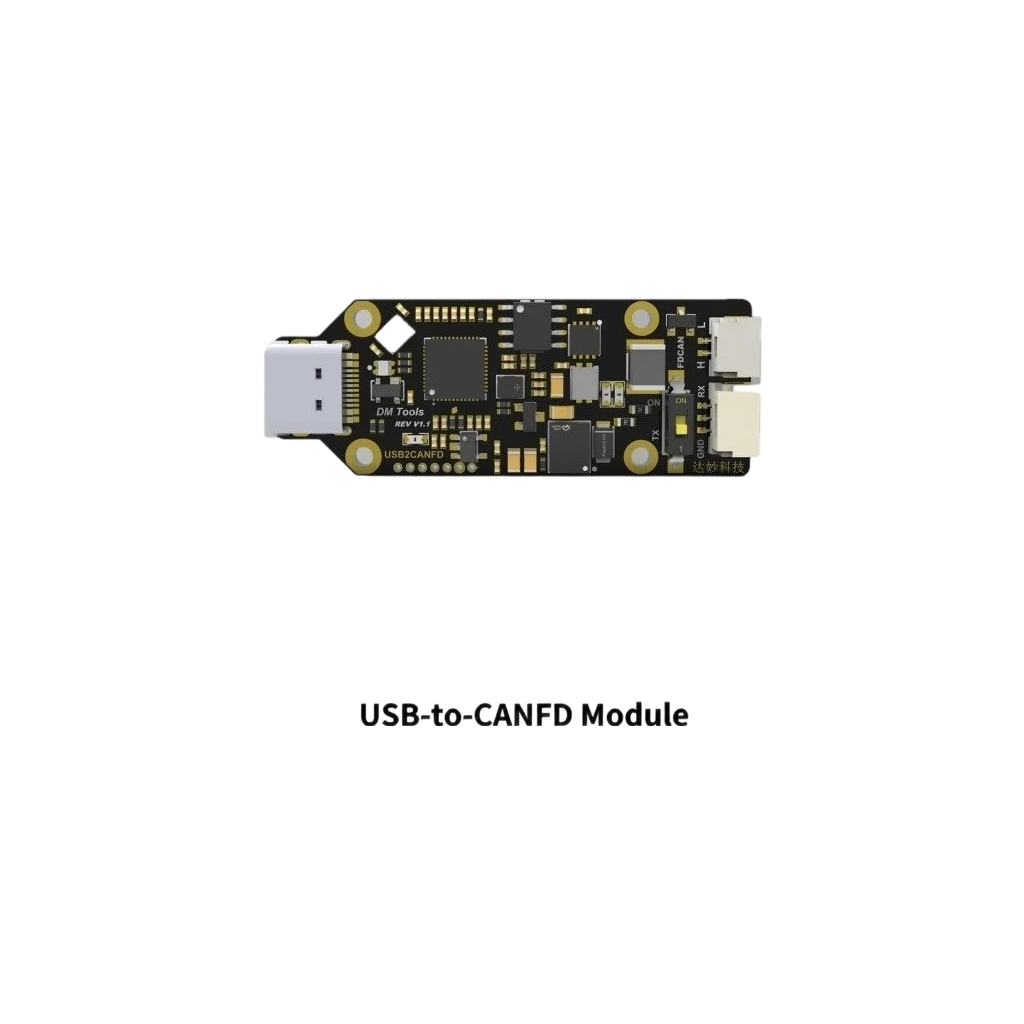

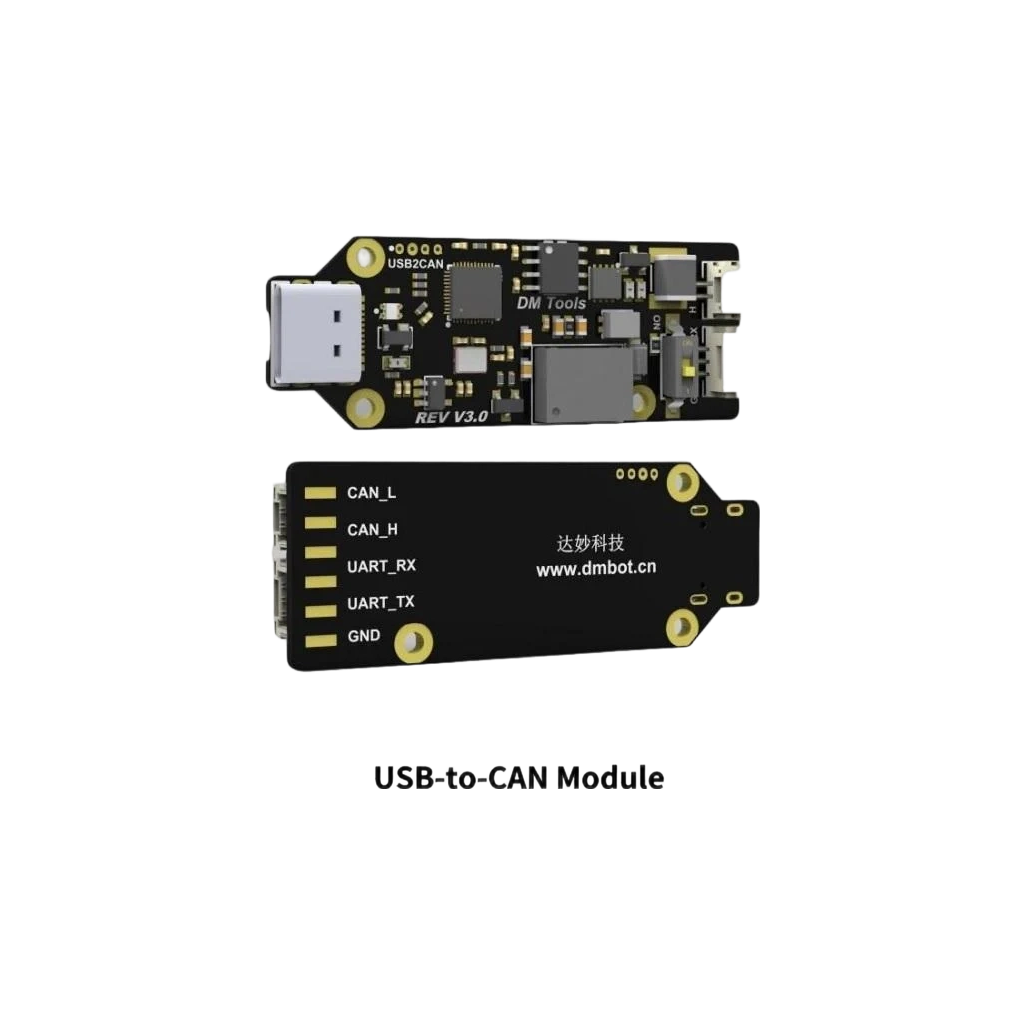

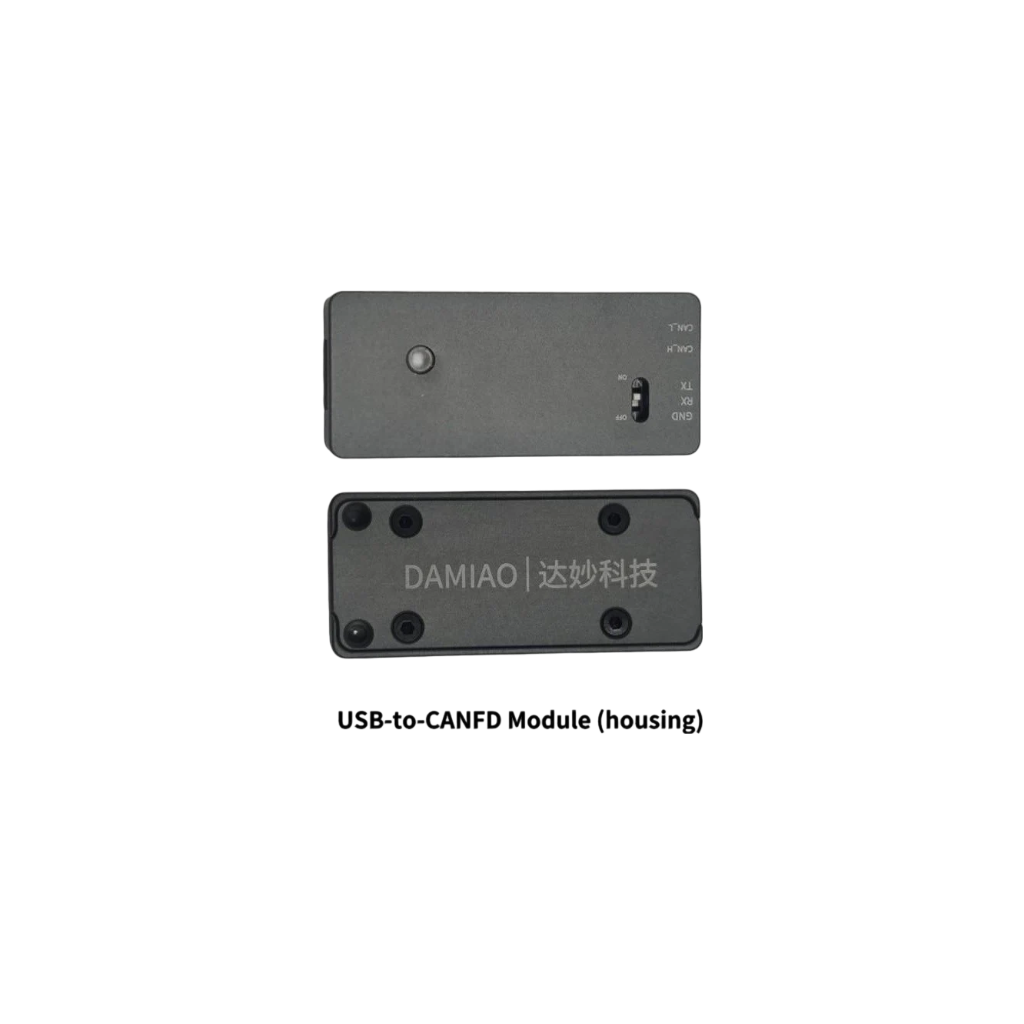

Communication Module
Accessory Kit

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Parameter
Value
Model
DM-J3507-2EC
Nominal Voltage
24 V DC
Nominal Current
3.0 A (1.2 A)
Peak Current
8.3 A (4 A)
Nominal Torque
0.8 N·m
Peak Torque
3 N·m
Nominal Speed
150 rpm
Maximum No-Load Speed
460 rpm
Reduction Ratio
7:1
Pole Pairs
14
Phase Inductance
235 µH
Phase Resistance
0.8 Ω
Outer Diameter
46 mm
Height
37.9 mm
Motor Weight
150 g
Encoder Resolution
14-bit
Encoder Quantity
2
Encoder Type
Magnetic (Single-Turn)
Control Interface
CAN (1 Mbps)
Configuration Interface
UART (921600 bps)
Control Modes
MIT Mode | Speed Mode | Position Mode
Protection Features
Drive Over-Temperature Protection (120 °C shutdown); Motor Over-Temperature Protection (Recommended ≤100 °C); Overvoltage Protection (Recommended ≤30 V); Communication Loss Protection (CAN timeout exit enable mode); Motor Overcurrent Protection (Recommended ≤9.8 A); Under-Voltage Protection (Minimum supply ≥15 V)

Technical Documentation

PDF
DM-J3507-2EC-V1.0_User_Manual.pdf
STP
dm_3507_3d.STEP
PDF
DM_3507-Motor_Installation_Dimension_Drawing.pdf
