DAMIAO

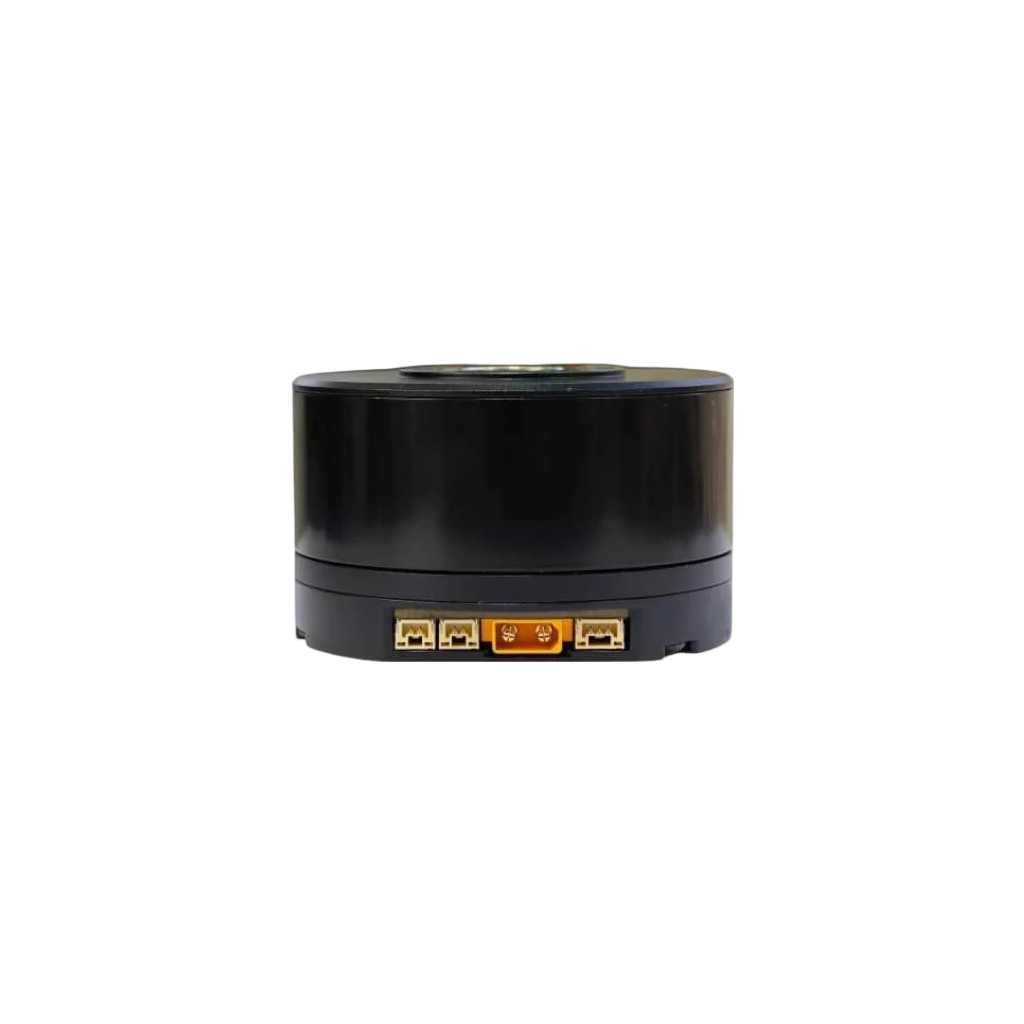

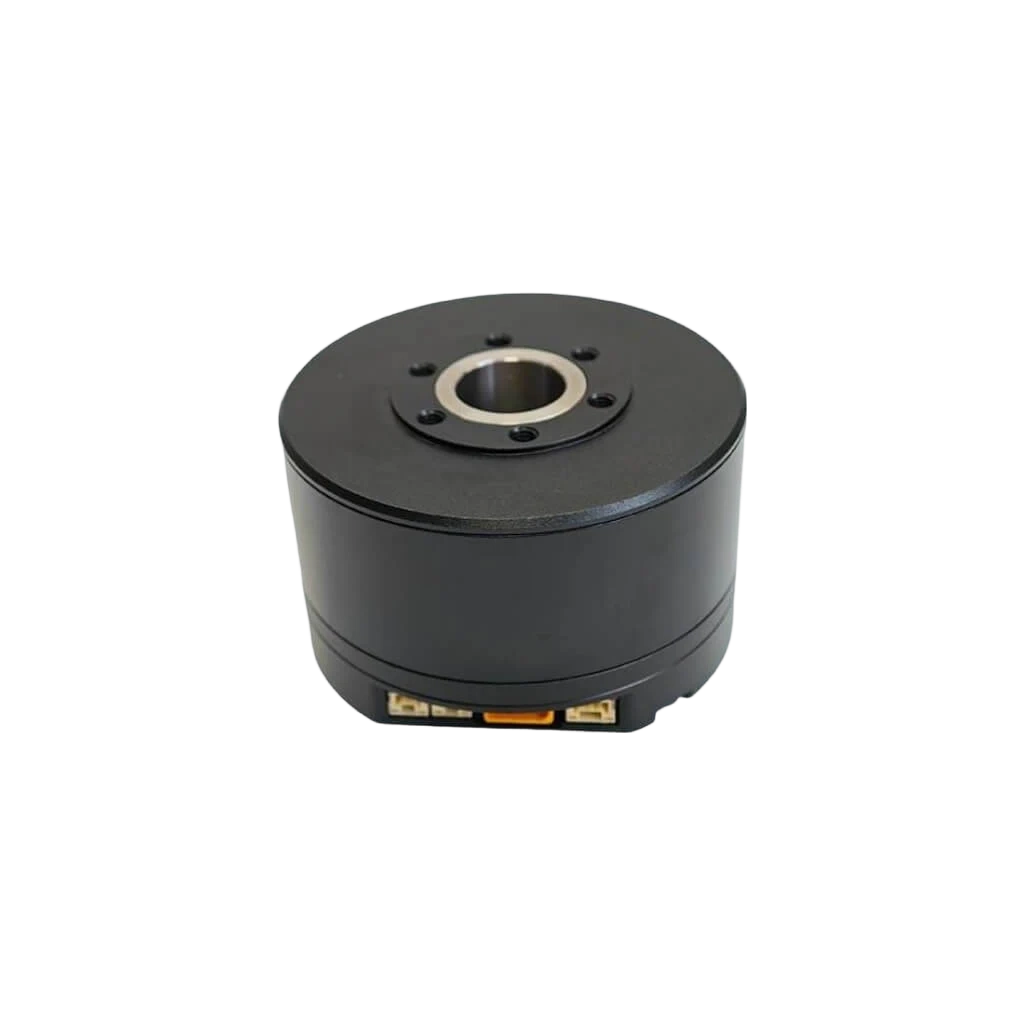

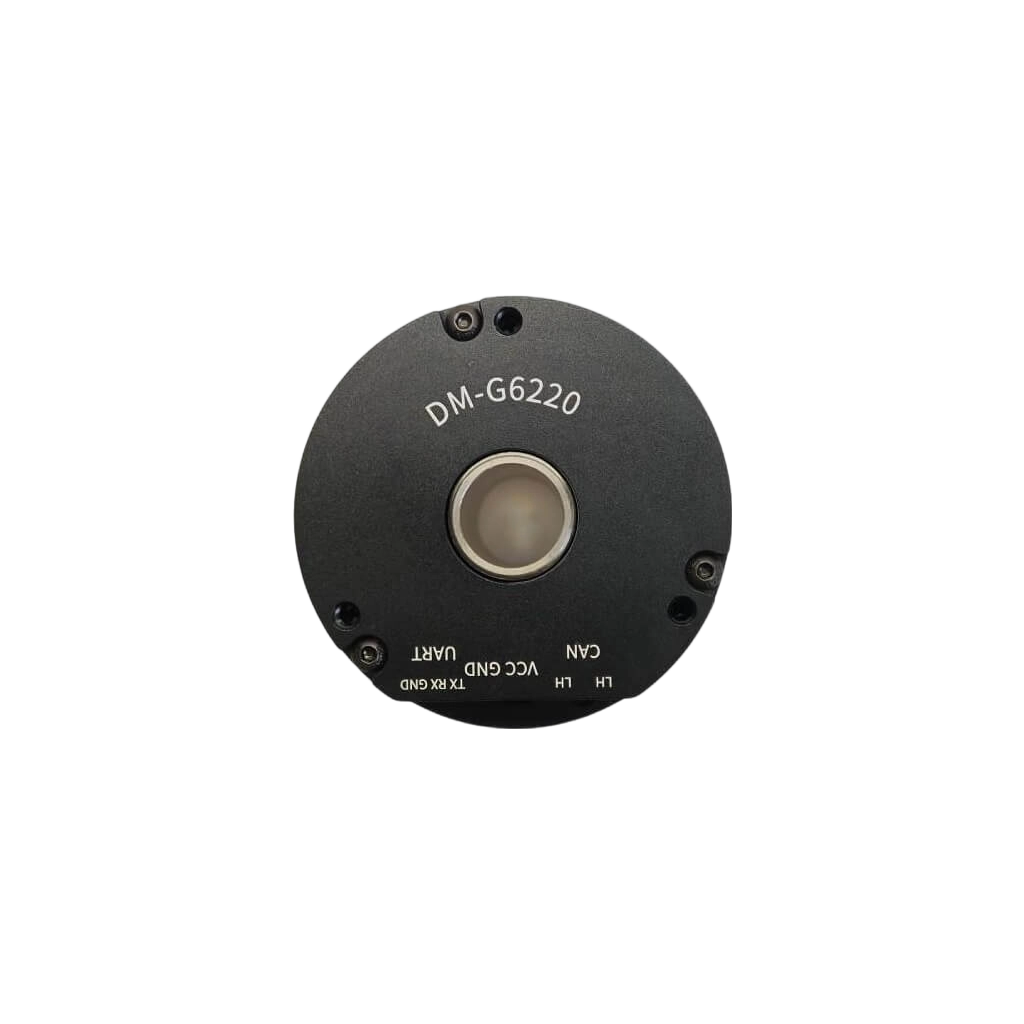

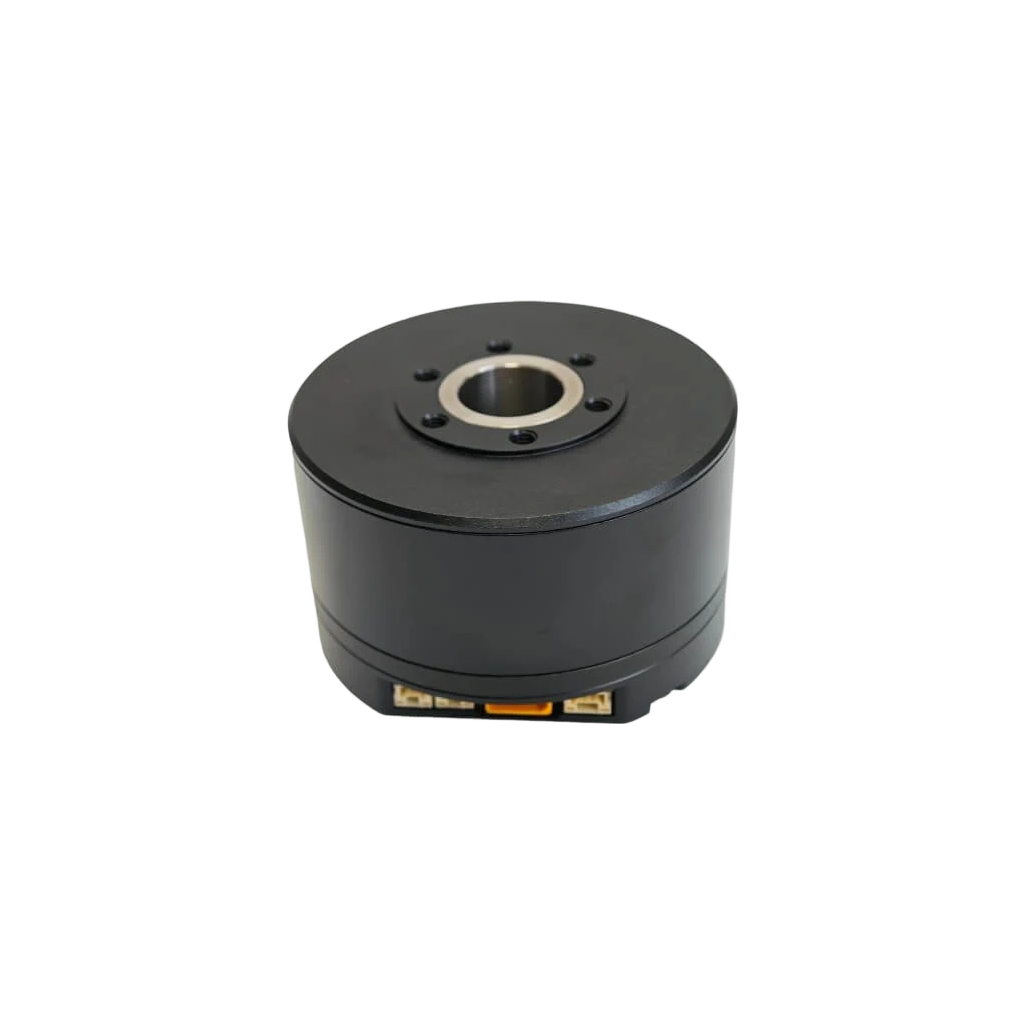

DAMIAO DM-G6220 Servo Motor for Robotics & Automation

Model: DM-G6220
$110
Version
Communication Module

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Parameter
Value
Model
DM-G6220
Nominal Voltage
24 V DC
Nominal Current
2.3 A
Peak Current
5.3 A
Nominal Torque
1.3 N·m
Peak Torque
2.7 N·m
Nominal Speed
110 rpm
Maximum No-Load Speed
300 rpm
Reduction Ratio
1:1
Pole Pairs
14
Phase Inductance
2900 µH
Phase Resistance
3.5 Ω
Outer Diameter
68 mm
Height
41.5 mm
Motor Weight
494 g
Encoder Type
Magnetic Encoder
Control Interface
CAN
Configuration Interface
UART (921600 bps)

Technical Documentation

PDF
DM-G6220_User_Manual-1.pdf
STP
DAMIAO_DM_G6220_Motor.stp
PDF

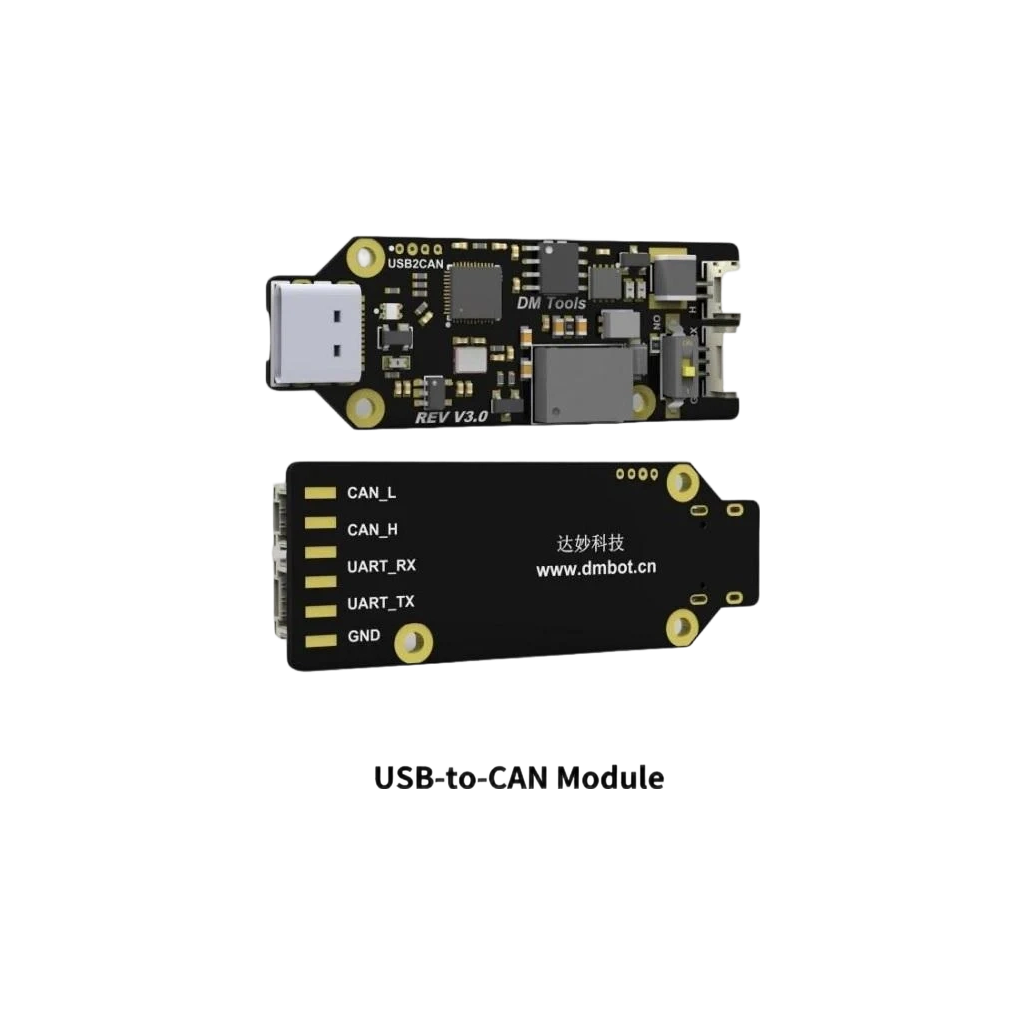

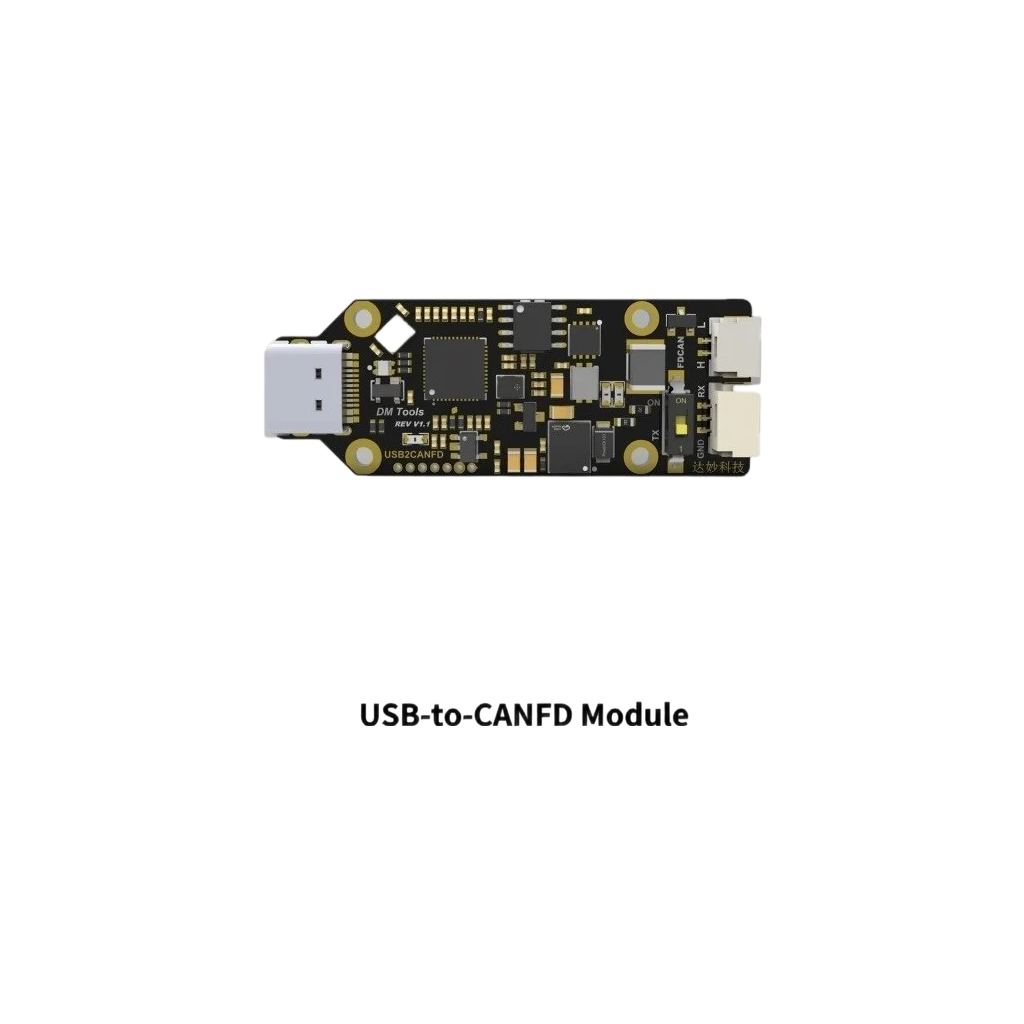

USB_to_CANFD_Module_User_Manual_V1.0.pdf
