PACECAT

PACECAT LDS-E110-R LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: LDS-E110-R
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for environmental sensing workflows that require reliable ranging and spatial awareness.
  • Useful for developers building localization, obstacle detection, navigation, and robotics perception applications.
$260
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

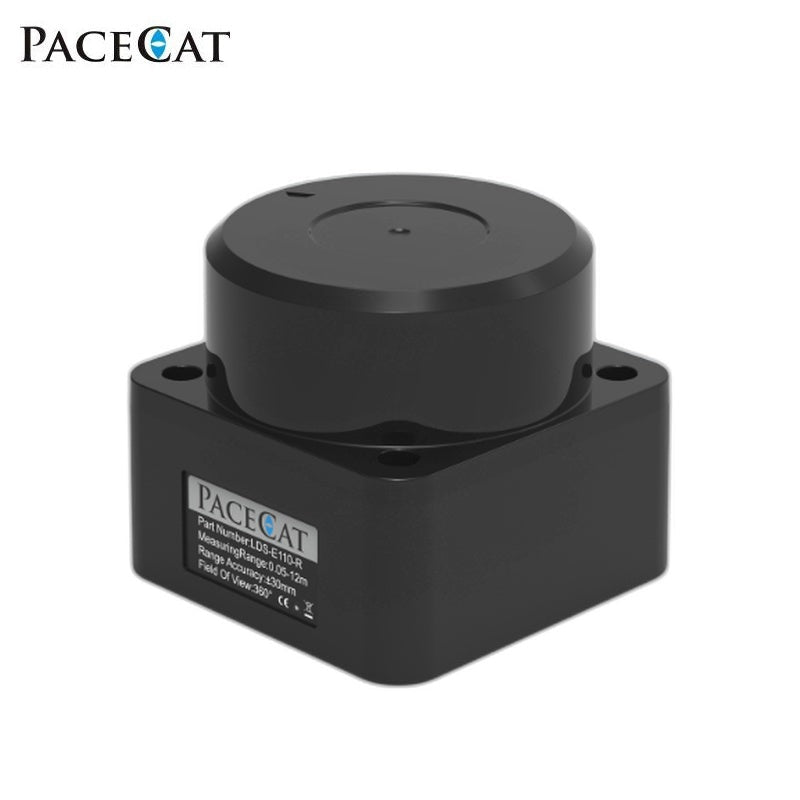

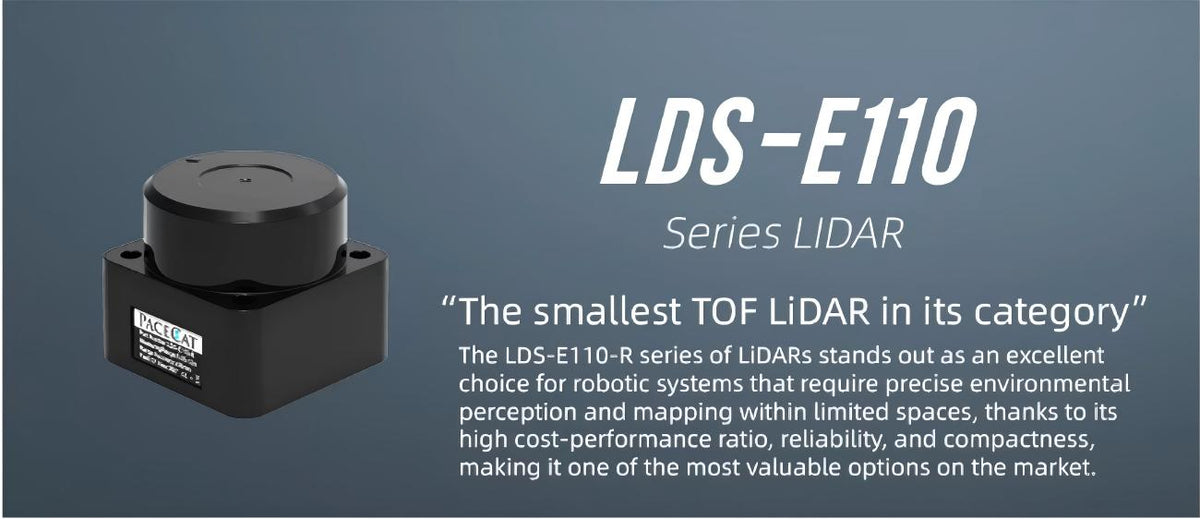

PACECAT LDS-E110-R LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

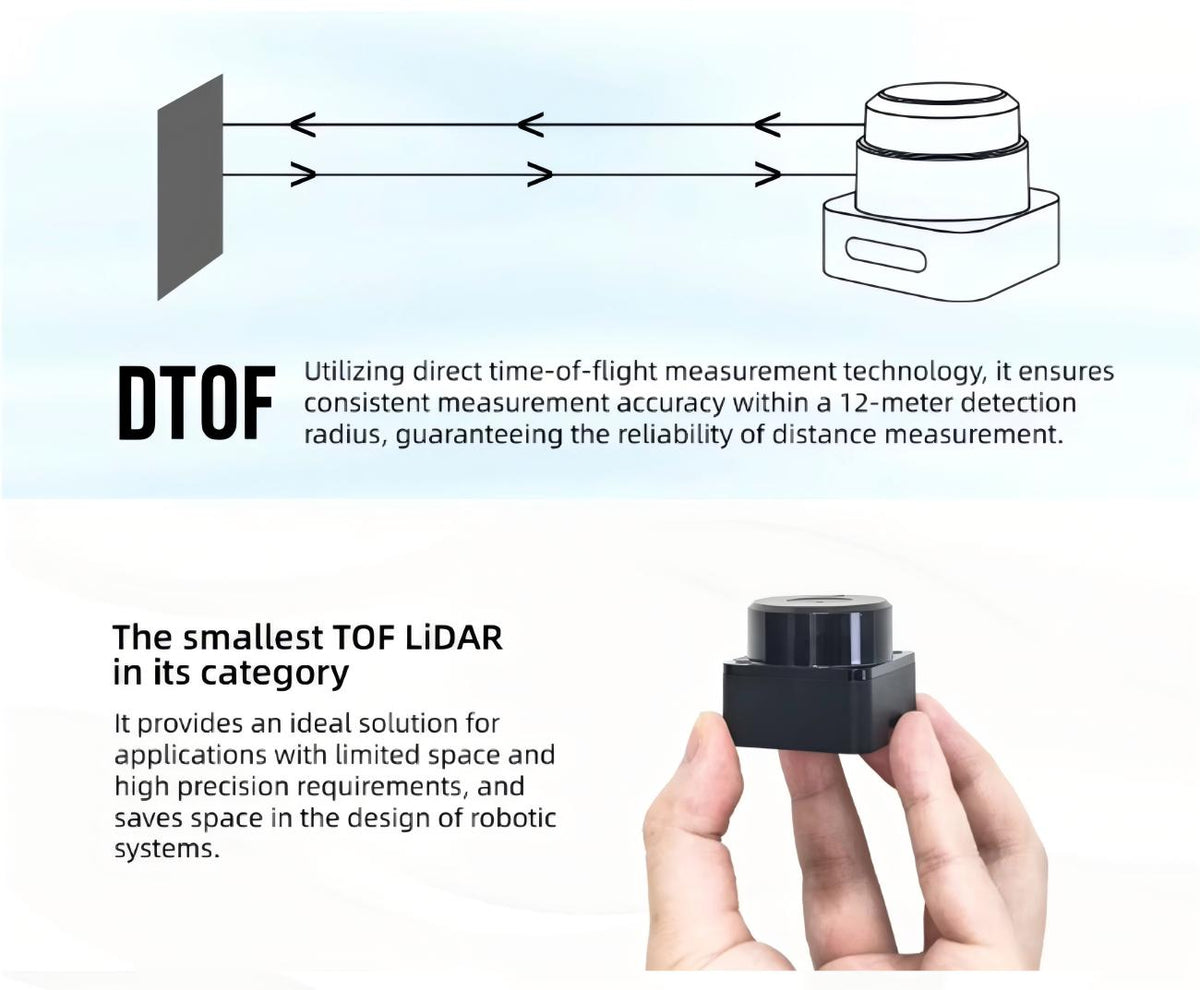

PACECAT LDS-E110-R LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

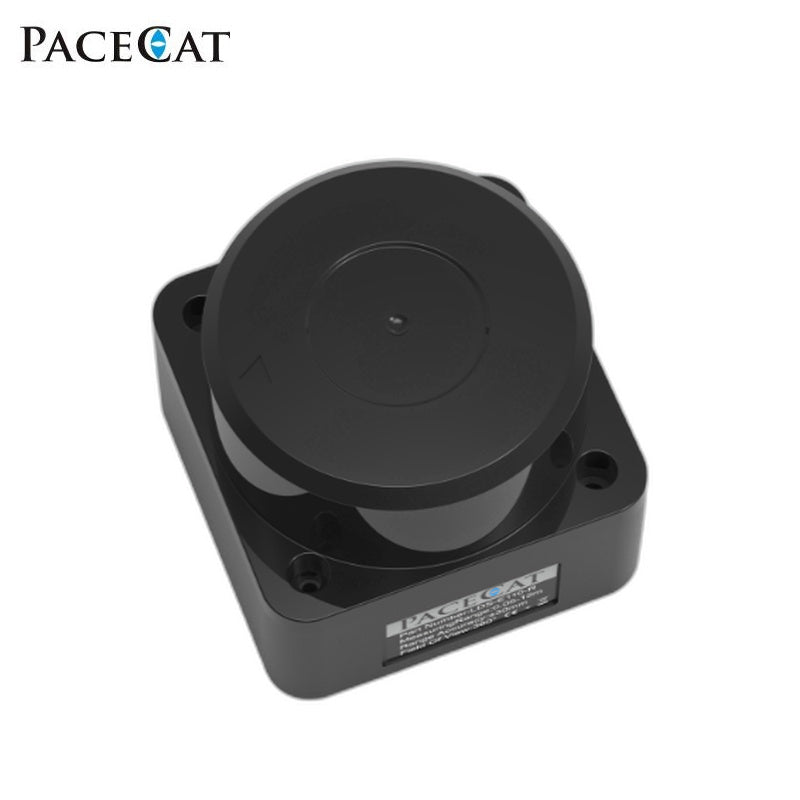

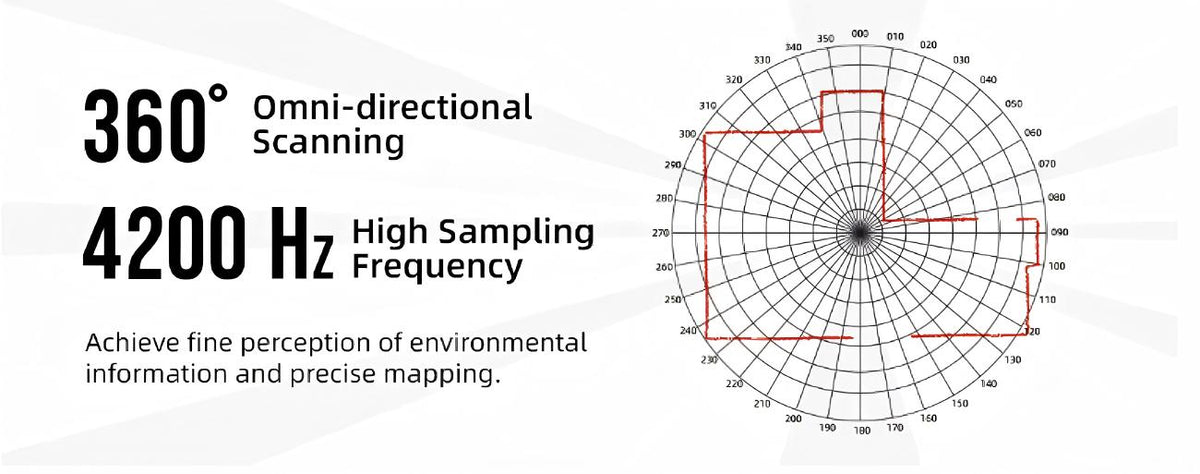

PACECAT LDS-E110-R LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

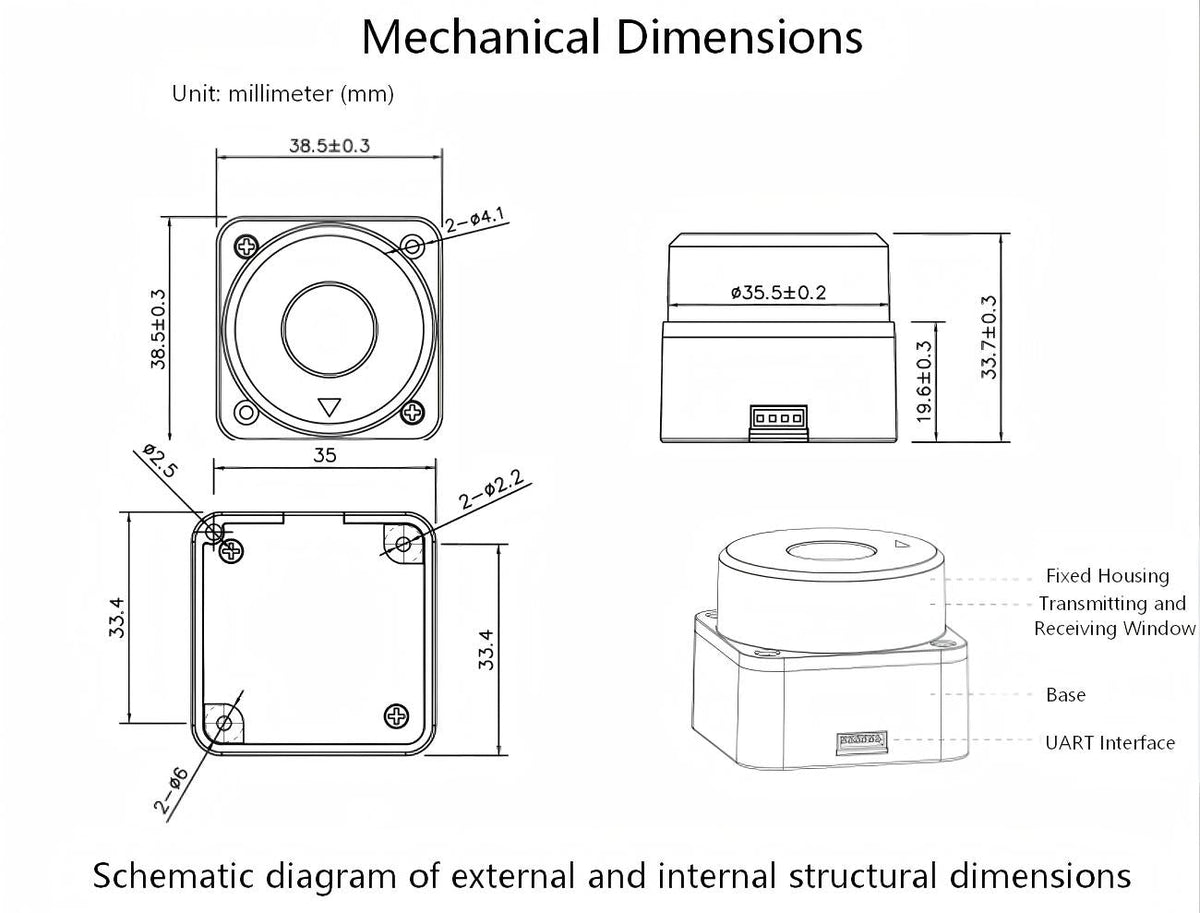

PACECAT LDS-E110-R LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
▤ Technical Specifications ⌃
Parameter LDS-E110-R LDS-E110-R-1 LDS-E110-R-3
Model LDS-E110-R LDS-E110-R-1 LDS-E110-R-3
Laser Wavelength 905nm±5nm 905nm±5nm 905nm±5nm
Measuring Distance 0.1-12m (90%) 0.1-7m (10%) 0.1-12m (90%) 0.1-7m (10%) 0.1-12m (90%) 0.1-7m (10%)
Laser Frequency 4.2kHz 4.2kHz 4.2kHz
Refresh Frequency 7Hz 10Hz 10Hz
Echo Mode Single Pulse Single Pulse Single Pulse
Echo Intensity 0-254 0-254 0-254
Drive Method / Motor Built-in Brushless Motor Built-in Brushless Motor Built-in Brushless Motor
Horizontal Angular Resolution 0.6°@7Hz 0.83°@10Hz 0.83°@10Hz
Range Accuracy ±20mm @<2m ±30mm @≥2m ±20mm @<2m ±30mm @≥2m ±10mm @<2m ±20mm @≥2m
Distance Resolution mm mm mm
Data Interface UART 3.3V UART 3.3V UART 3.3V
Anti-glare >80000LX >80000LX >80000LX
Reference Weight <80g <80g <80g
Working Voltage 5.1VDC±0.2VDC 5.1VDC±0.2VDC 5.1VDC±0.2VDC
Working Temperature -10°C~+45°C -10°C~+45°C -10°C~+45°C
Power Consumption ≤1W ≤1W ≤1.5W
Protection Grade N/A N/A N/A
Device Dimensions (mm) 38.5×38.5×34mm 38.5×38.5×34mm 38.5×38.5×34mm
