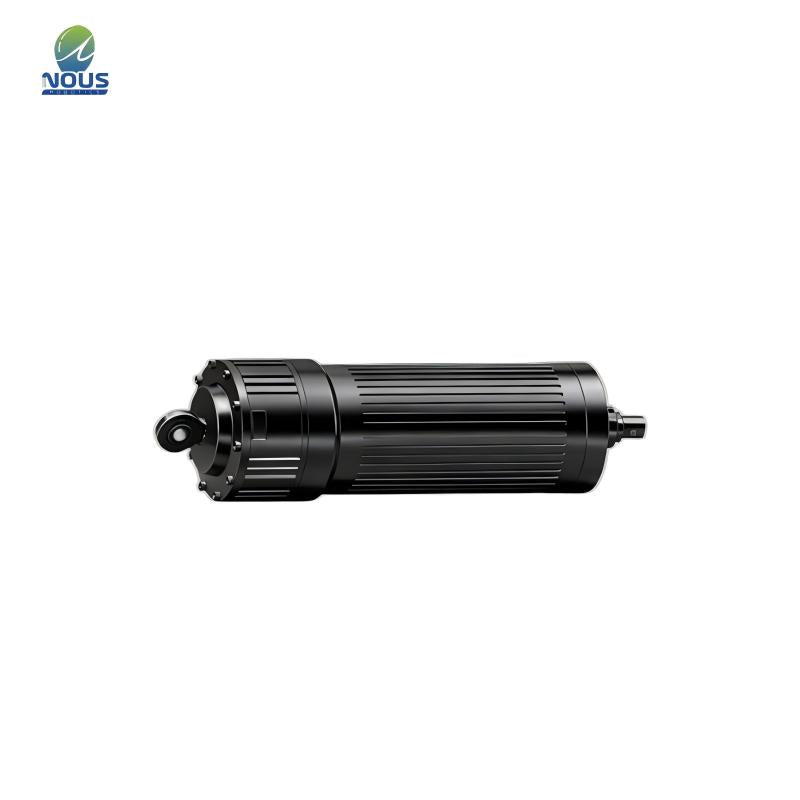

NOUS OPI50IF Medium Actuator | Robot Actuator for Robotics Development

  • NOUS robot actuator for robot joints, compact motion systems, robotics development, and automation hardware.
  • Suitable for engineers building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in actuator modules, robot servo systems, and compact robotic assemblies.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$3,450
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

NOUS OPI50IF-60-06-3-RS dimension drawing for installation reference.pdf ▶
NOUS OPI50IF Medium Actuator | Robot Actuator for Robotics Development detail image 1
NOUS OPI50IF Medium Actuator | Robot Actuator for Robotics Development detail image 2
NOUS OPI50IF Medium Actuator | Robot Actuator for Robotics Development detail image 3
NOUS OPI50IF Medium Actuator | Robot Actuator for Robotics Development detail image 4
NOUS OPI50IF Medium Actuator | Robot Actuator for Robotics Development detail image 5
NOUS OPI50IF Medium Actuator | Robot Actuator for Robotics Development detail image 6
NOUS OPI50IF Medium Actuator | Robot Actuator for Robotics Development detail image 7
▤ PARAMETER ⌃
Model
OP150IF‑60‑06‑3‑RS
External dimensions (mm)
Φ60*172
Rated thrust (N)
800
Maximum thrust (N)
1500
Maximum self‑locking force (N)
-
Rated linear velocity (mm/s)
200
Maximum linear velocity (mm/s)
350
Stroke (mm)
60
Repeatability (mm)
±0.1
Weight (g)
1500
Temperature (℃)
-10‑45℃
IP Level
IP54
Screw type
Reverse planetary roller screw
Motor type
Frameless torque motor
Rated voltage (VDC)
DC48±10%
Rated current (A)
5.7
Instantaneous maximum current (A)
50
Encoder type
17‑bit Single‑turn / 16‑bit Multi‑turn
Drive control
Built‑in
Location feedback
No
Torque feedback
Yes
Communication interface
RS485/CAN
