LimX Dynamics

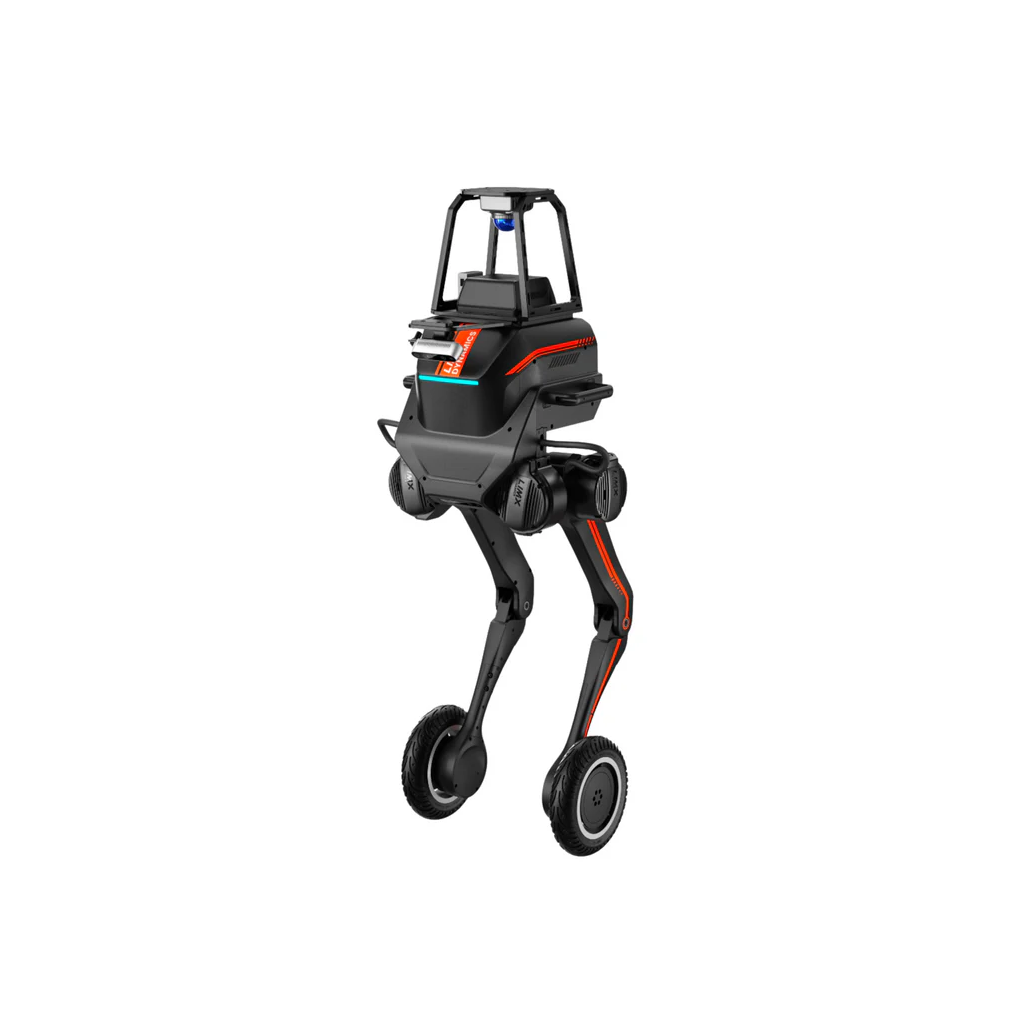

LimX Dynamics TRON 1 Sensor Expansion Kit for Robotics Perception

Sensor Expansion Kit for LimX Dynamics TRON 1 Biped Robot

$3,500

Care information

Store in a dry, dust-free environment and avoid impact or excessive vibration during handling. Do not disassemble the motor or modify internal components, as this may affect performance and void warranty. Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Integrates LiDAR + depth camera with pre-optimized mounting positions and field-of-view (FOV) , TRON 1 Sensor Expansion Kit provides a ready-to-use solution for 3D mapping, relocalization, navigation, and dynamic obstacle avoidance.

Introduction / Overview

NVIDIA High-Performance Computing Module

Enables research on autonomous navigation and obstacle avoidance in complex environments.

Pre-Tuned Field of View and Sensor Mounting

Reduces repetitive calibration,accelerating research efficiency.

Out-of-the-Box Expansion

Standard mounting adapters for immediate plug-and-play use.

Rich Open-Source Examples

For faster onboarding and lower development barriers and fast-track your projects.
▤ TECHNICAL SPECIFICATIONS & ACCESSORIES ⌃
Product Information
Product Name
TRON 1 Sensor Expansion Kit
Model Number
TRON1-AP-SS
Compatible Modes
Wheeled
Computing Specifications
GPU
NVIDIA Ampere architecture, 1024 CUDA Cores, 32 Tensor Cores
GPU Max Frequency
1173MHz
AI Performance
157 TOPS (Sparse), 78 TOPS (Dense)
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
CPU Max Frequency
2.0GHz
SPEC int rate
167
Memory
16GB 128-bit LPDDR5, 102.4GB/s
Storage
M.2 SSD (256GB standard), Supports External NVMe
LiDAR Specifications
LiDAR FOV
Horizontal: 360°, Vertical: -7° ~52°
Laser Wavelength
905nm
Close Proximity Blind Zone
~0.8m
Point Rate
200,000 pts/s
Frame Rate
10Hz
Depth Camera Specifications
Depth FOV (HxV)
87° x58°
Depth Resolution
1280x720
Depth Accuracy
<2% at 2m
RGB Sensor FOV (HxV)
69° x42°
RGB Resolution
1920x1080
Accessories List
LiDAR
1 set (Mounting Plate, Power Cable)
Depth Camera
1 set (Mounting Bracket, Power Cable)
AI Computing Module
1 set (Jetson Orin NX 16GB, Power Adapter Module, Power Cable, Power Extension Cord)
Ethernet Hub
1 pc
Mounting Plate
1 pc
LiDAR Mounting Bracket
2 pc
Assembly Kit
1 pack (Screws, Hex Key)
Ethernet Cable
3 pcs
Quick Start Guide
1 pc
