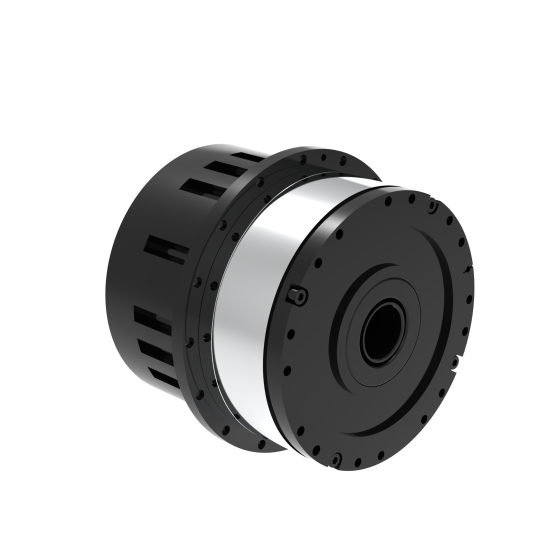

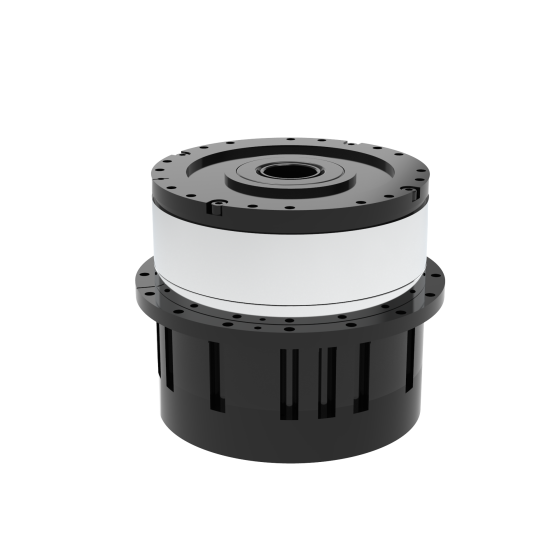

JUXIE CE-RB-R120-161-FBN-I Robot Joint Module for Humanoid Waist & Hip | High Torque Actuator

Model: CE-RB-R120-161-FBN-I
$839

Care information

Store in a dry, dust-free environment and avoid impact or excessive vibration during handling. Do not disassemble the motor or modify internal components, as this may affect performance and void warranty. Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

▤ PARAMETER ⌃
Parameter
Value
Reduction Ratio
161:1
Output Speed
11 RPM
Rated Torque
180 Nm
Peak Torque
450 Nm
Backlash
30 arcsec
Rated Voltage
48 V
Rated Power
720 W
Rated Speed
1800 RPM
Rated Current
15 A
Peak Current
45 A
Encoder
Dual encoders, single-turn absolute value: 19 bits per single turn
Drive
Interface: EtherCAT/CANOpen; Current Loop: 20 kHz; Speed Loop: 10 kHz
Brake
Static torque (20°C): ≥3 Nm; Release time ≤ 80 ms; Pull-in time ≤ 50 ms

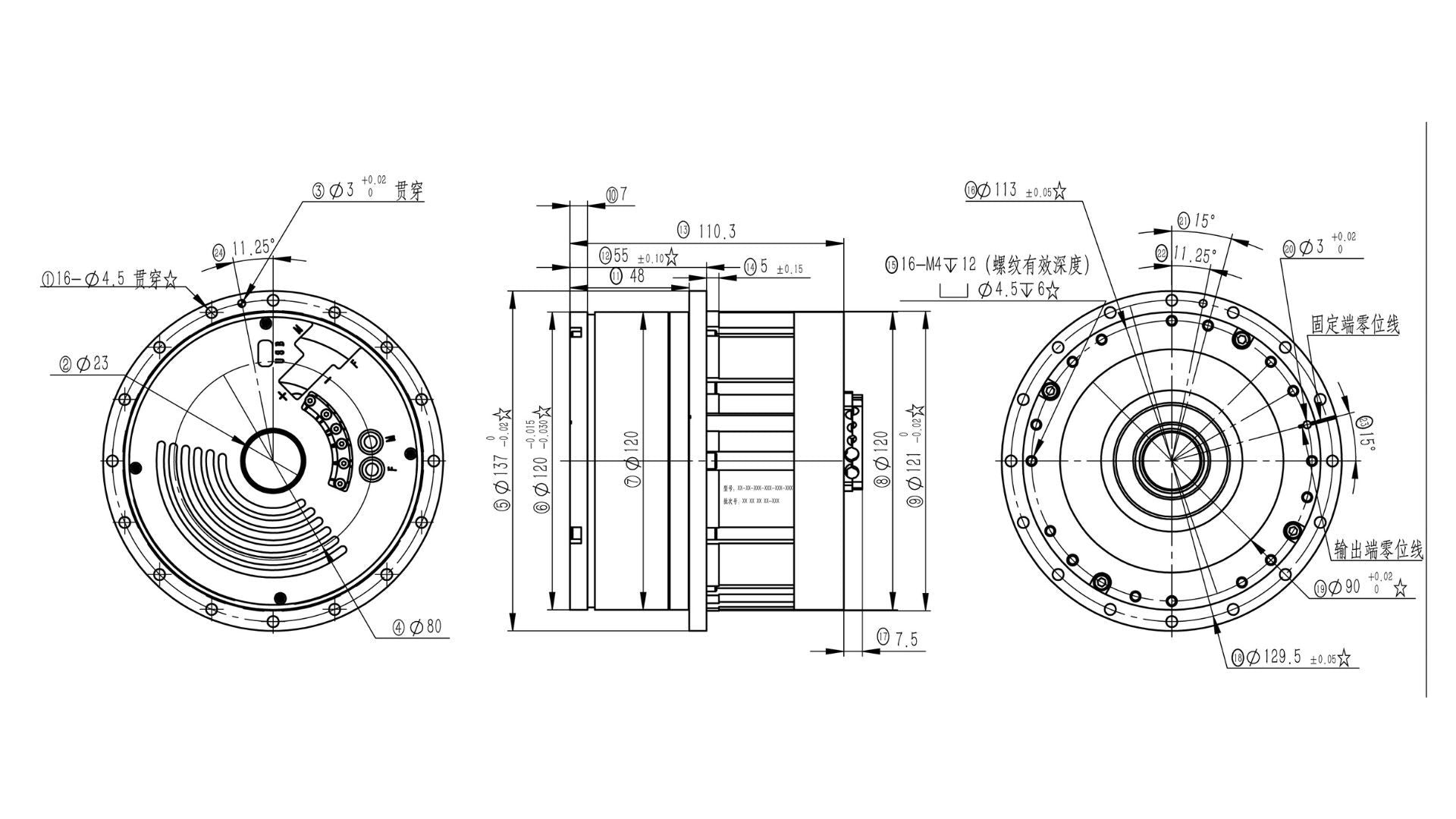

Overall Machine Dimensions
R120 × 110.3 mm
Overall Machine Weight
4.1 kg
Embodied Domain Applications
Waist / Hip
JUXIE CE-RB-R120-161-FBN-I Robot Joint Module for Humanoid Waist & Hip | High Torque Actuator
