Hobber

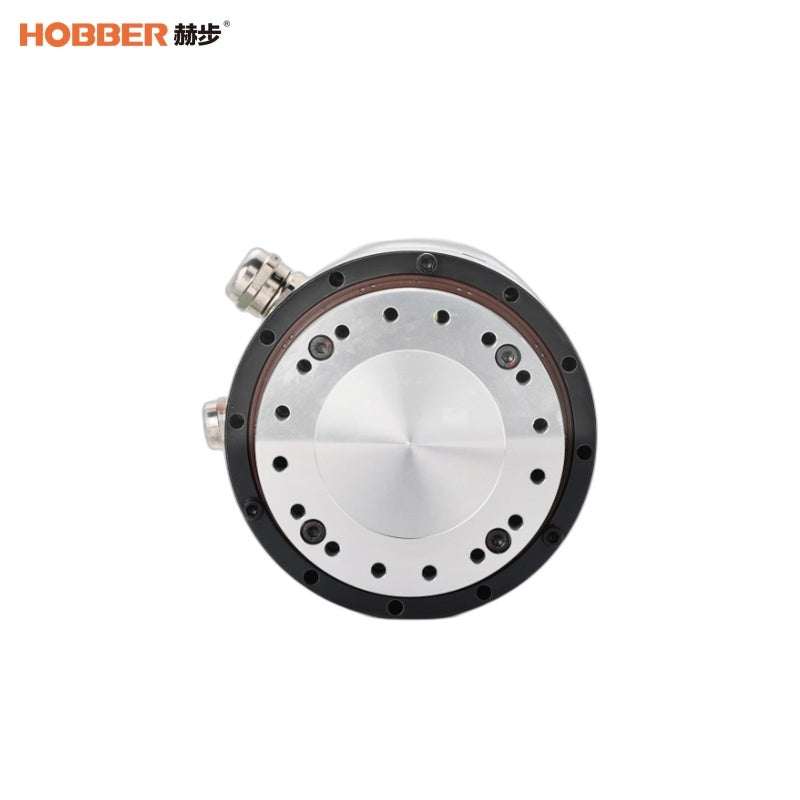

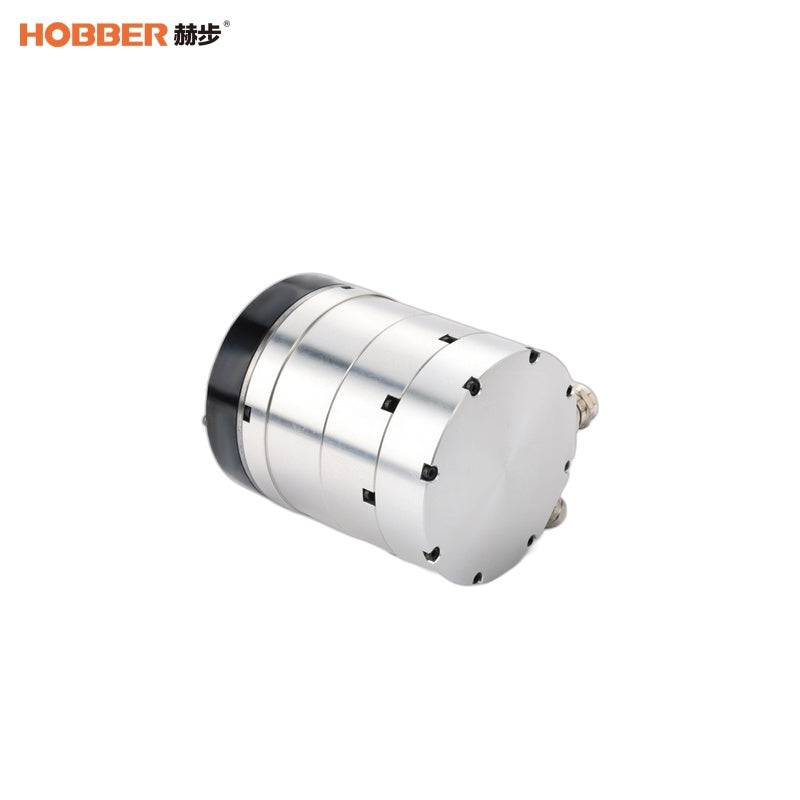

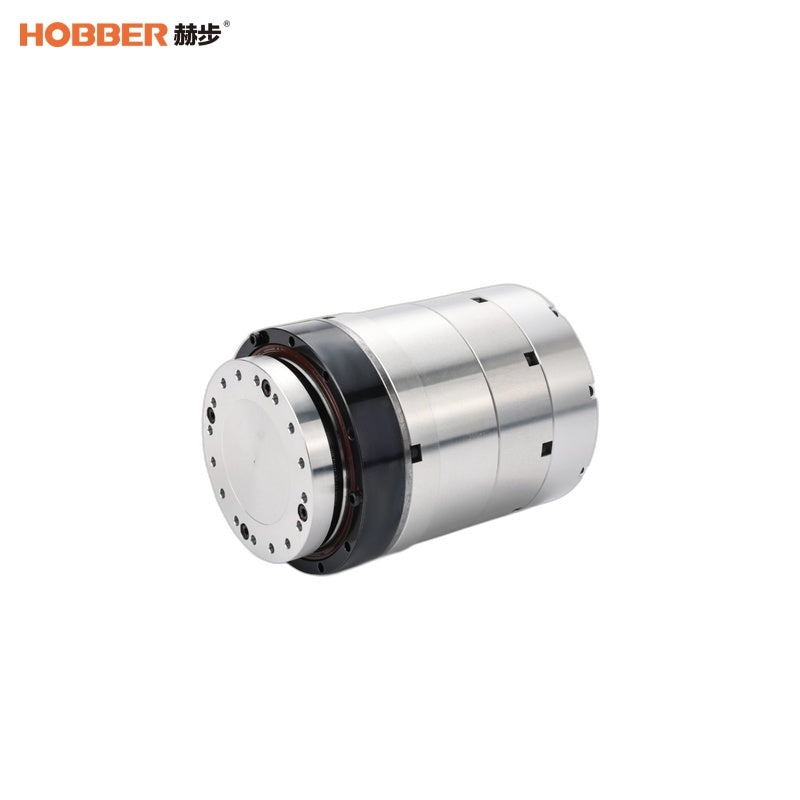

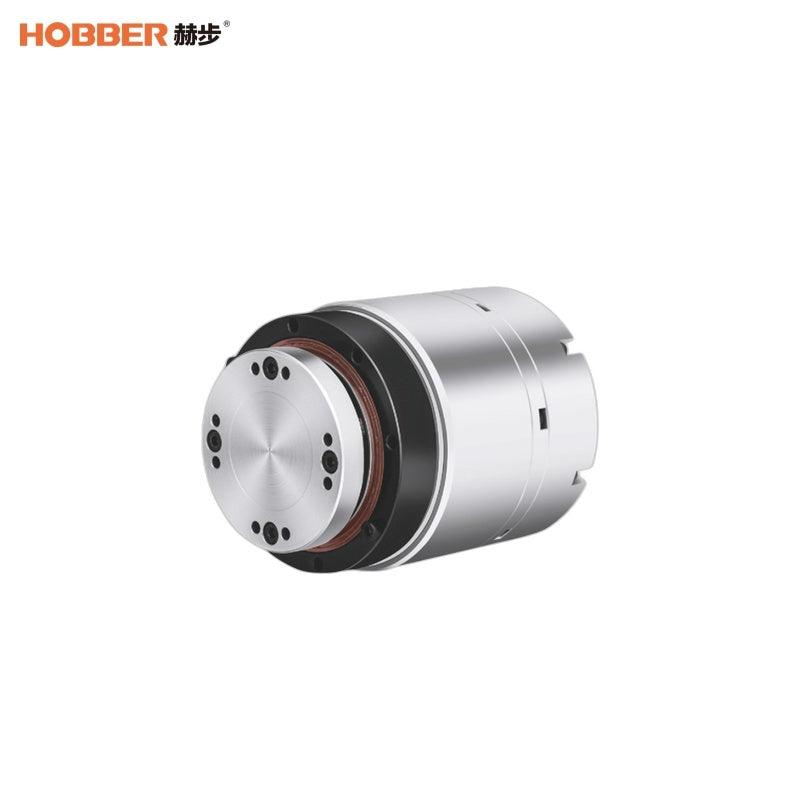

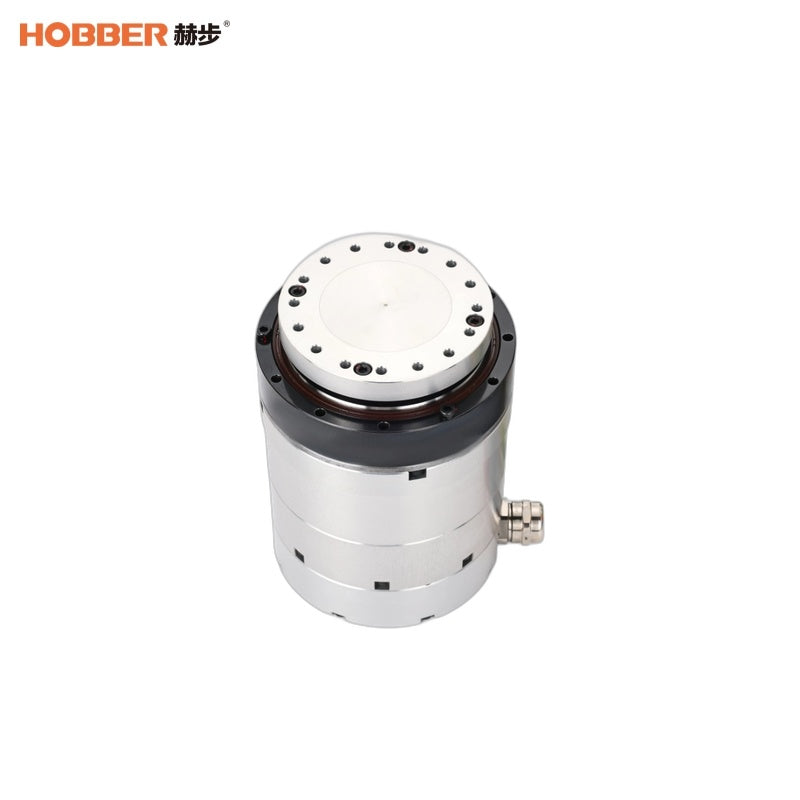

Hobber HAS-11 Actuator | Robot Actuator for Robotics Development

  • Hobber robot actuator for robot joints, actuator builds, motion-control systems, and robotics development.
  • Suitable for engineering teams building automation hardware, research platforms, education projects, and prototypes.
  • Designed for practical integration in robot servo motor, actuator, gearbox, and compact motion applications.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$2,100
Version
Brake
Gear Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Hobber HAS-11 Actuator dimension drawing for installation reference.pdf ▶ Hobber HAS-11 Actuator user manual for setup and integration.pdf ▶

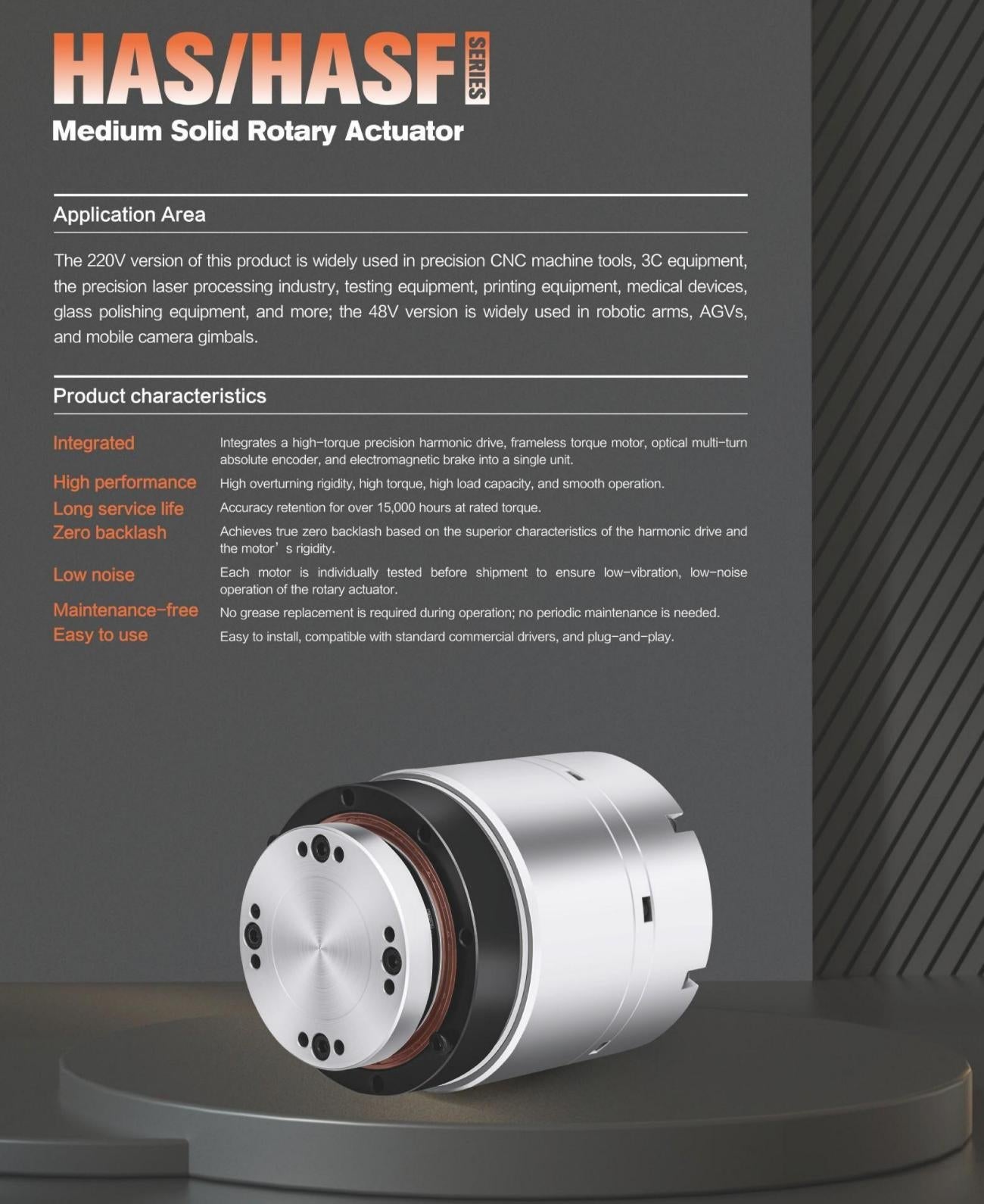

Hobber HAS-11 Actuator | Robot Actuator for Robotics Development detail image 1

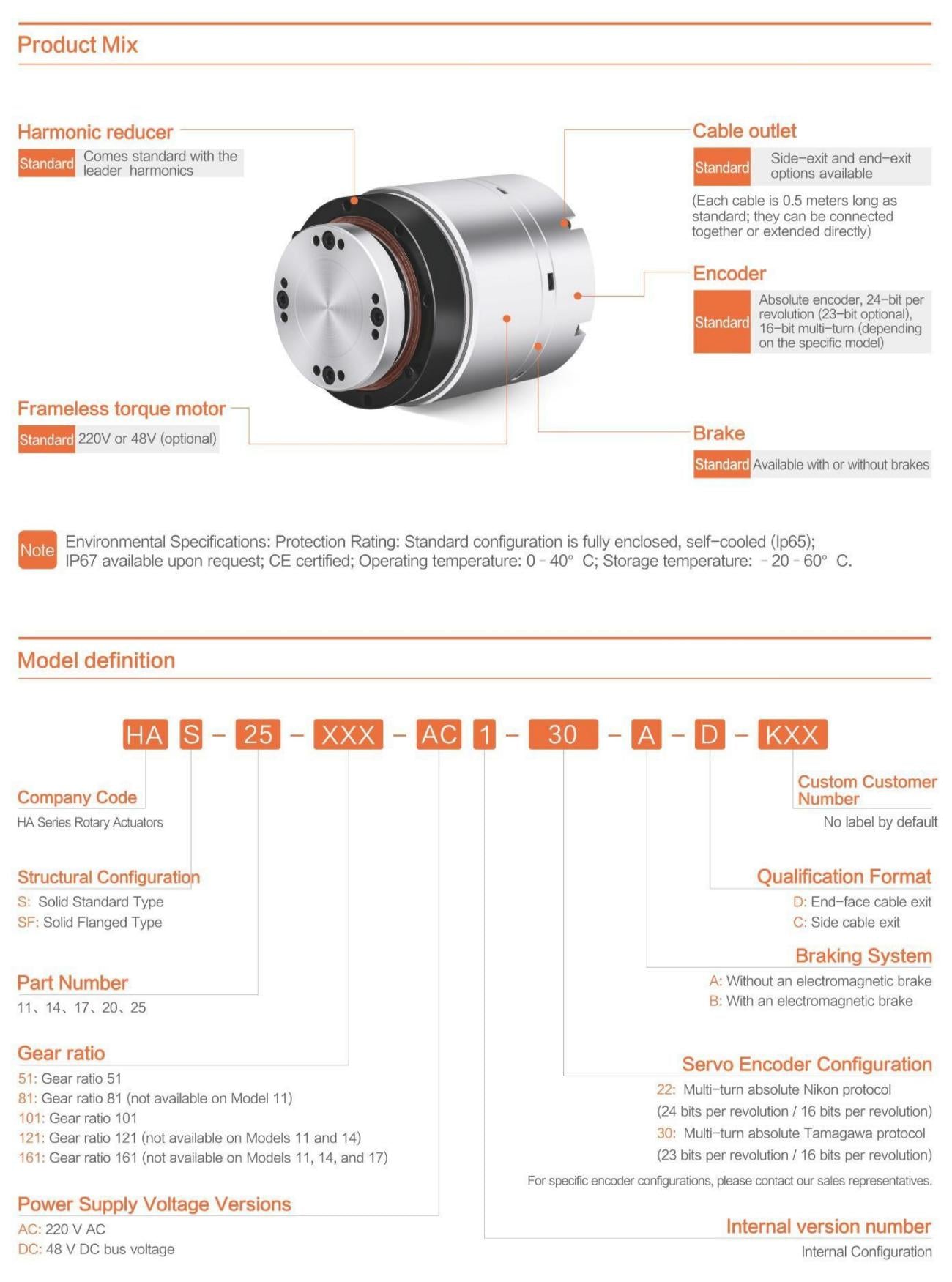

Hobber HAS-11 Actuator | Robot Actuator for Robotics Development detail image 2

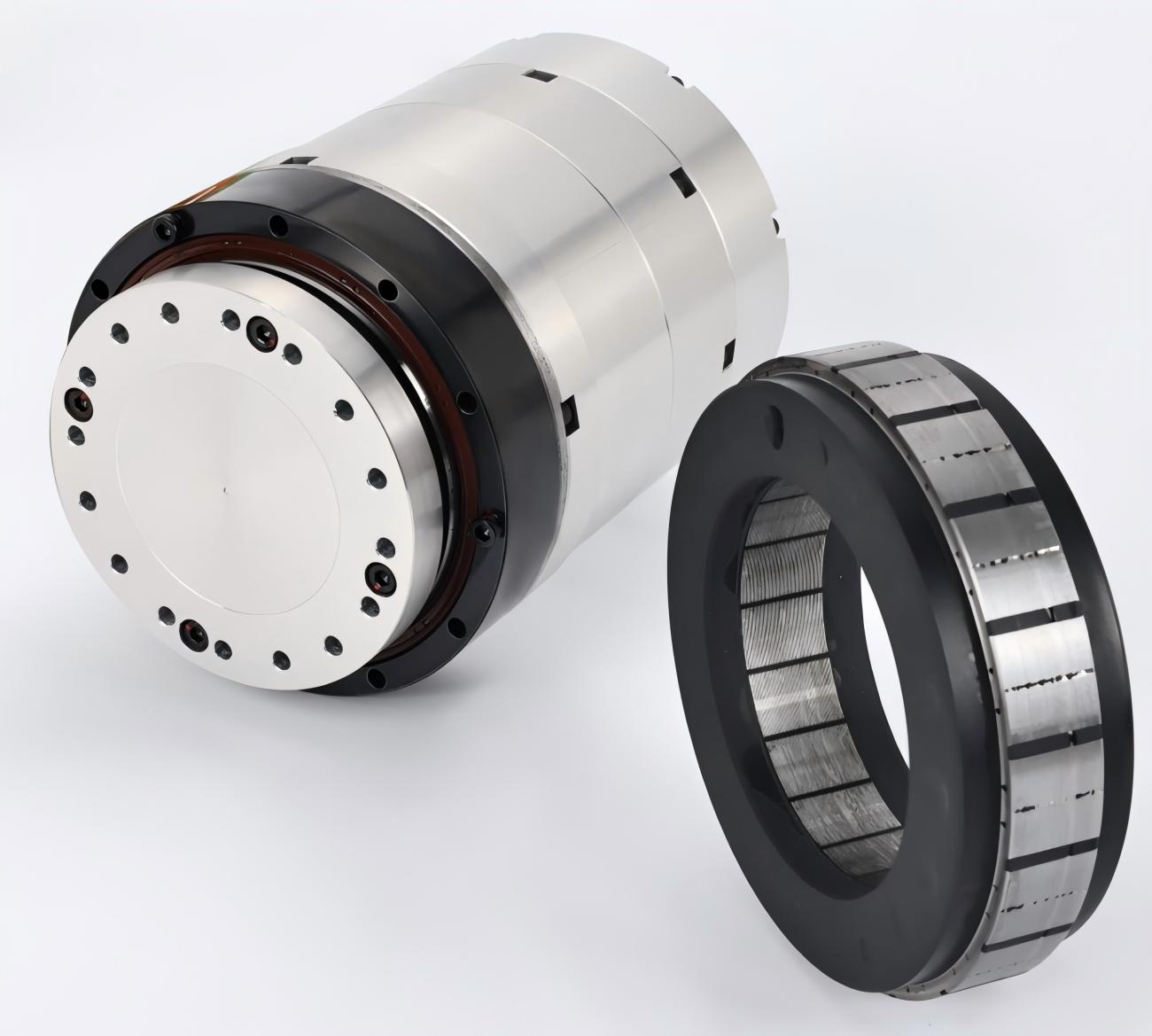

Hobber HAS-11 Actuator | Robot Actuator for Robotics Development detail image 3
▤ Technical Specifications ⌃
Parameter Value
Gear Ratio
Gear Ratio 51 / 101
AC 220V Ratings
Peak Torque (AC) 8.3 N.m (51) / 11 N.m (101)
Rated Torque (AC) 4 N.m (51) / 8 N.m (101)
Maximum Speed (AC) 102 rpm (51) / 51 rpm (101)
Rated Speed (AC) 69 rpm (51) / 35 rpm (101)
Maximum Current (AC) 2.03 Amms (51) / 1.36 Amms (101)
Rated Current (AC) 0.98 Amms (51) / 0.99 Amms (101)
Torque Constant (AC) 4.08 N.m/Amms (51) / 8.08 N.m/Amms (101)
Motor Phase‑to‑Phase Resistance (AC) 12 Ohms (20°C)
Motor Phase‑to‑Phase Inductance (AC) 9.5 mH
Motor Back‑EMF Constant (AC) 10.5 Vrms/krpm
DC 48V Ratings
Peak Torque (DC) 8.3 N.m (51) / 11 N.m (101)
Rated Torque (DC) 5.5 N.m (51) / 8.9 N.m (101)
Maximum Speed (DC) 78 rpm (51) / 40 rpm (101)
Rated Speed (DC) 59 rpm (51) / 30 rpm (101)
Maximum Current (DC) 2.03 Amms (51) / 1.36 Amms (101)
Rated Current (DC) 1.35 Amms (51) / 1.10 Amms (101)
Torque Constant (DC) 4.08 N.m/Amms (51) / 8.08 N.m/Amms (101)
Motor Phase‑to‑Phase Resistance (DC) 2.56 Ohms (20°C)
Motor Phase‑to‑Phase Inductance (DC) 1.8 mH
Motor Back‑EMF Constant (DC) 9.5 Vrms/krpm
Encoder & Positioning
Encoder Type Absolute Encoder
Encoder Resolution (Per Revolution) 2^24 (16,777,216) or 2^23 (8,388,608) bit
Encoder Multi-Revolution Counter 2^16 (65,536) bit
Unidirectional Positioning Accuracy ≤90 Arcsec
Repeat Positioning Accuracy ≤20 Arcsec
Mechanical Properties
Tilt Stiffness 4 × 10⁶ N.m/rad
Torsional Stiffness 0.3 × 10⁶ N.m/rad (51) / 0.34 × 10⁶ N.m/rad (101)
Rotor Moment of Inertia (Without Brake) 8.32 × 10⁻⁶ kg·m²
Rotor Moment of Inertia (With Brake) 8.73 × 10⁻⁶ kg·m²
Mass (Without Brake) 1.17 Kg
Mass (With Brake) 1.36 Kg
Number of Motor Poles 10
Ambient Conditions
Ambient Conditions Operating temp: 0~40°C / Storage: ‑20~60°C / Humidity: 20~80% RH (non‑condensing) / Vibration: 24.5 m/s² (10~400 Hz) / Free from dust, metal particles, corrosive/flammable gases, oil mist / Indoor use, avoid direct sunlight / Altitude below 1000 m
Safety & Insulation
Safety Certification CE certified
Insulation Resistance 100 MΩ or higher (DC 500 V)
Dielectric Strength AC 1500 V / 1 min
Insulation Class Class F
Protection Rating
Protection Rating Fully enclosed cooling type (IP54)
