Hobber

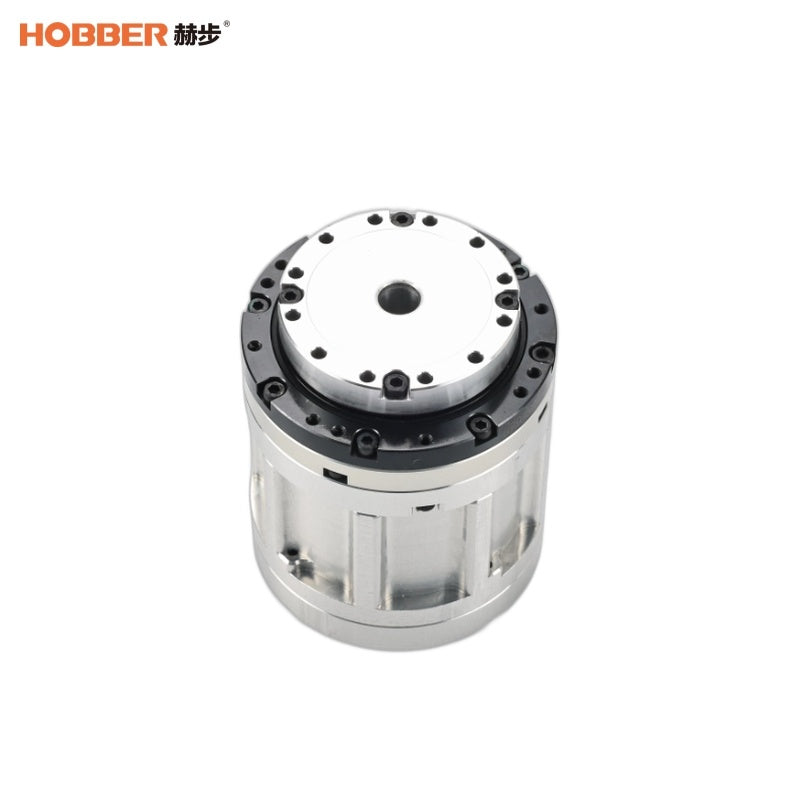

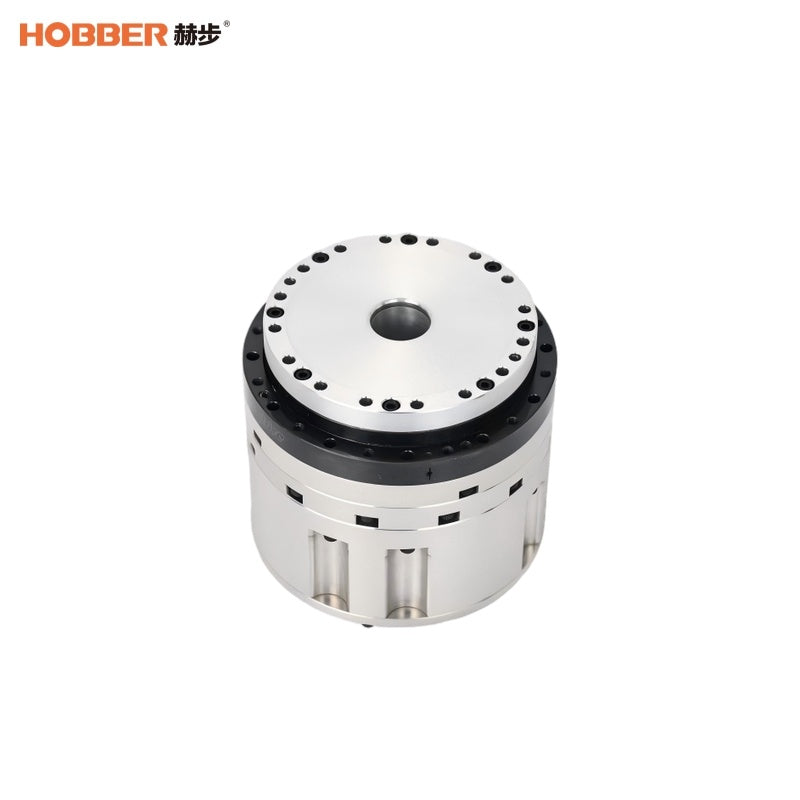

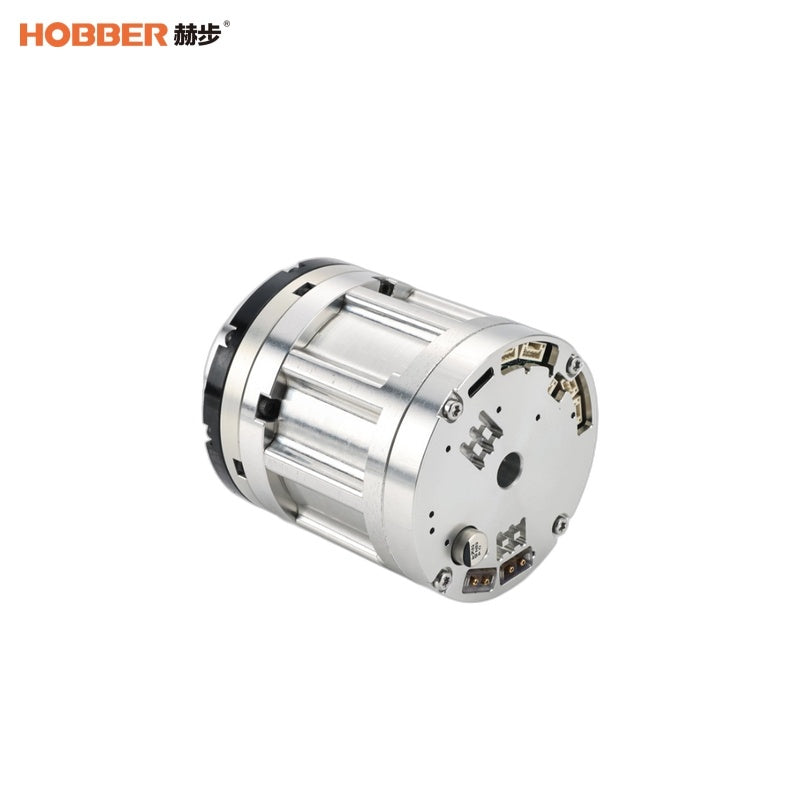

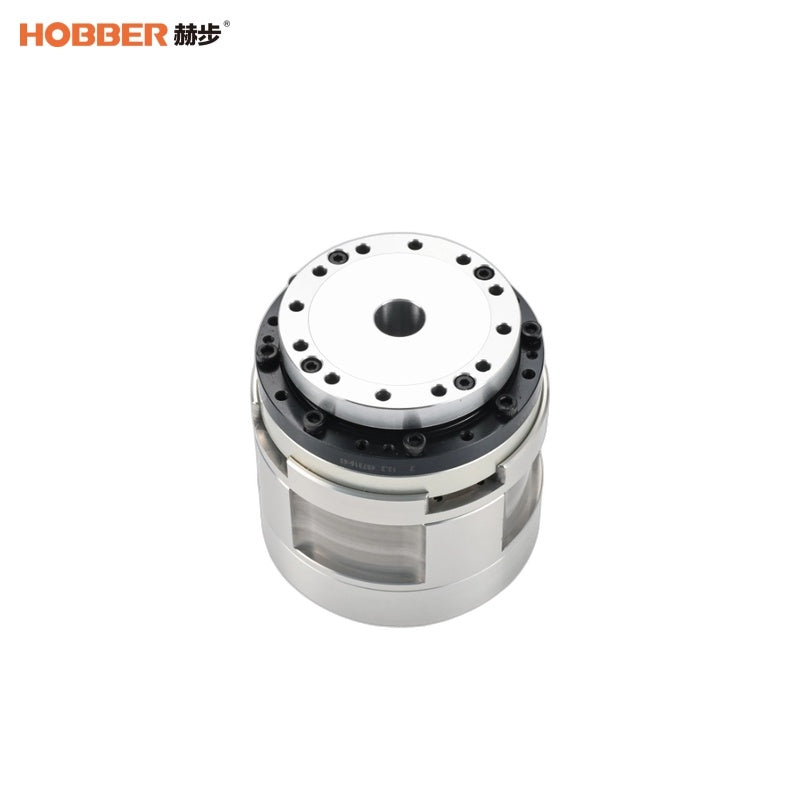

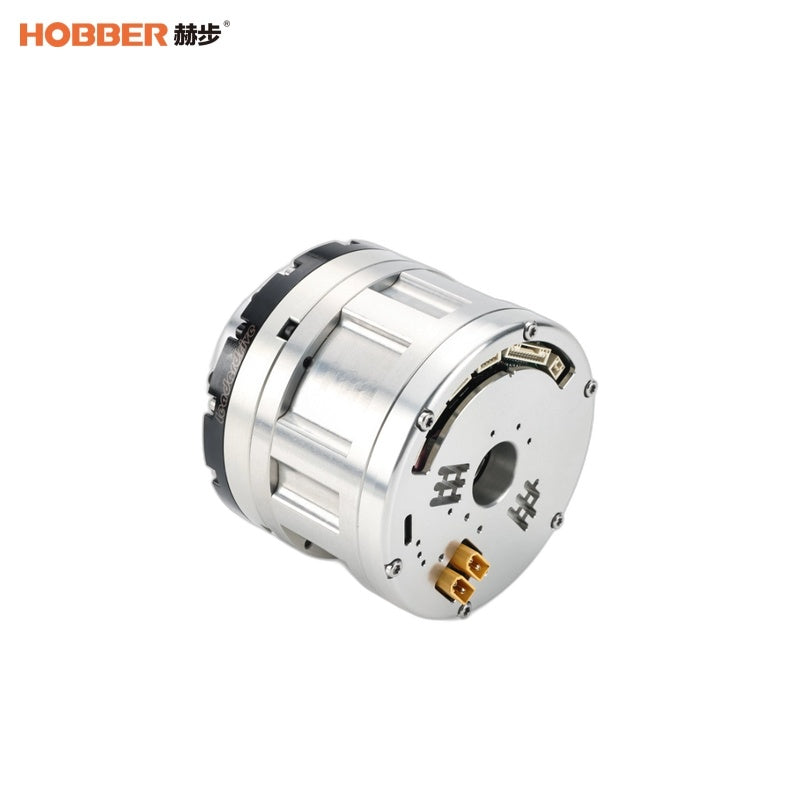

Hobber HAG-40 Actuator | Robot Actuator for Robotics Development

  • Hobber robot actuator for robot joints, actuator builds, motion-control systems, and robotics development.
  • Suitable for engineering teams building automation hardware, research platforms, education projects, and prototypes.
  • Designed for practical integration in robot servo motor, actuator, gearbox, and compact motion applications.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$4,400
Version
Brake
Gear Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Hobber HAG-40 Actuator dimension drawing for installation reference.pdf ▶ Hobber HAG-40 Actuator user manual for setup and integration.pdf ▶

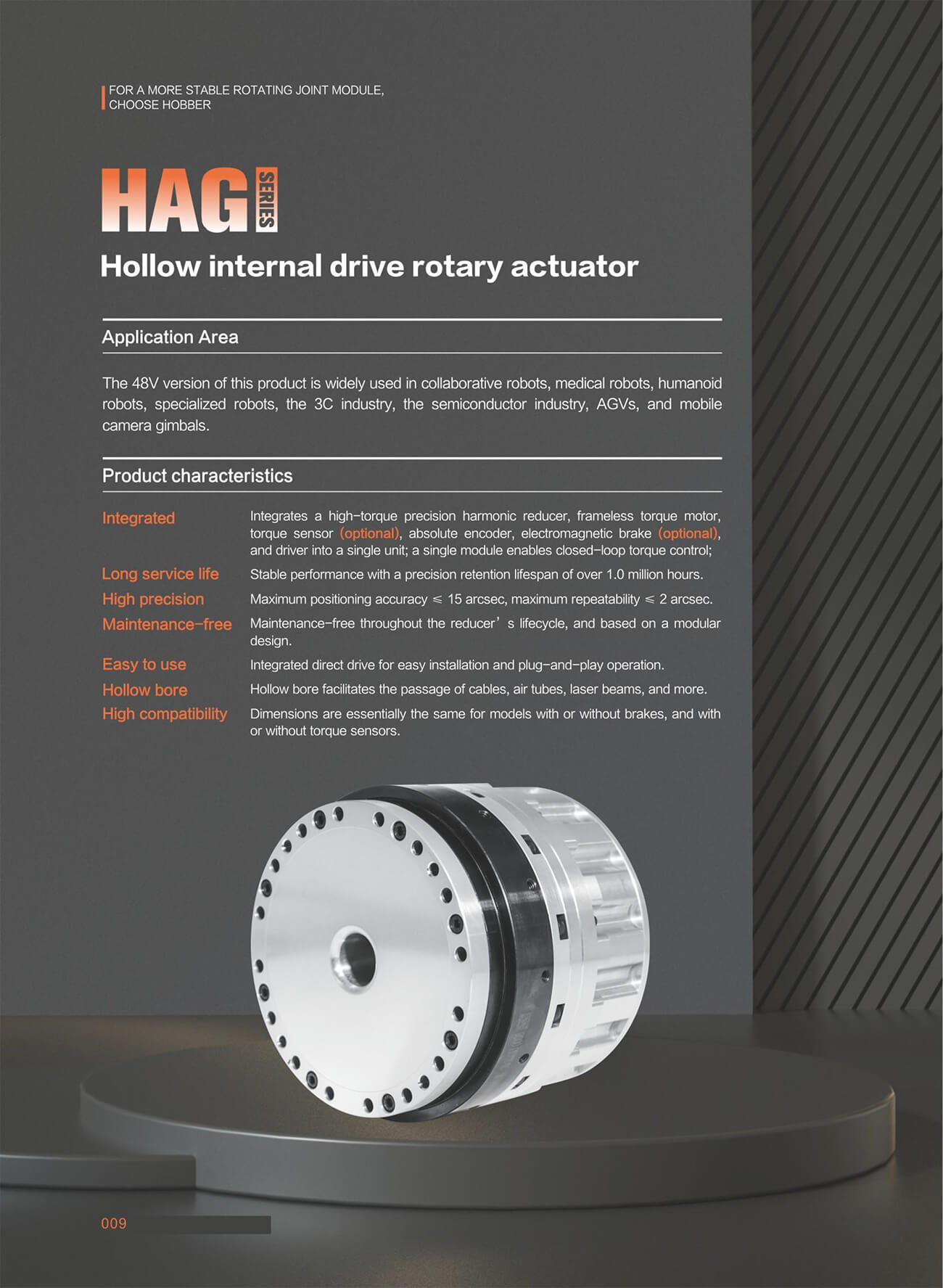

Hobber HAG-40 Actuator | Robot Actuator for Robotics Development detail image 1

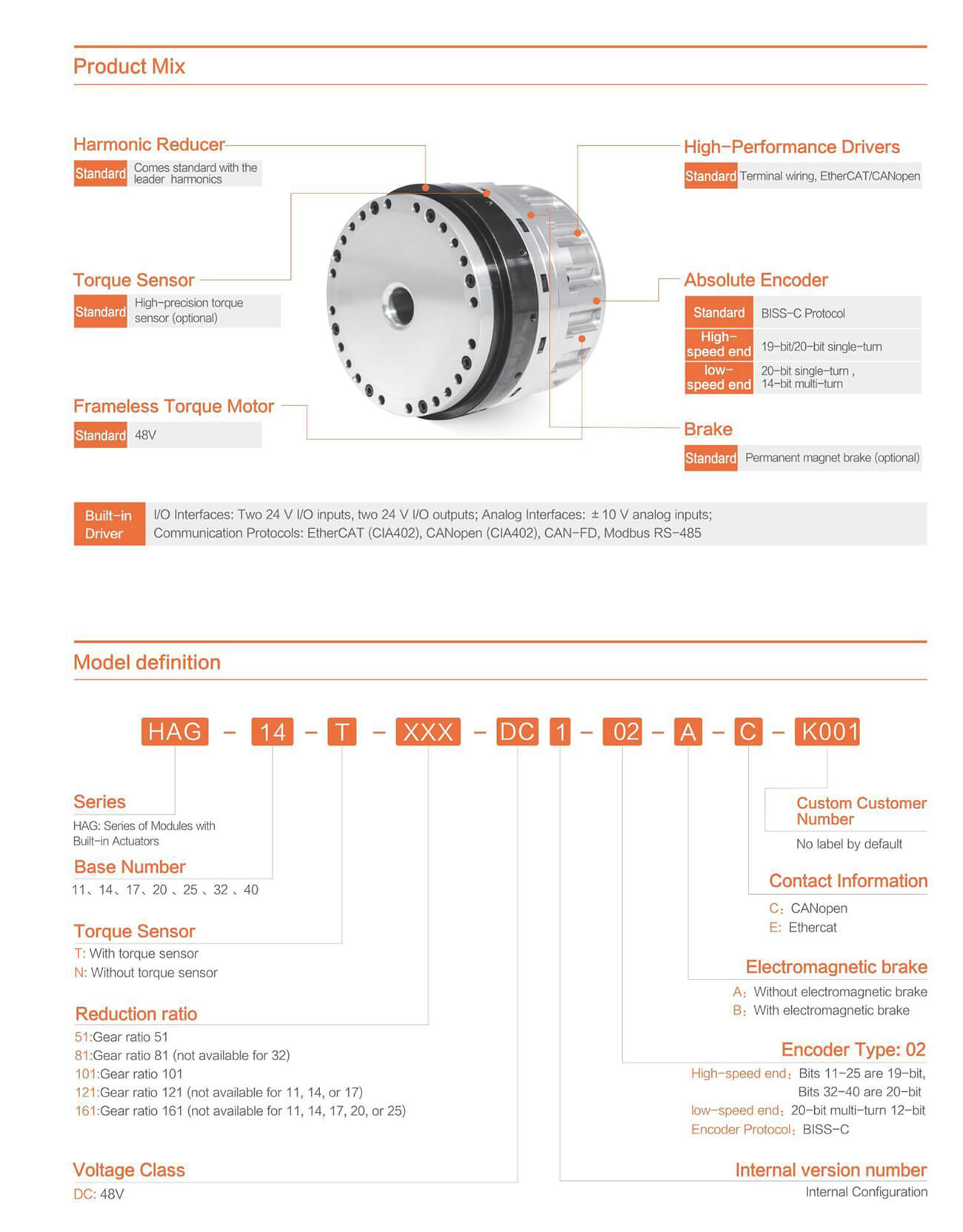

Hobber HAG-40 Actuator | Robot Actuator for Robotics Development detail image 2

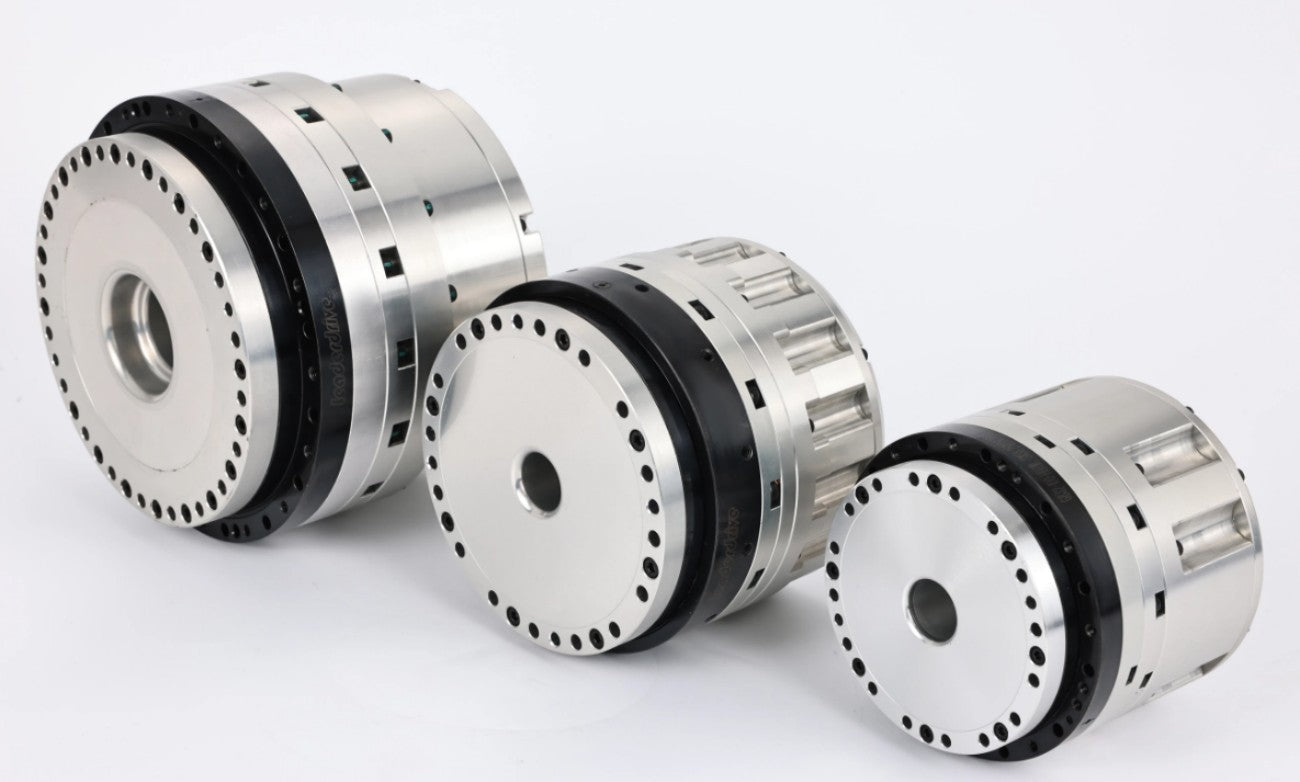

Hobber HAG-40 Actuator | Robot Actuator for Robotics Development detail image 3

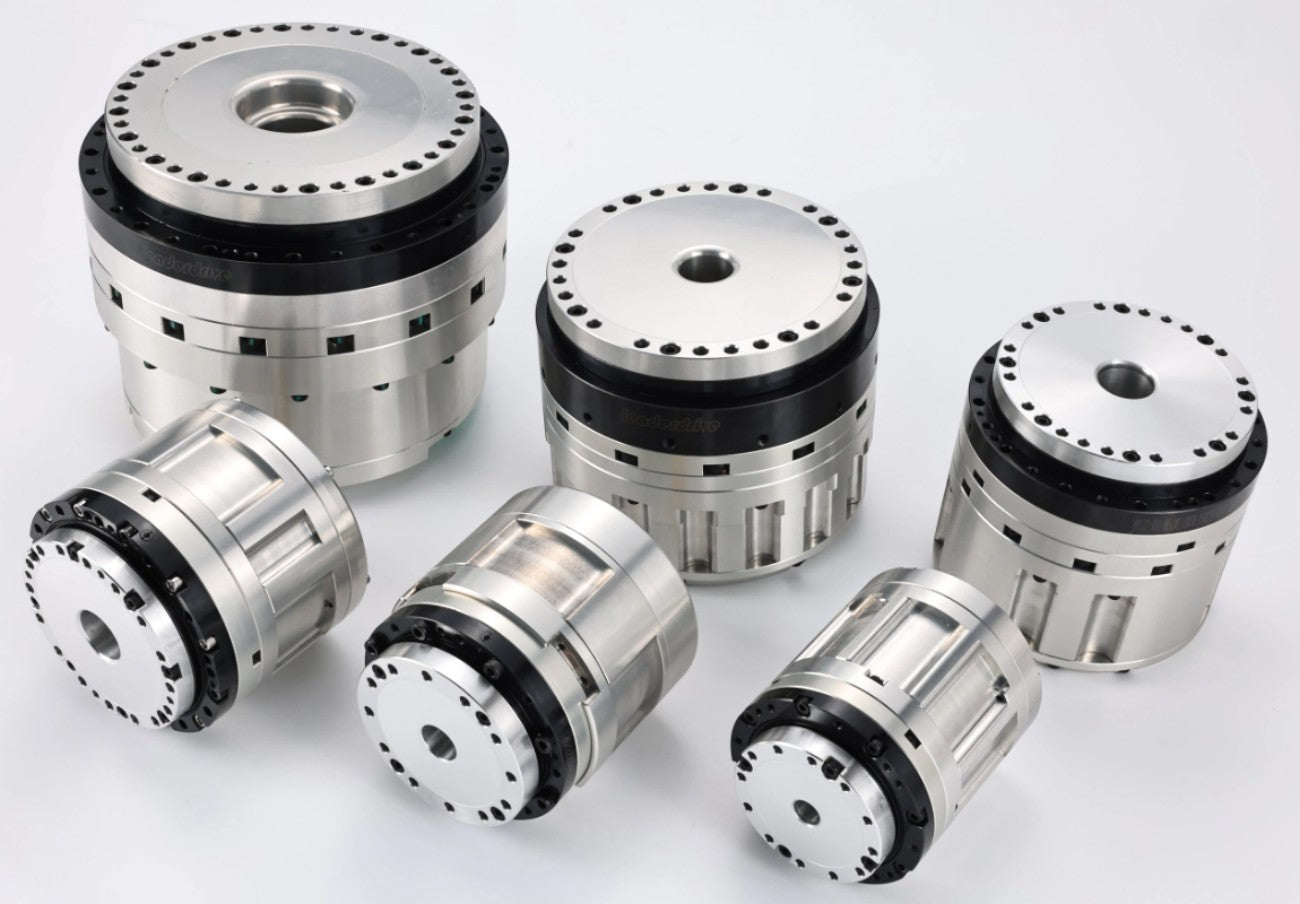

Hobber HAG-40 Actuator | Robot Actuator for Robotics Development detail image 4
▤ Technical Specifications ⌃
Parameter Value
Gear Ratio
Gear Ratio 51 / 81 / 101 / 121 / 161
DC Bus Voltage
DC Bus Voltage 48 VDC
Performance & Electrical Ratings
Peak Torque 405 N.m (51) / 641 N.m (81) / 702 N.m (101) / 762 N.m (121) / 800 N.m (161)
Rated Torque 216 N.m (51) / 345 N.m (81) / 430 N.m (101) / 515 N.m (121) / 557 N.m (161)
Maximum Speed 49 rpm (51) / 31 rpm (81) / 25 rpm (101) / 21 rpm (121) / 16 rpm (161)
Rated Speed 35 rpm (51) / 22 rpm (81) / 18 rpm (101) / 15 rpm (121) / 11 rpm (161)
Maximum Current 59.62 Arms (51) / 59.41 Arms (81) / 52.18 Arms (101) / 47.28 Arms (121) / 37.30 Arms (161)
Rated Current 31.80 Arms (51) / 31.98 Arms (81) / 31.96 Arms (101) / 31.95 Arms (121) / 25.97 Arms (161)
Torque Constant 6.79 N.m/Arms (51) / 10.79 N.m/Arms (81) / 13.45 N.m/Arms (101) / 16.12 N.m/Arms (121) / 21.45 N.m/Arms (161)
Motor Phase‑to‑Phase Resistance 0.05 Ohms (20°C)
Motor Phase‑to‑Phase Inductance 0.35 mH
Motor Back‑EMF Constant 13.5 Vms/krpm
Encoder & Positioning
Encoder Type Absolute BISS‑C Protocol
Encoder Resolution (Output) Single‑turn 2° (1048576), Multi‑turn 2° (4096)
Positioning Accuracy (Full Closed‑Loop) ≤75 Arcsec(default), customisable unidirectional ≤20 Arcsec
Repeat Positioning Accuracy ≤10 Arcsec
Mechanical Properties
Tilt Stiffness 175 × 10⁶ N.m/rad
Torsional Stiffness 14 × 10⁶ N.m/rad (51) / 18.6 × 10⁶ N.m/rad (81/101/121/161)
Holding Brake (Motor Side) ≥6 N.m
Rotor Moment of Inertia (Without Brake) 1.6 × 10⁻³ kg·m²
Rotor Moment of Inertia (With Brake) 1.67 × 10⁻³ kg·m²
Mass (Without Brake) 7.49 Kg
Mass (With Brake) 7.8 Kg
Number of Motor Poles 16
Interfaces
IO Interface Two 24V IO inputs, two 24V IO outputs
Analog Interface ±10V analog interface
Communication Protocol EtherCAT (CIA402) / CANopen (CIA402) / CAN‑FD / 485‑Modbus
Debugging Interface
USB Debugging 1. Open position, speed, current loop data and real‑time PID adjustment; 2. Driver status reading; 3. Variable load inertia identification
Motion Modes
Motion Modes 1. Profile Torque 2. Profile Speed 3. Profile Position 4. Cyclic Synchronous Position 5. Cyclic Synchronous Speed 6. Cyclic Synchronous Current 7. Analog Current 8. Analog Speed 9. Homing
Protection Modes
Protection Modes 1. STO (Safe Torque Off) 2. Undervoltage & overvoltage & overcurrent 3. Driver overtemperature 4. Speed tracking error 5. Current tracking error 6. Position tracking error 7. Synchronisation error 8. Communication error 9. Homing failure
Ambient Conditions
Ambient Conditions Operating temp: 0~40°C / Storage: ‑20~60°C / Humidity: 20~80% RH (non‑condensing) / Vibration: 24.5 m/s² (10~400 Hz) / Free from dust, metal particles, corrosive/flammable gases, oil mist / Indoor use, avoid direct sunlight / Altitude below 1000 m
Motor Insulation
Insulation Resistance 100 MΩ or higher (DC 500 V)
Dielectric Strength AC 1500 V / 1 min
Insulation Class Class F
Protection Rating
Protection Rating IP40
